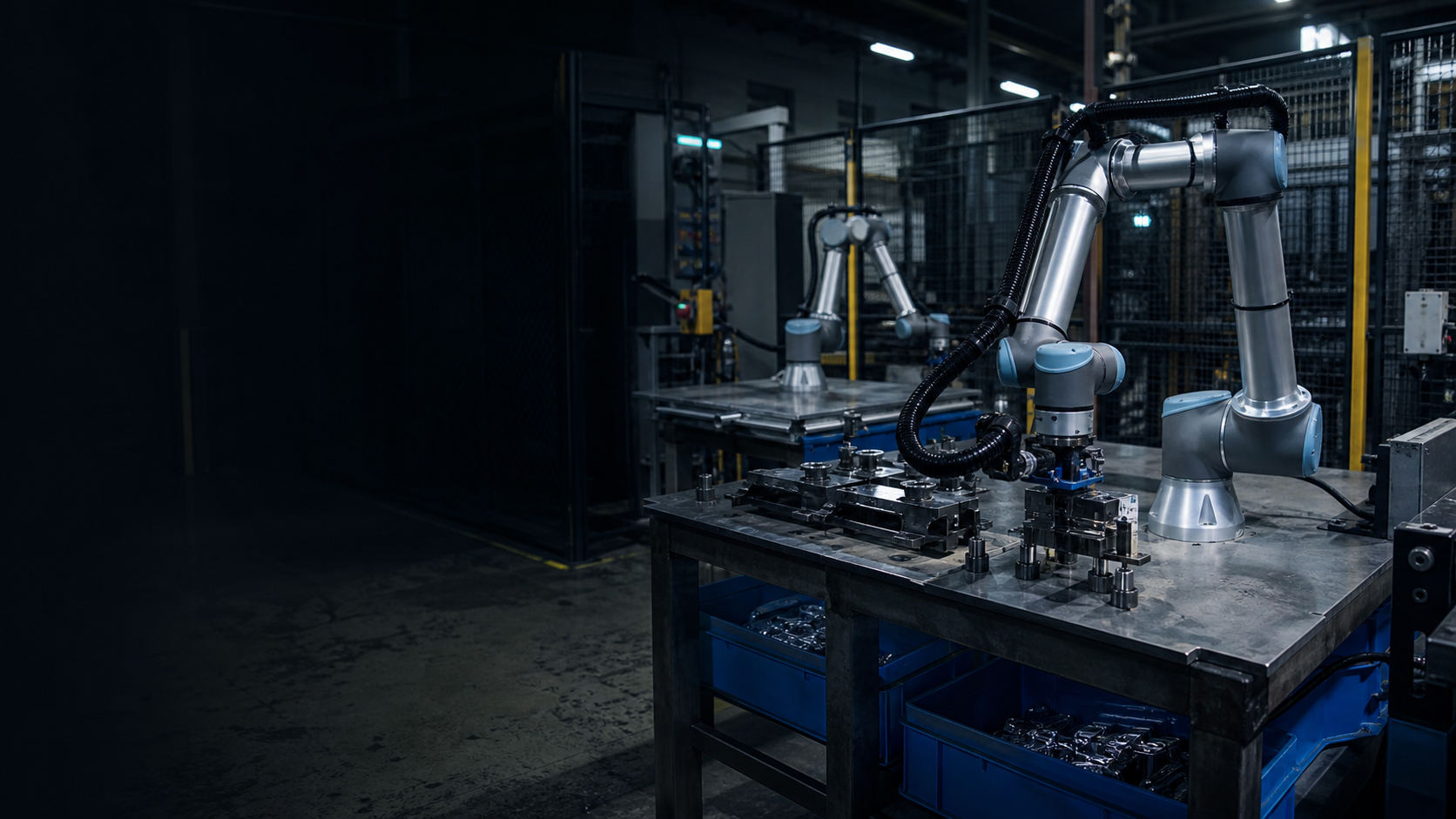

Collaborative robotic arms operating around an industrial assembly workstation.
Applications

Application hardware

Robotic Arms & Cobots

Plan motion axes, reducers, force feedback, end-of-arm hardware, safety circuits and engineering file access for robot arm projects.

AI-generated editorial scene for robotic arm and cobot integration.

Application architecture

Resolve the axis chain before the cell around it.

Each arm axis connects motor, drive, reducer, feedback, brake and structure; the wrist then adds EOAT load, force sensing, dress-pack routing and the cell safety boundary.

01

Axis performance

Payload, reach, speed, acceleration and duty cycle set torque, ratio and thermal requirements.

02

Transmission & feedback

Reducer, bearings, encoder and brake must fit the axis stiffness, backlash and holding needs.

03

Wrist & EOAT

Tool mass, center of gravity, moment, utilities and force sensing shape the wrist interface.

04

Dress pack & cell safety

Moving power, feedback, pneumatic and communication routes must preserve bend life while guarding, interlocks, E-stop and STO remain in the integrator risk boundary.

Integration decisions

Keep the interfaces in view as you narrow the hardware.

Motor-to-output sizing

Review torque, speed, ratio, efficiency and thermal margin at the loaded axis.

Torque · speed · ratio · duty

Wrist interface

Define flange, EOAT moment, utilities and force/torque sensing before adapter work.

Flange · payload · moment · sensing

Motion and safety boundary

Separate axis control requirements from guarding, scanner and force-limited validation ownership.

Drive · STO · guarding · validation

Choose a hardware path

Use the path that matches the decision you need to make next.

Select axis hardware from known loads

Use published motors, reducers, encoders, brakes and force sensors when axis targets are defined.

Browse arm-axis hardware

Adapt the wrist and moving services

Use custom dress packs, flange adapters and EOAT interfaces when geometry controls the solution.

Review arm custom builds

Review the arm subsystem

Use engineering review when axes, EOAT, sensing and safety interfaces must be resolved together.

Describe the arm project

Prepare your request

Share the inputs you already know.

  • Axis count, payload, reach and cycle profile
  • Motor, reducer, encoder, brake and drive concept
  • Wrist payload, center of gravity and tool flange
  • Dress-pack routes, utilities and connector locations
  • Force sensing and safety-boundary requirements
  • Required drawings, flange CAD, wiring or STEP/STP files
  • Axis count, payload, reach, speed and cycle profile
  • Motor, drive, reducer ratio, encoder and brake requirements
  • Dress-pack routing, bend radius and connector locations
  • EOAT payload, moment, duty cycle and tool flange
  • Force/torque sensing or compliant control need
  • E-stop, interlock, scanner, safety I/O and STO boundary
  • Required 2D, STEP/STP, wiring or datasheet files

What this review can produce

Turn the open decisions into a reviewable next step.

  • A governing-axis hardware shortlist and missing sizing inputs
  • A wrist, EOAT and sensing interface definition
  • Custom dress-pack or adapter work requiring geometry review
  • Controlled files needed for load, flange or wiring decisions

What this page does not cover

This page is not a certified cobot safety assessment and does not validate force-limited operation, machine guarding, cycle performance or a complete robot cell without customer-side risk assessment and validation.

Controlled engineering files

State the arm axis, wrist or tool flange involved and whether the requested file supports torque review, mounting, cable routing, EOAT load calculation or safety I/O mapping.

Engineering review

Define the arm axis and EOAT conditions that drive selection.

Provide the axis load case, flange drawing, EOAT concept or current motor/reducer list. The initial review can identify the missing torque, interface and safety inputs.
