Robot component catalog
Browse robot hardware by component family, product platform or exact SKU. Compare configurations, specifications and engineering-file availability.
251
Catalog series
2,169
Model SKUs
1,647
Engineering files
Counts reflect the current catalog. CAD access varies by configuration and is available by request for supported products.
Component family navigator
1,558 configurations 218 platforms

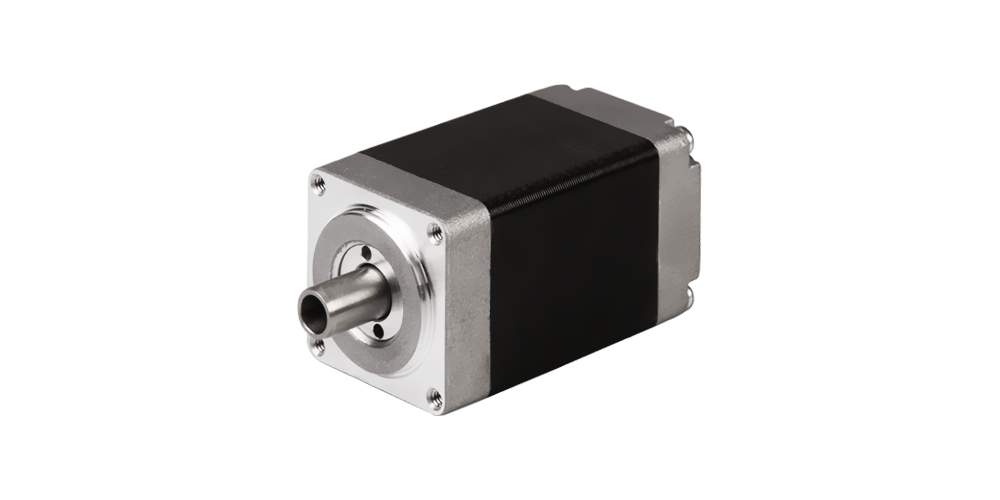

Product platform
Exact SKU
ES-ST-11HS2033-4D-100Key specifications
Motor Body Length
33 mm
Detent torque
0.003 N·m
Frame Size
28 mm
Exact SKU
ES-ST-11HS2045-4D-100Key specifications
Motor Body Length
45 mm
Detent torque
0.004 N·m
Frame Size
28 mm

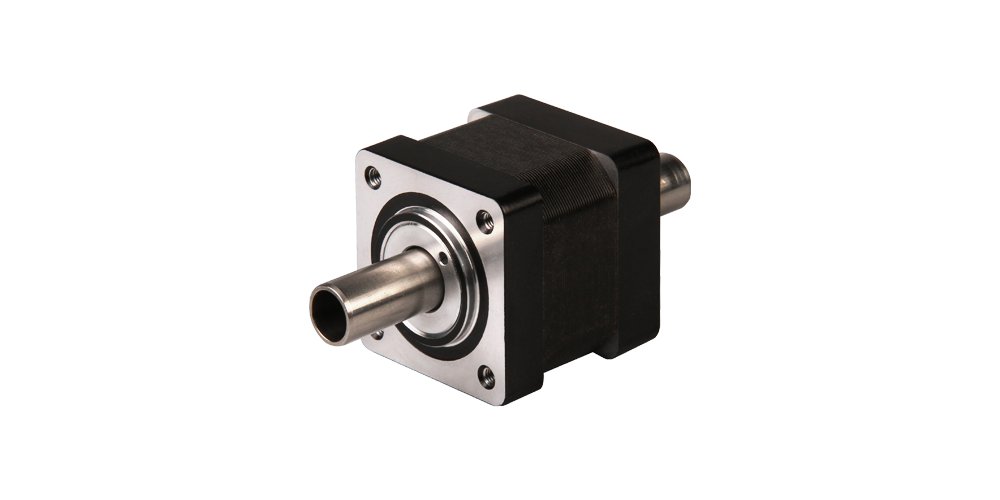

Product platform
Exact SKU
ES-ST-14HS2033-4D-100Key specifications
Motor Body Length
33 mm
Detent torque
0.006 N·m
Frame Size
35 mm
Exact SKU
ES-ST-14HS2045-4D-100Key specifications
Motor Body Length
45 mm
Detent torque
0.01 N·m
Frame Size
35 mm

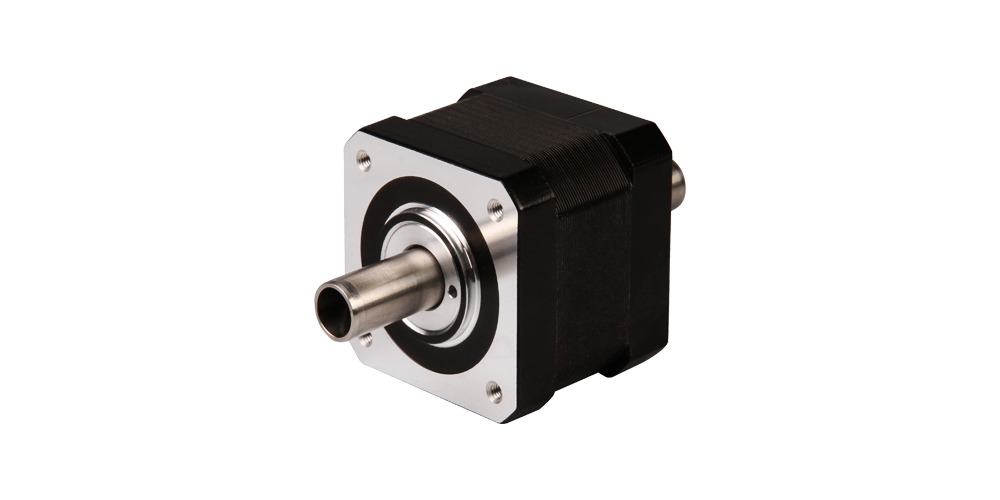

Product platform
Exact SKU
ES-ST-17HS2034-4D-100Key specifications
Motor Body Length
34 mm
Detent torque
0.014 N·m
Frame Size
42 mm
Exact SKU
ES-ST-17HS2048-4D-250Key specifications
Motor Body Length
48 mm
Detent torque
0.02 N·m
Frame Size
42 mm

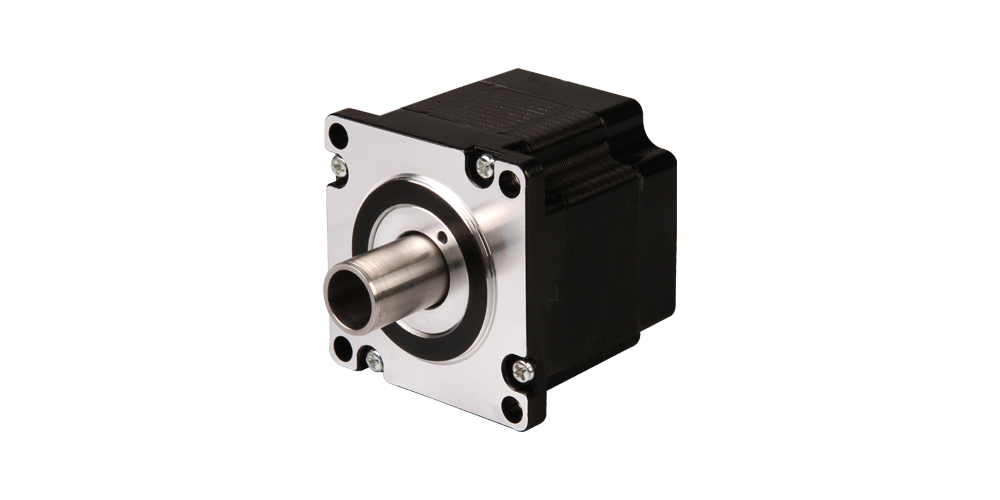

Product platform
Exact SKU
ES-ST-23HS2045-4D-200Key specifications
Motor Body Length
45 mm
Detent torque
0.03 N·m
Frame Size
57 mm
Exact SKU
ES-ST-23HS2065-4D-250Key specifications
Motor Body Length
65 mm
Detent torque
0.06 N·m
Frame Size
57 mm
Product platform
Exact SKU
ES-ST-24HS2047-4D-400Key specifications
Motor Body Length
47 mm
Detent torque
0.03 N·m
Frame Size
60 mm
Exact SKU
ES-ST-24HS2068-4D-400Key specifications
Motor Body Length
68 mm
Detent torque
0.06 N·m
Frame Size
60 mm

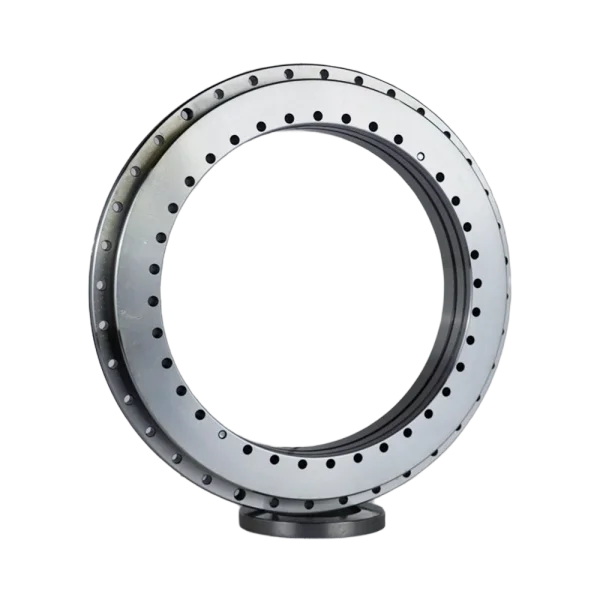

Product platform
Key specifications
Inner Ring Diameter
100 mm
Outer Diameter
185 mm
Bearing Height H
38 mm
Key specifications
Inner Ring Diameter
120 mm
Outer Diameter
210 mm
Bearing Height H
40 mm

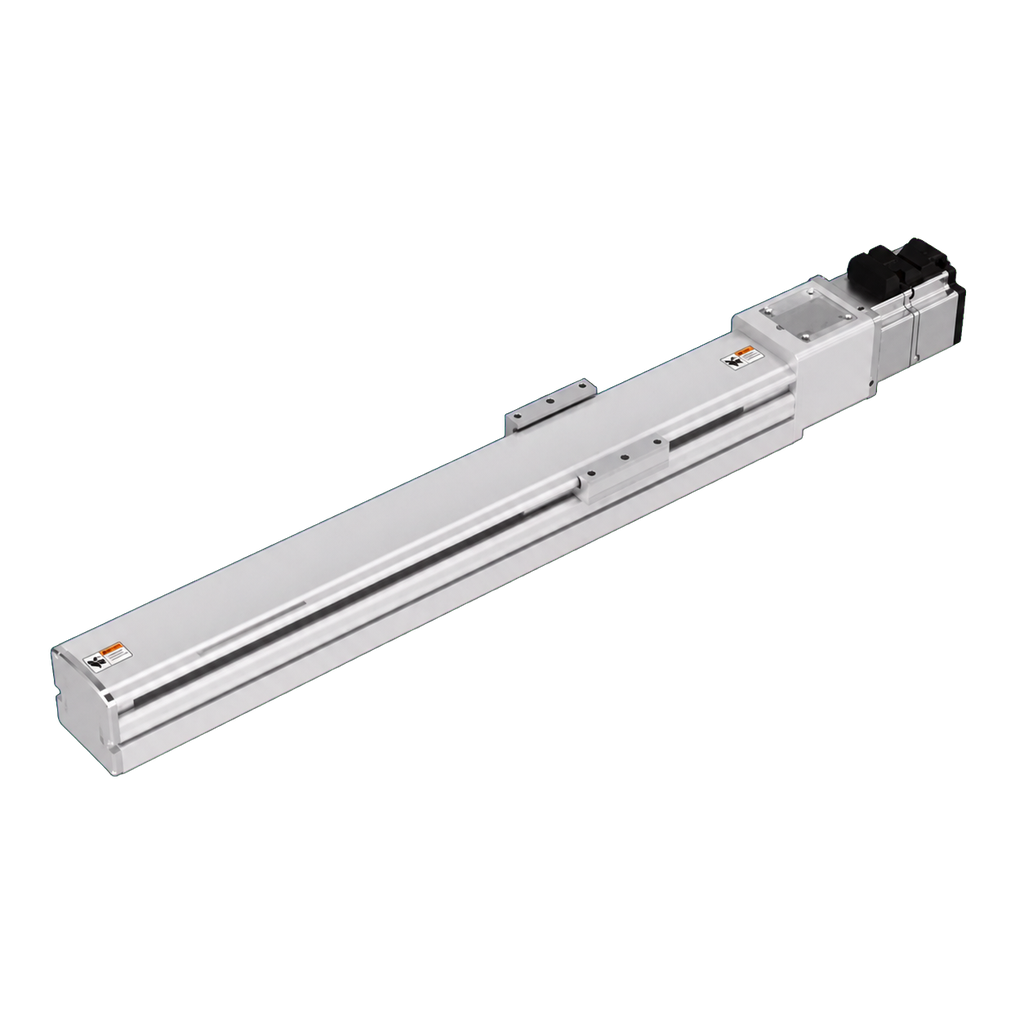

Product platform
Key specifications
Body Width
60 mm
Available Stroke Range
100–1000 mm
Motor Mounting Options
Inline external motor, Left-fold motor mount, Right-fold motor mount
Key specifications
Body Width
80 mm
Available Stroke Range
100–1000 mm
Motor Mounting Options
Inline external motor, Left-fold motor mount, Right-fold motor mount
Product platform
Exact SKU
ES-BR-C27-S014-V001Key specifications
Shaft Diameter
130 mm
Inner Ring Diameter
130 mm
Outer Diameter
205 mm
Exact SKU
ES-BR-C27-S014-V002Key specifications
Shaft Diameter
150 mm
Inner Ring Diameter
150 mm
Outer Diameter
225 mm
Product platform
Exact SKU
ES-BR-C27-S006-V001Key specifications
Shaft Diameter
80 mm
Inner Ring Diameter
80 mm
Outer Diameter
165 mm
Exact SKU
ES-BR-C27-S006-V003Key specifications
Shaft Diameter
115 mm
Inner Ring Diameter
115 mm
Outer Diameter
240 mm
Product platform
Key specifications
Body Width
65 mm
Available Stroke Range
100–800 mm
Motor Mounting Options
Inline external motor, Left-fold motor mount, Right-fold motor mount
Key specifications
Body Width
80 mm
Available Stroke Range
100–1000 mm
Motor Mounting Options
Inline external motor, Left-fold motor mount, Right-fold motor mount

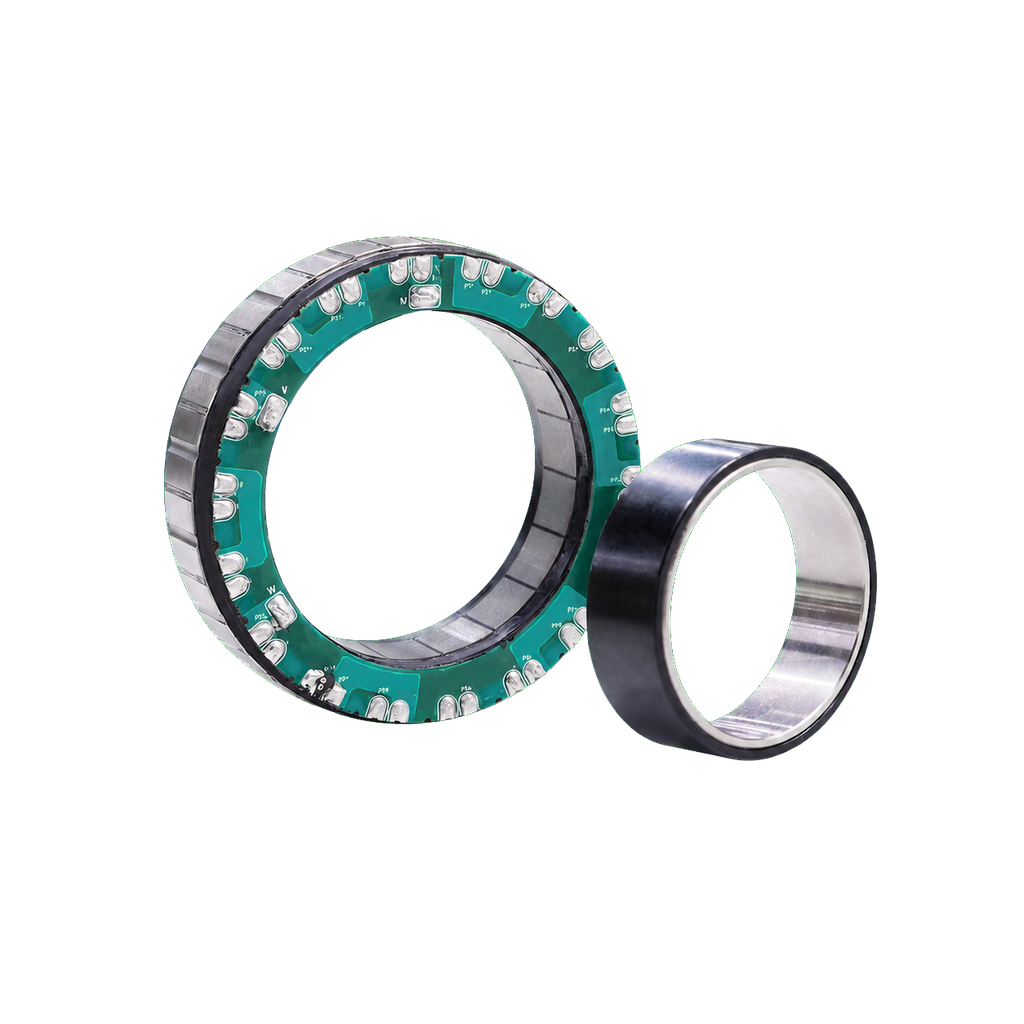

Exact SKU
ES-FM-H01-OD038-T0P135NM-001Key specifications
Number of Poles
14
Rated Power
50 W
Operating Supply Voltage
48 VDC
Exact SKU
ES-FM-H01-OD043-T0P2NM-001Key specifications
Number of Poles
14
Rated Power
77 W
Operating Supply Voltage
48 VDC
Browse by robot subsystem
Can't find the right configuration?
Share the requirements you already know and we can help identify the closest catalog platform or a custom hardware option.
