Hollow-Shaft Stepper Motor

35 mm Hollow-Shaft Stepper Motor - 1 A · 0.32 N·m · 6 Ω · 7.8 mH

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Exact SKU ES-ST-14HS2045-4D-100
Frame Size
35 mm
Motor Body Length
45 mm
Rated Current
1 A
Holding torque
0.32 N·m
Phase resistance
6 Ω
Phase inductance
7.8 mH
Physical product image
Product image for ES-ST-14HS2045-4D-100
Request engineering quote Review engineering files

2D drawing

Review the drawing with its engineering data

Primary drawing views stay beside the annotated data table so a focused row highlights the matching callout.

Reviewed annotated drawing
Drawing controls
Scale: 100%

Primary Drawing Viewer

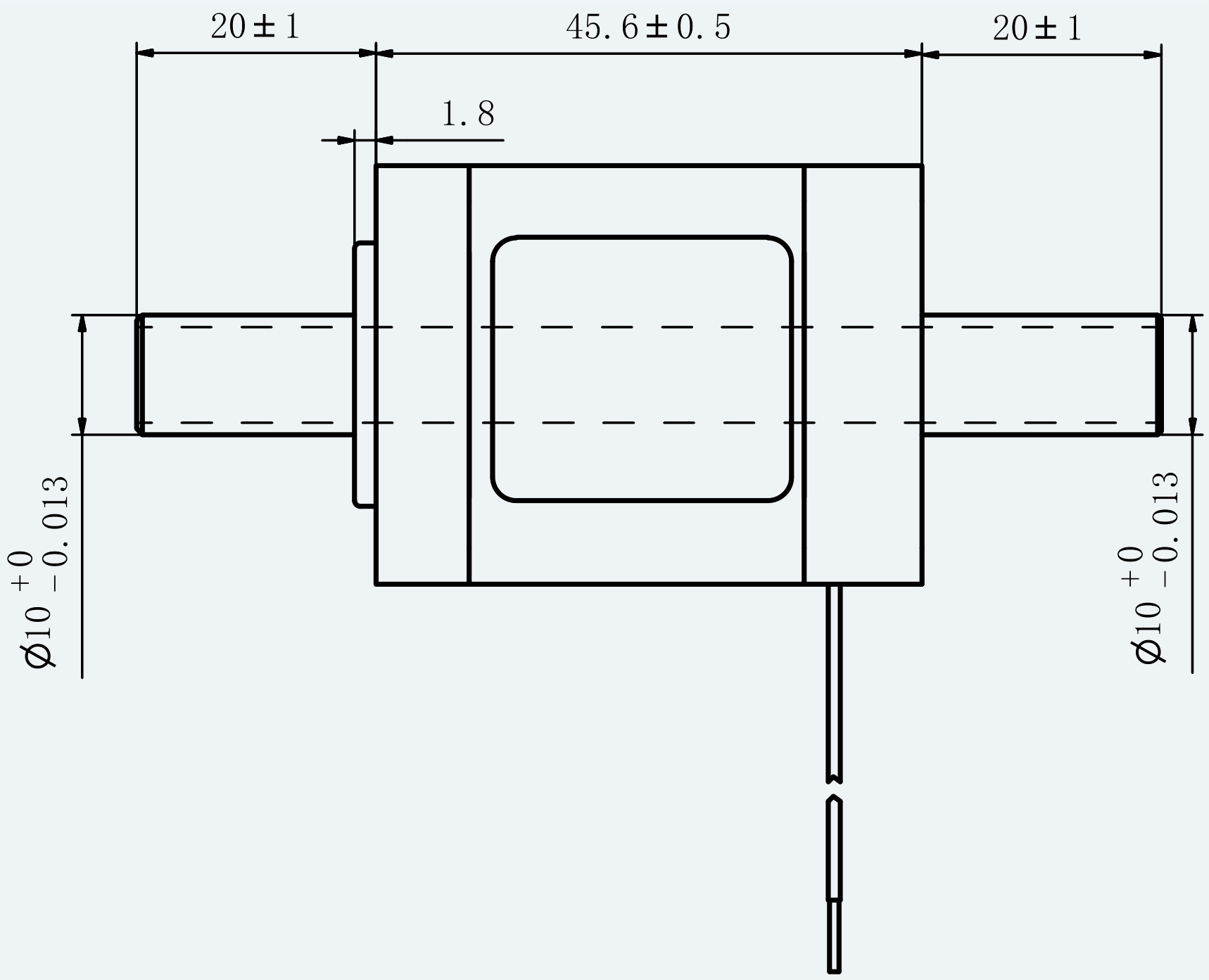

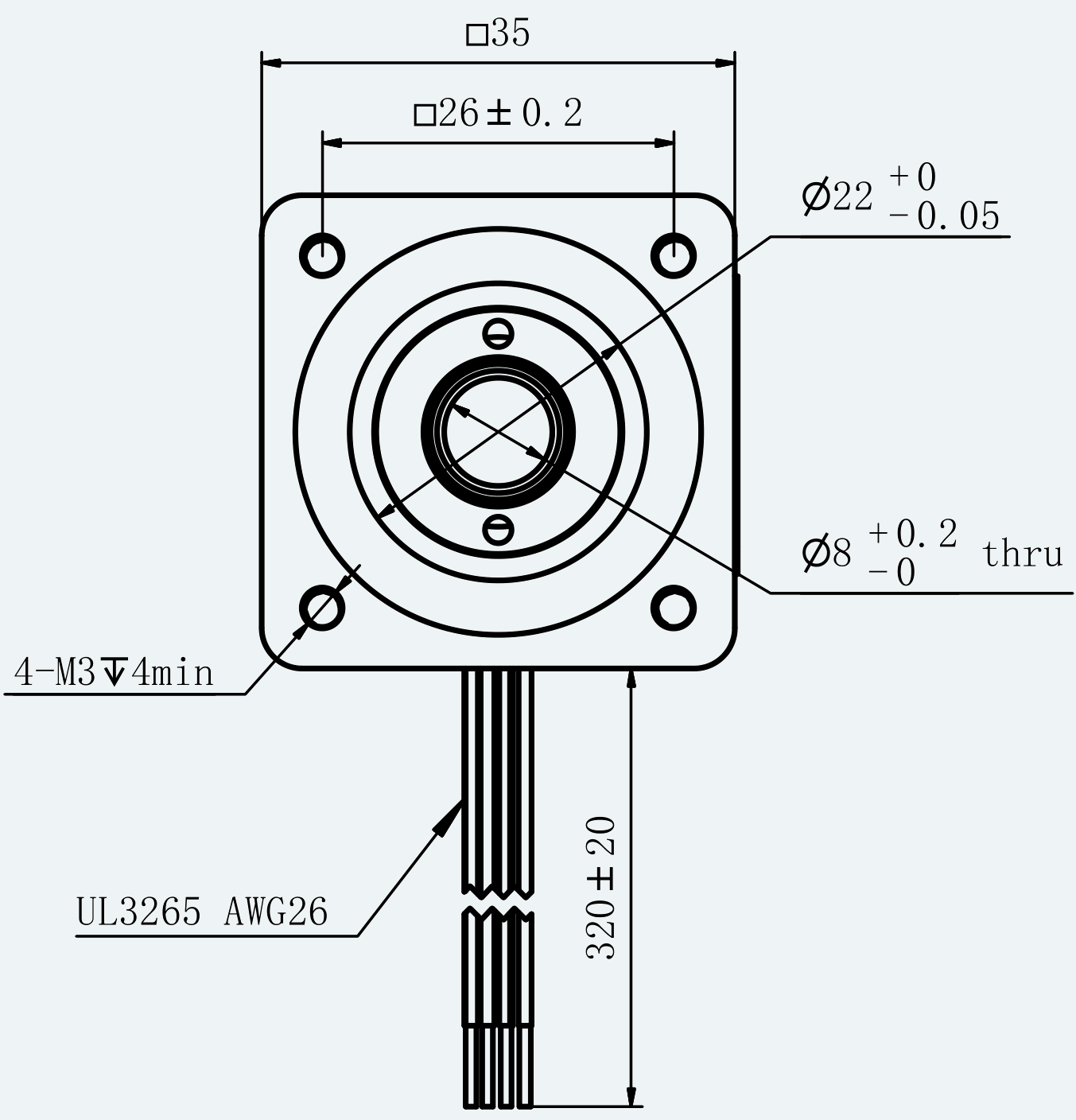

Mechanical View 1 1 / 2
Mechanical View 1 for ES-ST-14HS2045-4D-100
Mechanical View 1

3D fit review

Inspect envelope and mounting relationships

The interactive toolbar stays with the model. Controlled CAD access remains a separate engineering-file request.

Interactive reviewed preview
More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Full specifications

Grouped engineering parameters

All 20 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

20 published fields

Electrical Parameters

10 fields

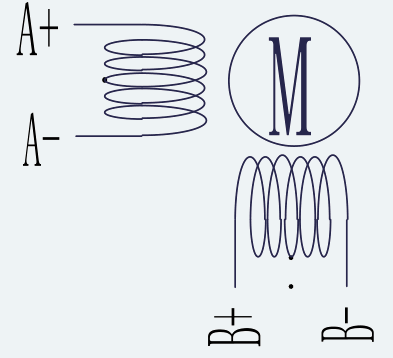

Lead Wire Configuration
Bipolar, 4 flying leads
Lead Wire Count
4
Phase Count
2
Phase inductance
7.8 mH
Phase resistance
6 Ω
Rated Current
1 A
Rated voltage
6 VDC
Insulation Class
B
Insulation Resistance
100 MΩ(500 VDC)
Temperature Rise
80 °C

Performance Parameters

3 fields
Detent torque
0.01 N·m
Holding torque
0.32 N·m
Step Angle
1.8 °

Mechanical Parameters

7 fields
Motor Body Length
45 mm
Frame Size
35 mm
Motor Type
Hollow Shaft Stepper Motor
NEMA Size
14
Shaft Configuration
Double shaft
Rotor Inertia
28 g·cm²
Weight
0.2 kg

Product documentation

Product documentation

Review published PDFs for specifications, then request controlled 2D and 3D engineering files for integration.

Published PDFsDirect access · current public editions

SKU Datasheet

ES-ST-14HS2045-4D-100 Product Datasheet

SKU-specific · Specifications and performance data

Review performance specifications, operating limits and selection data for this SKU.

R03 4 pages · 293 KB

View datasheet (PDF)

SKU Integration Guide

ES-ST-14HS2045-4D-100 Dimensional & Integration Guide

SKU-specific · Dimensions and mounting interfaces

Review dimensions, mounting interfaces and integration notes for this SKU.

R01 6 pages · 530 KB

View integration guide (PDF)

Category Selection Guide

Hollow Shaft Stepper Motors Category Selection Guide

Category-wide · Product platform comparison

Compare product platforms, key selection parameters and application requirements to narrow your options.

R01 5 pages · 154 KB

View selection guide (PDF)
2D Engineering Drawing

2D drawing

1 file available · Product-specific resource

Review the 2D preview above; request the controlled source drawing when needed.

Preview available · drawing access by request
3D CAD Model

STEP / STP CAD

1 file available · Product-specific resource

A product-specific CAD file is available through the controlled engineering file process.

File access by request · preview pending
