Rotary Table Bearing Platform 03 — Engineering Configuration V001

Exact SKU: ES-BR-C29-S003-V001

Confirm dimensions, fit, load, speed, lubrication, precision and installation conditions before final selection.

Stator outer diameter
185 mm
Limiting Speed
430 r/min
Inner Ring Diameter
100 mm
Mass
4 kg
Axial Dynamic Load Rating
76.5 kN
Axial Static Load Rating
415 kN
Radial Dynamic Load Rating
47.5 kN
Radial Static Load Rating
120 kN
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-BR-C29-S003-V001 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

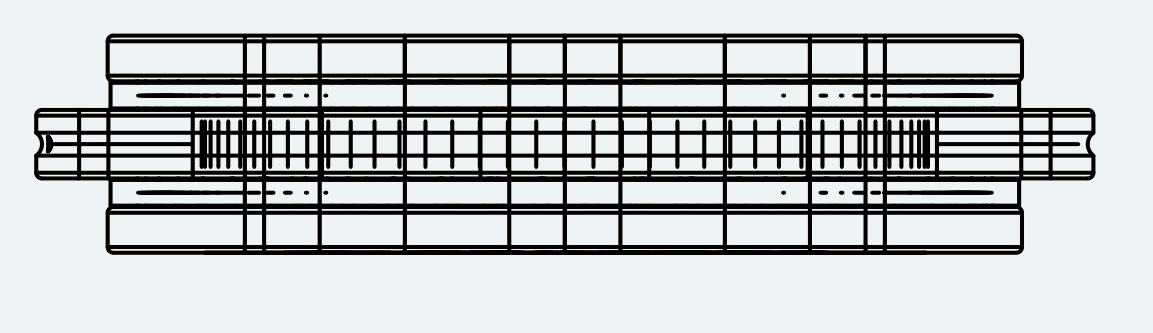

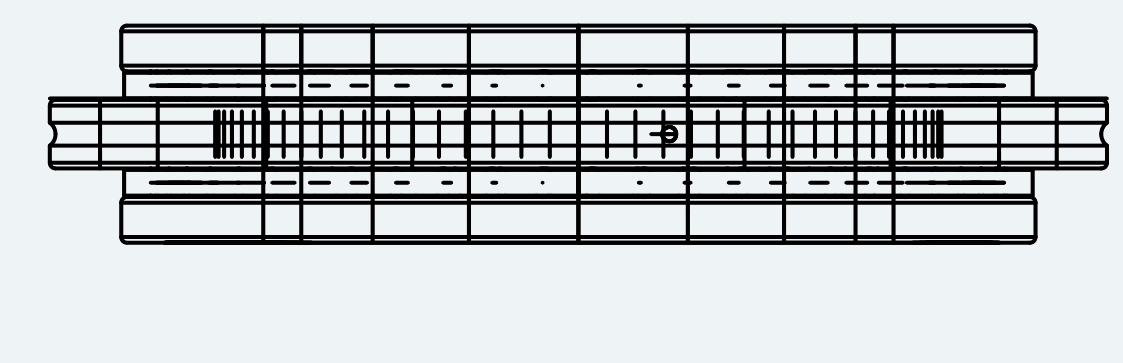

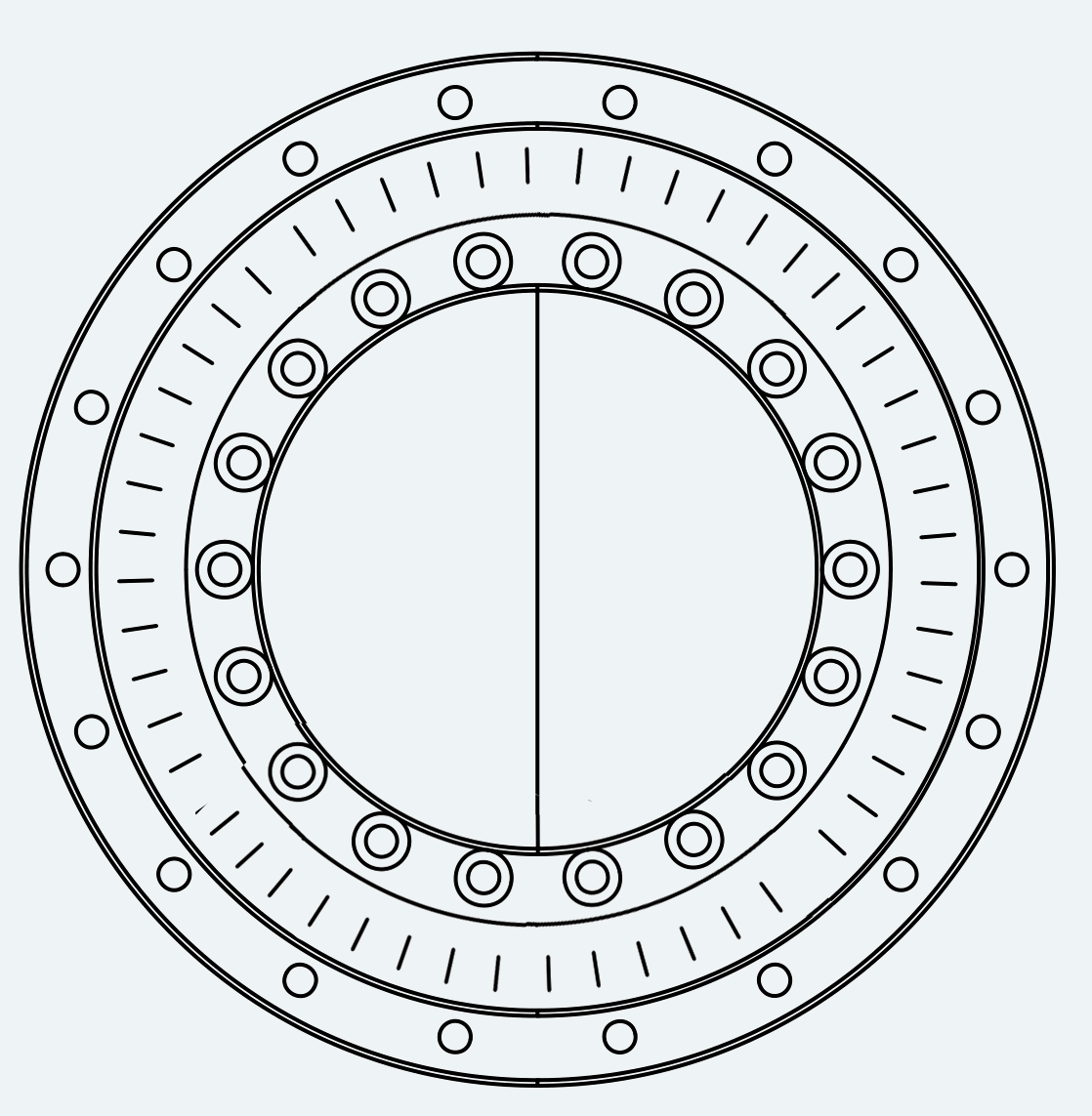

Mechanical View 1 for ES-BR-C29-S003-V001
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 28 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Inner Ring Diameter
100 mm
Stator outer diameter
185 mm
Bearing Height H
38 mm
Inner Ring Height H1
25 mm
Dimension C
12 mm
Dimension d1
160 mm
Dimension J
112 mm
Dimension J1
170 mm
Inner Ring Mounting Hole Diameter
5.6 mm
Inner Ring Counterbore Diameter
10 mm
Inner Ring Hole Pitch
5.4 mm
Inner Ring Mounting Hole Count
16
Inner Ring Lifting Hole Count
2
Outer Ring Mounting Hole Diameter
5.6 mm
Outer Ring Mounting Hole Count
15
Extraction Thread
M5
Extraction Thread Hole Count
3
Mounting Screw Specification
18×20°
Tightening Torque
8.5 N·m

Performance Parameters

Axial Dynamic Load Rating
76.5 kN
Axial Static Load Rating
415 kN
Radial Dynamic Load Rating
47.5 kN
Radial Static Load Rating
120 kN
Limiting Speed
430 r/min
Friction Torque
3 N·m
Rotation Accuracy P4
3 μm
Rotation Accuracy P2
1.5 μm

Mechanical Parameters

Mass
4 kg

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

STEP / STP CAD

Controlled Review

A validated browser preview may be available; native CAD remains controlled.

Request controlled CAD
