Harmonic Gearbox Configuration Catalog

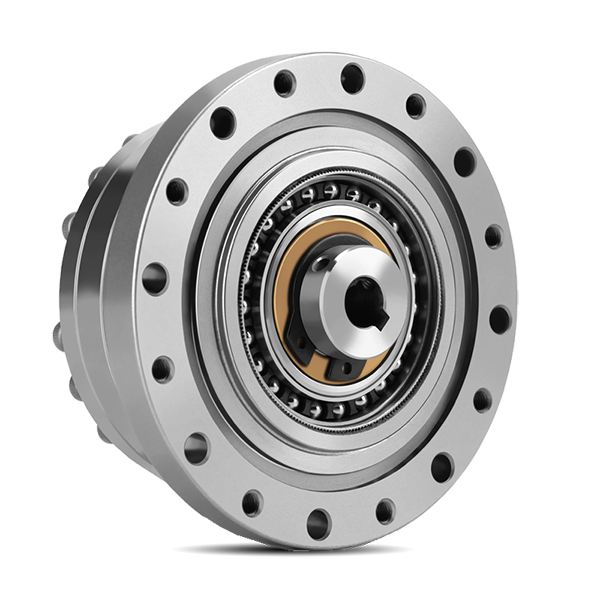

Cup Harmonic Gearboxes
Compare published Cup gearbox configurations by product form, frame size, ratio and recorded performance. Final configuration and controlled files remain subject to engineering review.
5
Published platforms
153
Published configurations
Engineering documentation
- 2D drawings
- Recorded for 153 configurations · Controlled release by request
- 3D CAD
- Documentation availability requires engineering review
Selection problem
Choose the Cup gearbox configuration path
Start with the product form and frame envelope, then narrow the published ratio and performance records. Engineering review must confirm the complete configuration.
Product form
Standard, lightweight and high-torque Cup records follow separate integration paths.
Frame size
Frame size narrows the mechanical envelope and available published records.
Reduction ratio
Ratio changes the recorded torque, speed and configuration set.
Torque and speed
Use recorded performance ranges to focus the engineering review.
Backlash
Backlash and other performance values remain evidence-bound.
Engineering files
2D and STEP/STP materials remain controlled and requestable.
Documentation to confirm
Documentation to confirm
Availability is confirmed during engineering review.
- Performance datasheet
- Dimensional drawing
- STEP / STP CAD
- Installation interface drawing
- Ratio and torque table
- Mounting information
- Lubrication / service notes
- Controlled configuration records
Prepare for RFQ
Prepare for RFQ
Submit the known product form, frame size, target ratio, load case, mounting constraints and required engineering files.
- Product form
- Target frame size
- Reduction ratio
- Continuous load torque
- Peak load condition
- Maximum input speed
- Duty cycle
- Mounting interface
- Estimated quantity
- Target timeline
- Required engineering files
