Stepper Motor

42 mm Stepper Motor — 3.8 V · 1 A · 0.25 N·m · 3.6 Ω

Exact SKU: ES-ST-17HS2034-4D-100

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Rated voltage
3.8 VDC
Rated current
1 A
Holding torque
0.25 N·m
Phase resistance
3.6 Ω
Phase inductance
4.5 mH
Rotor inertia
30.3 g·cm² kg·cm²
Mass
0.15 kg
Motor Body Length
34 mm
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-ST-17HS2034-4D-100 envelope view

Scale: 100%

2D Engineering Drawing Center

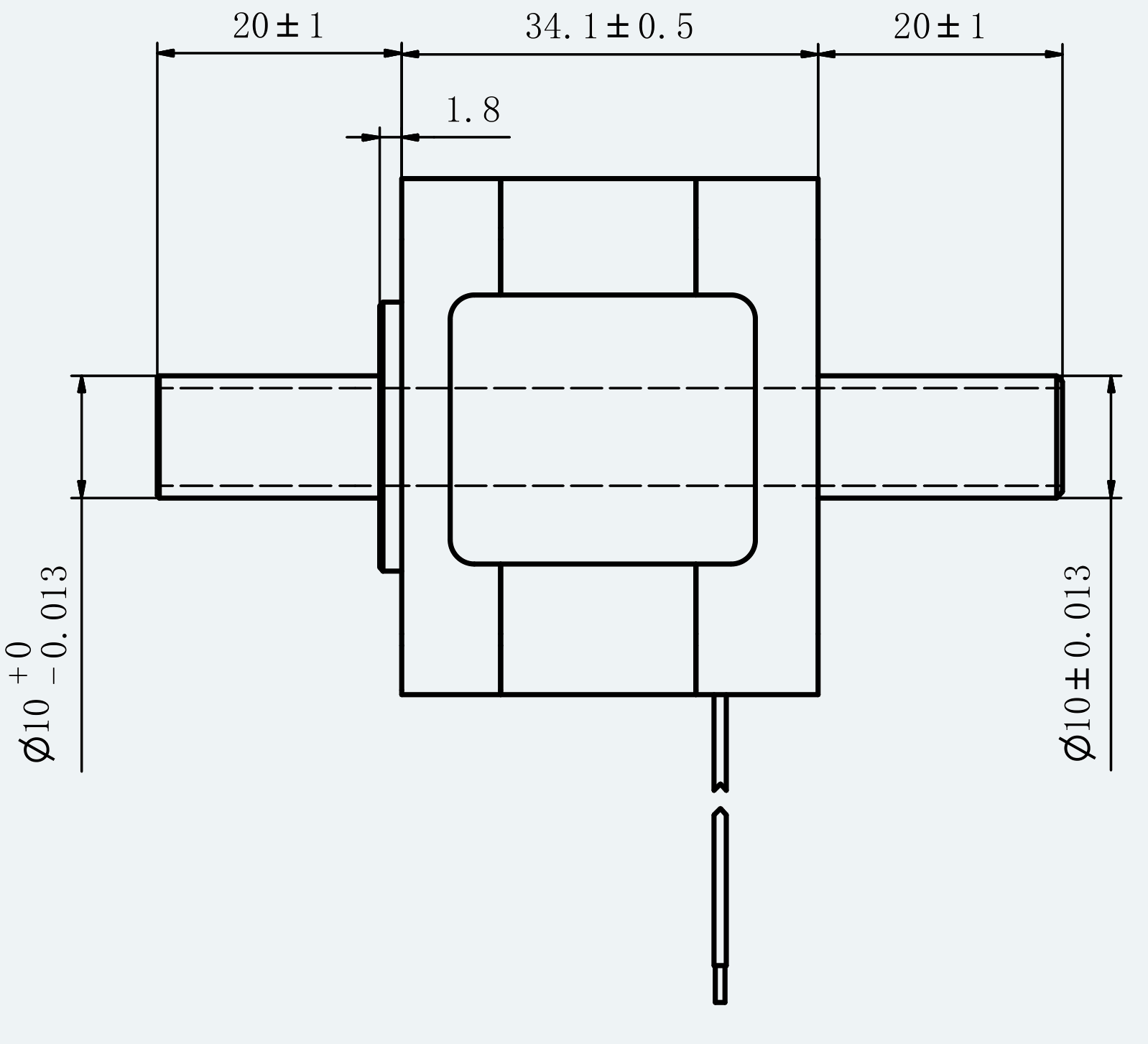

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

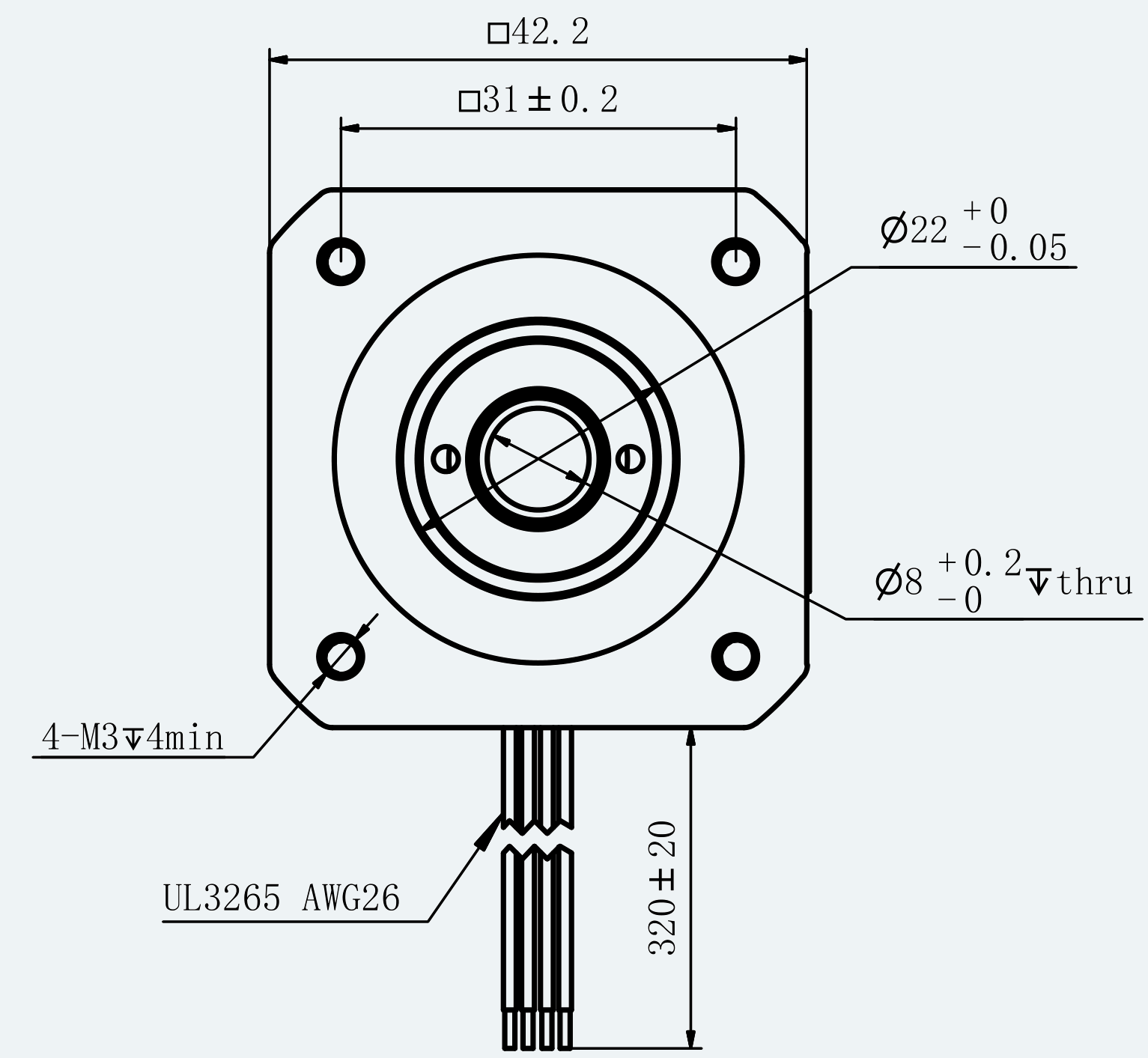

Mechanical View 1 for ES-ST-17HS2034-4D-100
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

Reviewed GLB preview for preliminary fit review.

More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Reviewed browser preview for preliminary fit review.

Full Specifications

Grouped engineering parameters

All 20 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

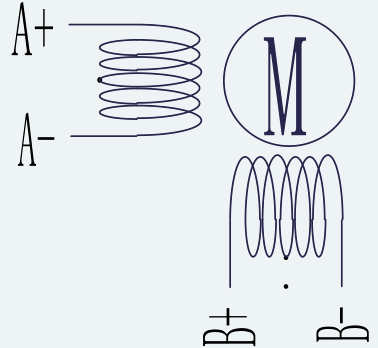

Lead Wire Configuration
Bipolar, 4 flying leads
Lead Wire Count
4
Phase Count
2
Phase inductance
4.5 mH
Phase resistance
3.6 Ω
Rated current
1 A
Rated voltage
3.8 VDC
Insulation class
B
Insulation Resistance
100 MΩ (500 VDC) MΩ
Temperature Rise
80°C

Performance Parameters

Detent torque
0.014 N·m
Holding torque
0.25 N·m
Step Angle
1.8 °

Mechanical Parameters

Motor Body Length
34 mm
Frame Size
42 mm
Motor Type
Hollow Shaft Stepper Motor
NEMA Size
17
Shaft Configuration
Double shaft
Rotor inertia
30.3 g·cm² kg·cm²
Mass
0.15 kg
