Precision Bearing

Rotary Table Bearing Platform 03 — Engineering Configuration V004

Exact SKU: ES-BR-C29-S003-V004

Confirm dimensions, fit, load, speed, lubrication, precision and installation conditions before final selection.

Stator outer diameter
210 mm
Limiting Speed
340 r/min
Inner Ring Diameter
120 mm
Mass
5.3 kg
Axial Dynamic Load Rating
102 kN
Axial Static Load Rating
540 kN
Radial Dynamic Load Rating
52 kN
Radial Static Load Rating
143 kN
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

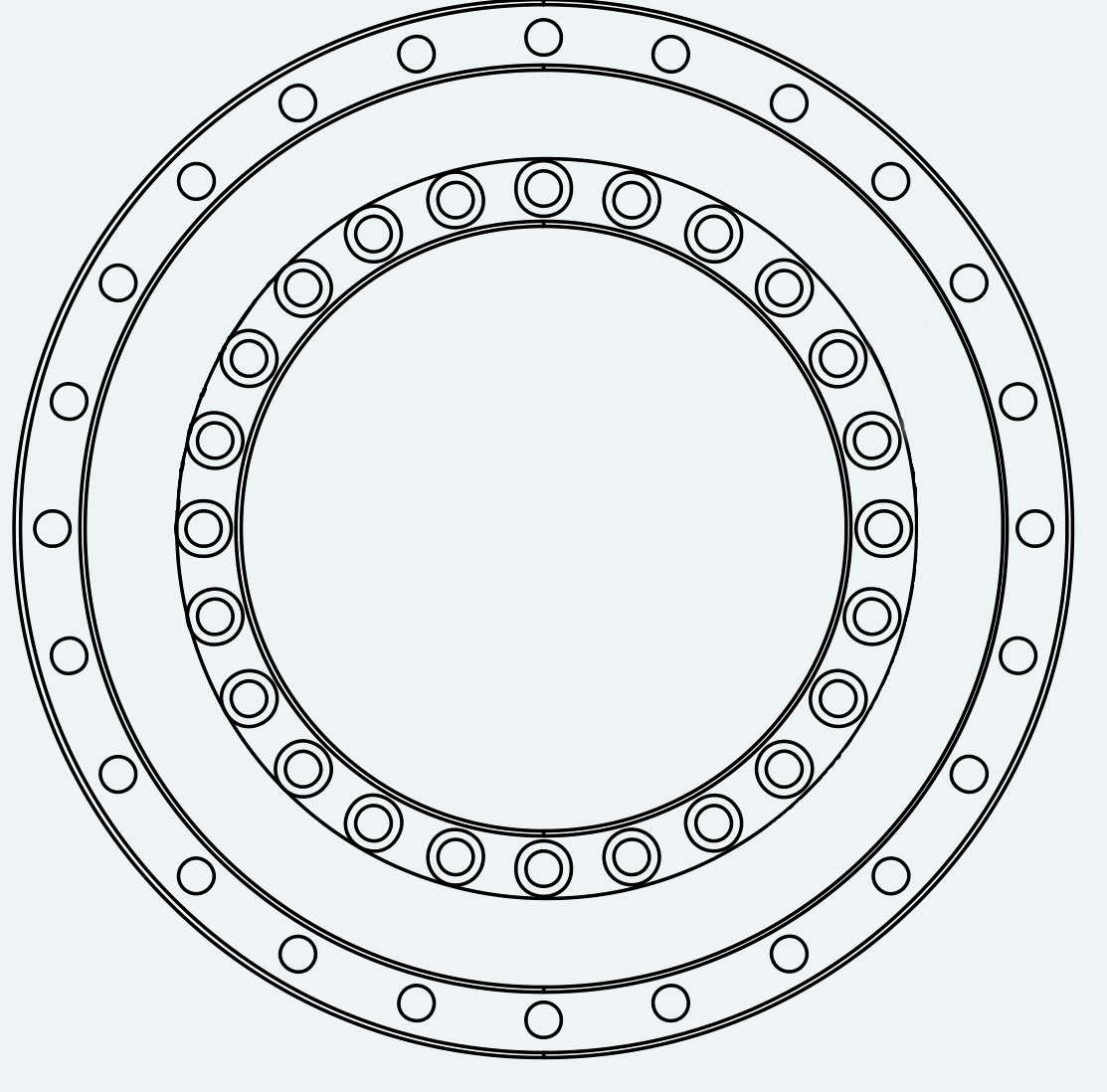

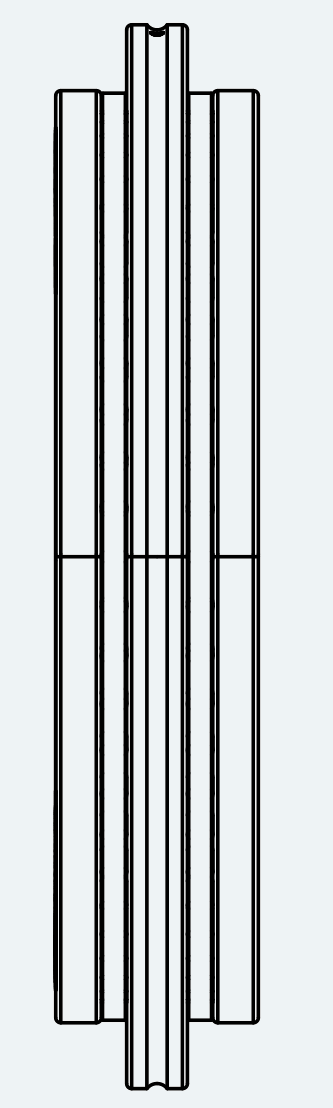

2D Structure Diagram

ES-BR-C29-S003-V004 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

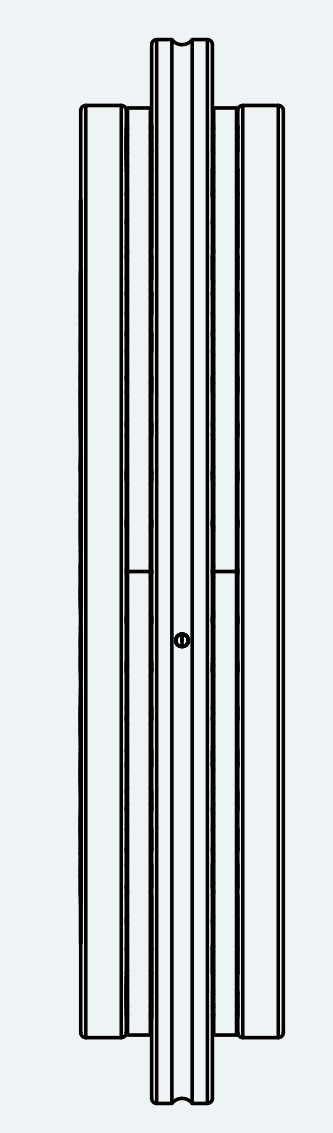

Mechanical View 1 for ES-BR-C29-S003-V004
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

Reviewed GLB preview for preliminary fit review.

More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Reviewed browser preview for preliminary fit review.

Full Specifications

Grouped engineering parameters

All 28 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Inner Ring Diameter
120 mm
Stator outer diameter
210 mm
Bearing Height H
40 mm
Inner Ring Height H1
26 mm
Dimension C
12 mm
Dimension d1
184 mm
Dimension J
135 mm
Dimension J1
195 mm
Inner Ring Mounting Hole Diameter
7 mm
Inner Ring Counterbore Diameter
11 mm
Inner Ring Hole Pitch
6.2 mm
Inner Ring Mounting Hole Count
22
Inner Ring Lifting Hole Count
2
Outer Ring Mounting Hole Diameter
7 mm
Outer Ring Mounting Hole Count
21
Extraction Thread
M8
Extraction Thread Hole Count
3
Mounting Screw Specification
24 ×15°
Tightening Torque
14 N·m

Performance Parameters

Axial Dynamic Load Rating
102 kN
Axial Static Load Rating
540 kN
Radial Dynamic Load Rating
52 kN
Radial Static Load Rating
143 kN
Limiting Speed
340 r/min
Friction Torque
7 N·m
Rotation Accuracy P4
3 μm
Rotation Accuracy P2
1.5 μm

Mechanical Parameters

Mass
5.3 kg

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Product documentation

Download the published product references

Start with the public PDF documents below to confirm specifications and dimensional context. When your project needs controlled 2D drawings, STEP/STP or native CAD, request the package through Engineering Files.

Published PDF library

Published technical documents

EmbodyStack published documents open directly as PDF from this site. Controlled drawings, STEP/STP files and native CAD remain request-based.

SKU Datasheet

ES-BR-C29-S003-V004 Product Datasheet

SKU-specific · Specifications and performance data

Review performance specifications, operating limits and selection data for this SKU.

R03 4 pages · 350 KB

View datasheet (PDF)

SKU Integration Guide

ES-BR-C29-S003-V004 Dimensional & Integration Guide

SKU-specific · Dimensions and mounting interfaces

Review dimensions, mounting interfaces and integration notes for this SKU.

R01 816 KB

View integration guide (PDF)

Category Selection Guide

Rotary Table Bearings Category Selection Guide

Category-wide · Product platform comparison

Compare product platforms, key selection parameters and application requirements to narrow your options.

R01 4 pages · 111 KB

View selection guide (PDF)

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

STEP / STP CAD

Controlled Review

A validated browser preview may be available; native CAD remains controlled.

Request controlled CAD

Compliance

Product Integration & Compliance

OEM INTEGRATION RESPONSIBILITY

This product is a component or configurable module intended for integration into an OEM, commercial, industrial or research system.

The customer is responsible for final product selection, system-level risk assessment, safety functions, mechanical and electrical integration, validation, certification and regulatory compliance.

Published ratings apply only under the stated conditions. Confirm the operating point, interfaces, control compatibility, thermal conditions, duty cycle and required documentation before final selection.

This product is not approved for a safety-critical or restricted application unless expressly authorized in writing.

TRANSMISSION INTEGRATION

Confirm rated and peak torque, backlash, stiffness, radial and axial loads, mounting accuracy, lubrication, temperature, duty cycle, shock loading and expected service life.

Published service-life information depends on the stated load and operating assumptions and does not constitute a complete system-life guarantee.
