Stepper Motor

57 mm Stepper Motor — 5 V · 2.5 A RMS · 1.5 N·m · 1.9 Ω

Exact SKU: ES-ST-23HS2065-4D-250

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Rated voltage
5 VDC
Rated current
2.5 A RMS
Holding torque
1.5 N·m
Phase resistance
1.9 Ω
Phase inductance
5.5 mH
Motor Body Length
65 mm
Detent torque
0.06 N·m
Frame Size
57 mm
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-ST-23HS2065-4D-250 envelope view

Scale: 100%

2D Engineering Drawing Center

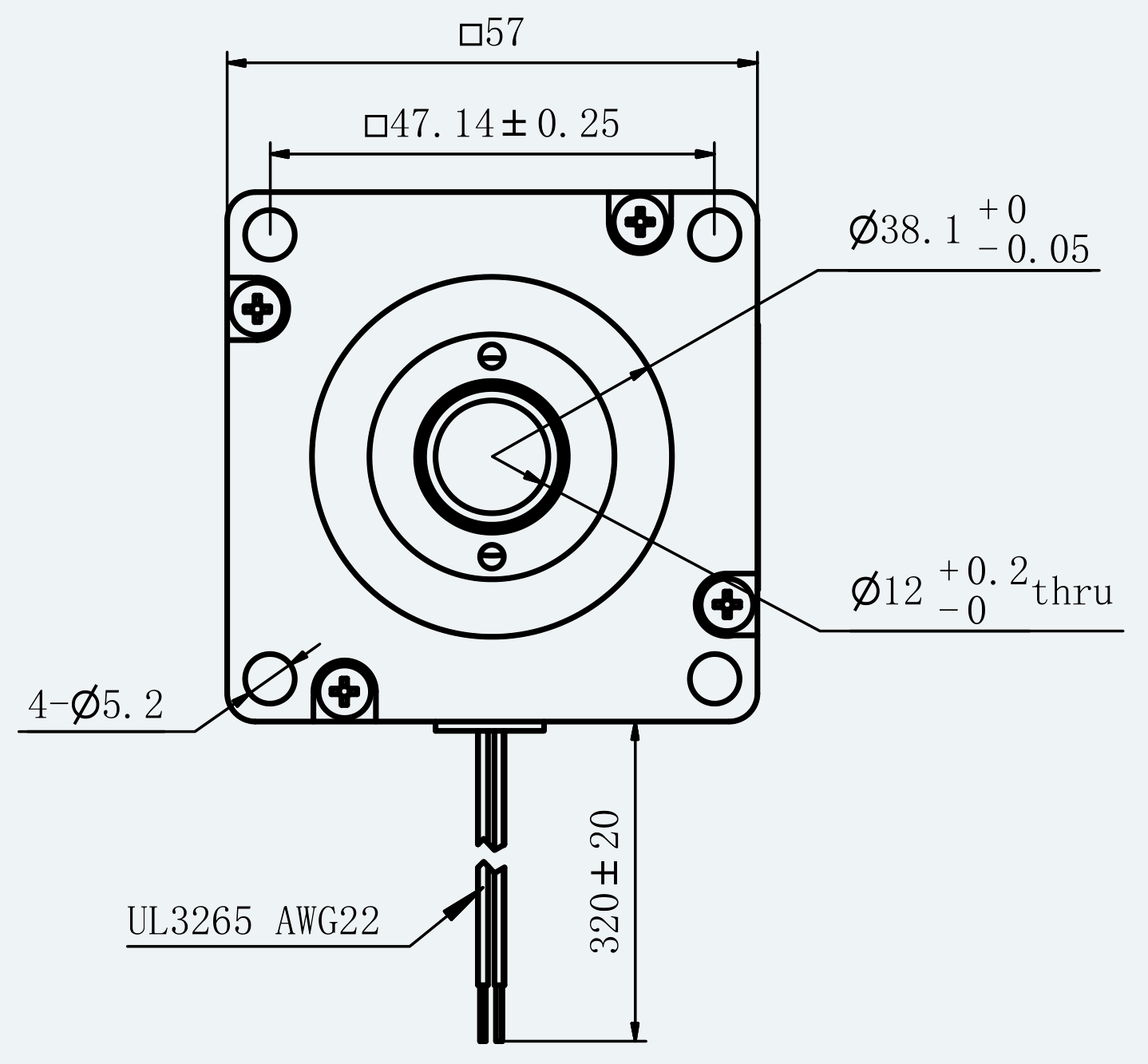

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

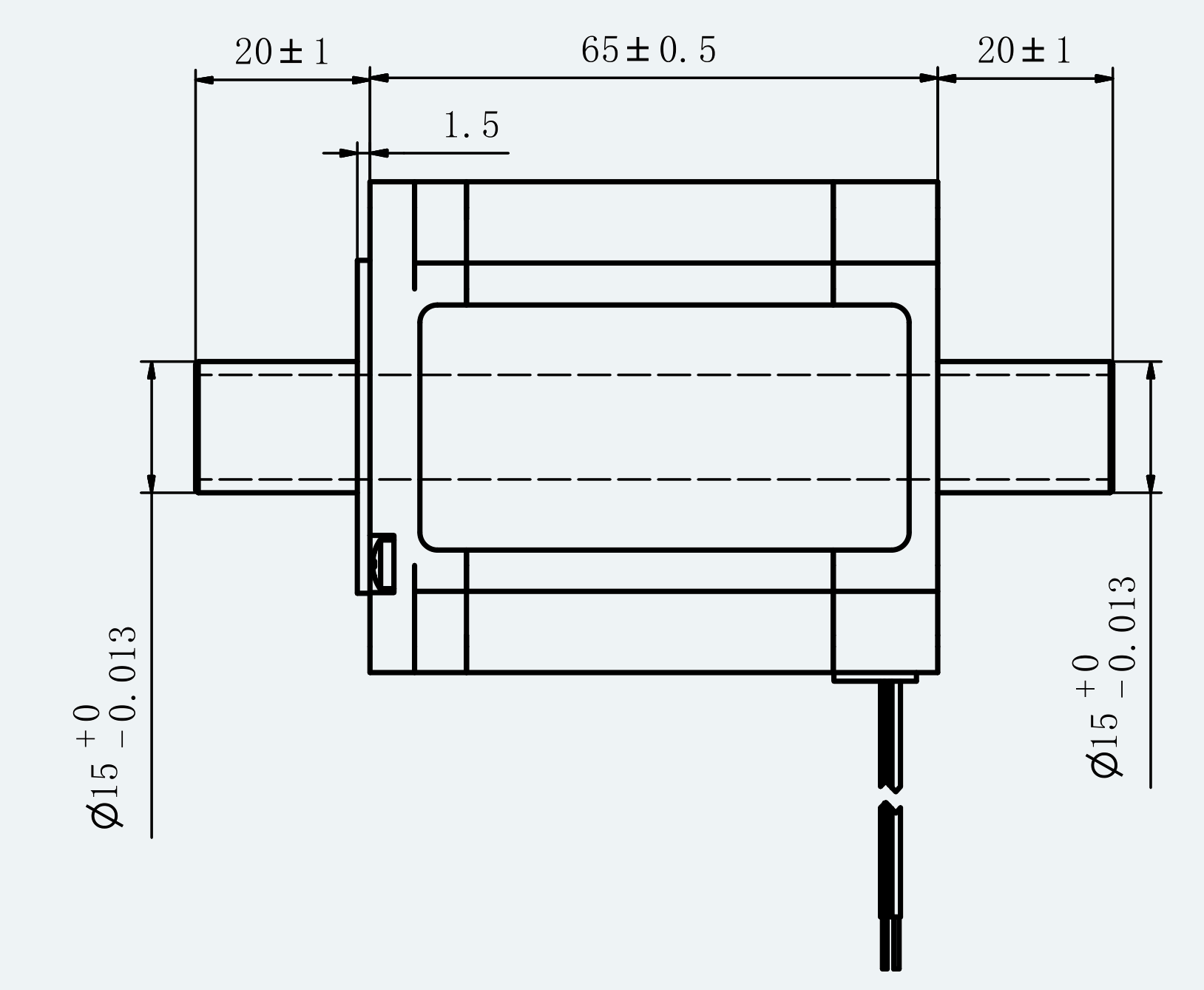

Mechanical View 1 for ES-ST-23HS2065-4D-250
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 15 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

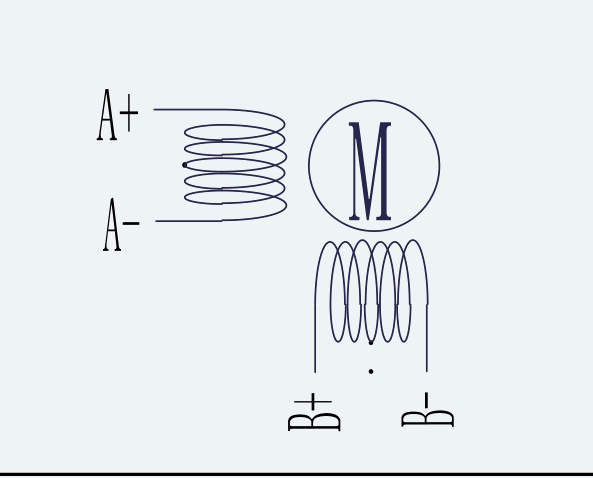

Lead Wire Configuration
Bipolar, 4 flying leads
Lead Wire Count
4
Phase Count
2
Phase inductance
5.5 mH
Phase resistance
1.9 Ω
Rated current
2.5 A RMS
Rated voltage
5 VDC

Performance Parameters

Detent torque
0.06 N·m
Holding torque
1.5 N·m
Step Angle
1.8 °

Mechanical Parameters

Motor Body Length
65 mm
Frame Size
57 mm
Motor Type
Hollow Shaft Stepper Motor
NEMA Size
23
Shaft Configuration
Double shaft

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

STEP / STP CAD

Controlled Review

A validated browser preview may be available; native CAD remains controlled.

Request controlled CAD

Compliance

Product Integration & Compliance

OEM INTEGRATION RESPONSIBILITY

This product is a component or configurable module intended for integration into an OEM, commercial, industrial or research system.

The customer is responsible for final product selection, system-level risk assessment, safety functions, mechanical and electrical integration, validation, certification and regulatory compliance.

Published ratings apply only under the stated conditions. Confirm the operating point, interfaces, control compatibility, thermal conditions, duty cycle and required documentation before final selection.

This product is not approved for a safety-critical or restricted application unless expressly authorized in writing.

MOTOR AND ACTUATOR INTEGRATION

Confirm continuous and peak operating points, load inertia, acceleration, shock, radial and axial loading, mounting accuracy, cooling, drive compatibility, encoder interface, braking behavior and fault response.

A standard holding brake is not represented as a safety brake unless the Exact SKU is expressly identified and documented as safety-rated.

Mechanical stops, guards, interlocks, emergency functions and system-level functional safety remain the responsibility of the machine manufacturer and system integrator.
