Servo Drive

24 60 V Low Voltage Micro Servo Drive — Engineering Configuration V006

Exact SKU: ES-SD-C01-S006-V006

Confirm the power architecture, control mode, communications, I/O, enclosure and thermal conditions before final integration.

Power Supply Voltage
24 to 60 VDC
Maximum Continuous Output Current
15 Arms
Peak Output Current
48 A peak
Communication Protocol
RS232; RS485; Modbus RTU; Pulse
Cooling method
Natural cooling
Mass
0.6 kg
Protection rating
IP20 enclosure; connection terminals IP00
Operating temperature
0 to 40 °C
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-SD-C01-S006-V006 envelope view

Scale: 100%

2D Engineering Drawing Center

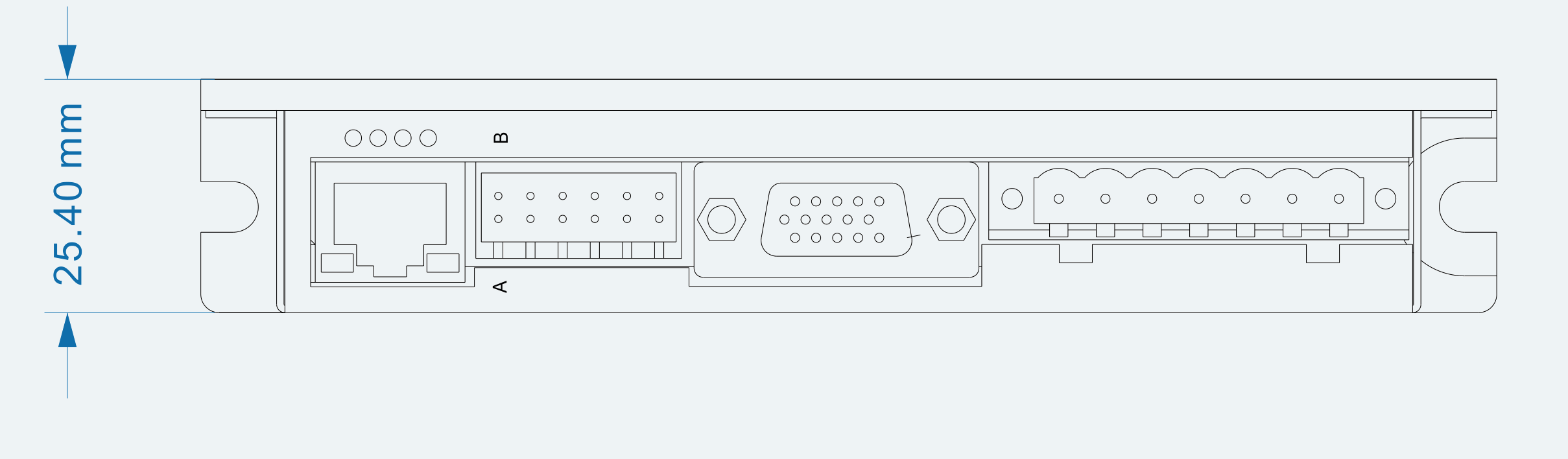

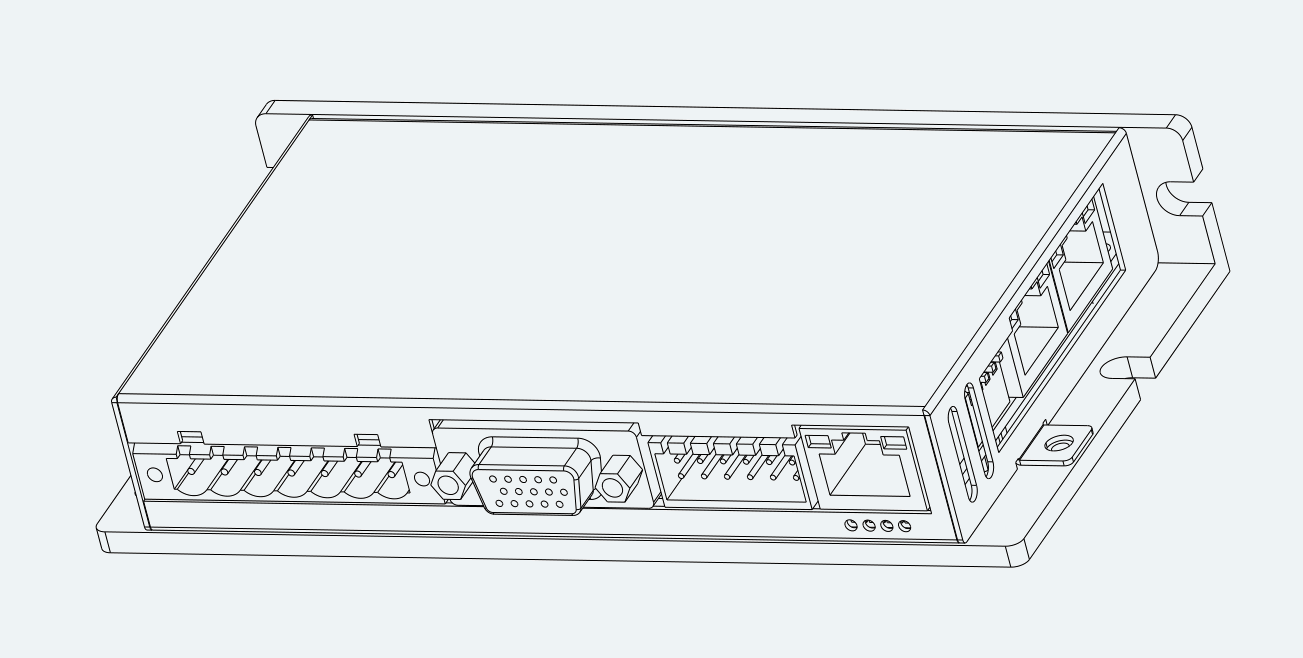

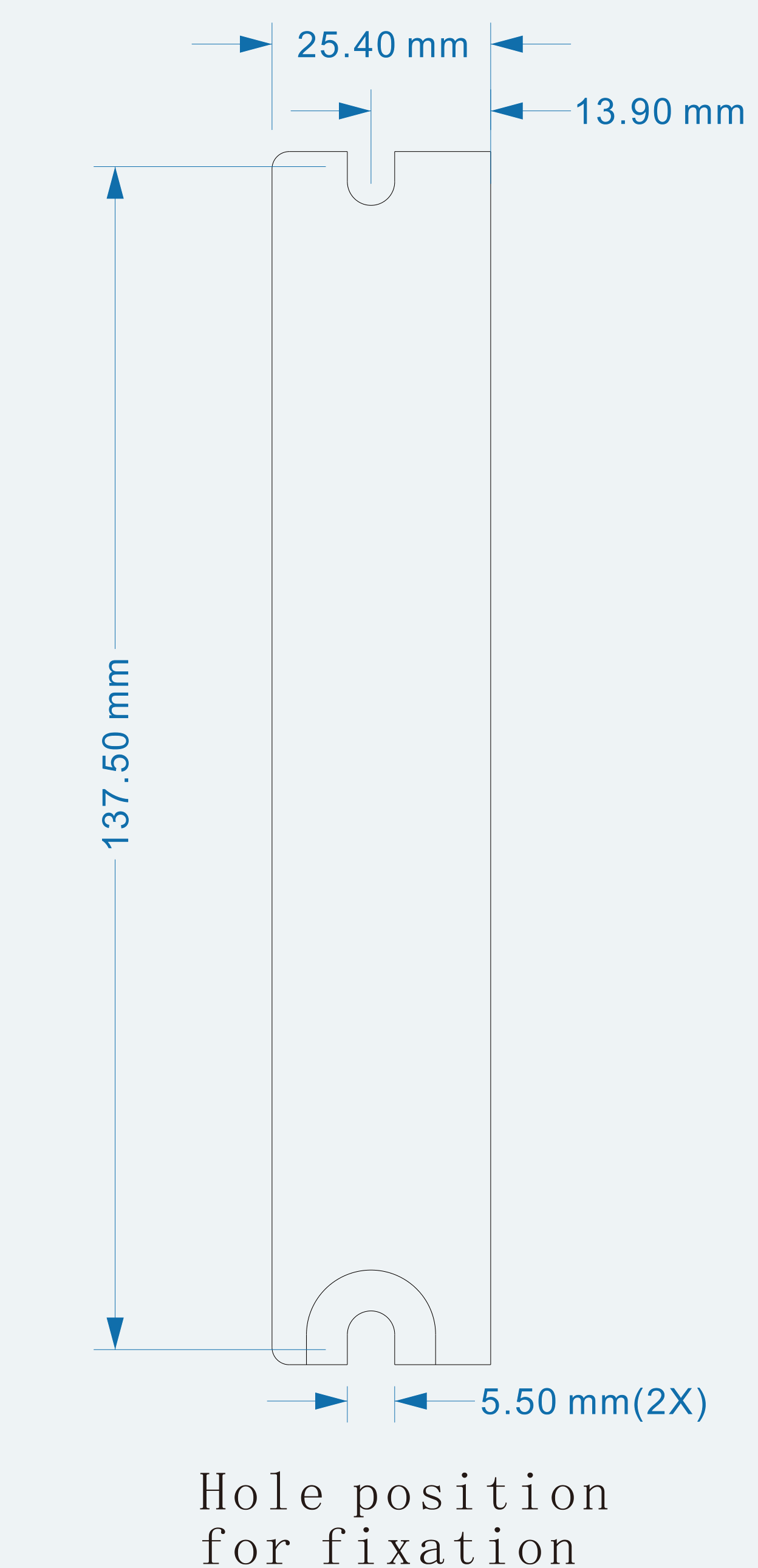

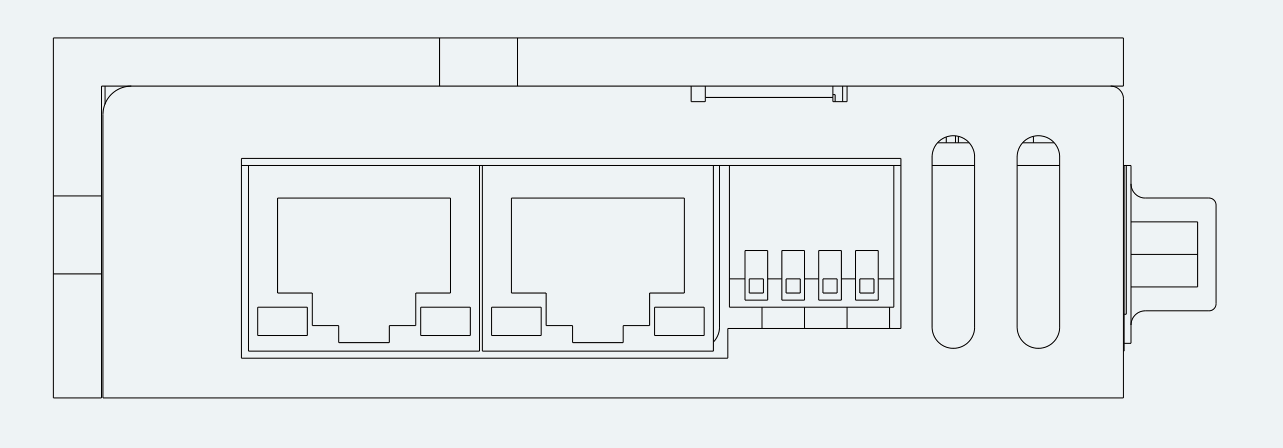

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

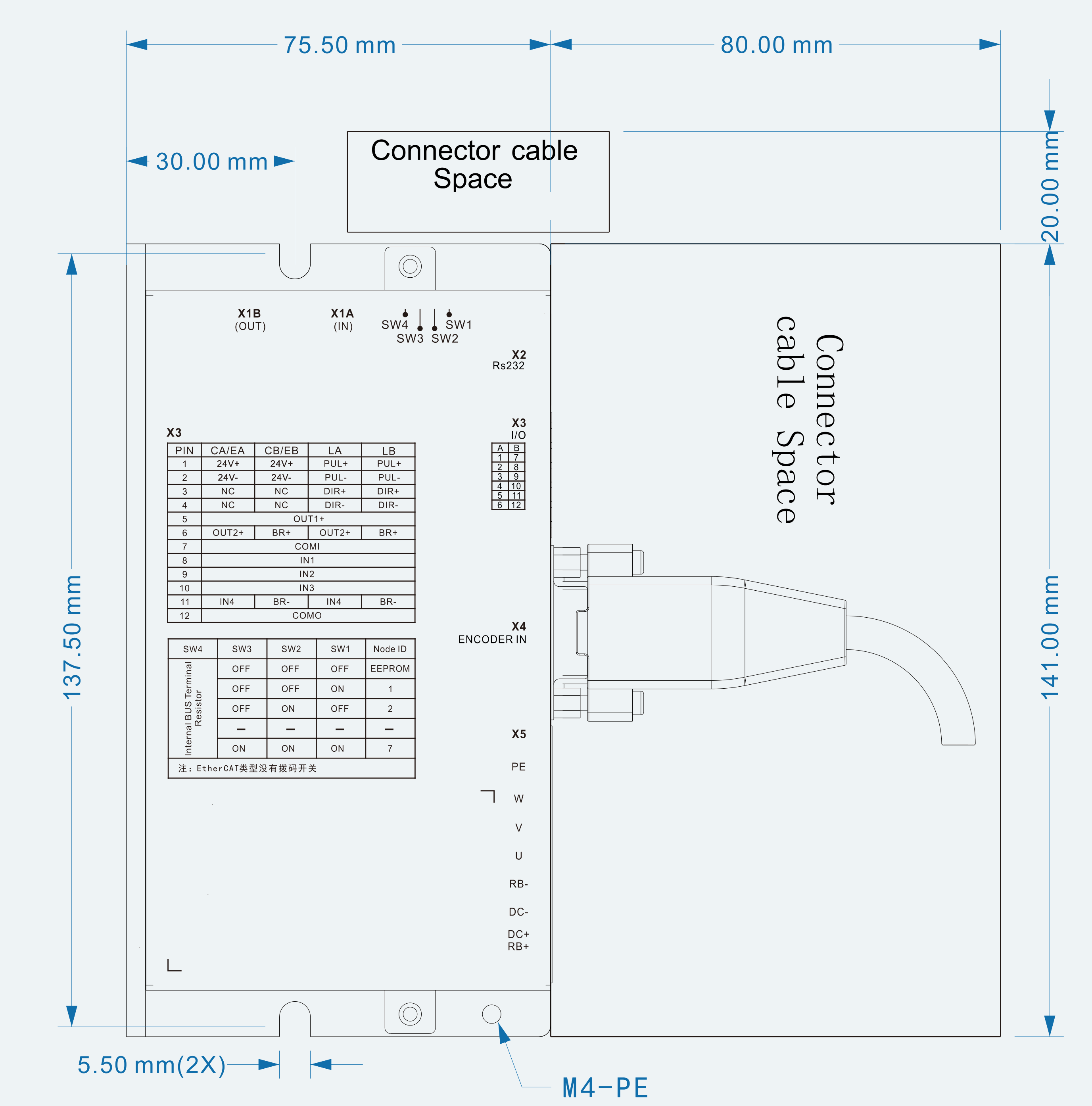

Mechanical View 1 for ES-SD-C01-S006-V006
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

Derived mesh preview for preliminary fit review. The source STEP/STP file remains controlled.

More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Derived mesh preview for preliminary fit review. The source STEP/STP file remains controlled.

Full Specifications

Grouped engineering parameters

All 41 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

Braking Absorption Voltage
73 VDC
Digital Input Count
4
Digital I/O
4 digital inputs; 2 digital outputs; brake-motor variants use 1 digital output
Digital Output Count
2
External Braking Resistor Required
Yes
Logic Supply Arrangement
No separate logic-supply input listed
Overvoltage Alarm Voltage
83 VDC
Pulse Input Supported
Yes
Pulse Input Voltage
3.3 to 24 VDC
Power Supply Voltage
24 to 60 VDC
Undervoltage Alarm Voltage
18 VDC

Performance Parameters

Maximum Continuous Output Current
15 Arms
Continuous Output Current Without Auxiliary Heatsink
12 Arms
Peak Output Current
48 A peak
Supported Motor Power Range
50 to 3000 W

Mechanical Parameters

Axis Count
1
Braking architecture
External braking resistor supported when required by the duty cycle, particularly for rapid start/stop operation
Communication Protocol
RS232; RS485; Modbus RTU; Pulse
Control Method
RS232, RS485 and pulse
Cooling method
Natural cooling
Drive Architecture
Single-axis low-voltage servo drive
Driver Version
Fourth-generation upgraded low-voltage servo drive
Feedback Signal Support
2500 P/R incremental differential 5 V encoder; Magnetic encoder; Resolver
Installation Orientation
Vertical or horizontal
Protection rating
IP20 enclosure; connection terminals IP00
Relative humidity
≤90% RH, non-condensing % RH
RS232 Maximum Baud Rate
115.2 kbit/s
Series Family
FD Series
Software Version
000
Mass
0.6 kg

Environmental & Insulation

Altitude Derating Rate
1.5 % per 100 m
Altitude Derating Start
1,000 m
Atmospheric Pressure
86 to 106 kPa
Installation Environment
Dry, dust-free enclosed location such as an electrical cabinet
Maximum Operating Humidity
90 % RH
Operating temperature
0 to 40 °C
Protection Class
IP20 except FD164S power terminals
Protection Functions
Overvoltage; Undervoltage; Motor overtemperature (I²T); Short circuit; Drive overtemperature
Maximum Operating Altitude
3,000 m
STO Support
No
Storage Temperature
-10 to 70 °C
