305 Stereo 3d Camera — Engineering Configuration V001

Exact SKU: ES-CV-C00-S001-V001

Review the recorded engineering values, controlled media and documentation status for this exact SKU before integration.

Mass: 68 g
Backside Case Temperature: -10°C ~ 60°C
Baseline: 18 mm
Color Field of View: H 94° x V 68° ± 3°
Color Resolution and Frame Rate: Up to 1280 x 800 @ 60fps
Data Connection: USB 3.0 (recommended) & USB 2.0
Depth Field of View: H 88° x V 65° ± 3° (1280 x 800 @ 20cm)
Depth Filter: IR-Cut

Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-CV-C00-S001-V001 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

Mechanical View 1 for ES-CV-C00-S001-V001 — Mechanical View 1

Mechanical View 2 for ES-CV-C00-S001-V001 — Mechanical View 2

Mechanical View 3 for ES-CV-C00-S001-V001 — Mechanical View 3

Mechanical View 4 for ES-CV-C00-S001-V001 — Mechanical View 4

Mechanical View 5 for ES-CV-C00-S001-V001 — Mechanical View 5

Mechanical View 6 for ES-CV-C00-S001-V001 — Mechanical View 6

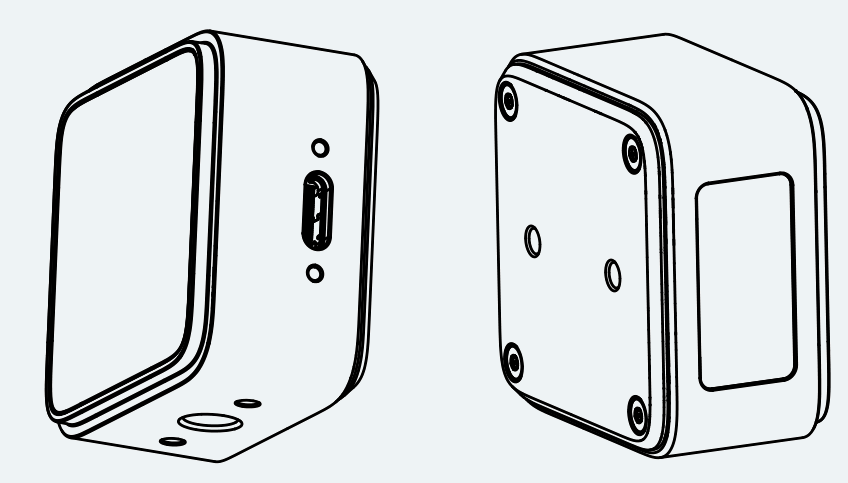

Annotated Drawing Data

Hover, focus or select a row to locate the matching field on the drawing.

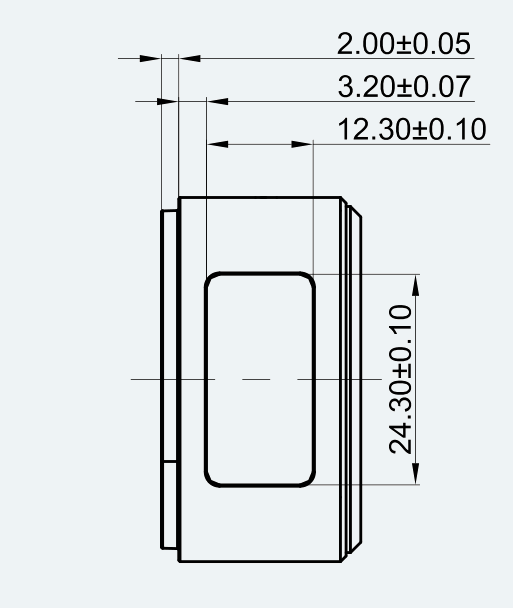

Field	Value
Left step or flange offset depth	2.00 ± 0.05
Left datum to inner edge depth	3.20 ± 0.07
Main body depth or length	12.30 ± 0.10
Main body height	24.30 ± 0.10

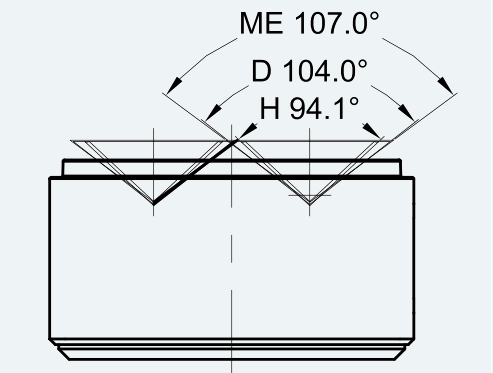

Field	Value
ME angular field specification	ME angle 107.0 degrees
D angular field specification	D angle 104.0 degrees
H angular field specification	H angle 94.1 degrees

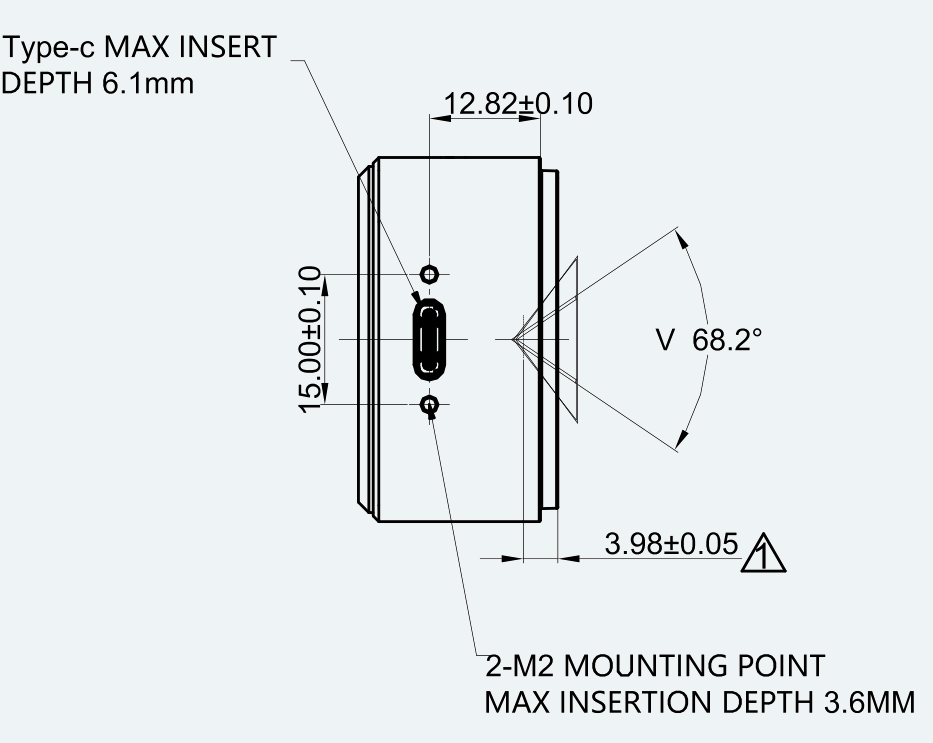

Field	Value
M2 mounting hole center spacing	3.98±0.05 mm
M2 mounting hole specification	2× M2 threaded mounting holes
M2 screw maximum insertion depth	3.6 mm maximum screw insertion depth

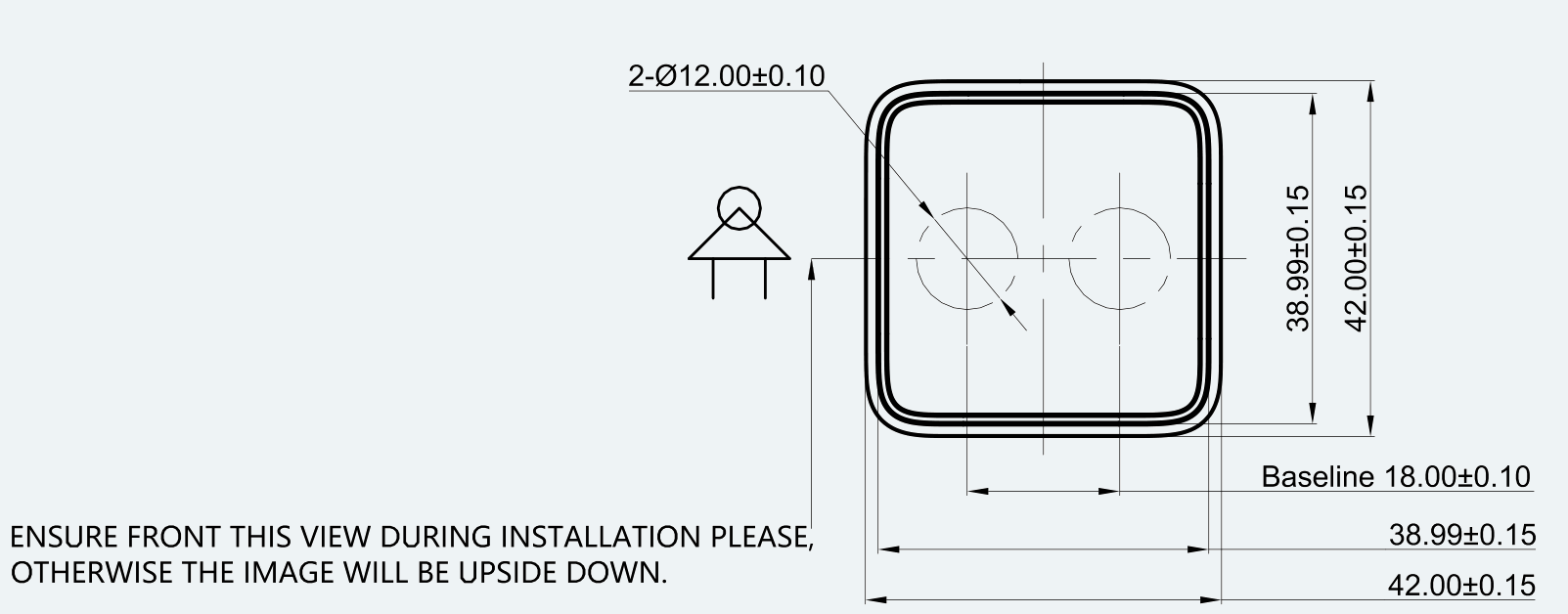

Field	Value
Mounting hole diameter and position	2 holes, Ø12.00±0.10 mm
Front view vertical dimension 1	38.99±0.15 mm
Front view vertical dimension 2 (total height)	42.00±0.15 mm
Baseline distance	Baseline 18.00±0.10 mm
Front view horizontal dimension 1	38.99±0.15 mm
Front view horizontal dimension 2 (total width)	42.00±0.15 mm

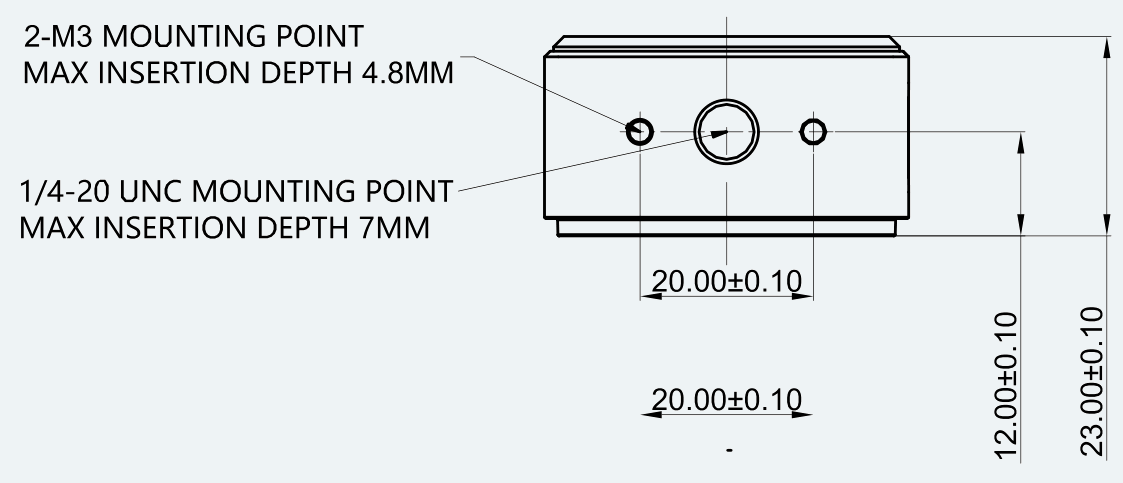

Field	Value
M3 Mounting Hole	2× M3 threaded mounting holes
M3 Hole Max Insertion Depth	Max insertion depth 4.8mm
1/4-20 UNC Mounting Hole	1/4-20 UNC threaded mounting hole
1/4-20 UNC Hole Max Insertion Depth	Max insertion depth 7mm
Width	20.00±0.10
Partial Height	12.00±0.10
Total Height	23.00±0.10
Bottom Width	20.00±0.10

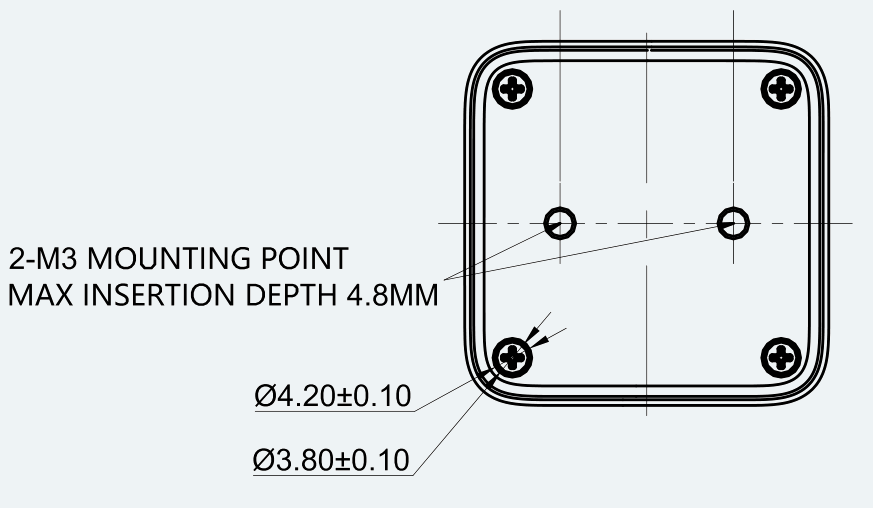

Field	Value
M3 mounting point quantity	2× M3 threaded mounting holes
Maximum screw insertion depth	4.8 mm maximum
Mounting hole diameter (outer/through hole)	Ø4.20 ±0.10 mm
Mounting hole diameter (inner/threaded hole)	Ø3.80 ±0.10 mm

Source View

Mechanical Dimensions original view for ES-CV-C00-S001-V001 — Original View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 30 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Data Connection: USB 3.0 (recommended) & USB 2.0
Interface: USB Type-C
Supported Functions: Dual color streams; hardware and software multi-camera synchronization; depth and color presets

Electrical Parameters

Maximum Average Power Consumption: <2.0W
Power Consumption: Typical average 1.57 W; maximum-disparity configuration average 1.88 W
Power Supply: DC 5V & ≥700mA

Performance Parameters

Baseline: 18 mm
Depth Field of View: H 88° x V 65° ± 3° (1280 x 800 @ 20cm)
Depth Filter: IR-Cut
Depth Technology: Stereo Vision
Ideal Range: 7 - 50cm
Operating Range: 4 - 100cm
Spatial Precision: ≤ 1% (1280 x 800 @ 50cm & 90% x 90% ROI)

Mechanical Parameters

Color Resolution and Frame Rate: Up to 1280 x 800 @ 60fps
Depth Processing: Orbbec MX6800 ASIC
Depth Resolution and Frame Rate: Up to 1280 x 800 @ 30fps 848 x 530 @ 60fps
Design Lifespan: 5 Years: Default Operating Mode & Operating Environment years
Dimensions: 42 x 42 x 23mm
EMC Performance: ESD: Class A Contact discharge: ±8kV, Air discharge: ±15kV RE: ±6 dB
ESD Performance: Contact discharge: ±8 kV Class A; Air discharge: ±15 kV Class A
Installation Interface: Bottom:1x 1/4-20 UNC, 2x M3 Back :2x M3
Radiated Emissions: ±6 dB
Use Environment: Indoor & Outdoor
Mass: 68 g

Environmental & Insulation

Backside Case Temperature: -10°C ~ 60°C
Operating Environment: -10 ~ 45°C @ 128 disparity search range -10 ~ 40°C @ 256 disparity search range
Protection Rating: IP54 (only when the Type-C interface is properly connected and the screws are tightened)
Storage Environment: Short Term: -20°C ~ 70°C, 5%-90% RH (non-condensing) Long Term: 0°C ~ 60°C, 5%-90% RH (non-condensing)

Feedback & Sensors

Color Field of View: H 94° x V 68° ± 3°
Sensor Type: Stereo Color: Global Shutter
