Robot Component

330 Ethernet Stereo 3d Camera — Engineering Configuration V001

Exact SKU: ES-CV-C00-S002-V001

Review the recorded engineering values, controlled media and documentation status for this exact SKU before integration.

Mass
220g ± 3g
Backside Case Temperature
-10°C ~ 65°C
Baseline
95 mm
Color Field of View
Aspect ratio 16:10 94° x 68° + 3° Aspect ratio 16:9 94° x 62° + 3° Aspect ratio 4:3 82° x 66° + 3°
Color Resolution and Frame Rate
Up to 1280 x 800 @ 60fps
Data Connection
Gigabit Ethernet
Depth Field of View
90° x 65° ± 3° @ 2m (1280 x 800)
Depth Filter
Visible + NIR-Pass
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-CV-C00-S002-V001 envelope view

Scale: 100%

2D Engineering Drawing Center

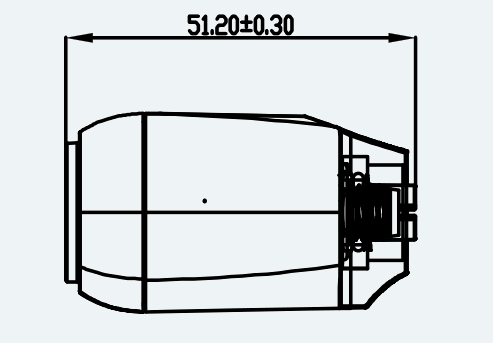

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

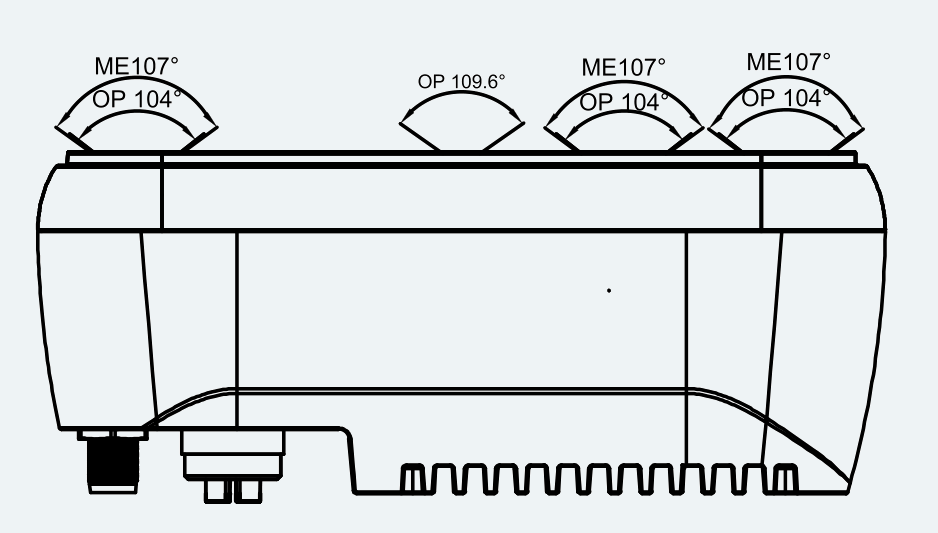

Mechanical View 1 for ES-CV-C00-S002-V001
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 32 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Data Connection
Gigabit Ethernet
IMU
6 DoF, Gyroscope/Accelerometer Sample range: 50 - 1,000Hz
Interface
M12, 8-pin, X-coded connector for data transmission and POE M8, 8-pin, A-coded connector for DC power in async in/out and RS485
Supported Functions
Hardware Spatial Alignment of Depth to Color Hardware Timestamps, Multi-camera Sync PTP Timing RS485

Electrical Parameters

Maximum Average Power Consumption
PoE average <5.0 W (peak <12.0 W); DC average <4.0 W (peak <8.5 W) W
Power Consumption
POE: Average < 5.0W (Peak < 12.0W) DC: Average < 4.0W (Peak < 8.5W)
Power Supply
POE: IEEE 802.3af DC: ≥1A @ 9V - 24V

Performance Parameters

Baseline
95 mm
Depth Field of View
90° x 65° ± 3° @ 2m (1280 x 800)
Depth Filter
Visible + NIR-Pass
Depth Technology
Stereo Vision
Ideal Range
0.25 - 6m
Operating Range
0.25 - 20m+
Spatial Precision
≤ 0.8% (1280 x 800 @ 2 m & 80% x 90% ROI) ± 1.6% (1280 x 800 @ 4 m & 80% x 80% ROI)

Mechanical Parameters

Color Resolution and Frame Rate
Up to 1280 x 800 @ 60fps
Depth Processing
In-camera processing using Orbbec MX6800 ASIC
Depth Resolution and Frame Rate
Up to 1280 x 800 @ 30fps
Design Lifespan
5 Years; Default Operating Mode & Operating Environment years

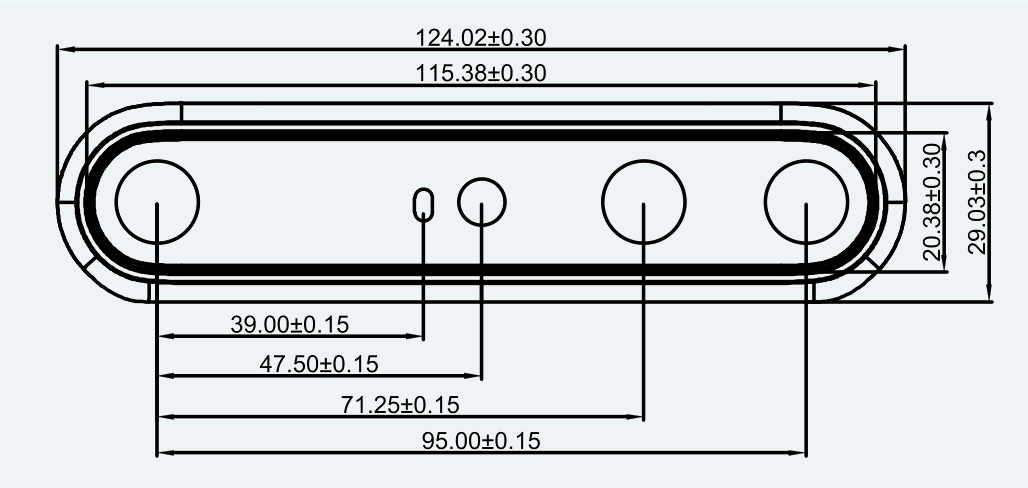

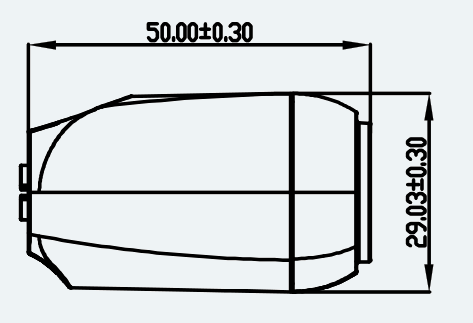

Dimensions
124mm x 29mm x 50mm
EMC Performance
ESD: Class A; contact discharge: ±8 kV; air discharge: ±15 kV; radiated emissions: ≥6 dB
ESD Performance
Class A Contact discharge: ±8kV, Air discharge: ±15kV
HDR Depth
Supported

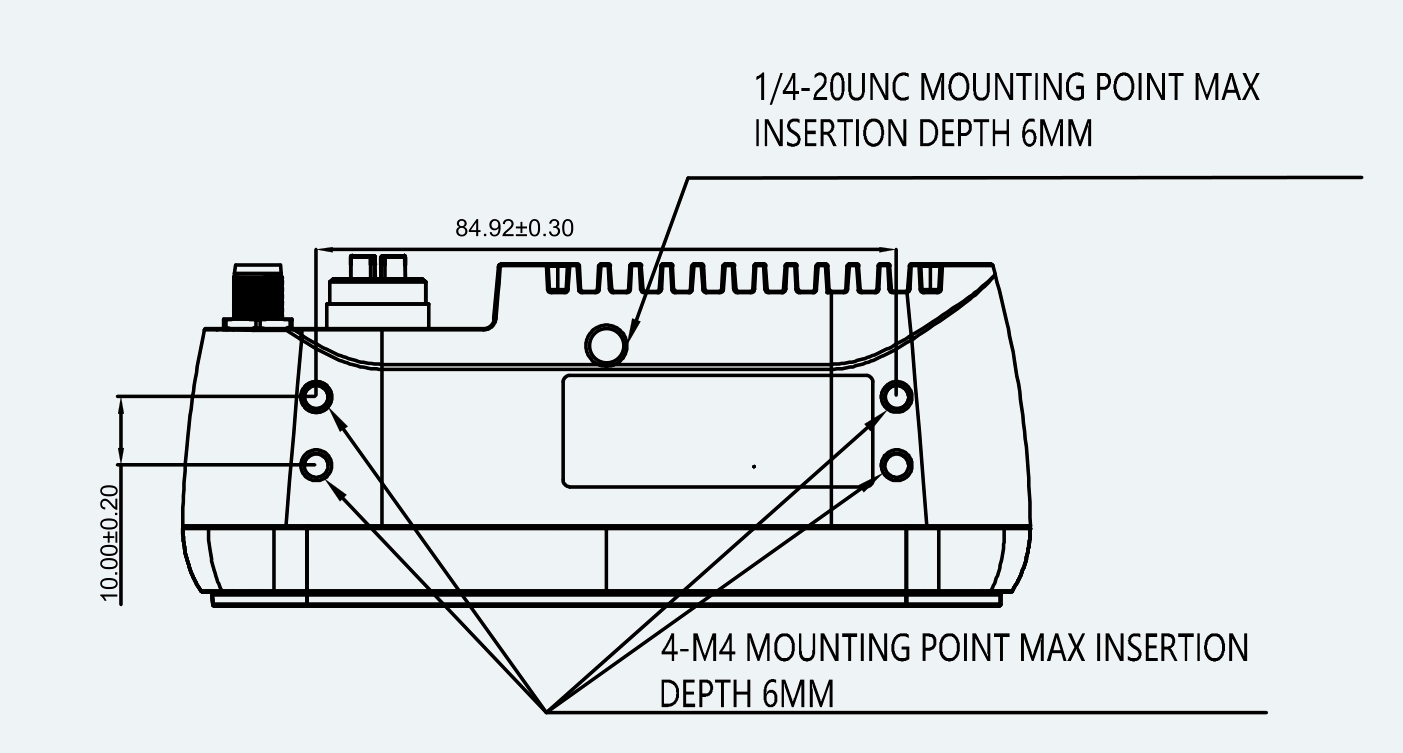

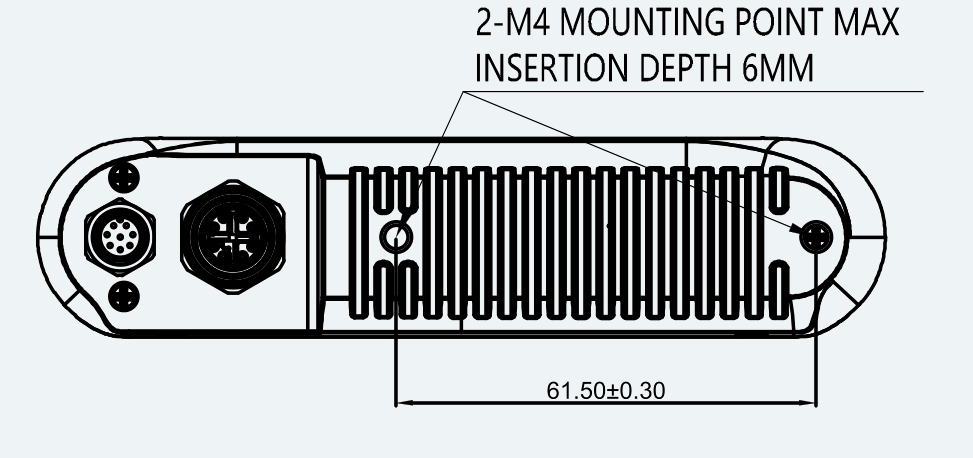

Installation Interface
Back: 2x M4, Max Torque: 0.4 N.m, Max Insertion Depth: 6mm Bottom: 4x M4, Max Torque: 0.4 N.m, Max Insertion Depth: 6mm Or 1x 1/4-20 UNC, Max Torque: 4.0 N.m, Max Insertion Depth:8mm
Radiated Emissions
≥6 dB
Use Environment
Indoor & Outdoor
Mass
220g ± 3g

Environmental & Insulation

Backside Case Temperature
-10°C ~ 65°C
Operating Environment
-10°C ~ 50°C @ 15fps, -10°C ~45°C @ 30/60fps, 5% ~ 90 % RH (non-condensing)
Protection Rating
IP67
Storage Environment
Short Term: -20°C ~ 70°C, 5%-90% RH (non-condensing) Long Term: 0°C ~ 60°C, 5%-90% RH (non-condensing)

Feedback & Sensors

Color Field of View
Aspect ratio 16:10 94° x 68° + 3° Aspect ratio 16:9 94° x 62° + 3° Aspect ratio 4:3 82° x 66° + 3°
Sensor Type
IR: Global Shutter Color: Global Shutter
