DC Brushed Motor

25 mm DC Brushed Motor — 30 mN·m · 10000RPM · 30 W · 24 V

Exact SKU: ES-CM-BR03-M001

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Rated torque
30 mN·m
Rated speed
10000RPM
Rated power
30 W
Rated voltage
24 VDC
Rated current
1.8 A
Rotor inertia
14.9 g·cm²
Mass
105 g
Loaded speed
10,000 rpm
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-CM-BR03-M001 envelope view

Scale: 100%

2D Engineering Drawing Center

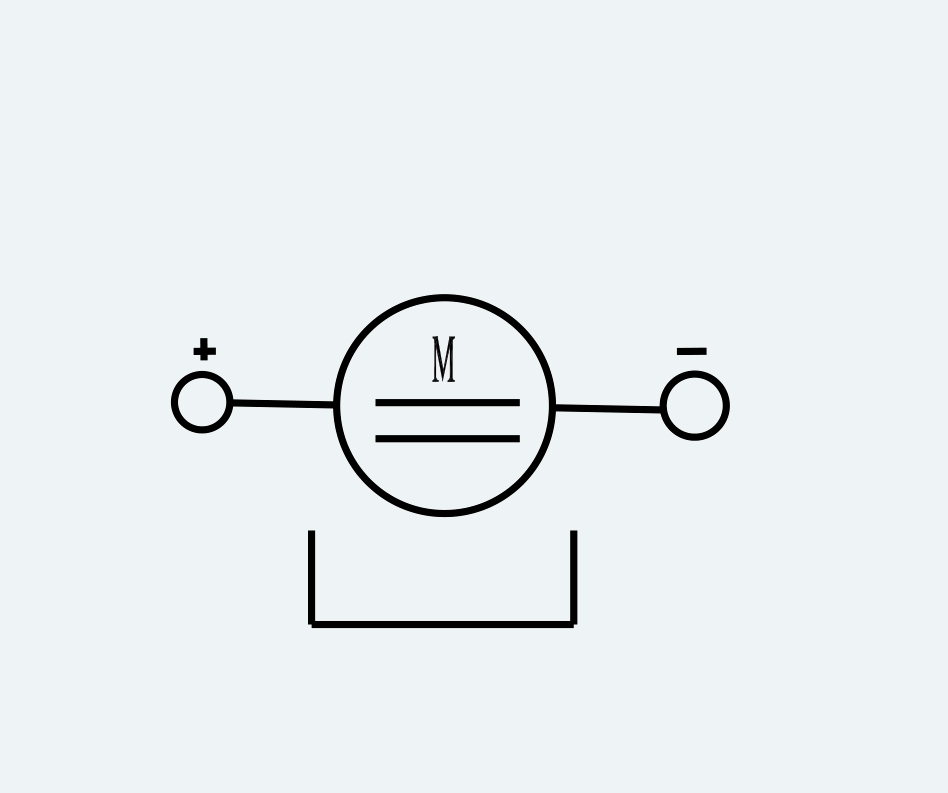

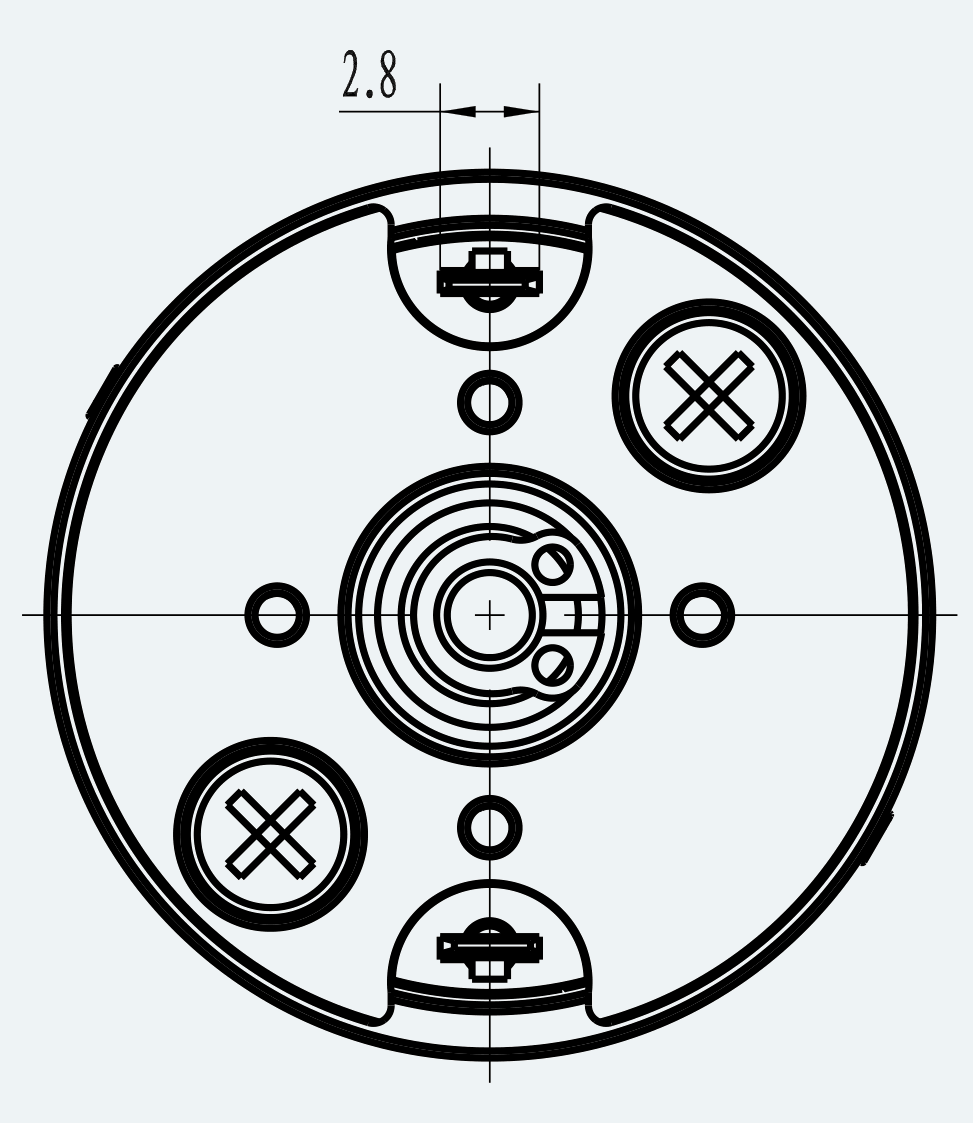

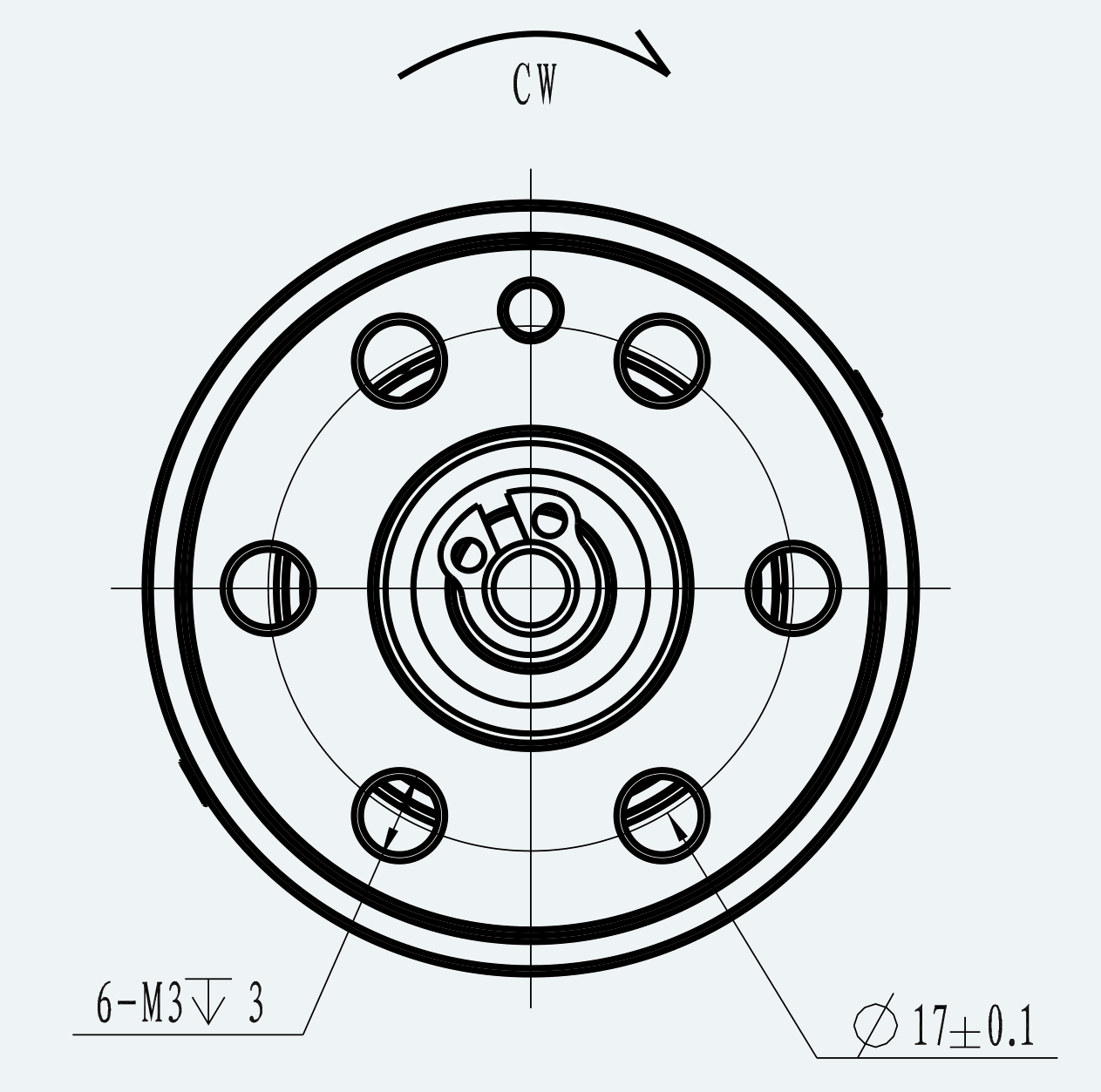

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

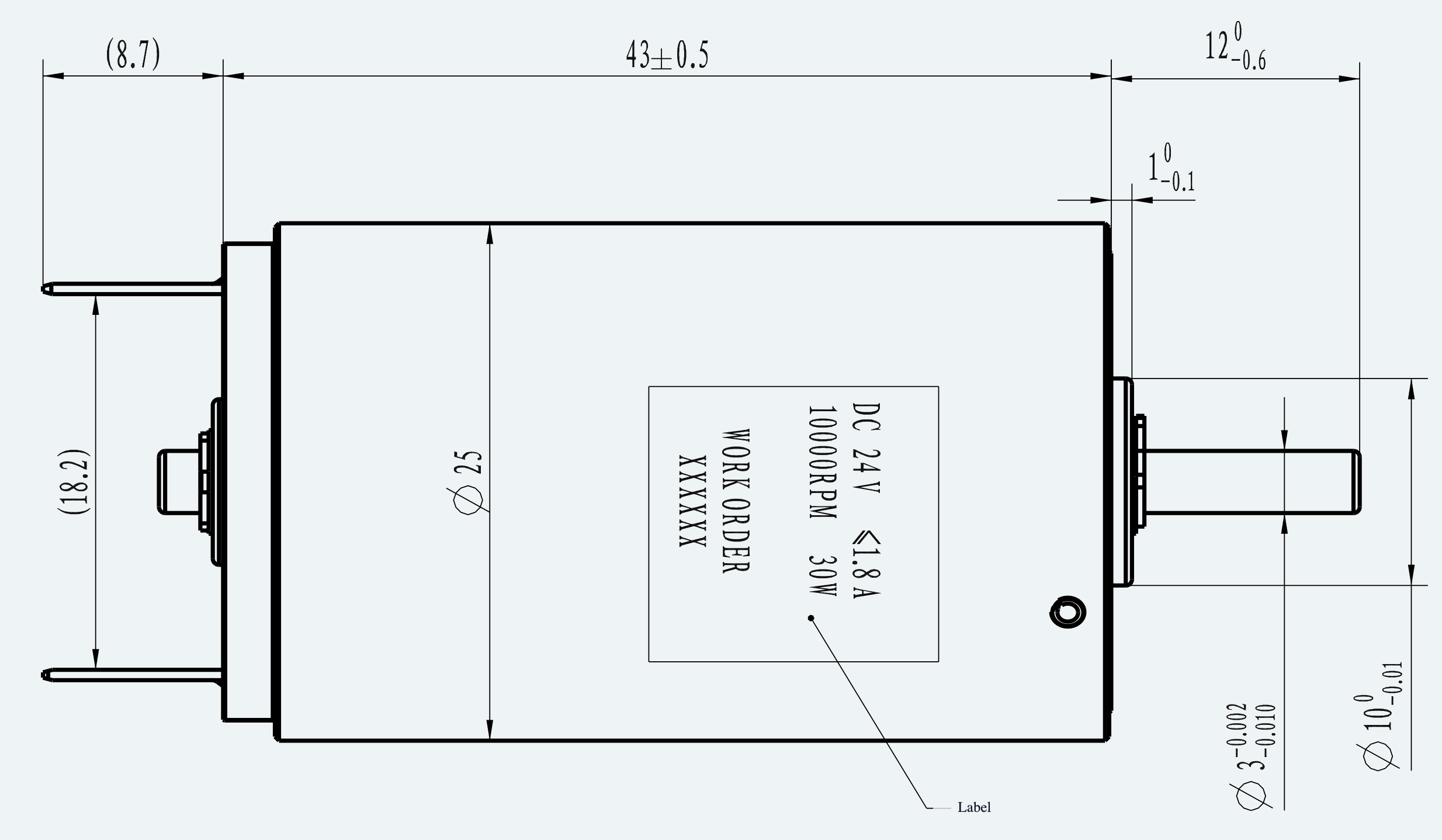

Mechanical View 1 for ES-CM-BR03-M001
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 30 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

Rated voltage
24 VDC
No-load current
0.18 A
Rated current
1.8 A
Peak current
13 A
Terminal resistance
1.8 Ω
Terminal inductance
0.22 mH
Torque constant
20.3 mN·m/A
Back-EMF constant
473 rpm/V
Rated power
30 W
Withstand Voltage
500V AC/50HZ/5mA/1S
Insulation Resistance
100/250V DC MΩ

Performance Parameters

No-load speed
11,000 rpm
Rated torque
30 mN·m
Loaded speed
10,000 rpm
Maximum efficiency
88 %
Peak torque
270 mN·m
Speed constant
41.75 rpm/mN·m
Rated speed
10000RPM

Mechanical Parameters

Rotor inertia
14.9 g·cm²
Mechanical time constant
6.5 ms
Brush type
Graphite brush
Commutator segment count
11
Mass
105 g
Motor diameter
25 mm
Motor length
43 mm
Rotation Direction
CW

Thermal Parameters

Housing-to-ambient thermal resistance (no load)
15 K/W
Maximum winding temperature (no load)
155 °C

Environmental & Insulation

Insulation class
F/155 °C
Operating temperature
-20 to 65 °C
