DC Brushed Motor

40 mm DC Brushed Motor — 200 mN·m · 115 W · 48 V · 3.8 A

Exact SKU: ES-CM-BR04-M001

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Rated torque: 200 mN·m
Rated power: 115 W
Rated voltage: 48 VDC
Rated current: 3.8 A
Rotor inertia: 142 g·cm²
Mass: 460 g
Maximum efficiency: 85 %
Peak torque: 1,080 mN·m

Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-CM-BR04-M001 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

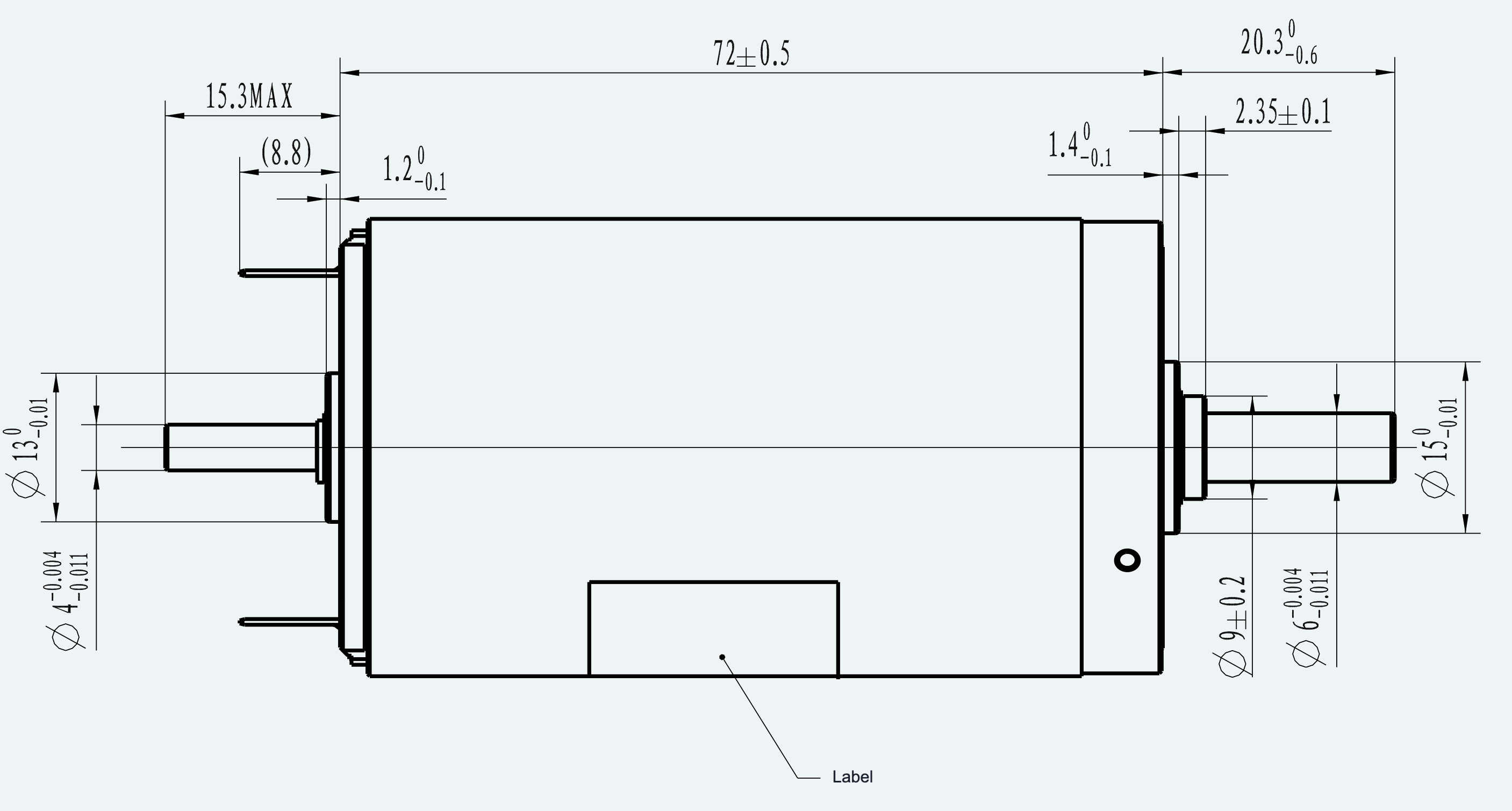

Mechanical View 1 for ES-CM-BR04-M001 — Mechanical View 1

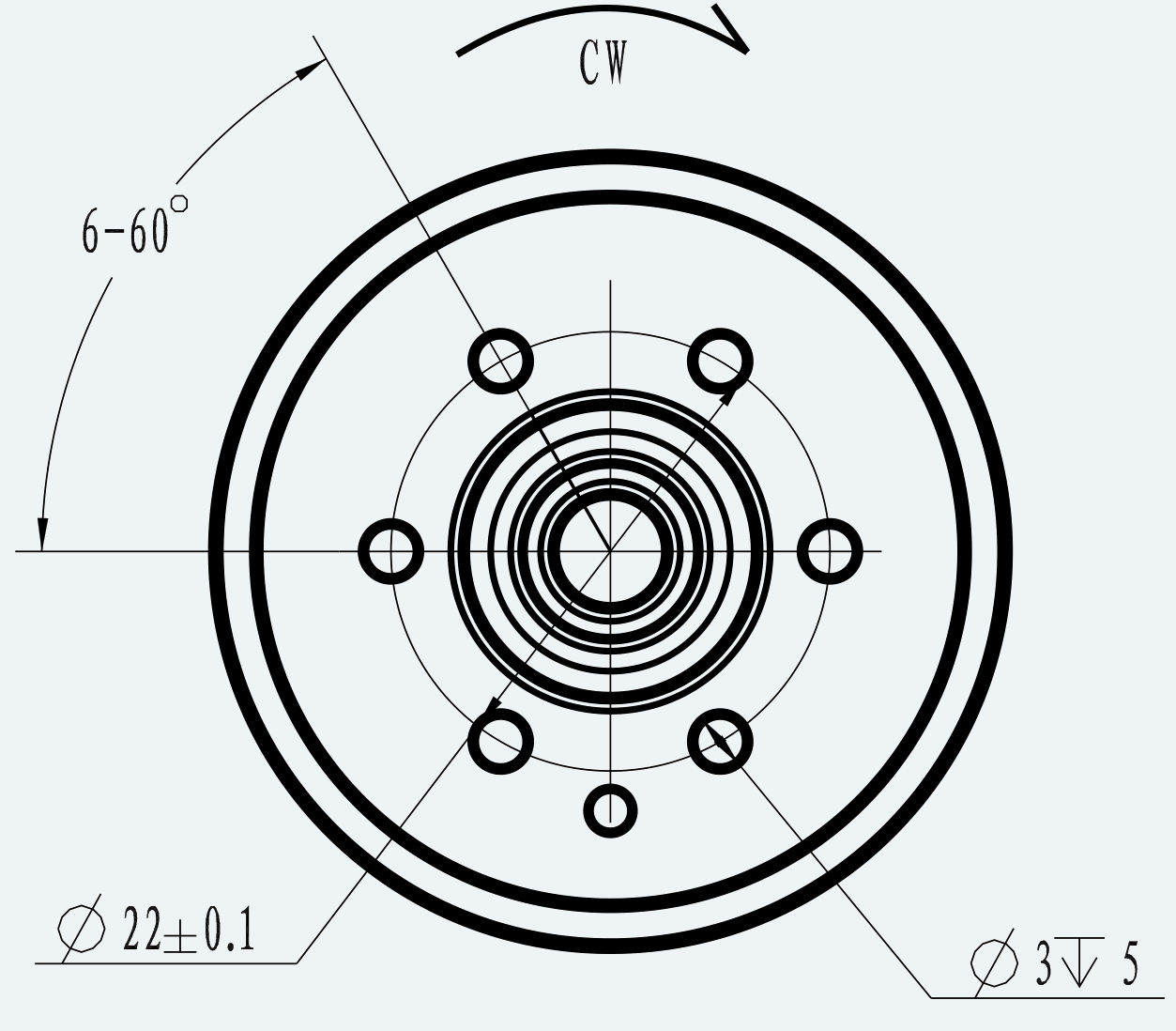

Mechanical View 3 for ES-CM-BR04-M001 — Mechanical View 3

Annotated Drawing Data

Hover, focus or select a row to locate the matching field on the drawing.

Field	Value
Overall length to right flange	20.3 +0/-0.6
Main body overall length	72±0.5
Left mounting flange protrusion length	15.3 max
Right mounting flange thickness	2.35±0.1
Right flange step thickness	1.4 +0/-0.1
Left flange recess depth (reference)	8.8 (reference)
Left flange step thickness	1.2 +0/-0.1
Left output shaft diameter	Φ13 +0/-0.01
Right output shaft diameter	Φ15 +0/-0.01
Left shaft journal dimensional tolerance	Φ13 -0.004/-0.011
Right shaft journal dimensional tolerance	Φ15 -0.004/-0.011
Mounting hole diameter	Φ9±0.2
Axial runout tolerance	0.004 (unequal/special condition)
Label location note	Label marking location

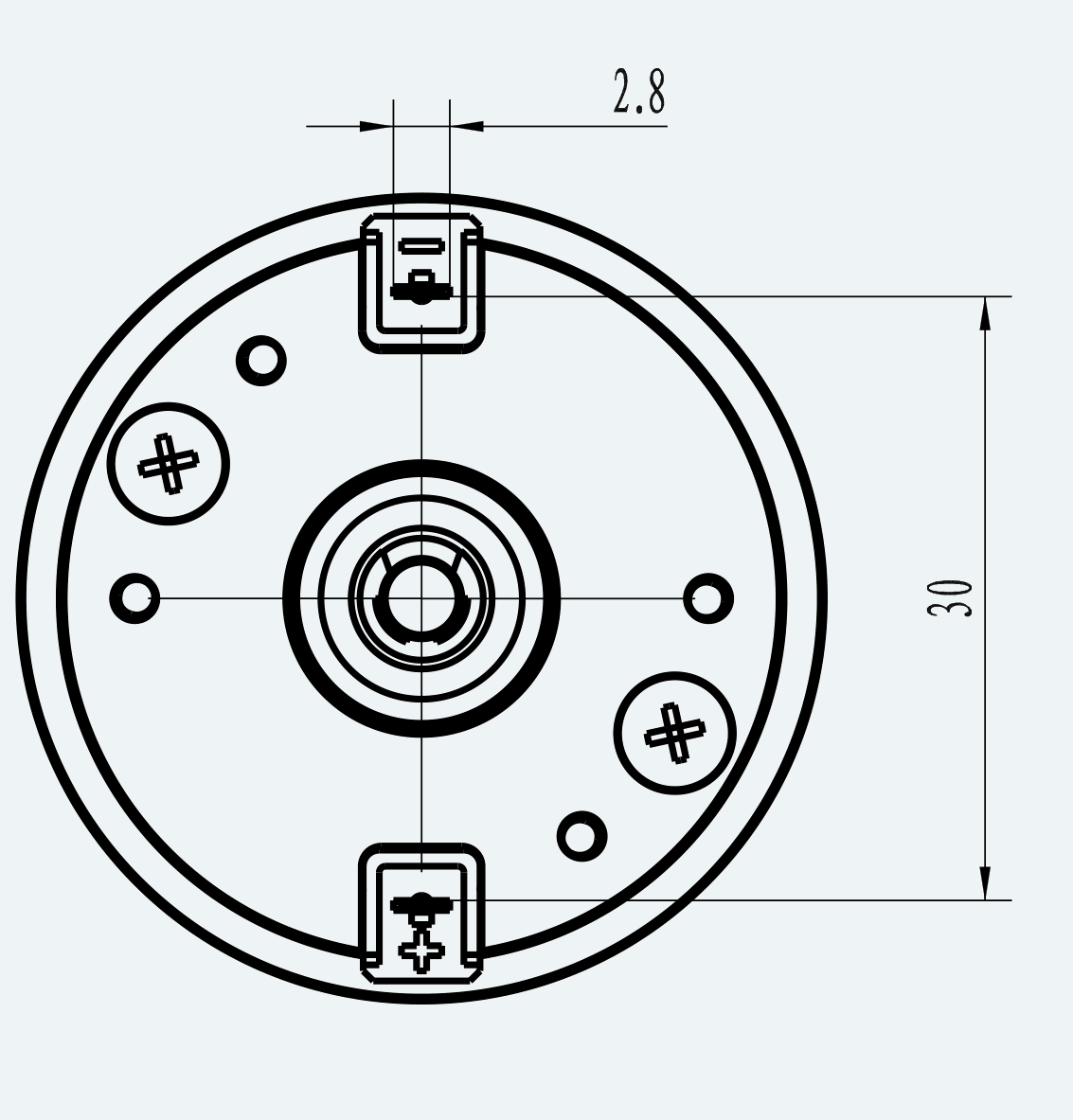

Field	Value
Connector slot width	2.8
Disk outer diameter	30

Field	Value
Rotation direction	Clockwise (CW)
Mounting hole angular distribution	6 holes evenly distributed at 60° intervals
Housing diameter	∅22±0.1

2D Engineering Drawing Center

Power Connector Reference

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

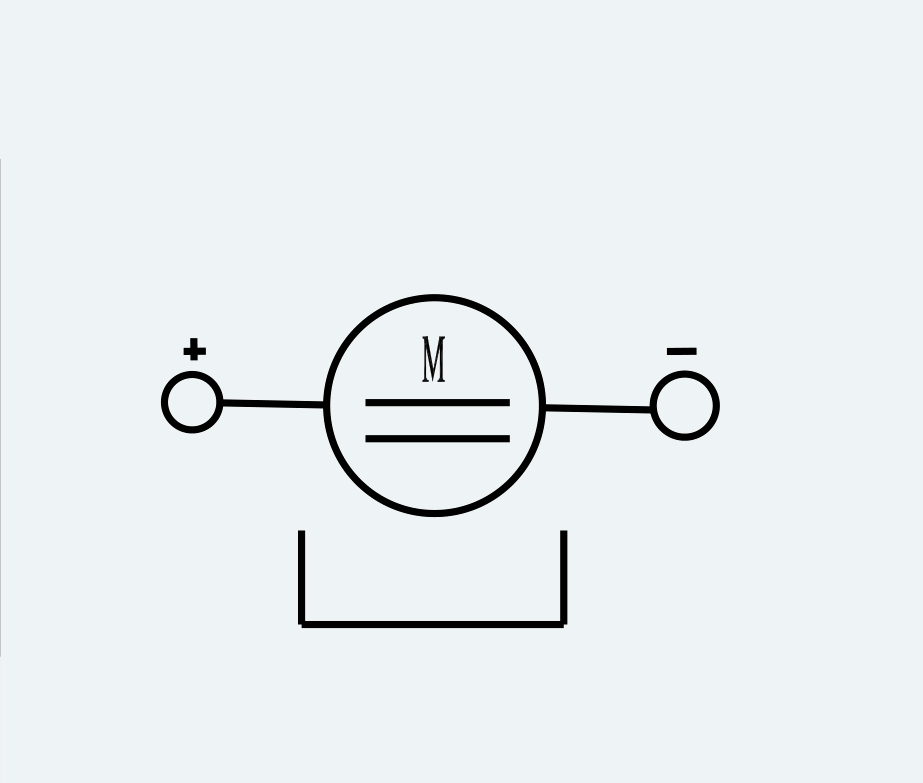

Power Connector Reference for ES-CM-BR04-M001 — Power Connector Reference

Annotated Drawing Data

Hover, focus or select a row to locate the matching field on the drawing.

Field	Value
Motor symbol	M (DC motor symbol)

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 30 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

Rated voltage: 48 VDC
No-load current: 0.15 A
Rated current: 3.8 A
Peak current: 16 A
Terminal resistance: 2.94 Ω
Terminal inductance: 0.98 mH
Torque constant: 65.9 mN·m/A
Back-EMF constant: 143 rpm/V
Loaded current: ≤4 A
Rated power: 115 W
Dielectric Strength: 500V AC/50HZ/5mA/1S
Insulation Resistance: 100/250V DC MΩ

Performance Parameters

No-load speed: 6,600 rpm
Rated torque: 200 mN·m
Loaded speed: 5,500 rpm
Maximum efficiency: 85 %
Peak torque: 1,080 mN·m
Speed constant: 6.36 rpm/mN·m

Mechanical Parameters

Rotor inertia: 142 g·cm²
Mechanical time constant: 9.6 ms
Brush type: Graphite brush
Commutator segment count: 13
Mass: 460 g
Motor diameter: 40 mm
Motor length: 72 mm
Rotation Direction: CW

Thermal Parameters

Housing-to-ambient thermal resistance (no load): 15 K/W
Maximum winding temperature (no load): 155 °C

Environmental & Insulation

Insulation class: F/155 °C
Operating temperature: -20 to 65 °C
