Cylindrical Voice Coil Motor

30 mm Cylindrical Voice Coil Motor - 13 N · 80 N · 12 mm · 1.5 A

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Exact SKU ES-MT-C09-S040-V003

Stroke: 12 mm
Continuous Force: 13 N
Peak Force: 80 N
Continuous Current: 1.5 A
Peak Current: 9.3 A
Back EMF Constant: 9.12 V/m/s

Request engineering quote Review engineering files

2D drawing

Review the drawing with its engineering data

Primary drawing views stay beside the annotated data table so a focused row highlights the matching callout.

Reviewed annotated drawing

Primary Drawing Viewer

Mechanical View 1 1 / 4

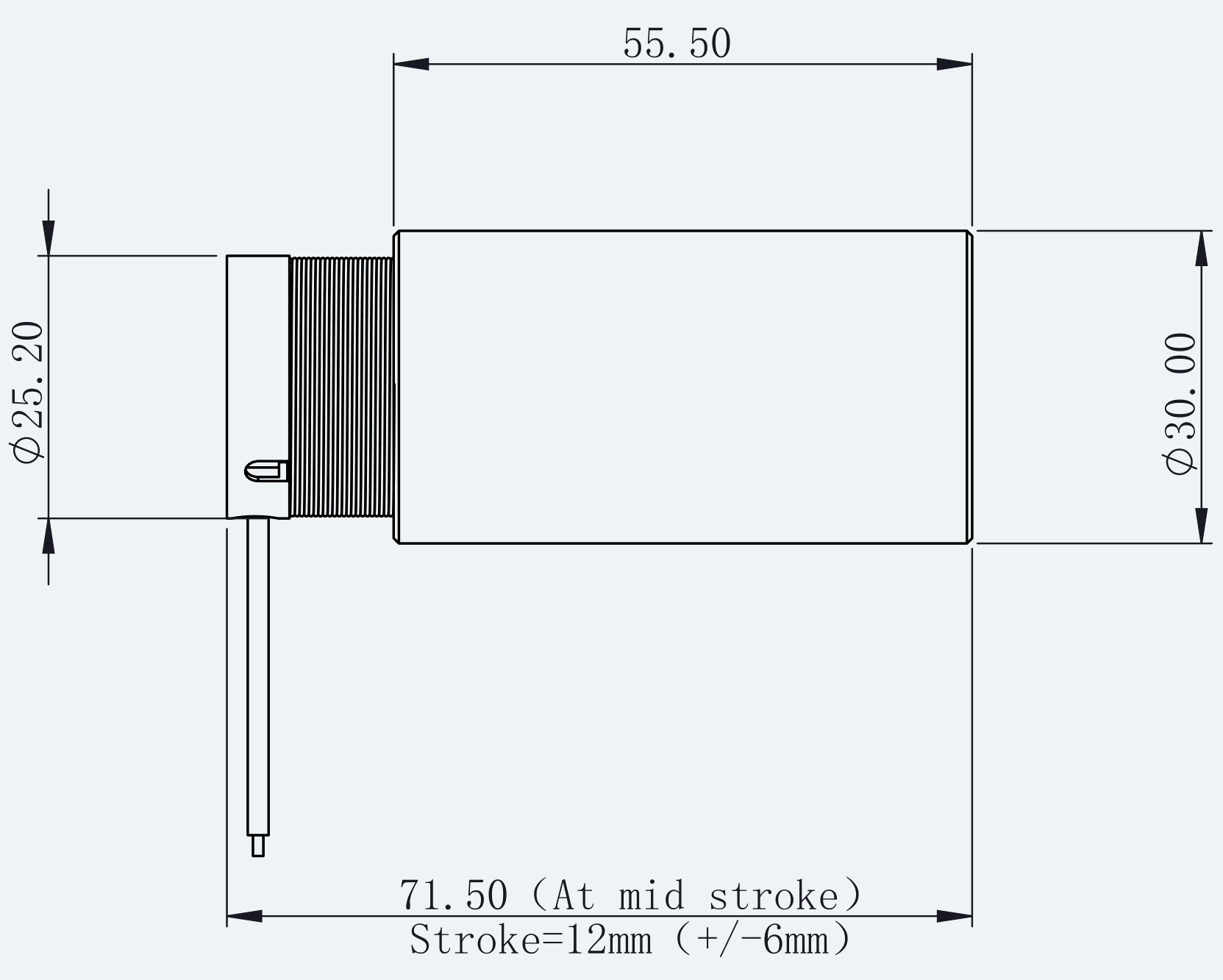

Mechanical View 1 for ES-MT-C09-S040-V003 — Mechanical View 1

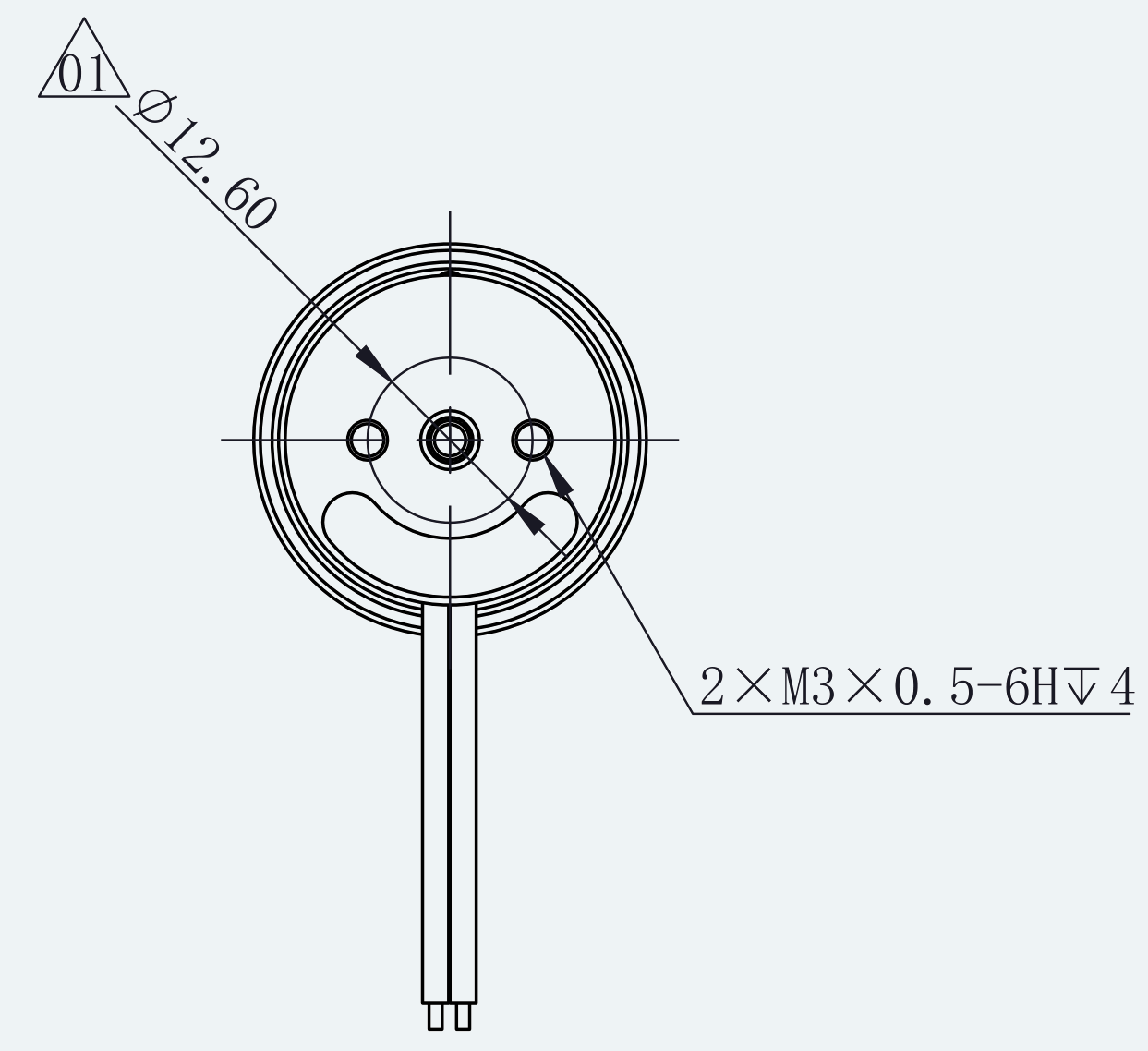

Mechanical View 2 for ES-MT-C09-S040-V003 — Mechanical View 2

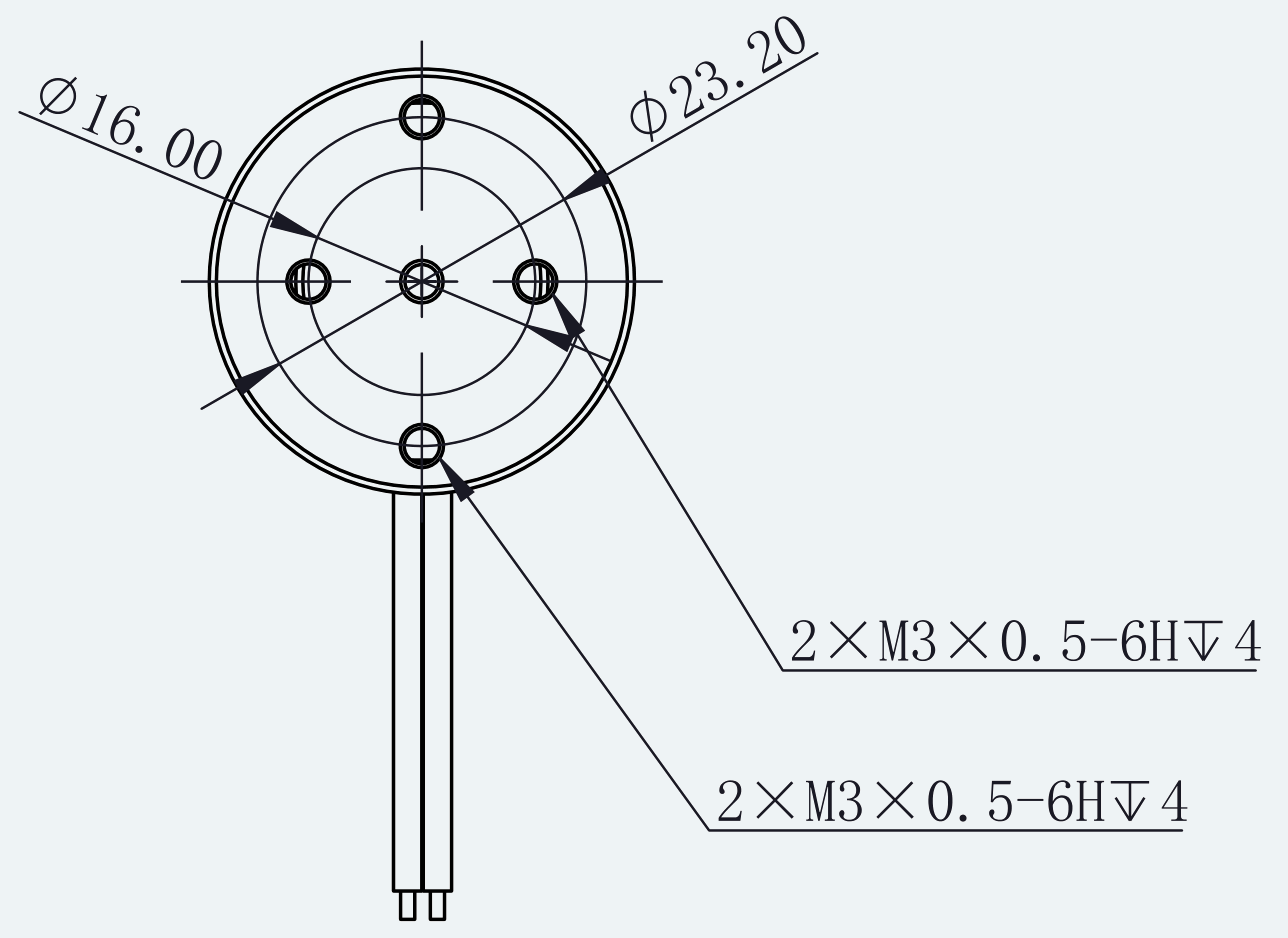

Mechanical View 3 for ES-MT-C09-S040-V003 — Mechanical View 3

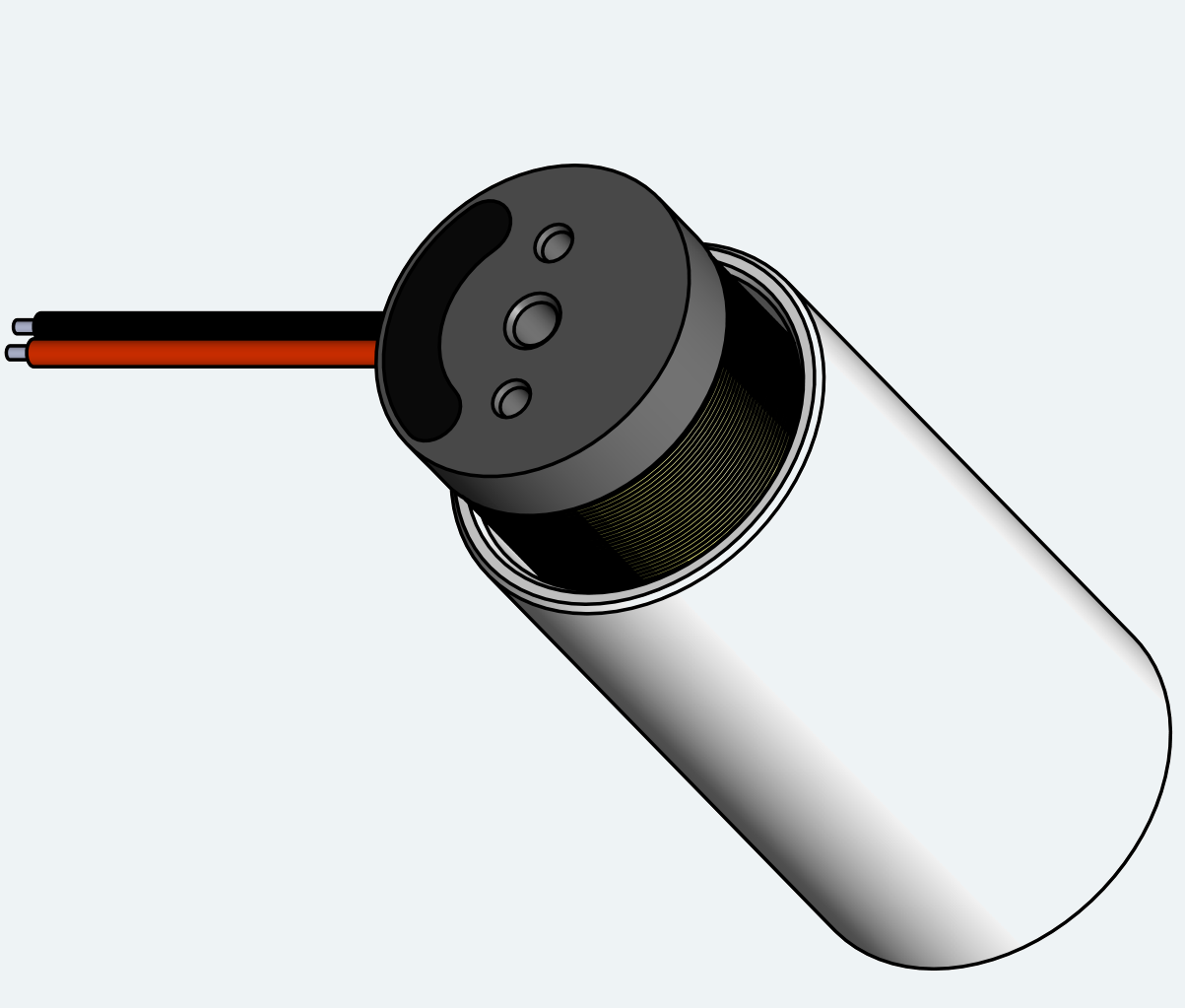

Annotated Drawing Data

5 drawing fields

Hover, focus or select a row to locate the matching field on the drawing.

Field	Value
Main body length	55.50 mm
Front section outer diameter	Diameter 25.20 mm
Main body outer diameter	Diameter 30.00 mm
Overall length at mid stroke	71.50 mm at mid stroke
Stroke	Stroke 12 mm, ±6 mm from mid stroke

Field	Value
View or feature index label	Label 01
Mounting circle diameter	Diameter 12.60 mm
Threaded hole specification and depth	2 holes, M3×0.5-6H thread, depth 4 mm

Field	Value
Mounting hole pitch circle diameter	Diameter 23.20
Inner locating circle diameter	Diameter 16.00
Threaded hole specification	2 holes, M3×0.5 thread, tolerance class 6H, depth 4
Threaded hole specification	2 holes, M3×0.5 thread, tolerance class 6H, depth 4

Primary Drawing Viewer

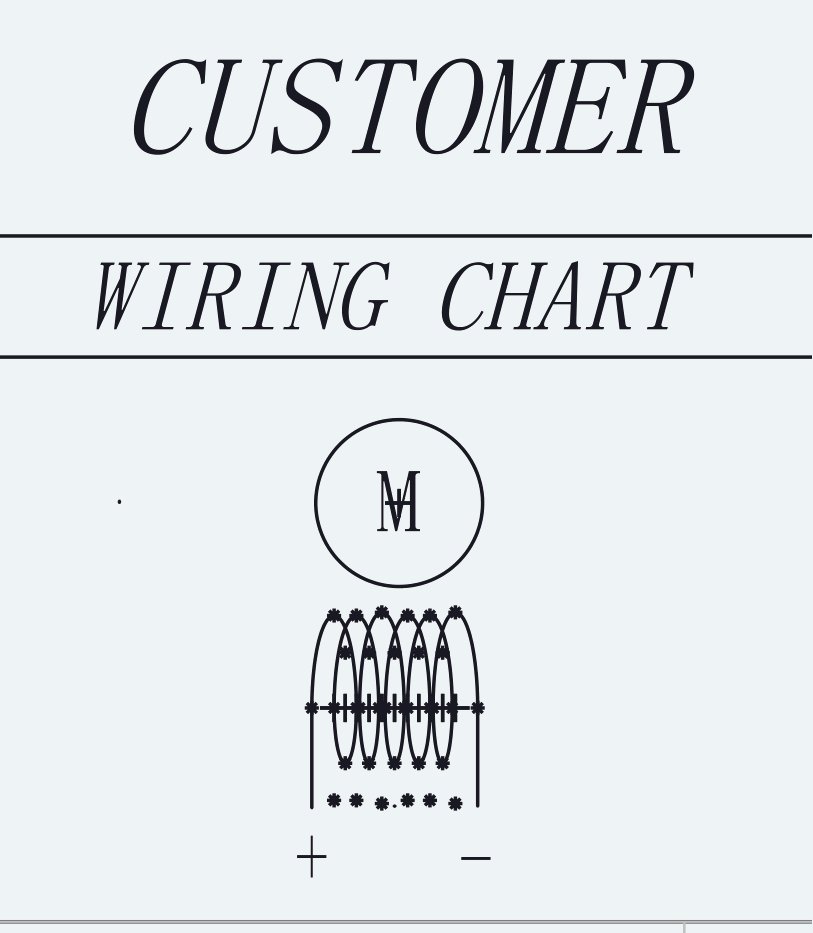

Power Connector Reference

Annotated Drawing Data

1 drawing field

Hover, focus or select a row to locate the matching field on the drawing.

Field	Value
Motor terminal or winding identifier	M

3D fit review

Inspect envelope and mounting relationships

The interactive toolbar stays with the model. Controlled CAD access remains a separate engineering-file request.

Interactive reviewed preview

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Full specifications

Grouped engineering parameters

All 15 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

15 published fields

Electrical Parameters

7 fields

Back EMF Constant: 9.12 V/m/s
Resistance: 5.21 Ω
Inductance: 1.9 mH
Continuous Current: 1.5 A
Peak Current: 9.3 A
Coil Resistance: 5.21 Ω ±10%
Coil Inductance: 1.9 mH ±20%

Performance Parameters

2 fields

Continuous Force: 13 N
Peak Force: 80 N

Mechanical Parameters

5 fields

Stroke: 12 mm
Coil Assembly Mass: 64 g
Magnet Mass: 190 g
Coil Clearance: 0.5 mm
Body Length: 71.5 mm at mid stroke

Environmental & Insulation

1 fields

Insulation Class: Class B

Product documentation

Review published PDFs for specifications, then request controlled 2D and 3D engineering files for integration.

Published PDFsDirect access · current public editions

Category Selection Guide

Cylindrical Series Category Selection Guide

Category-wide · Product platform comparison

Compare product platforms, key selection parameters and application requirements to narrow your options.

R01 4 pages · 136 KB

View selection guide (PDF)

2D Engineering Drawing

2D drawing

1 file available · Product-specific resource

Review the 2D preview above; request the controlled source drawing when needed.

Preview available · drawing access by request

3D CAD Model

STEP / STP CAD

1 file available · Product-specific resource

A product-specific CAD file is available through the controlled engineering file process.

File access by request · preview pending

Compliance

Product Integration & Compliance

OEM INTEGRATION RESPONSIBILITY

This product is a component or configurable module intended for integration into an OEM, commercial, industrial or research system.

The customer is responsible for final product selection, system-level risk assessment, safety functions, mechanical and electrical integration, validation, certification and regulatory compliance.

Published ratings apply only under the stated conditions. Confirm the operating point, interfaces, control compatibility, thermal conditions, duty cycle and required documentation before final selection.

This product is not approved for a safety-critical or restricted application unless expressly authorized in writing.

MOTOR AND ACTUATOR INTEGRATION

Confirm continuous and peak operating points, load inertia, acceleration, shock, radial and axial loading, mounting accuracy, cooling, drive compatibility, encoder interface, braking behavior and fault response.

A standard holding brake is not represented as a safety brake unless the Exact SKU is expressly identified and documented as safety-rated.

Mechanical stops, guards, interlocks, emergency functions and system-level functional safety remain the responsibility of the machine manufacturer and system integrator.
