Coil Motor 40 mm — Engineering Configuration V001

Exact SKU: ES-MT-C09-S038-V001

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Stroke
6 mm
Continuous Force
11 N
Peak Force
40 N
Continuous Current
1 A
Peak current
4 A
Back EMF Constant
11 V/m/s
Coil Resistance
5±10%Ω
Coil Inductance
1.32±20%mH
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-MT-C09-S038-V001 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

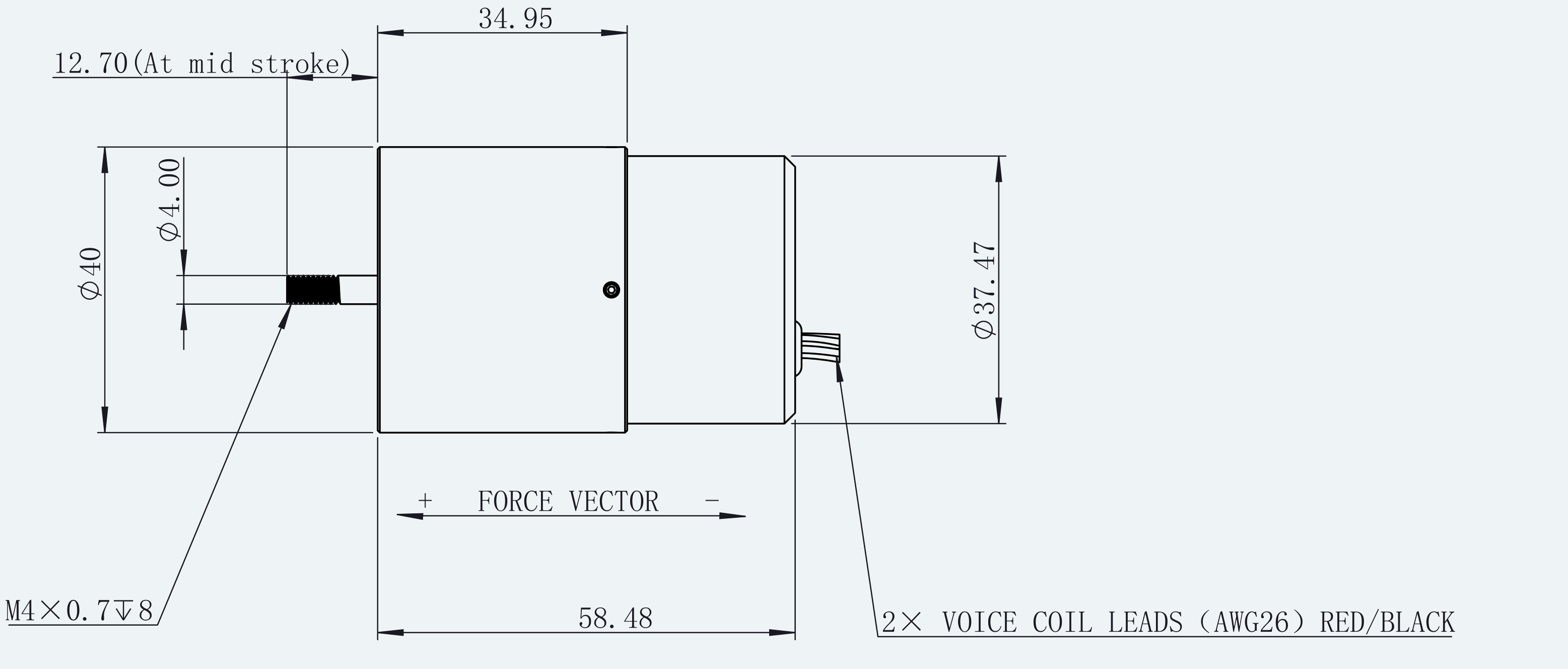

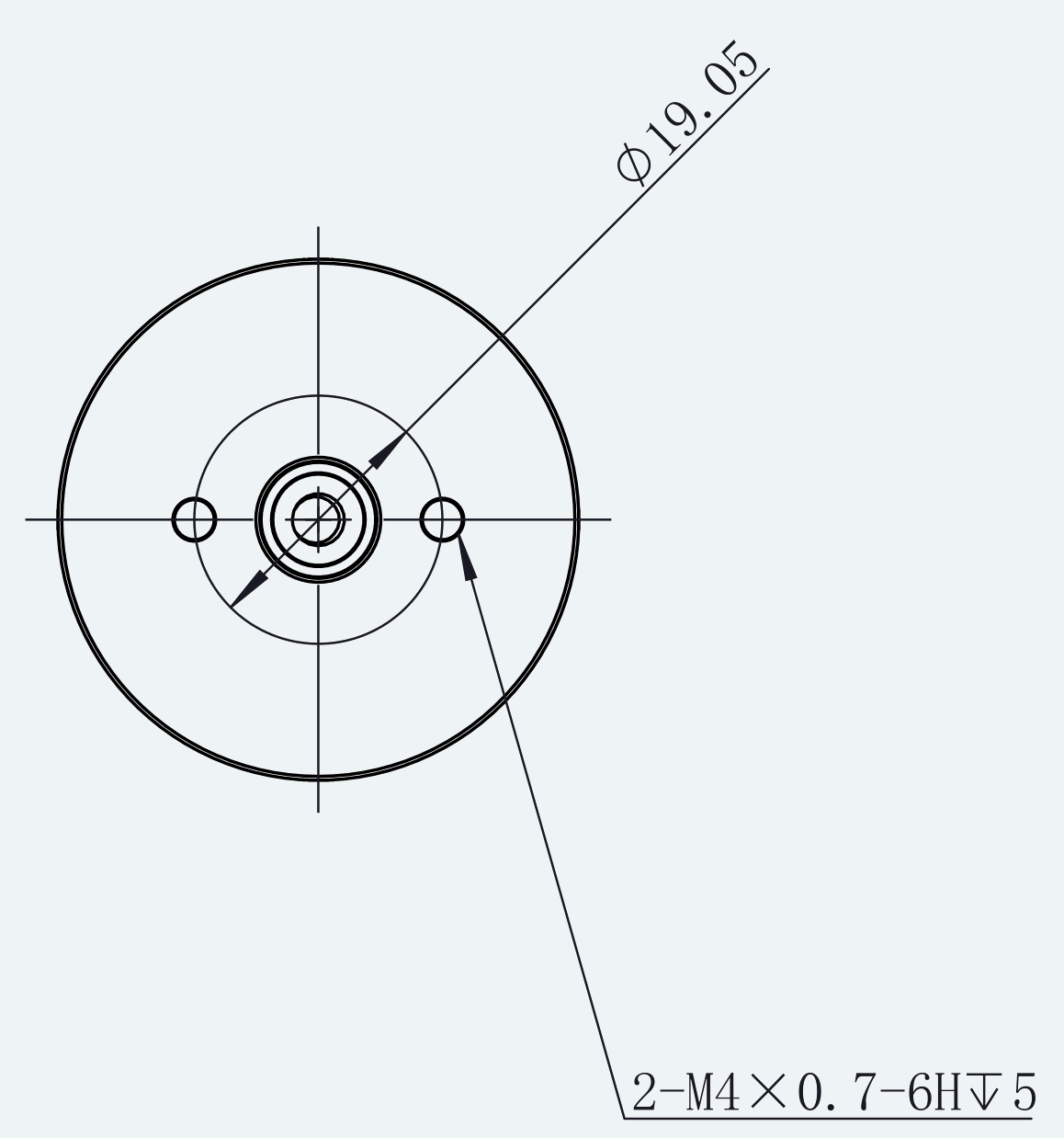

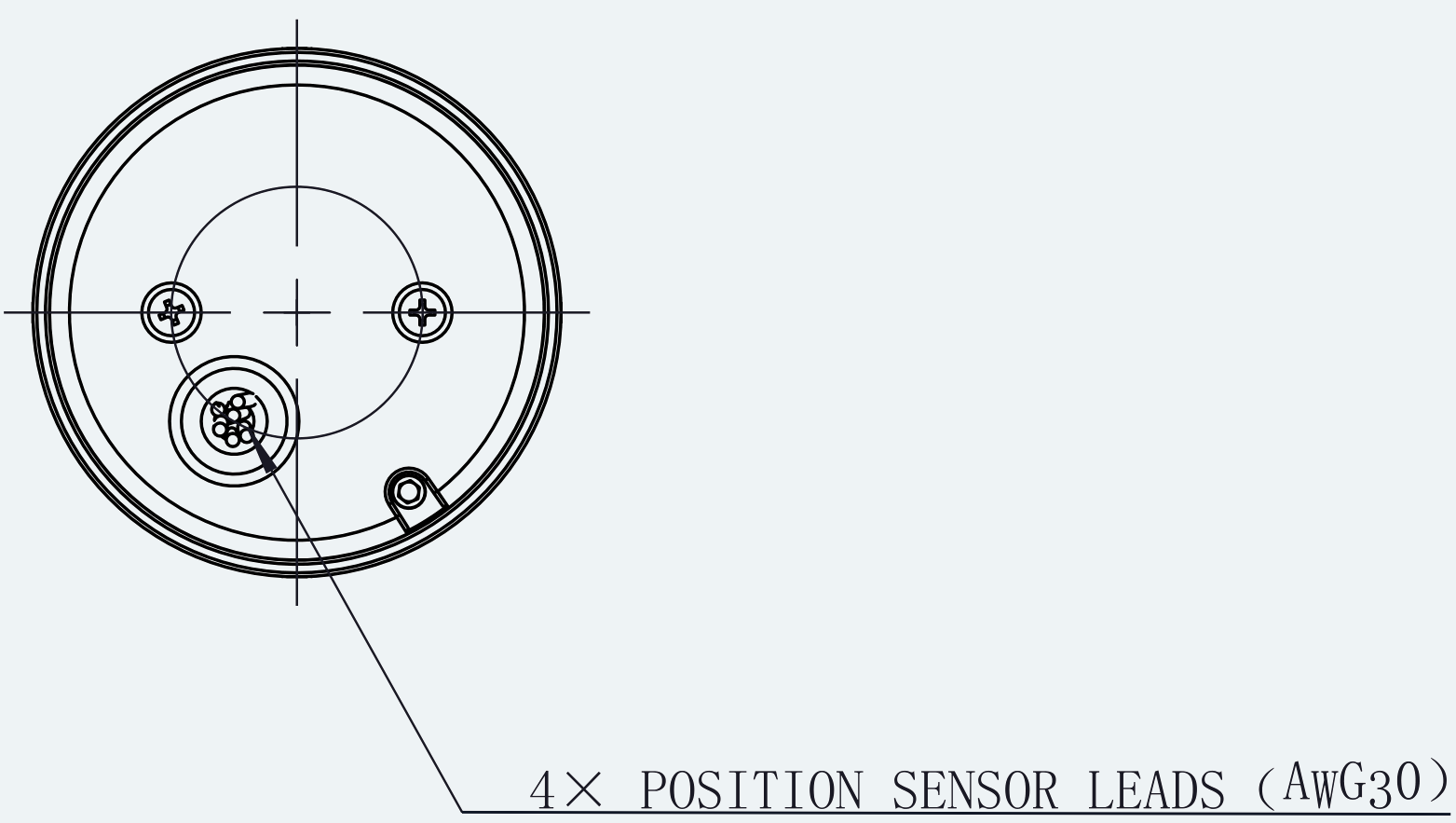

Mechanical View 1 for ES-MT-C09-S038-V001
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

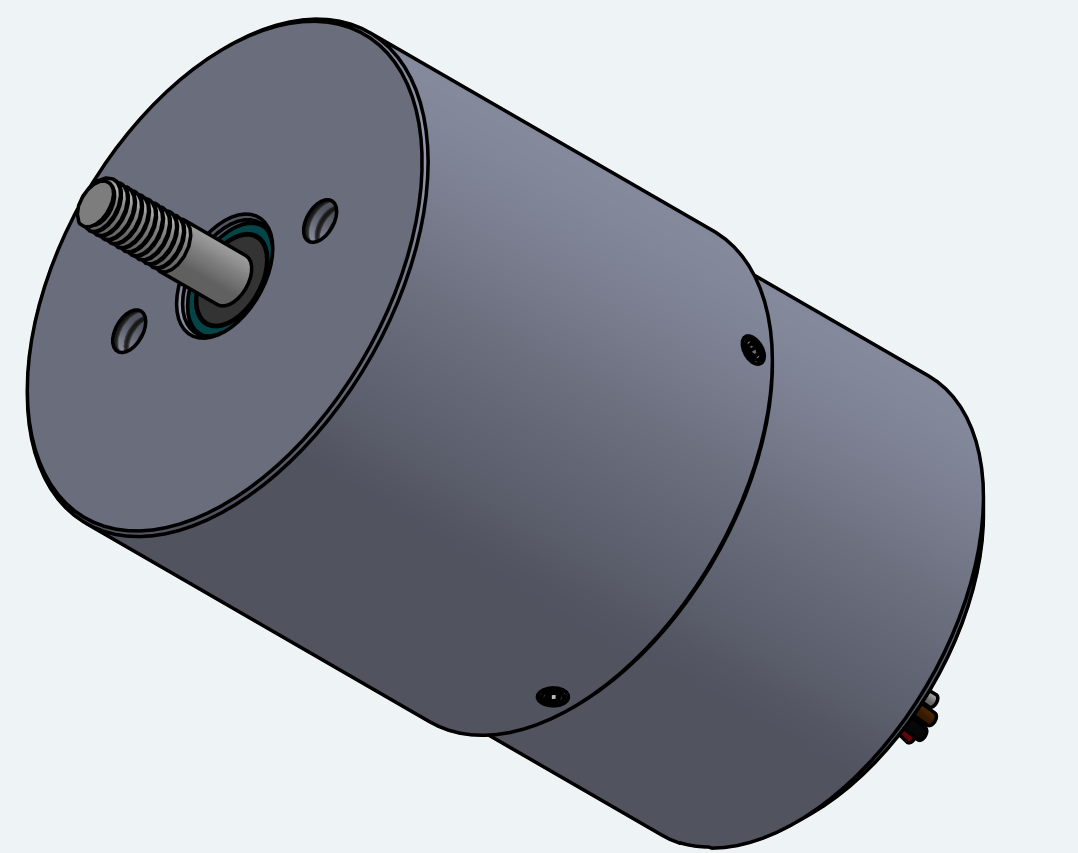

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 15 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

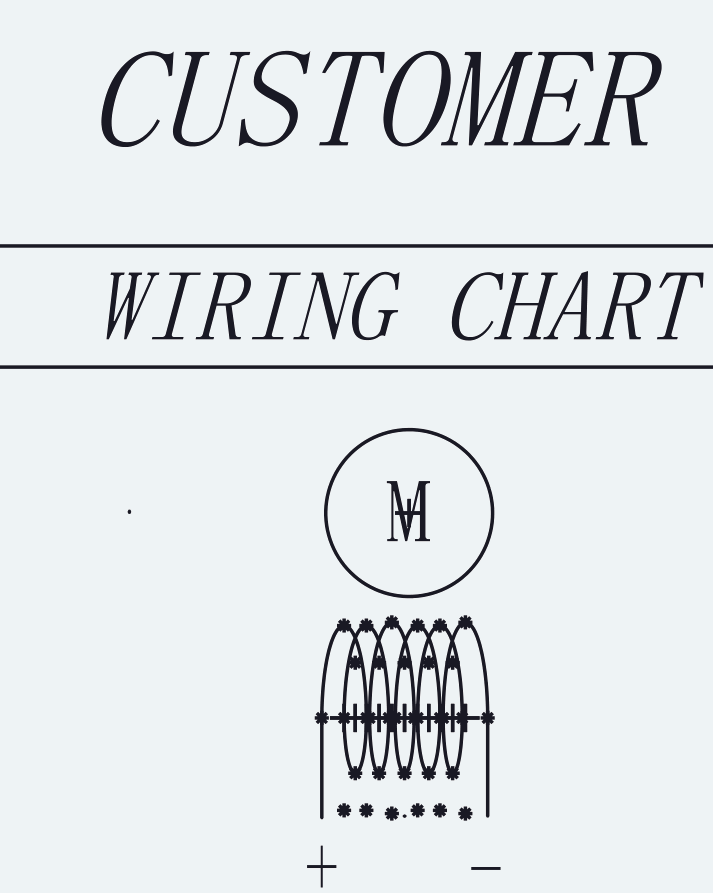

Electrical Parameters

Back EMF Constant
11 V/m/s
Resistance
5 Ω
Inductance
1.32 mH
Continuous Current
1 A
Peak current
4 A
Coil Resistance
5±10%Ω
Coil Inductance
1.32±20%mH

Performance Parameters

Continuous Force
11 N
Peak Force
40 N

Mechanical Parameters

Stroke
6 mm
Coil Assembly Mass
48 g
Magnet Mass
244 g
Coil Clearance
0.5 mm
Body Length
Overall length 58.48 mm

Environmental & Insulation

Insulation class
Class B

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing
