Harmonic Gearbox Configuration

High-Torque Shaft-Input Gear Unit, Size 14

Selected Exact SKU: ES-HG-S10-F14-R50

Review the selected ratio, verified performance data, installation interface and controlled engineering files for this frame-size configuration.

Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

Documentation access below
Annotated 2D 3D preview generation pending Parameters approved

2D Structure Diagram

High-Torque Shaft-Input Gear Unit, Size 14 envelope view

Recorded · controlled review
Scale: 100%

2D Engineering Drawing Center

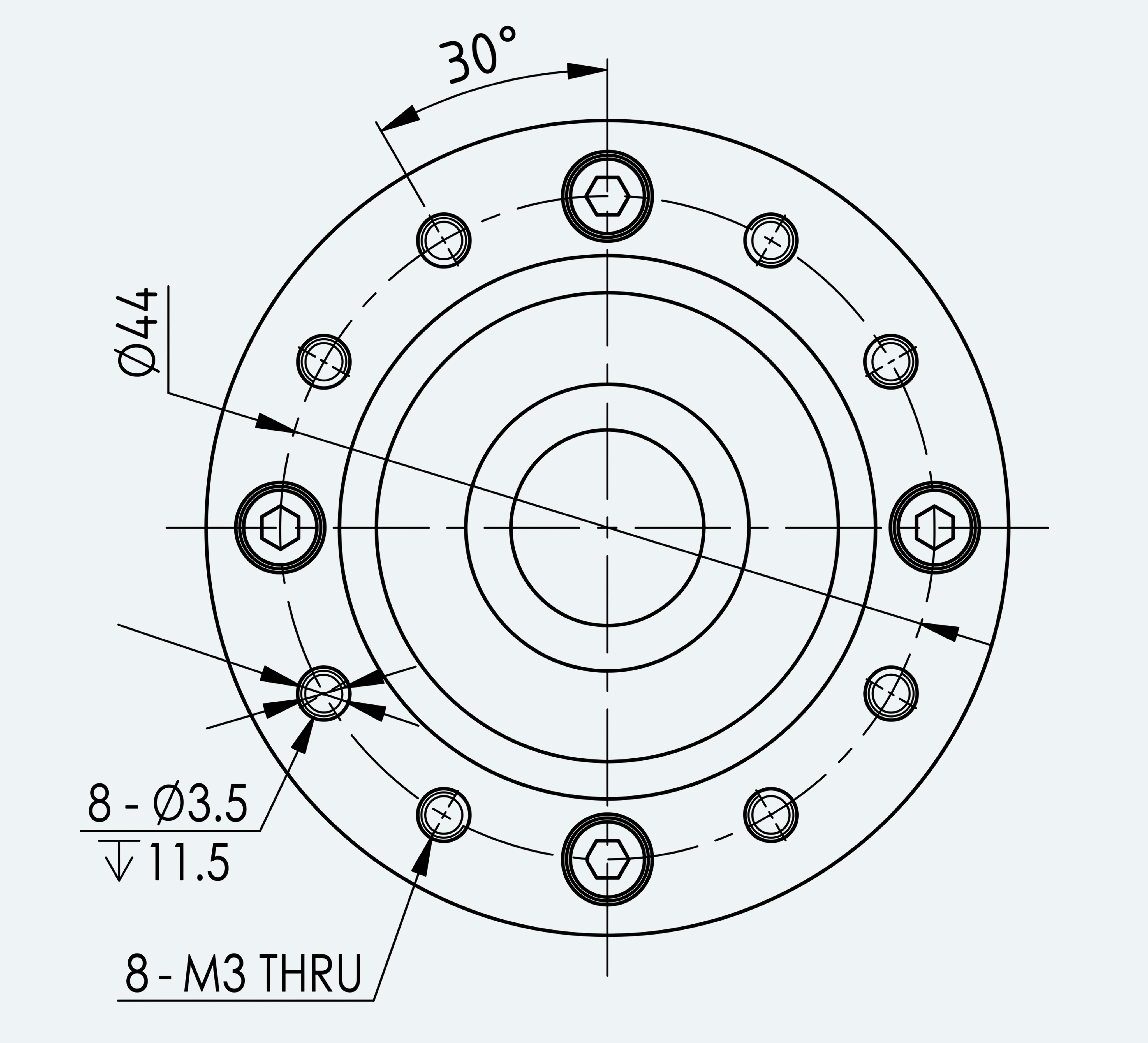

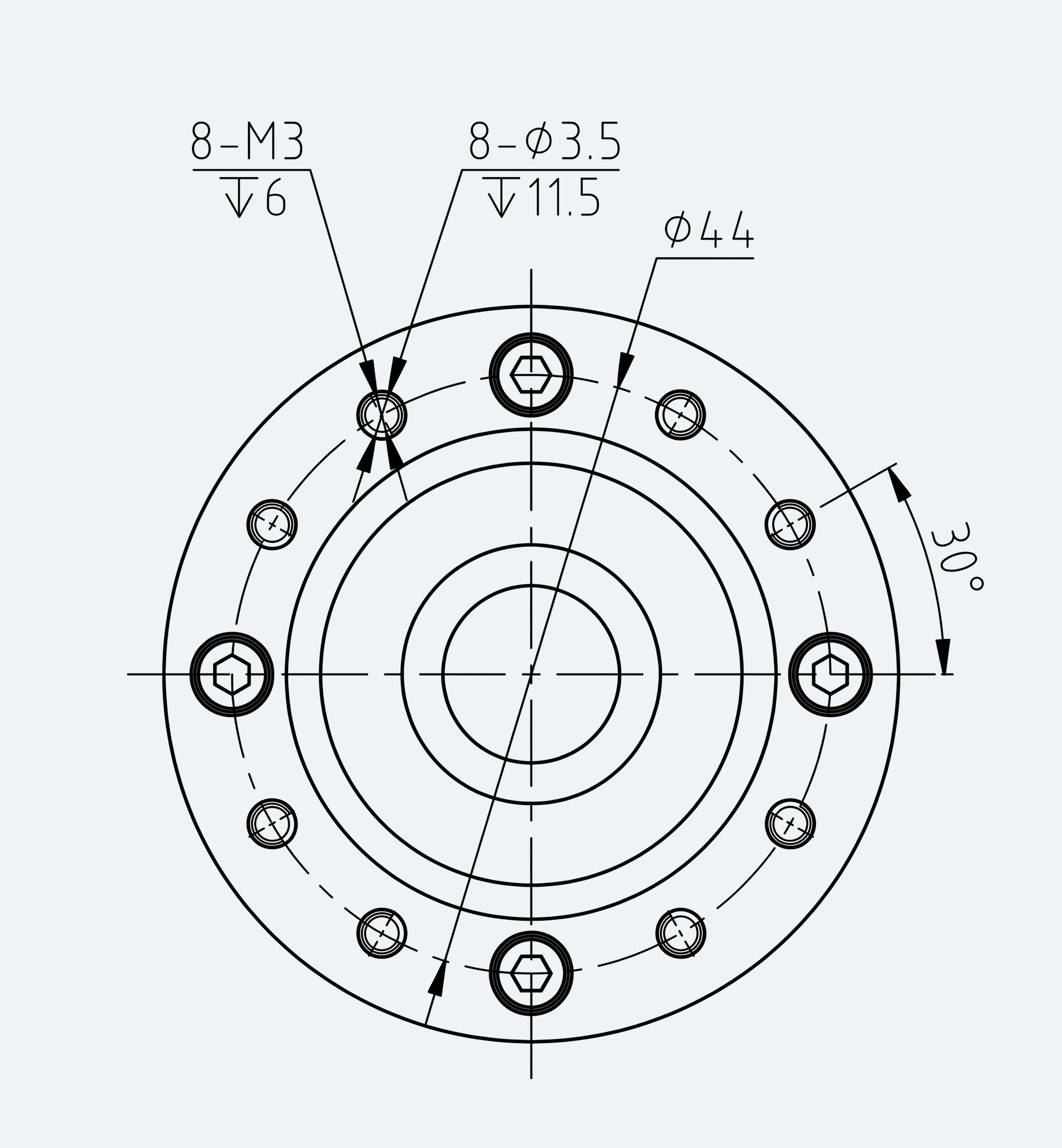

Mechanical Dimensions

Drawing view classified from the reviewed drawing package.

Primary Drawing Viewer

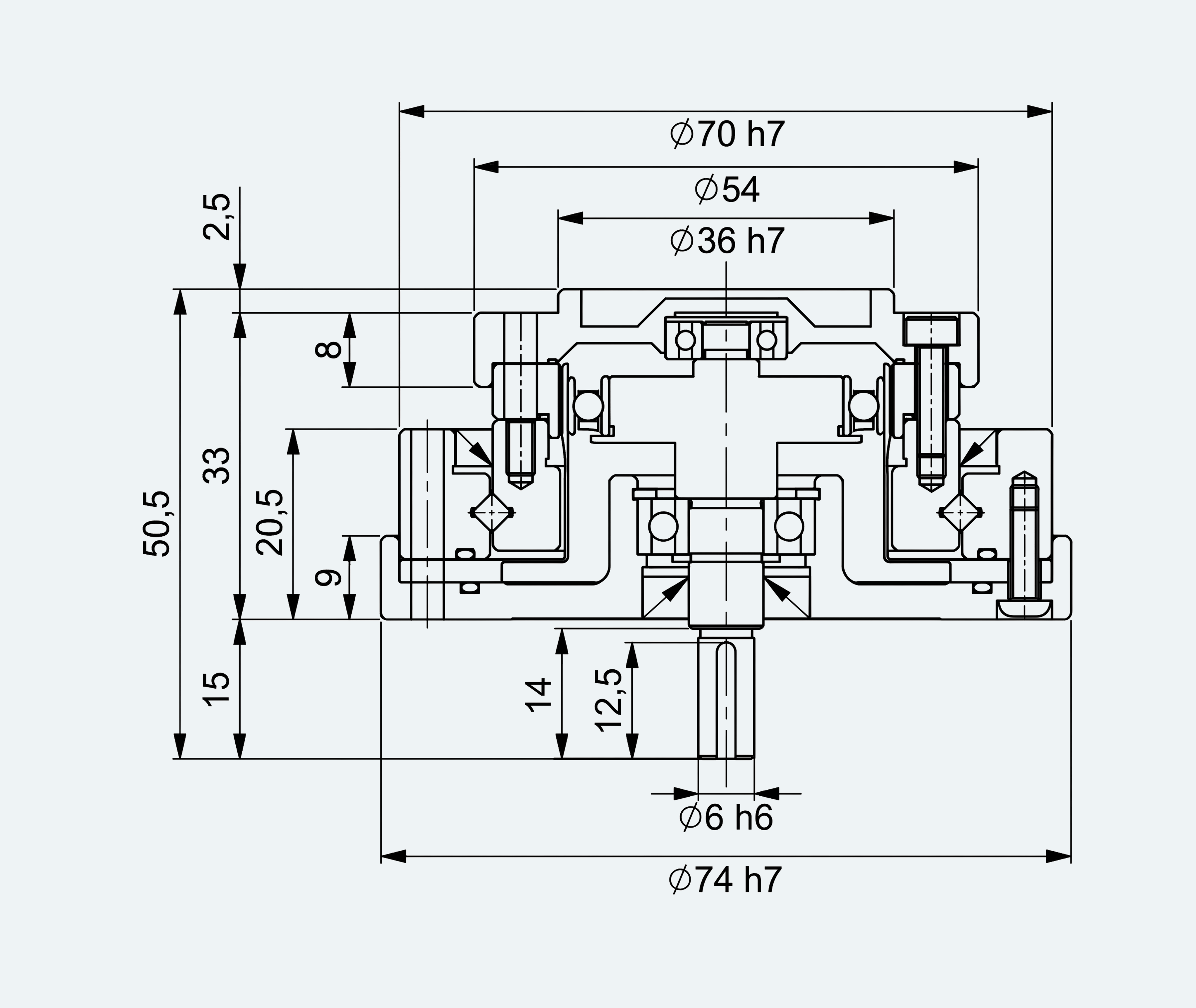

Mechanical View 1 for High-Torque Shaft-Input Gear Unit, Size 14
Mechanical View 1

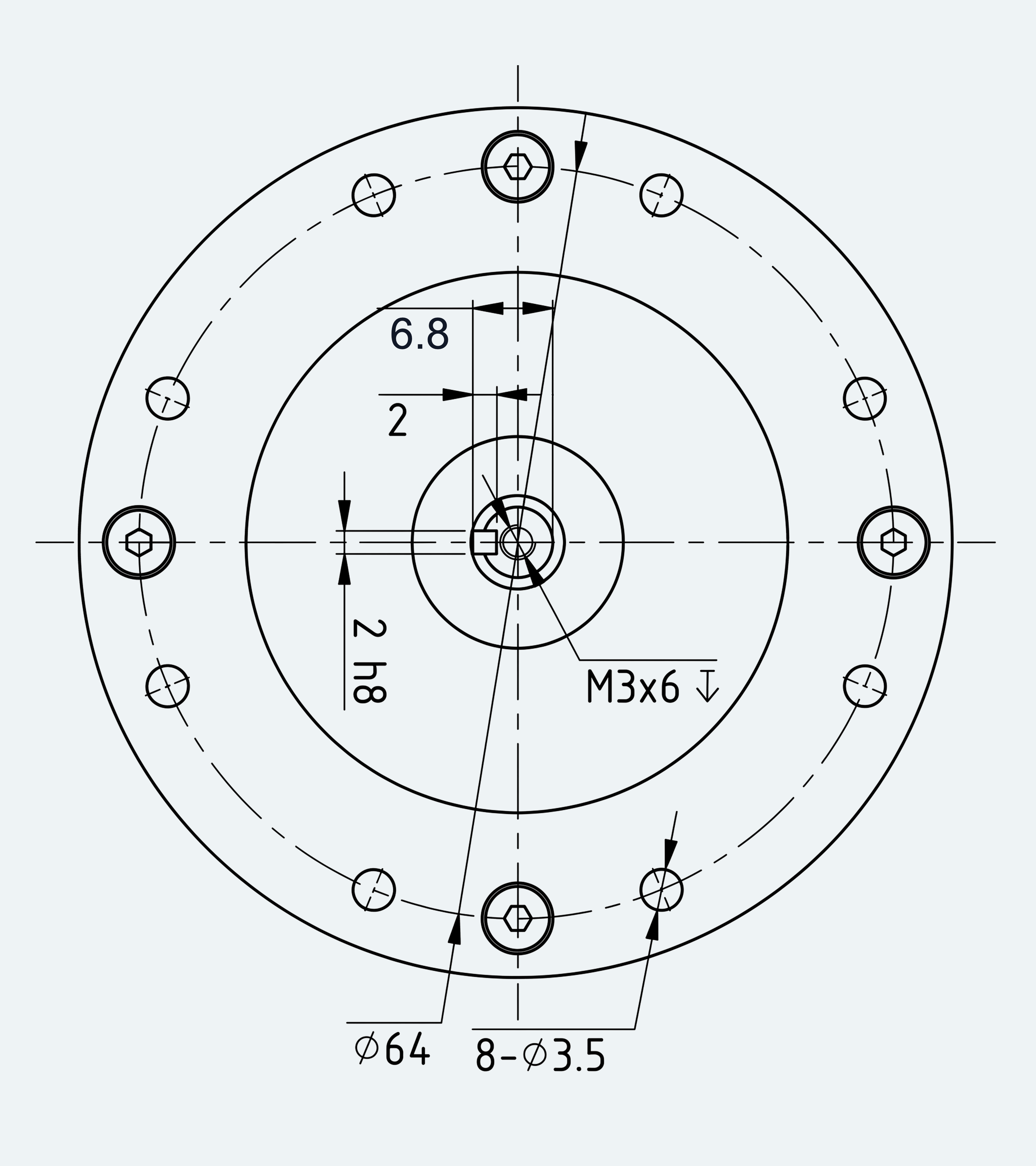

With keyway

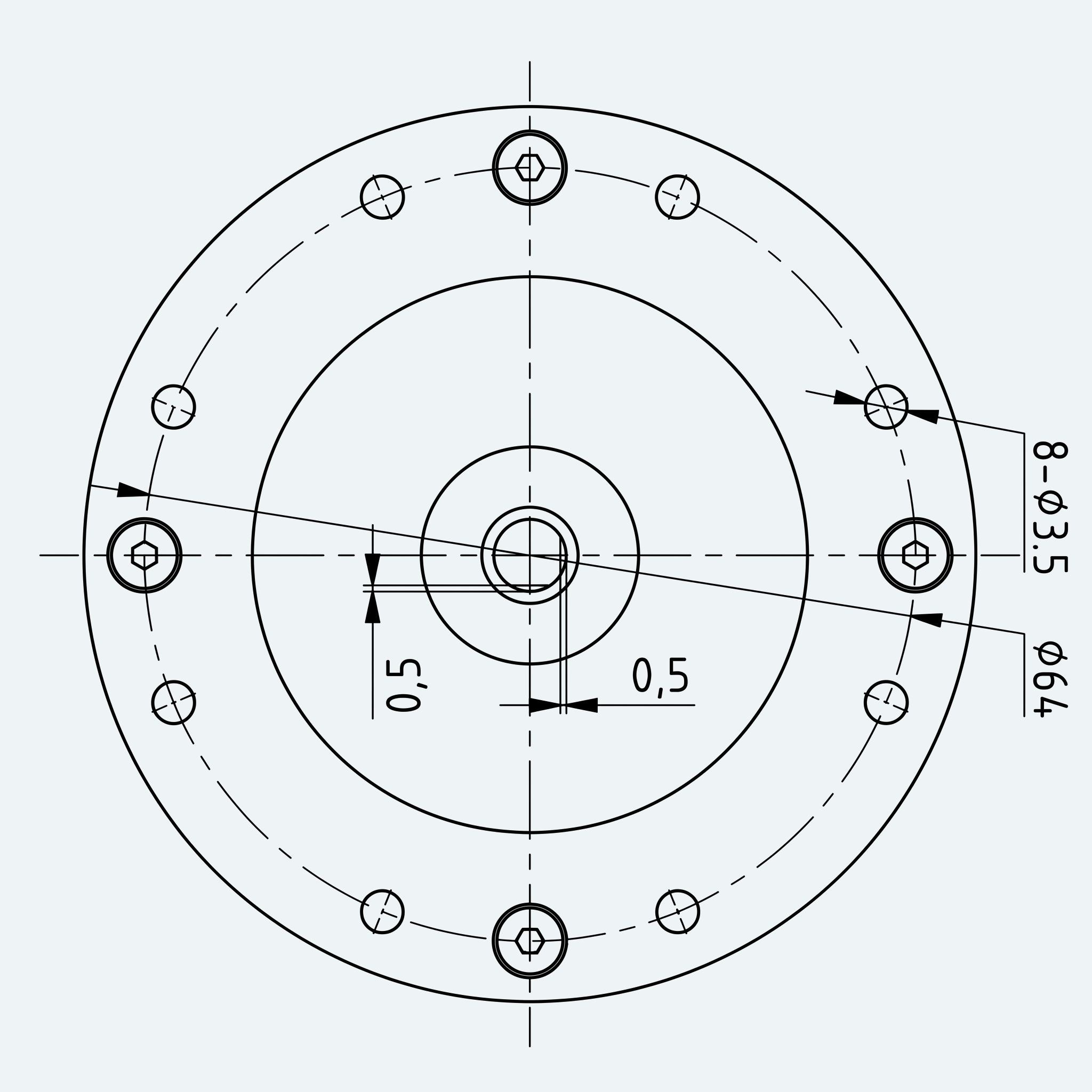

Without keyway
Drawing modules
1 engineering view(s)
Structured previews
5 drawing crop(s)

5 structure preview(s), 0 table(s), 0 note/text block(s) extracted from the controlled 2D package.

Documentation access below

3D Design File Viewer

Recorded STEP · preview generation pending

Series geometry reference — confirm interfaces and ratio-specific details during engineering review.

Recorded · controlled review

3D preview pending controlled file review

A STEP/STP record exists for this SKU, but an approved browser preview is not available in this environment.

Request controlled CAD / STEP review

1 recorded design file(s)

A STEP/STP source file is recorded for this series and exact frame; CAD access and configuration fit remain subject to engineering review.

Documentation access below

Full Specifications

Selected configuration engineering data

Only published, size-matched values are shown. Selecting another ratio updates the corresponding performance values without changing the page identity.

Configuration

Frame size
Size 14
Ratio
50:1
Technical variant
High-Torque Shaft-Input Gear Unit
Mechanical form
hat

Performance Parameters

Rated torque
7 Nm
Start/Stop peak torque
23 Nm
Instant max torque
46 Nm
Max input speed
8500 rpm
Average input speed
3500 rpm
Backlash
≤20 arc-sec
Weight
0.66 kg
Design life
10000 h

RFQ Workflow

Submit the selected configuration for engineering review

The request carries the selected ratio, installation interface and public configuration identity. Duty cycle, mounting and controlled files remain subject to engineering review.

Engineering Files

Controlled documentation access

2D drawing

Not Released for Production

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

STEP / STP CAD

Not Released for Production

A validated browser preview may be available; native CAD remains controlled.

Request controlled CAD

Datasheet

Not Released for Production

This requestable documentation package is prepared during the first engineering response.

Request documentation review

Installation notes

Not Released for Production

This requestable documentation package is prepared during the first engineering response.

Request engineering notes
