Stepper Motor

Stepper Motor — 2 A · 1 N·m · 1.5 Ω · 3.4 mH

Exact SKU: ES-ST-24H2047-200-4BL

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Rated current
2 A
Holding Torque
1 N·m
Phase Resistance
1.5 Ω
Phase Inductance
3.4 mH
Rotor inertia
340 g·cm²
Mass
0.6 kg
Insulation class
B
Body Length
47 mm
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-ST-24H2047-200-4BL envelope view

Scale: 100%

2D Engineering Drawing Center

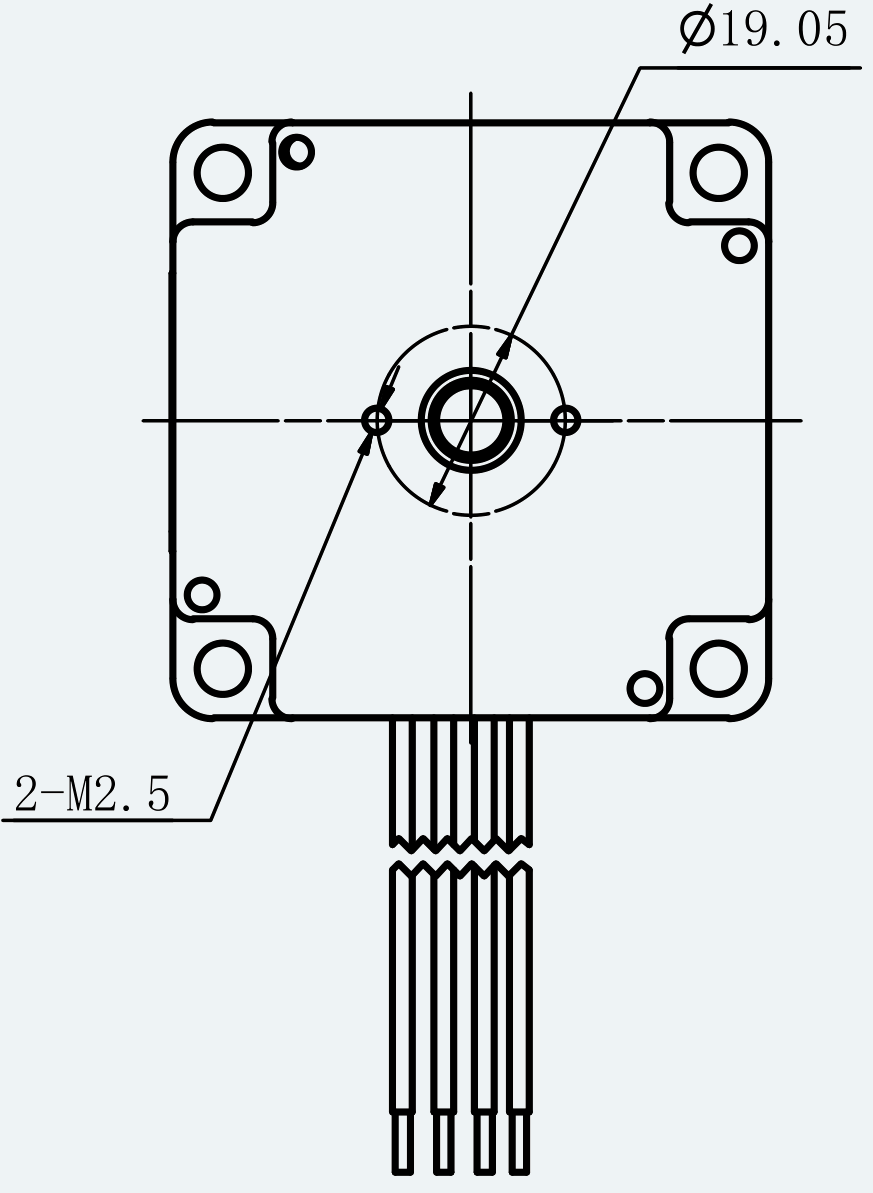

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

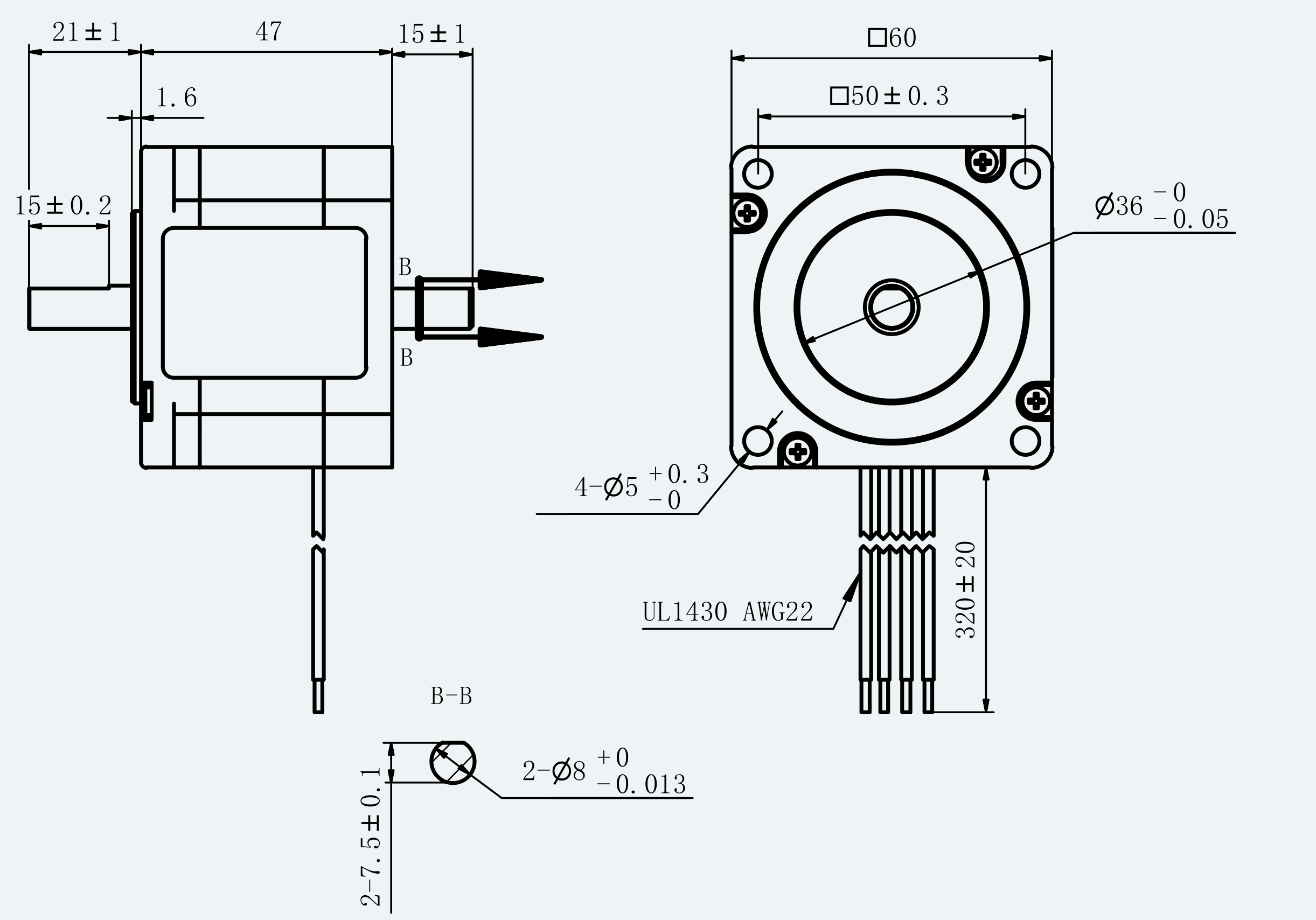

Mechanical View 1 for ES-ST-24H2047-200-4BL
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 12 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

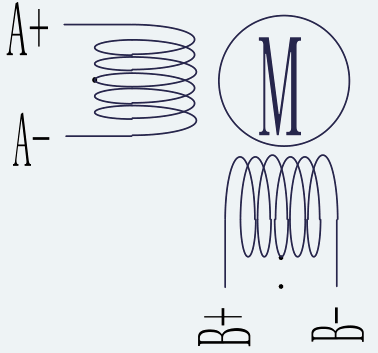

Electrical Parameters

Step Angle
1.8 °
Rated current
2 A
Phase Resistance
1.5 Ω
Phase Inductance
3.4 mH
Insulation class
B
Insulation Resistance
100 MΩ
Temperature Rise
80 °C
Number of Phases
2

Performance Parameters

Holding Torque
1 N·m
Rotor inertia
340 g·cm²

Mechanical Parameters

Mass
0.6 kg
Body Length
47 mm

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

STEP / STP CAD

Controlled Review

A validated browser preview may be available; native CAD remains controlled.

Request controlled CAD
