Iron-Core Brushed DC Motor

50 mm Iron-Core Brushed DC Motor - 0.0225 N·m · 24 V · 1,700 rpm

Review the continuous torque-speed point, starting current, duty cycle, brush life, shaft interface and thermal capacity for the final installation.

Exact SKU ES-DC-IC02-M001
Frame Size
50 mm
Rated Voltage
24 VDC
Rated Torque
0.0225 N·m
Rated Speed
1,700 rpm
Rotation Direction
CW
Rated Power
4 W
Physical product image
Product image for ES-DC-IC02-M001
Request engineering quote Review engineering files

2D drawing

Review the drawing with its engineering data

Primary drawing views stay beside the annotated data table so a focused row highlights the matching callout.

Reviewed annotated drawing
Drawing controls
Scale: 100%

Primary Drawing Viewer

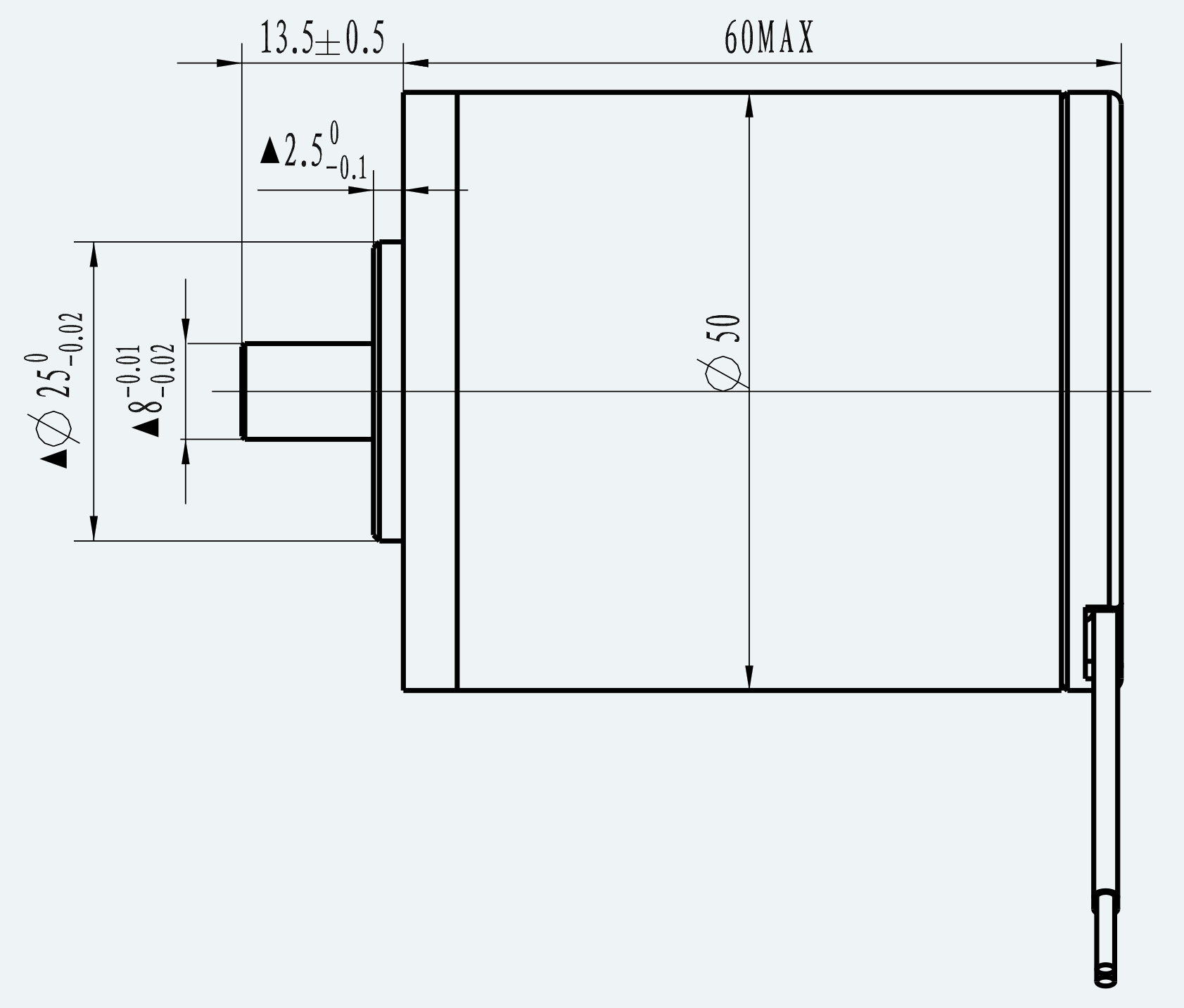

Mechanical View 1 1 / 3
Mechanical View 1 for ES-DC-IC02-M001
Mechanical View 1

3D fit review

Inspect envelope and mounting relationships

The interactive toolbar stays with the model. Controlled CAD access remains a separate engineering-file request.

Interactive reviewed preview
More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Full specifications

Grouped engineering parameters

All 37 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

37 published fields

Dimensions & Integration

1 fields

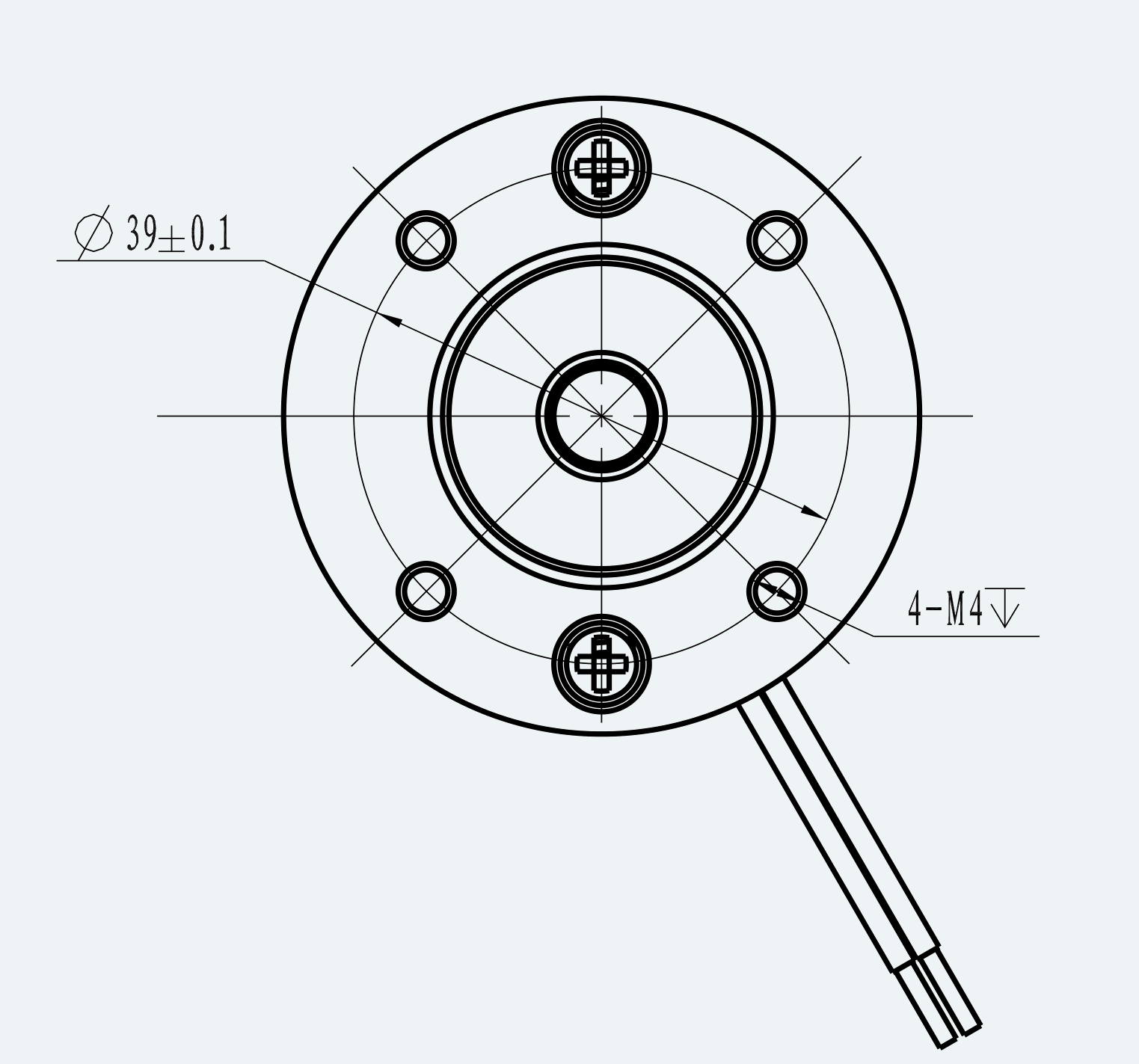

Mounting Hole Pitch Circle Diameter
39 mm

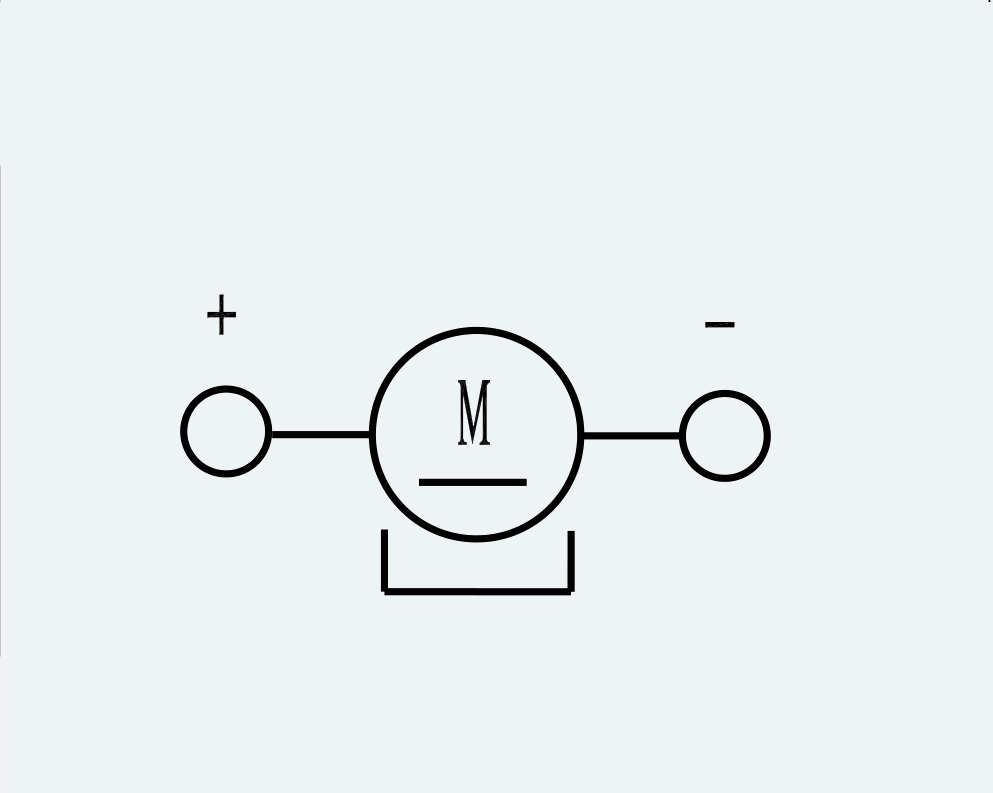

Electrical Parameters

13 fields
Back EMF Constant
9.05 V/krpm
Drawing Insulation Resistance
50 MΩ
Drawing No-load Current
0.2 A
Drawing Stall Current
1 A
Insulation Class
B/130°C
Insulation Resistance
100 MΩ
No-load Current
0.2 A
Phase Inductance
11 mH
Rated Current
0.5 A
Rated Power
4 W
Rated Voltage
24 VDC
Stall Current
1.1 A
Terminal Resistance
20.2 Ω

Performance Parameters

8 fields
Drawing No-load Speed
2,100 rpm
Drawing Stall Torque
0.09 N·m
No-load Speed
2,300 rpm
Rated Speed
1,700 rpm
Rated Torque
0.0225 N·m
Stall Torque
0.08 N·m
Starting Torque
0.032 N·m
Torque Constant
86.4 mN·m/A

Mechanical Parameters

13 fields
Body Length
60 mm
Frame Size
50 mm
Housing Type
Stainless steel / iron housing
Keyway Depth
8 mm

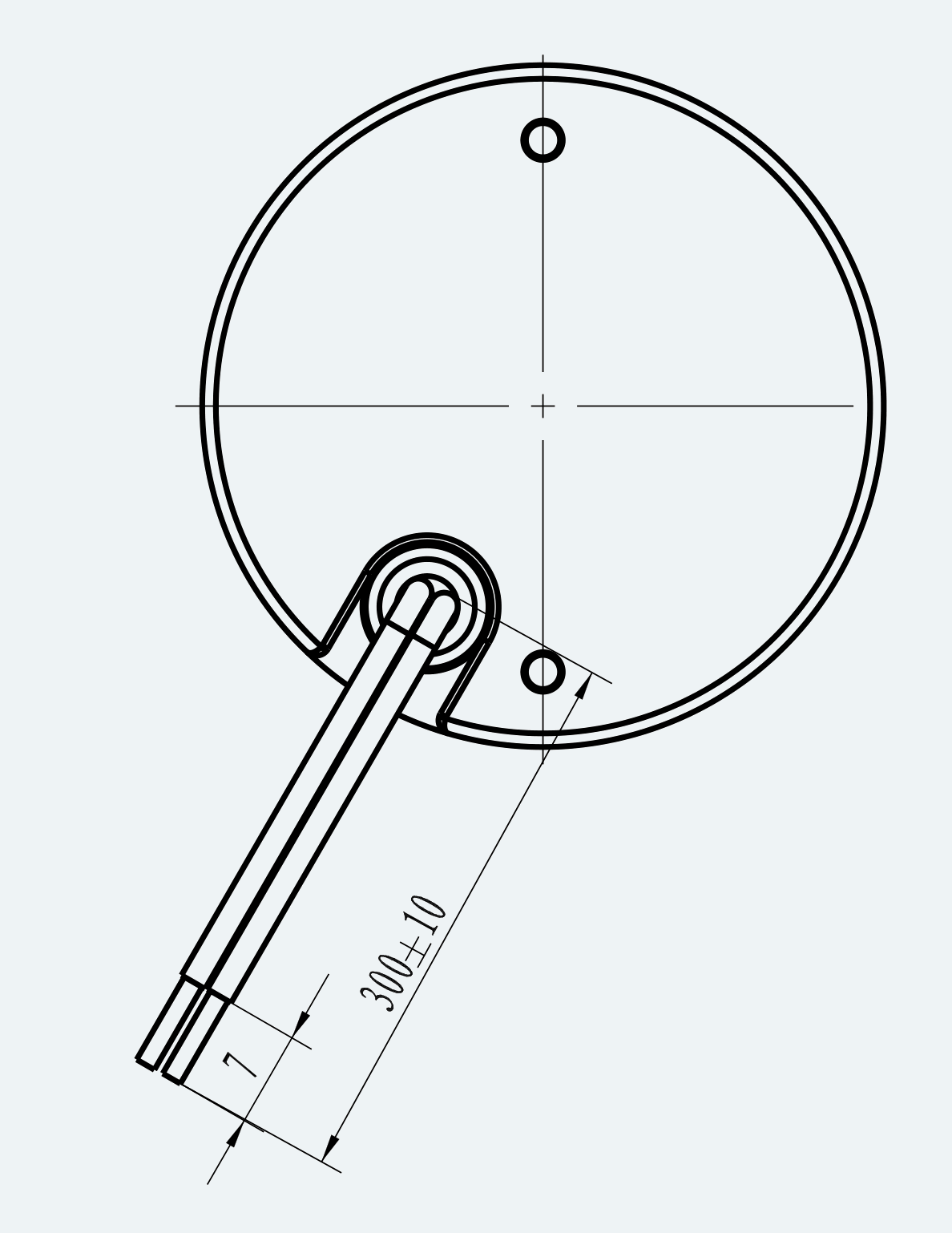

Lead Wire Length
300 mm
Motor Construction
Slotted brushed DC motor (ferrite)
Motor Overall Length (Maximum)
60 mm
Motor Weight
0.38 kg
Output Shaft Diameter
25 mm
Rotation Direction
CW
Rotor Inertia
0.13 kg·cm²
Shaft Outer Diameter
50 mm
Housing Shape
Round

Environmental & Insulation

2 fields
Noise
48 dB
Service Life
2,500 h

Product documentation

Product documentation

Review published PDFs for specifications, then request controlled 2D and 3D engineering files for integration.

Published PDFsDirect access · current public editions

SKU Datasheet

ES-DC-IC02-M001 Product Datasheet

SKU-specific · Specifications and performance data

Review performance specifications, operating limits and selection data for this SKU.

R03 6 pages · 489 KB

View datasheet (PDF)

SKU Integration Guide

ES-DC-IC02-M001 Dimensional & Integration Guide

SKU-specific · Dimensions and mounting interfaces

Review dimensions, mounting interfaces and integration notes for this SKU.

R01 9 pages · 803 KB

View integration guide (PDF)

Category Selection Guide

Iron Core Brushed Series Category Selection Guide

Category-wide · Product platform comparison

Compare product platforms, key selection parameters and application requirements to narrow your options.

R01 4 pages · 123 KB

View selection guide (PDF)
2D Engineering Drawing

2D drawing

1 file available · Product-specific resource

Review the 2D preview above; request the controlled source drawing when needed.

Preview available · drawing access by request
3D CAD Model

STEP / STP CAD

1 file available · Product-specific resource

A product-specific CAD file is available through the controlled engineering file process.

File access by request · preview pending

Compliance

Product Integration & Compliance

OEM INTEGRATION RESPONSIBILITY

This product is a component or configurable module intended for integration into an OEM, commercial, industrial or research system.

The customer is responsible for final product selection, system-level risk assessment, safety functions, mechanical and electrical integration, validation, certification and regulatory compliance.

Published ratings apply only under the stated conditions. Confirm the operating point, interfaces, control compatibility, thermal conditions, duty cycle and required documentation before final selection.

This product is not approved for a safety-critical or restricted application unless expressly authorized in writing.

MOTOR AND ACTUATOR INTEGRATION

Confirm continuous and peak operating points, load inertia, acceleration, shock, radial and axial loading, mounting accuracy, cooling, drive compatibility, encoder interface, braking behavior and fault response.

A standard holding brake is not represented as a safety brake unless the Exact SKU is expressly identified and documented as safety-rated.

Mechanical stops, guards, interlocks, emergency functions and system-level functional safety remain the responsibility of the machine manufacturer and system integrator.
