Motion Controller

Motion Controller — EtherCAT; CoE; CANopen; Modbus RTU; TCP; UDP · 0.18 kg · IP20

Exact SKU: ES-MC-01-M001

Confirm the power architecture, control mode, communications, I/O, enclosure and thermal conditions before final integration.

Communication Protocol
EtherCAT; CoE; CANopen; Modbus RTU; TCP; UDP
Mass
0.18 kg
Protection Rating
IP20
Controlled Axis Count
16 axes
Control Cycle
4 ms
Data Memory
32 MB
Onboard Digital I/O
16 digital inputs (NPN/PNP compatible); 16 PNP transistor outputs
Expansion Capability
1 MicroSD slot; 1 USB Host (Type-C); 1 USB OTG
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-MC-01-M001 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

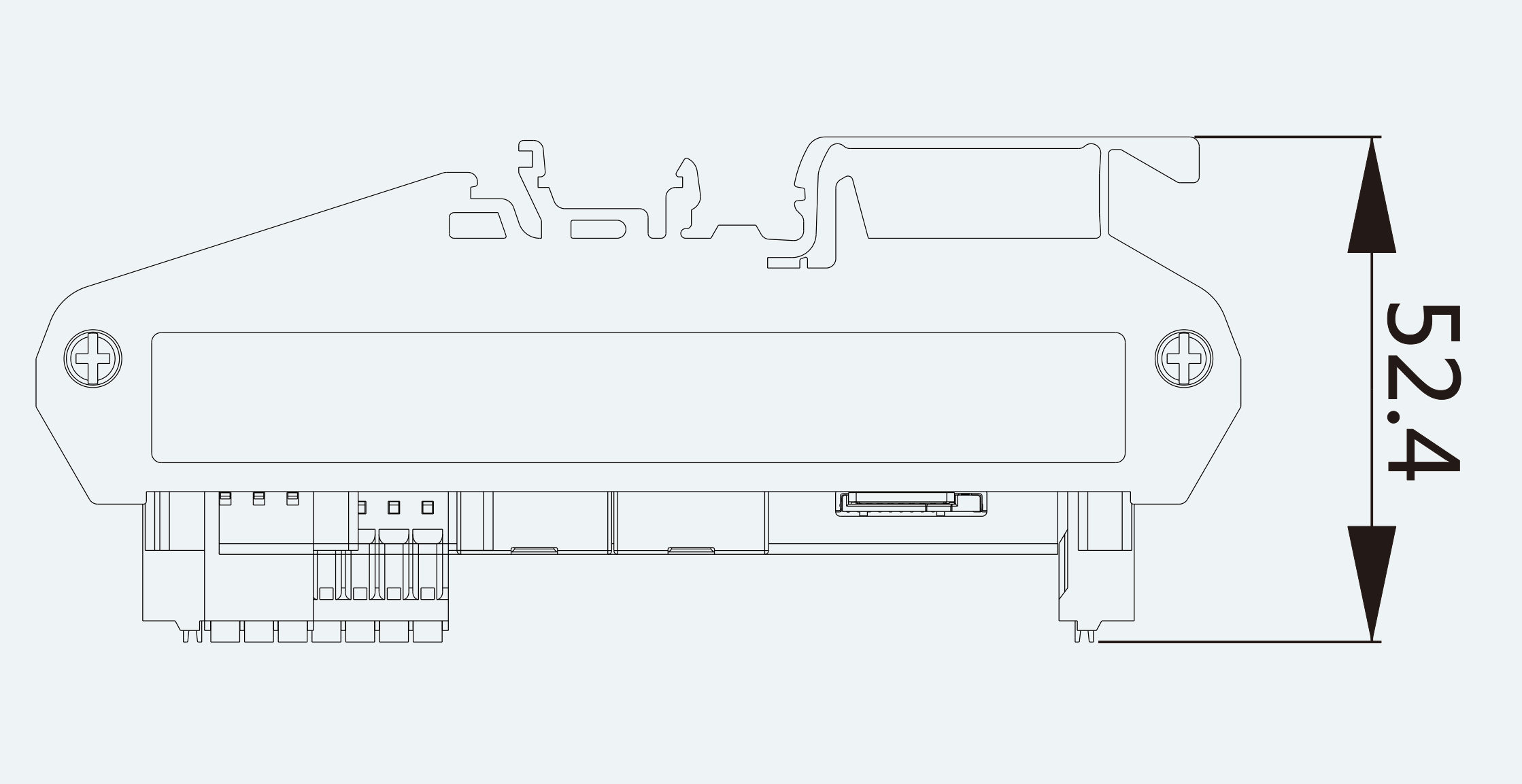

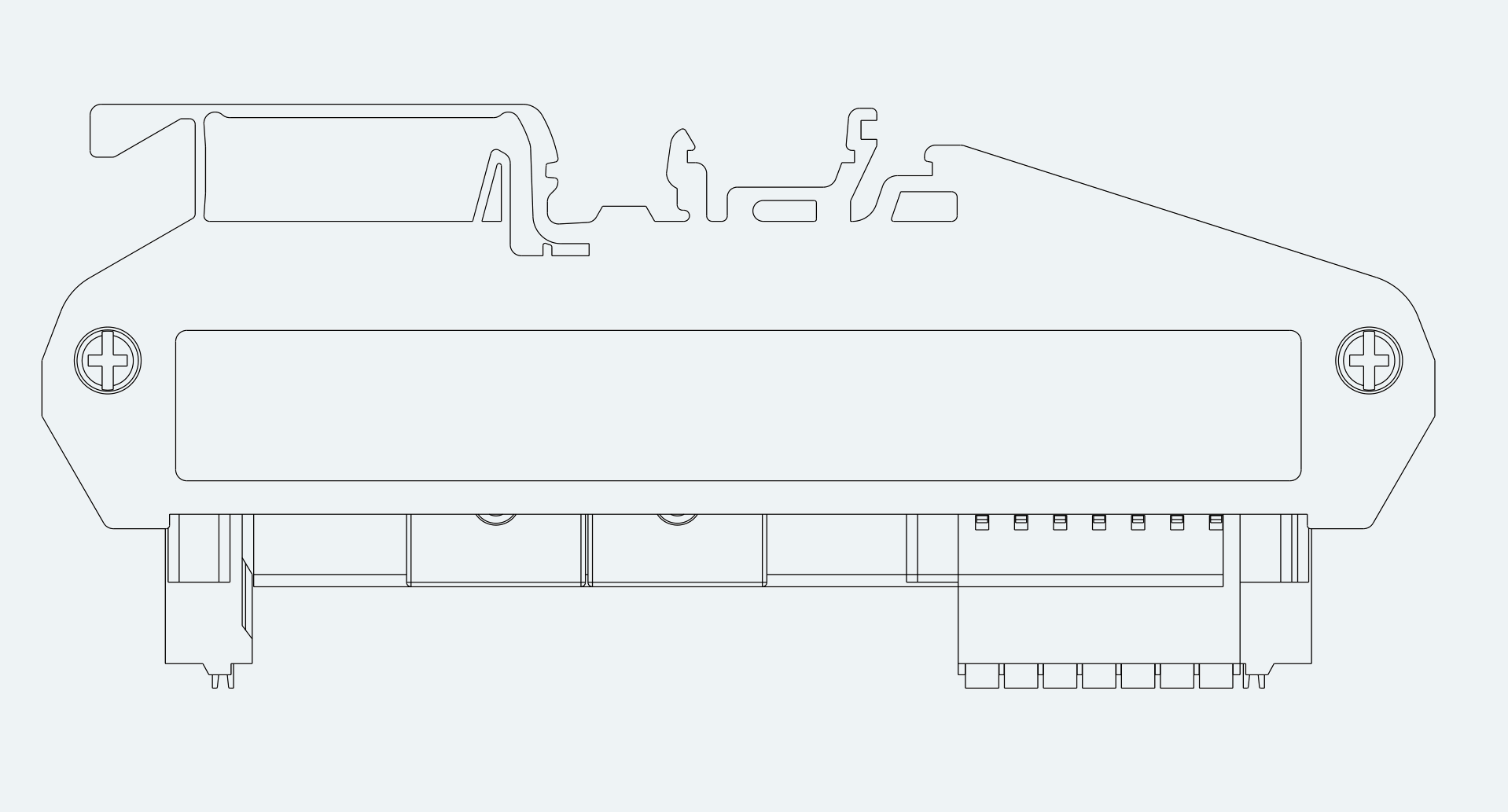

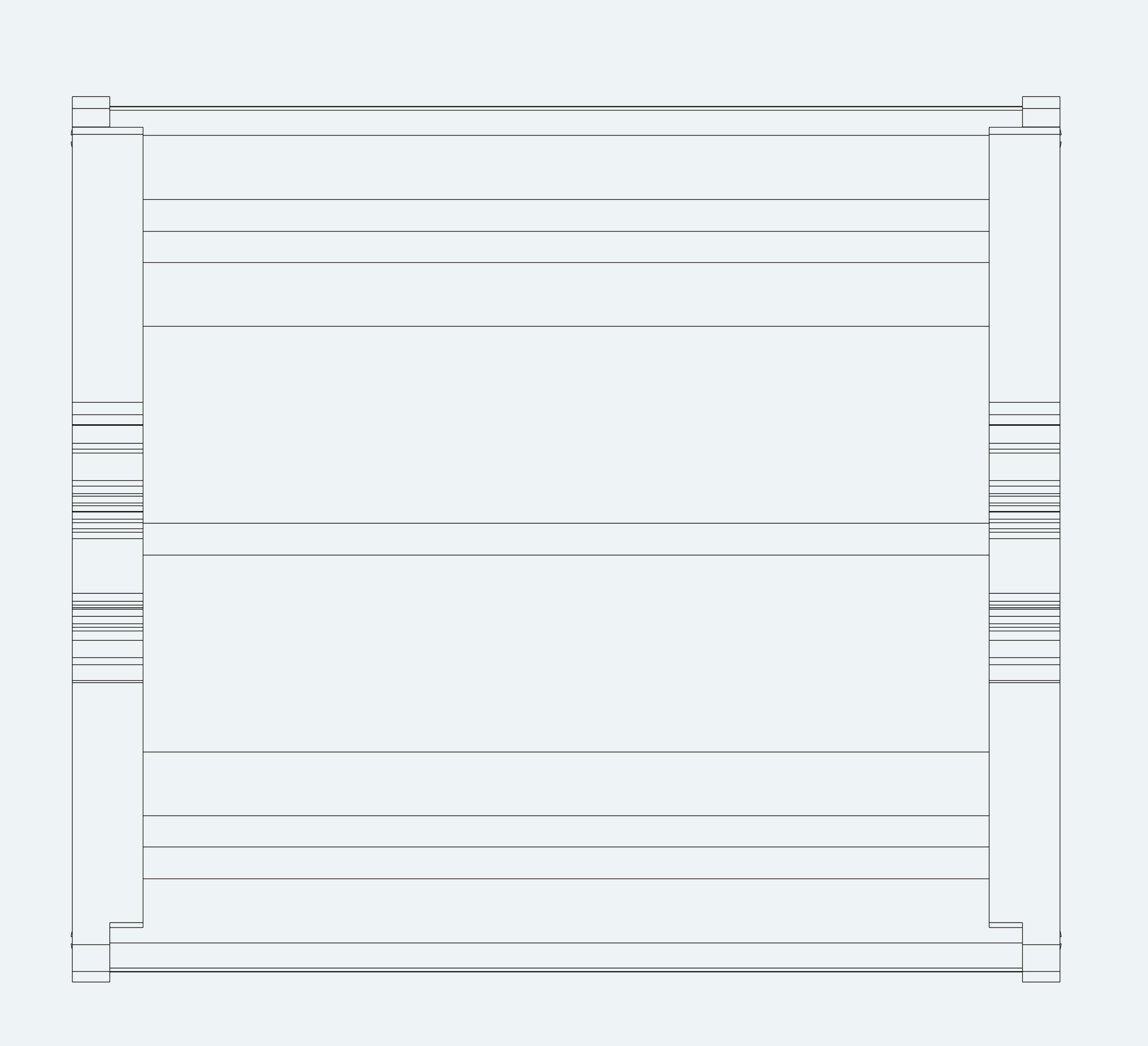

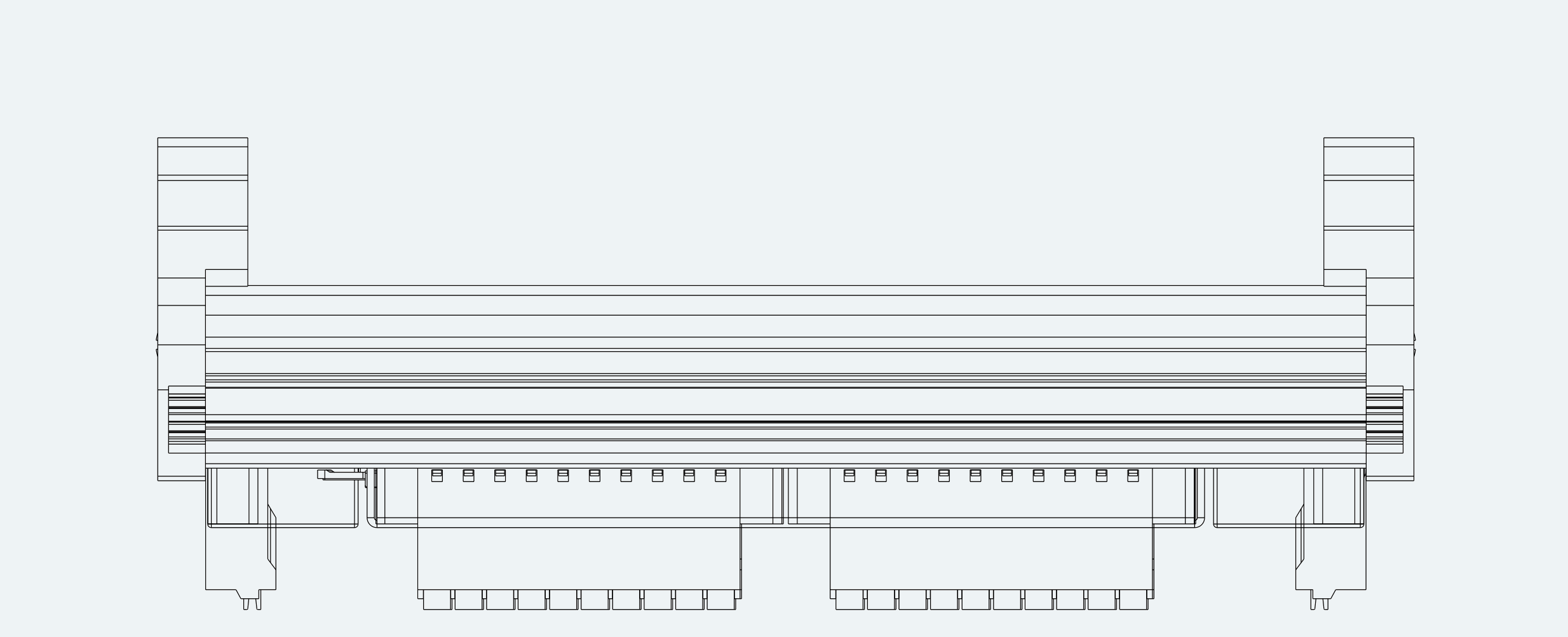

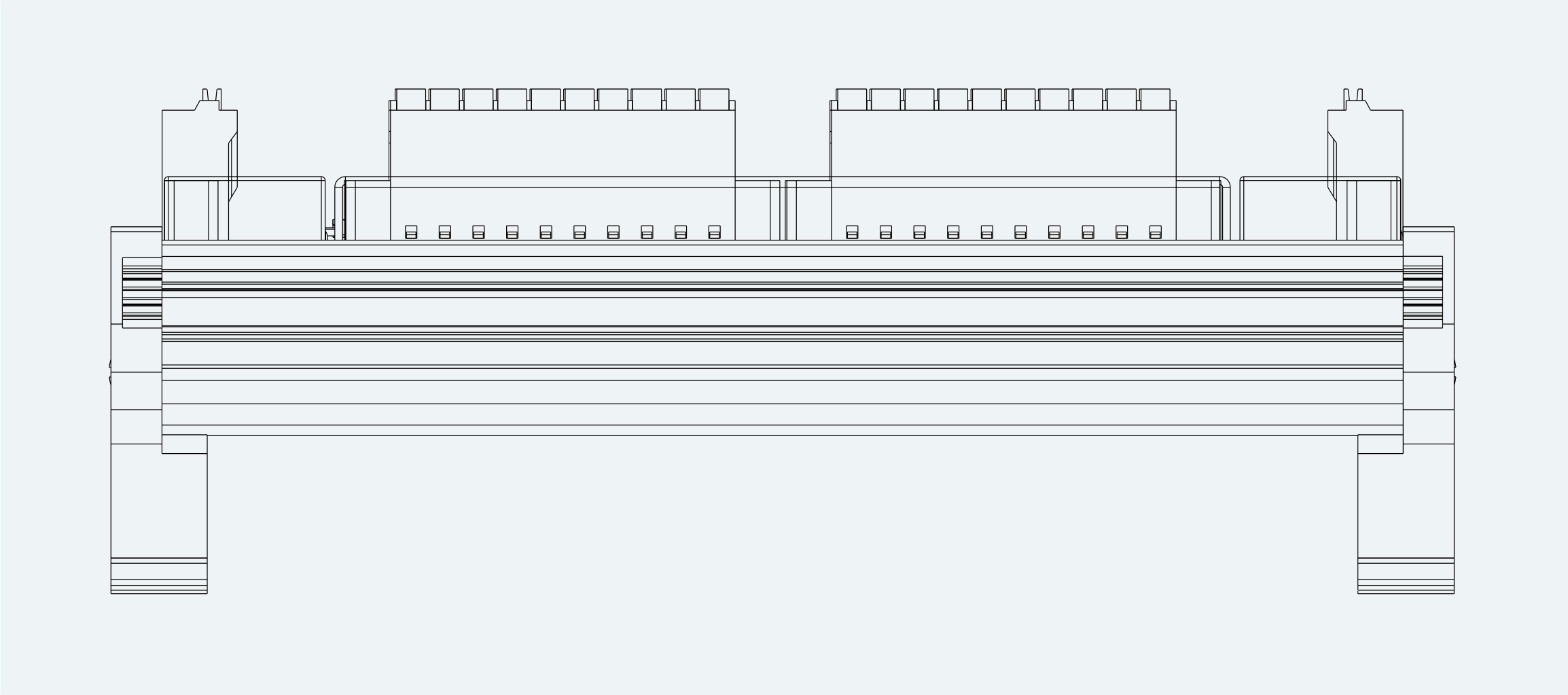

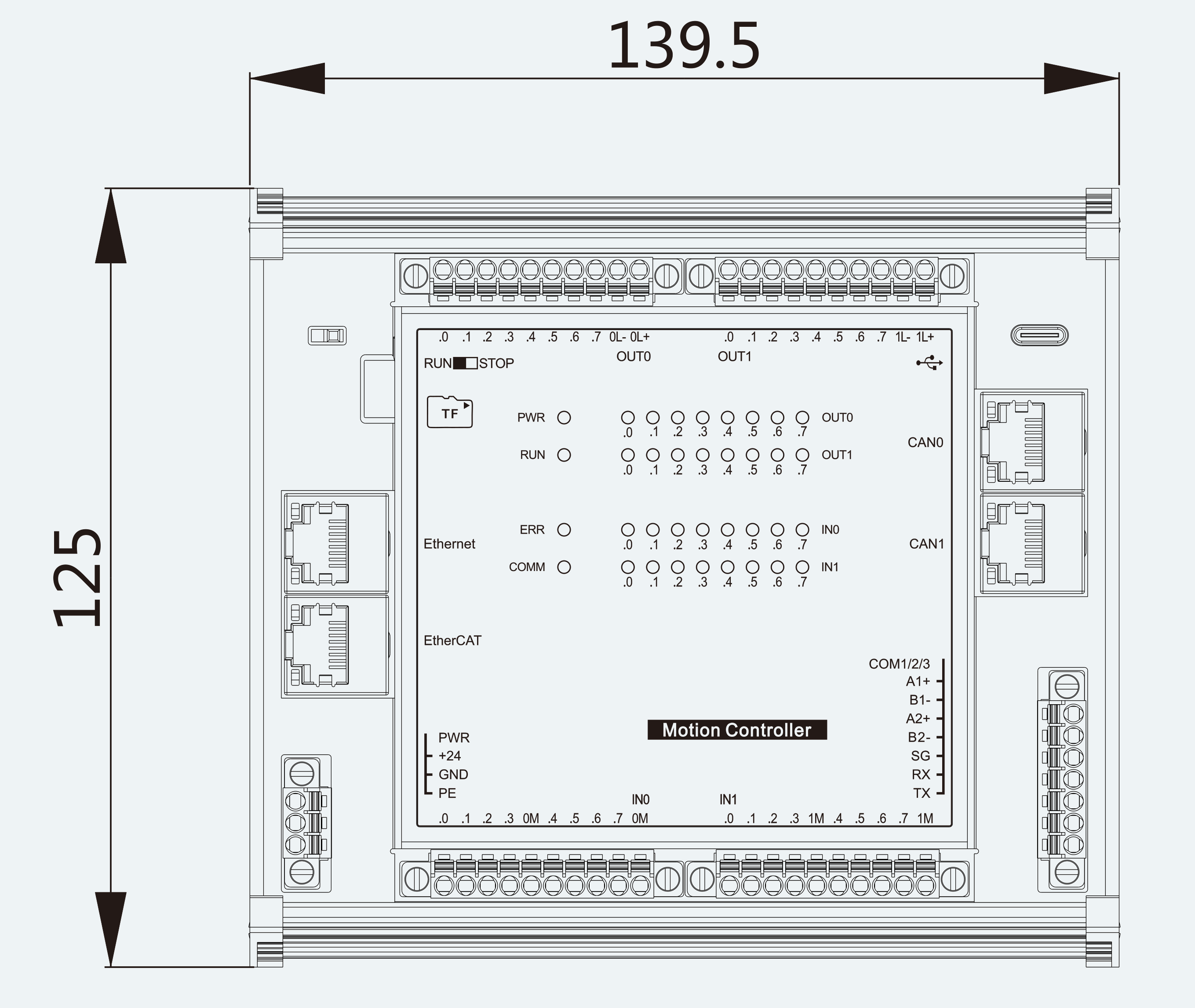

Mechanical View 1 for ES-MC-01-M001
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 11 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

Communication Protocol
EtherCAT; CoE; CANopen; Modbus RTU; TCP; UDP
Onboard Digital I/O
16 digital inputs (NPN/PNP compatible); 16 PNP transistor outputs

Performance Parameters

Controlled Axis Count
16 axes
Control Cycle
4 ms
Motion Functions
Electronic gearing; electronic cam; interpolation

Mechanical Parameters

Data Memory
32 MB
Expansion Capability
1 MicroSD slot; 1 USB Host (Type-C); 1 USB OTG
Program Memory
32 MB
Programming Environment
IEC 61131-3; CODESYS
Mass
0.18 kg

Environmental & Insulation

Protection Rating
IP20

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

STEP / STP CAD

Controlled Review

A validated browser preview may be available; native CAD remains controlled.

Request controlled CAD
