Robot Component

Elite Multidimensional Tactile Sensor — Engineering Configuration V004

Exact SKU: ES-SN-C00-S005-V004

Confirm measurement range, accuracy, interface, mounting, calibration and environmental conditions before integration.

Repeatability
<0.5 %FS
Ingress Protection
IP68
Operating temperature
0–50 °C
Measurement Output
Triaxial force array, triaxial resultant force, and triaxial torque
Maximum Tactile Signal Channels
717 channels
Normal Force Range (Fz)
0–25 N
Tangential Force Range (Fxy)
±10 N
Overload Temperature
−20–120 °C
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-SN-C00-S005-V004 envelope view

Scale: 100%

2D Engineering Drawing Center

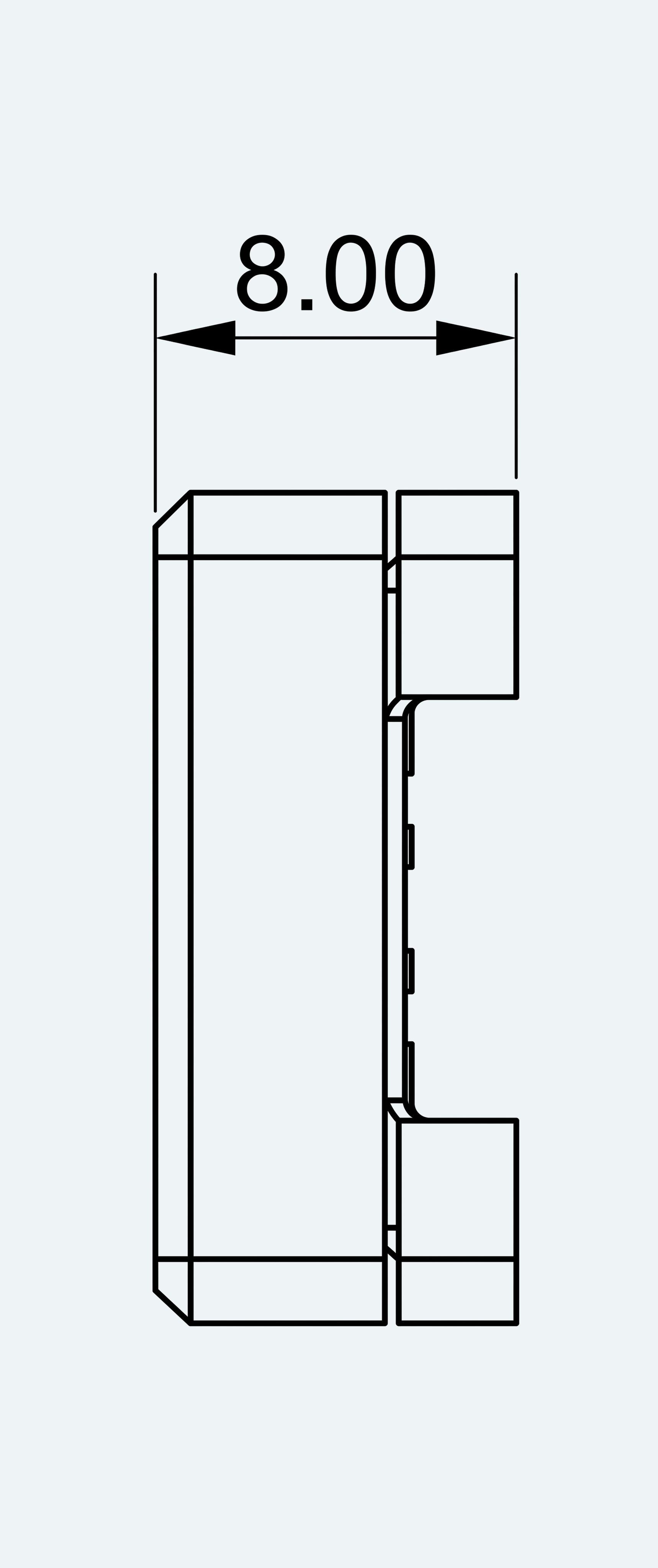

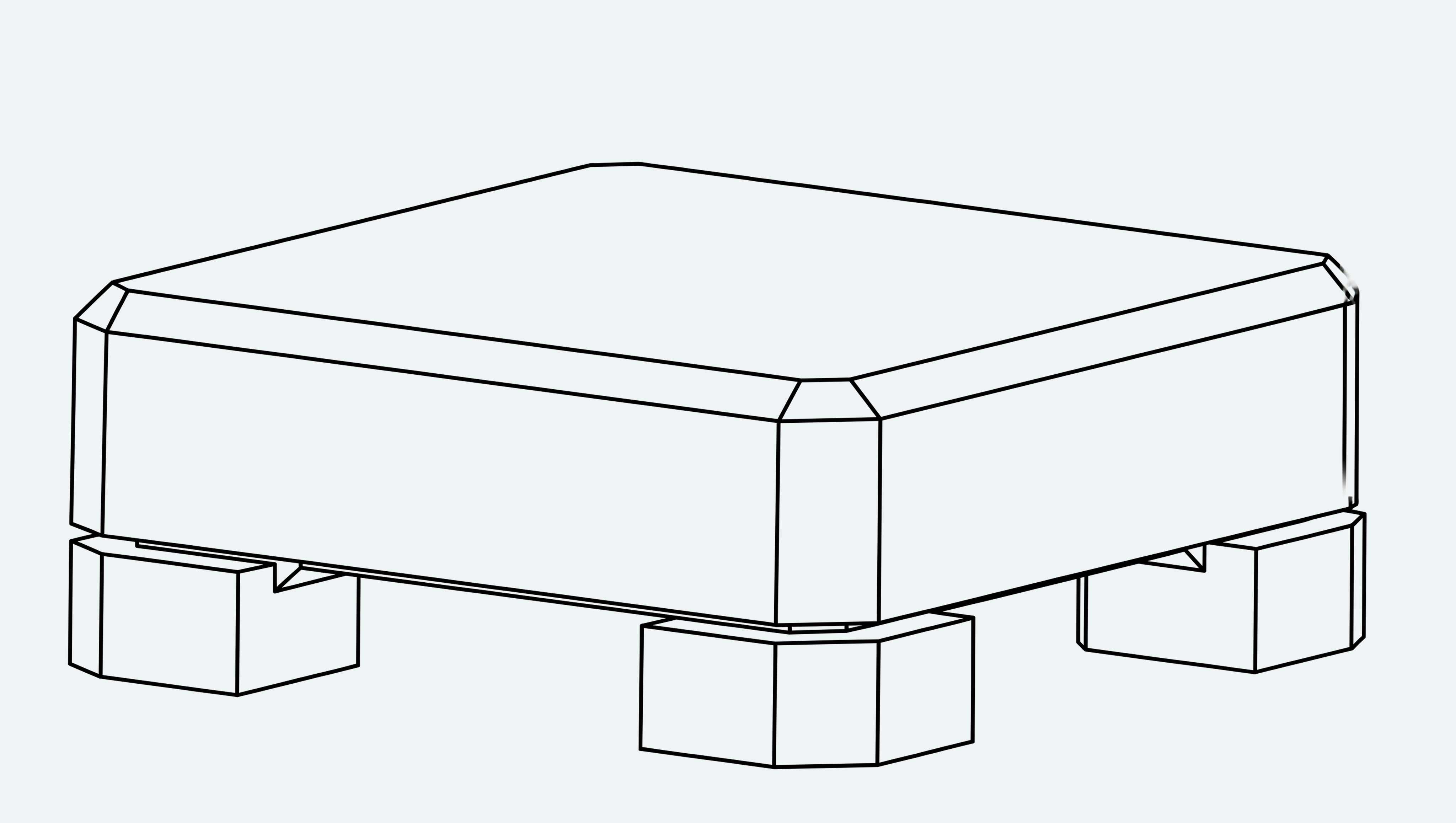

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

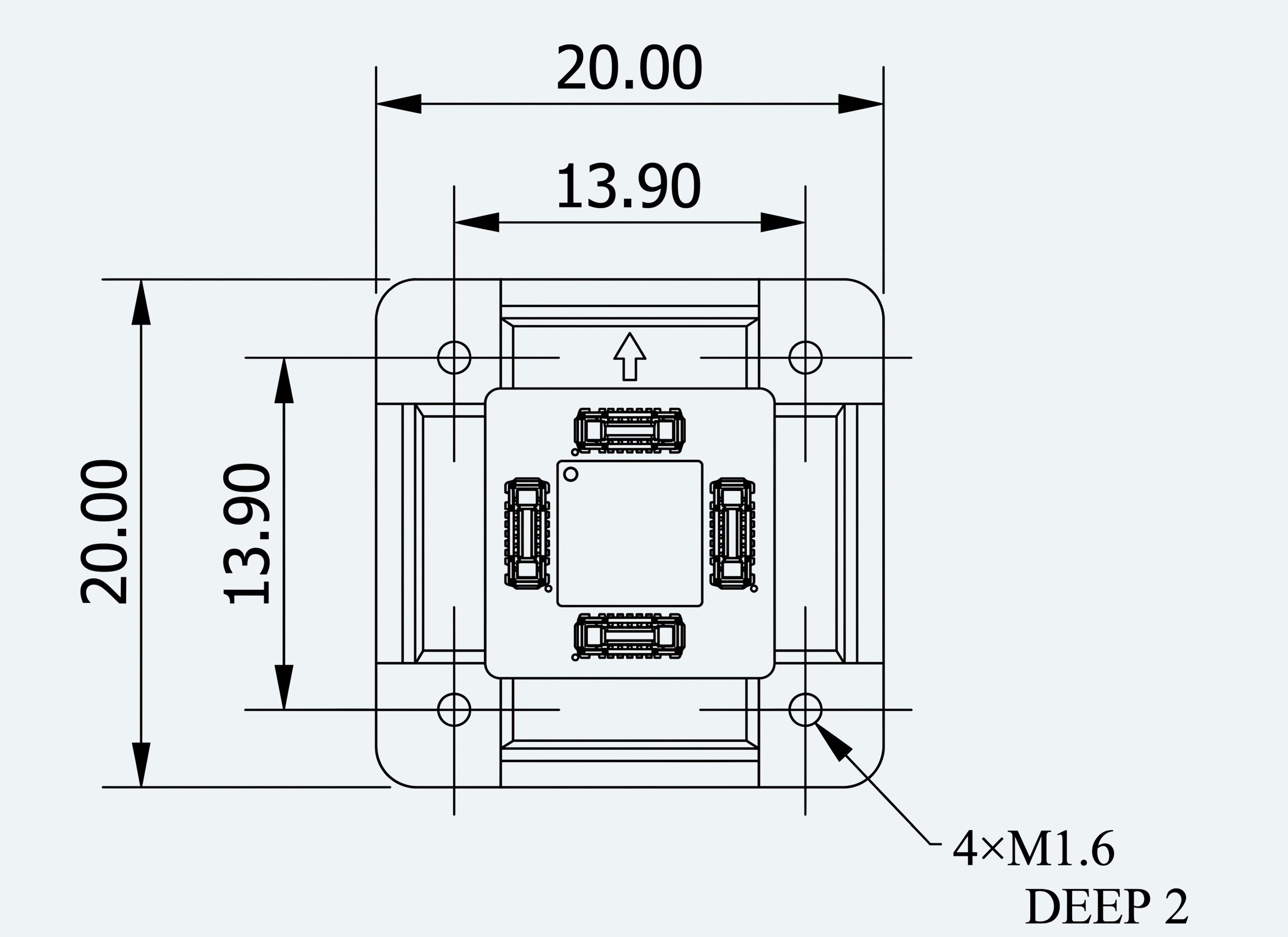

Mechanical View 1 for ES-SN-C00-S005-V004
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 24 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

Maximum Operating Current
100 mA

Performance Parameters

Minimum Detectable Force
0.01 N
Spatial Resolution
0.1 mm
Repeatability
<0.5 %FS
Dynamic Temperature Compensation
Yes
Measurement Accuracy
1 %FS

Mechanical Parameters

Measurement Output
Triaxial force array, triaxial resultant force, and triaxial torque
Maximum Tactile Signal Channels
717 channels
Normal Force Range (Fz)
0–25 N
Tangential Force Range (Fxy)
±10 N
Service Life
>10000000 cycles
Measurement Sampling Frequency
1,000,000 Hz
Maximum Output Frequency
1,000 Hz
Safe Load
200 %
Shock Overload
300 %
Surface Coverage
Front face and side curved edges
Torque Sensing
Any-point rotation-axis sensing supported
Dimensions
20 × 20 × 8 mm
Force Signals in Array
9 signals

Environmental & Insulation

Operating temperature
0–50 °C
Overload Temperature
−20–120 °C
Flame Retardancy Rating
V-0 (UL94)
Ingress Protection
IP68
Stray Magnetic Field Resistance
Chip-level magnetic resistance
