Precision Bearing

310 mm Precision Bearing

Exact SKU: ES-BR-C27-S011-V017

Confirm dimensions, fit, load, speed, lubrication, precision and installation conditions before final selection.

Stator outer diameter
310 mm
Inner Ring Diameter
250 mm
Bearing Width
25 mm
Mass
5 kg
Radial Dynamic Load Rating
69.3 kN
Radial Static Load Rating
150 kN
Shaft diameter
250 mm
Pitch Circle Diameter
277.5 mm
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-BR-C27-S011-V017 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

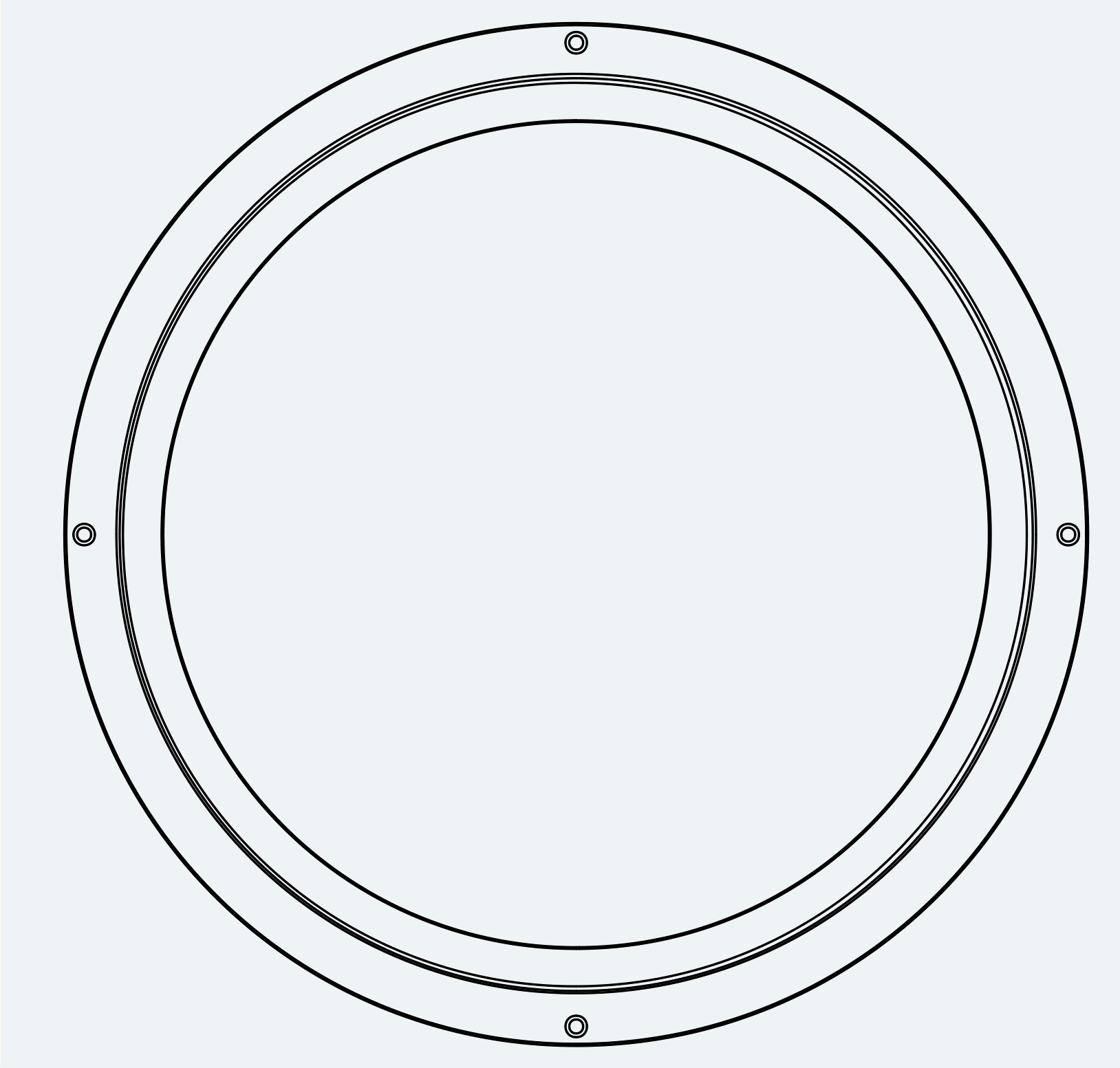

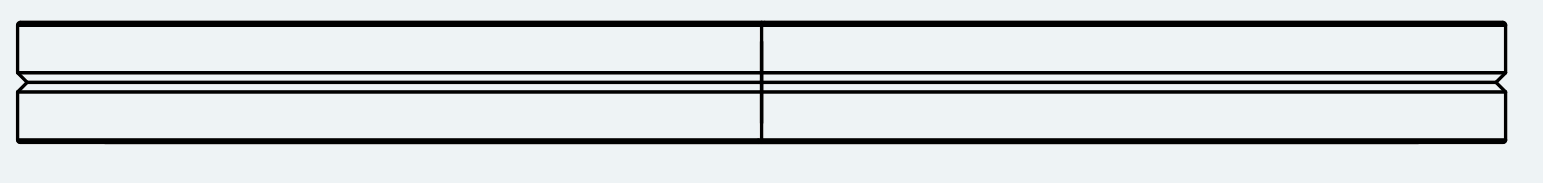

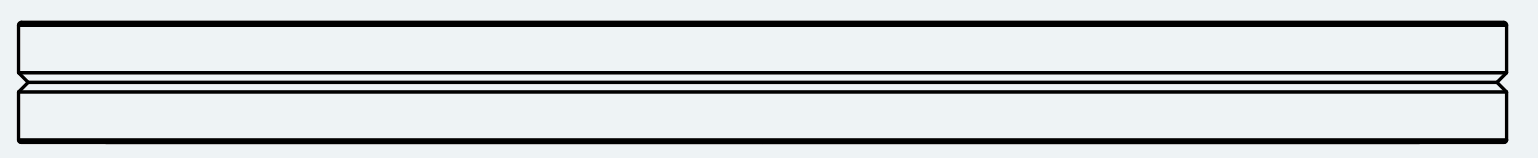

Mechanical View 1 for ES-BR-C27-S011-V017
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

Reviewed GLB preview for preliminary fit review.

More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Reviewed browser preview for preliminary fit review.

Full Specifications

Grouped engineering parameters

All 11 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Shaft diameter
250 mm
Inner Ring Diameter
250 mm
Stator outer diameter
310 mm
Pitch Circle Diameter
277.5 mm
Bearing Width
25 mm
Minimum Chamfer Radius
3 mm
Shoulder Diameter ds
265 mm
Shoulder Diameter Dh
290 mm

Performance Parameters

Radial Dynamic Load Rating
69.3 kN
Radial Static Load Rating
150 kN

Mechanical Parameters

Mass
5 kg
