Precision Bearing

65 mm Precision Bearing

Exact SKU: ES-BR-C27-S011-V024

Confirm dimensions, fit, load, speed, lubrication, precision and installation conditions before final selection.

Stator outer diameter
65 mm
Inner Ring Diameter
40 mm
Bearing Width
10 mm
Mass
0.16 kg
Radial Dynamic Load Rating
8.33 kN
Radial Static Load Rating
10.6 kN
Shaft diameter
40 mm
Pitch Circle Diameter
51.2 mm
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-BR-C27-S011-V024 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

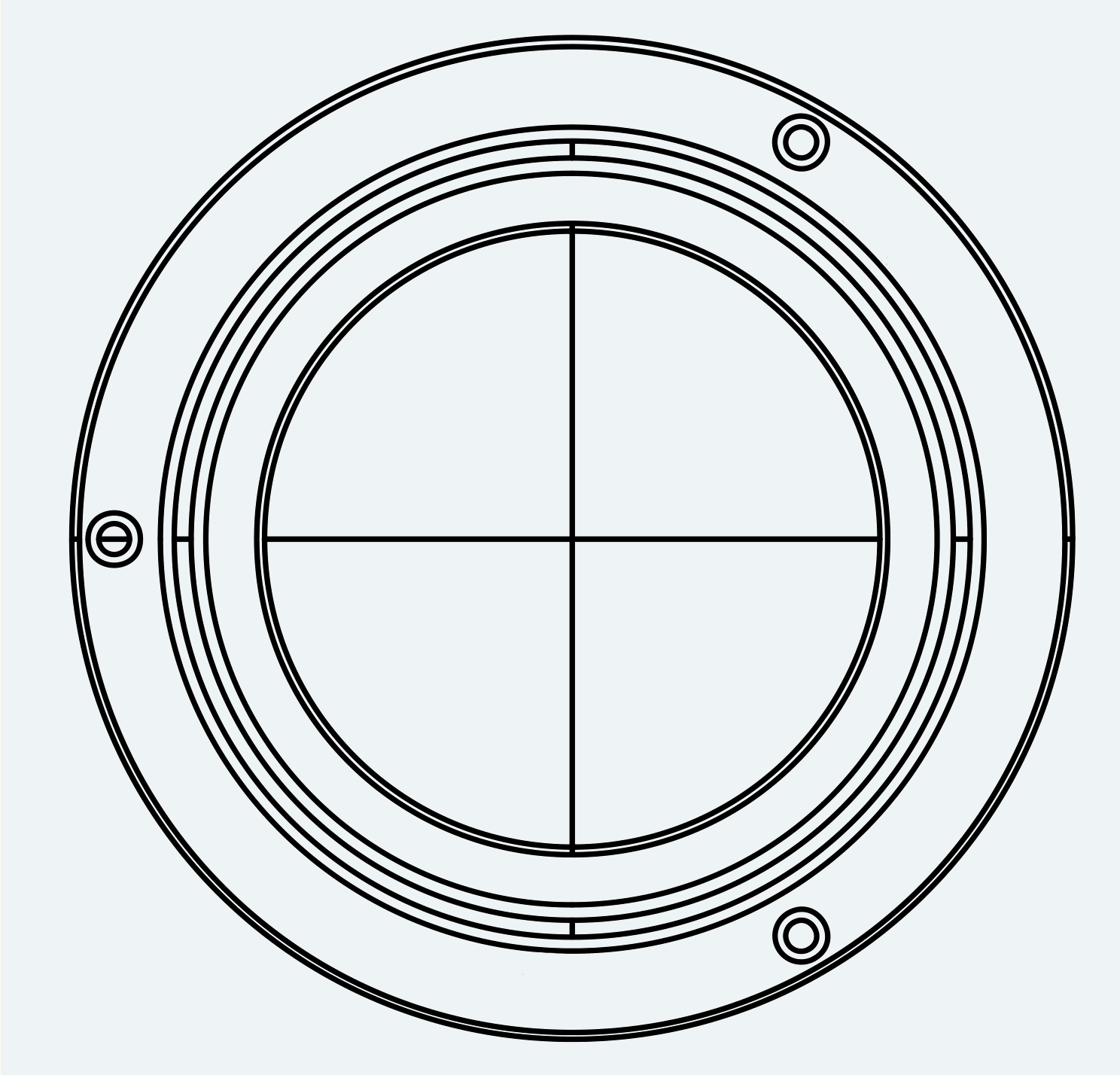

Mechanical View 1 for ES-BR-C27-S011-V024
