Precision Bearing

Rotary Table Bearing Platform 03 — Engineering Configuration V012

Exact SKU: ES-BR-C29-S003-V012

Confirm dimensions, fit, load, speed, lubrication, precision and installation conditions before final selection.

Stator outer diameter
126 mm
Limiting Speed
600 r/min
Inner Ring Diameter
50 mm
Mass
1.6 kg
Axial Dynamic Load Rating
38 kN
Axial Static Load Rating
158 kN
Radial Dynamic Load Rating
28.5 kN
Radial Static Load Rating
49.5 kN
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-BR-C29-S003-V012 envelope view

Scale: 100%

2D Engineering Drawing Center

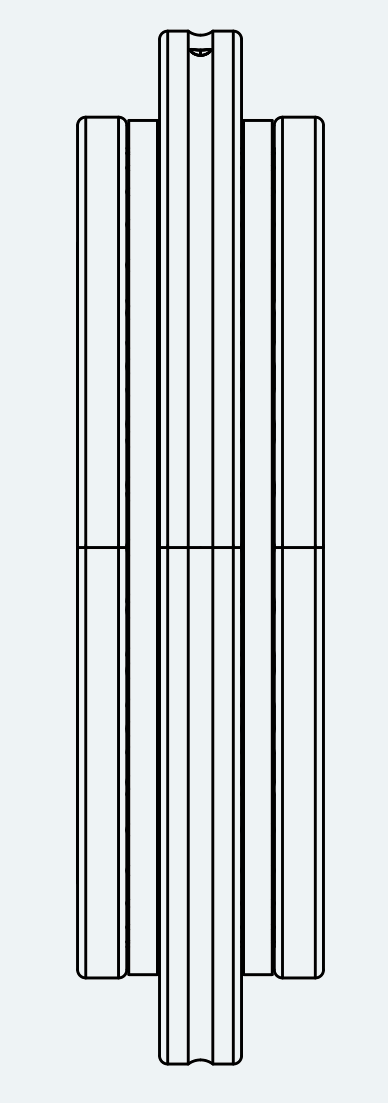

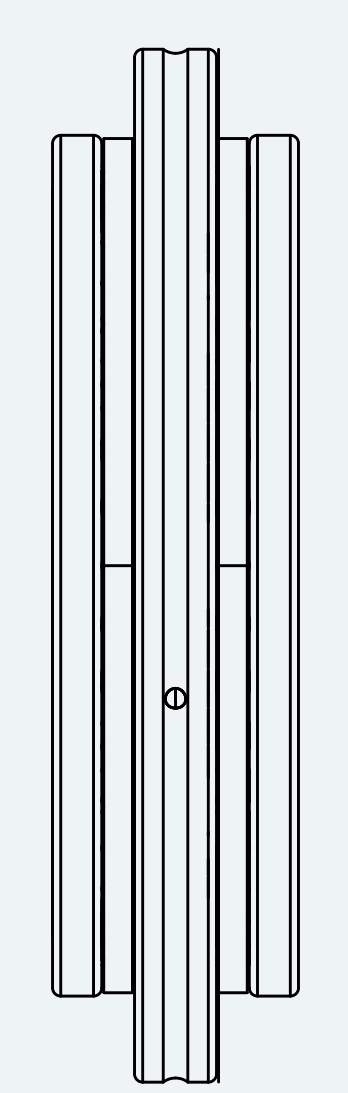

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

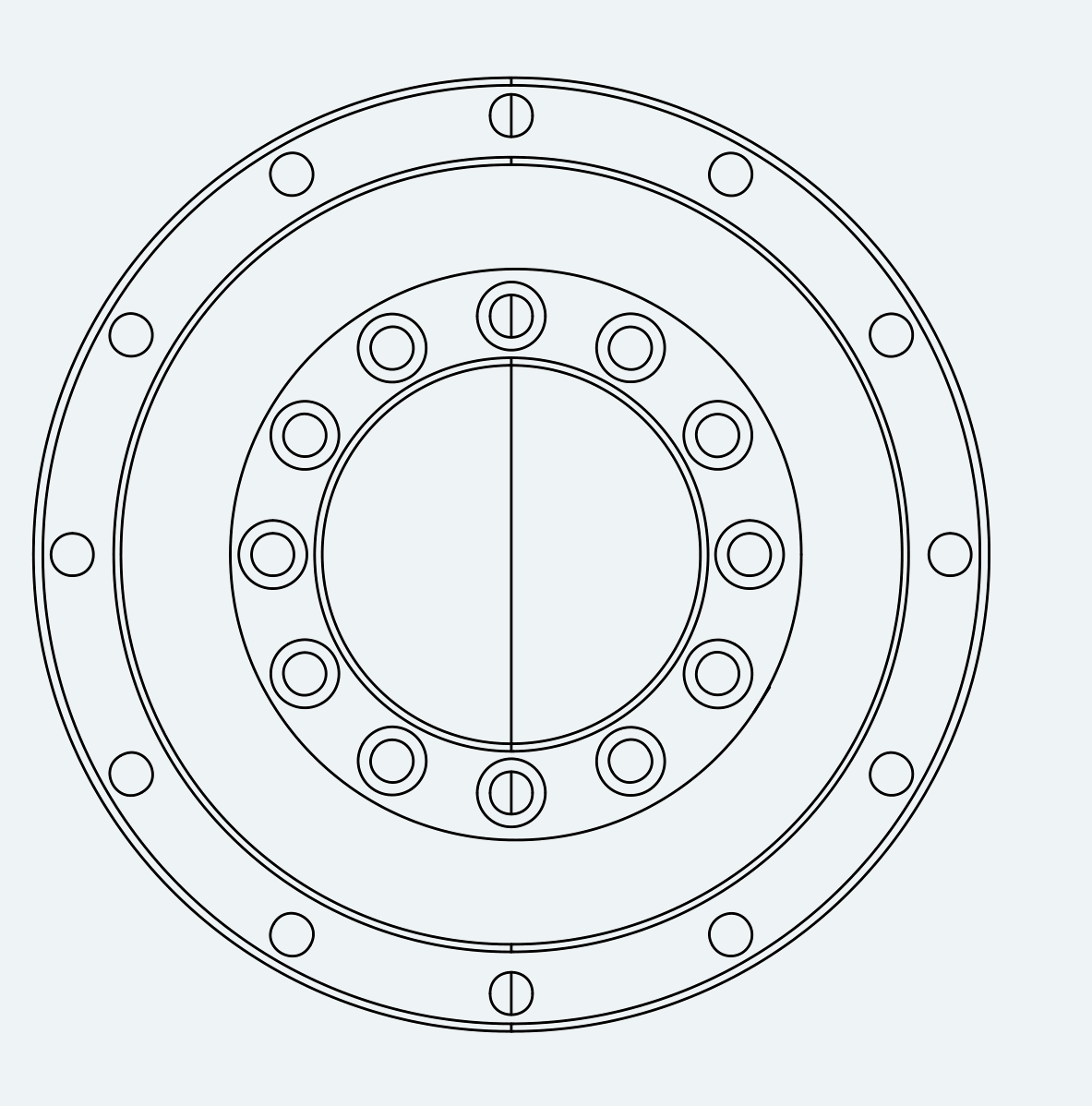

Mechanical View 1 for ES-BR-C29-S003-V012
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

Reviewed GLB preview for preliminary fit review.

More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Reviewed browser preview for preliminary fit review.

Full Specifications

Grouped engineering parameters

All 26 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Inner Ring Diameter
50 mm
Stator outer diameter
126 mm
Bearing Height H
30 mm
Inner Ring Height H1
20 mm
Dimension C
10 mm
Dimension d1
105 mm
Dimension J
63 mm
Dimension J1
116 mm
Inner Ring Mounting Hole Diameter
5.6 mm
Inner Ring Counterbore Diameter
9 mm
Inner Ring Hole Pitch
4.2 mm
Inner Ring Mounting Hole Count
10
Inner Ring Lifting Hole Count
2
Outer Ring Mounting Hole Diameter
5.6 mm
Outer Ring Mounting Hole Count
12
Mounting Screw Specification
12×30°
Tightening Torque
8.5 N·m

Performance Parameters

Axial Dynamic Load Rating
38 kN
Axial Static Load Rating
158 kN
Radial Dynamic Load Rating
28.5 kN
Radial Static Load Rating
49.5 kN
Limiting Speed
600 r/min
Friction Torque
2.5 N·m
Rotation Accuracy P4
2 μm
Rotation Accuracy P2
1 μm

Mechanical Parameters

Mass
1.6 kg
