Precision Bearing

Rotary Table Bearing Platform 03 — Engineering Configuration V015

Exact SKU: ES-BR-C29-S003-V015

Confirm dimensions, fit, load, speed, lubrication, precision and installation conditions before final selection.

Stator outer diameter
146 mm
Limiting Speed
530 r/min
Inner Ring Diameter
80 mm
Mass
2.4 kg
Axial Dynamic Load Rating
56 kN
Axial Static Load Rating
255 kN
Radial Dynamic Load Rating
42.5 kN
Radial Static Load Rating
100 kN
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-BR-C29-S003-V015 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

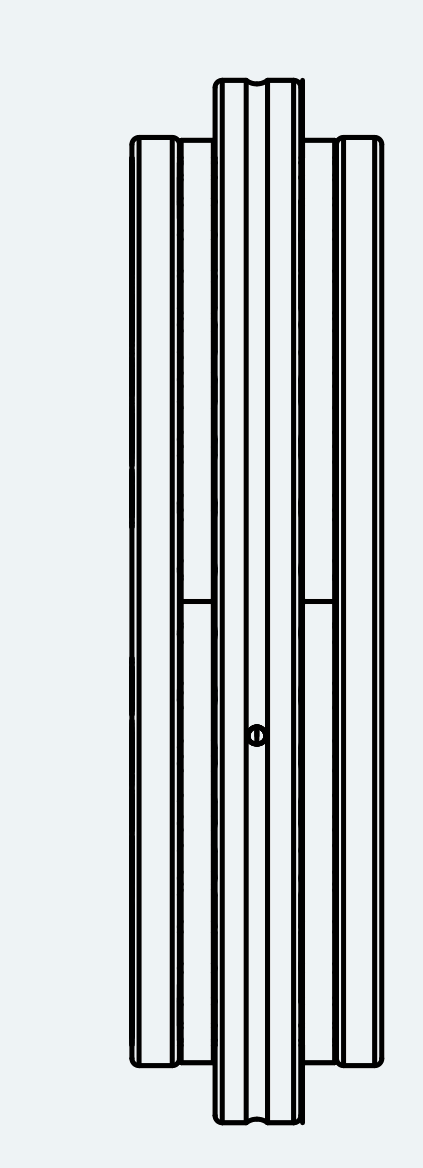

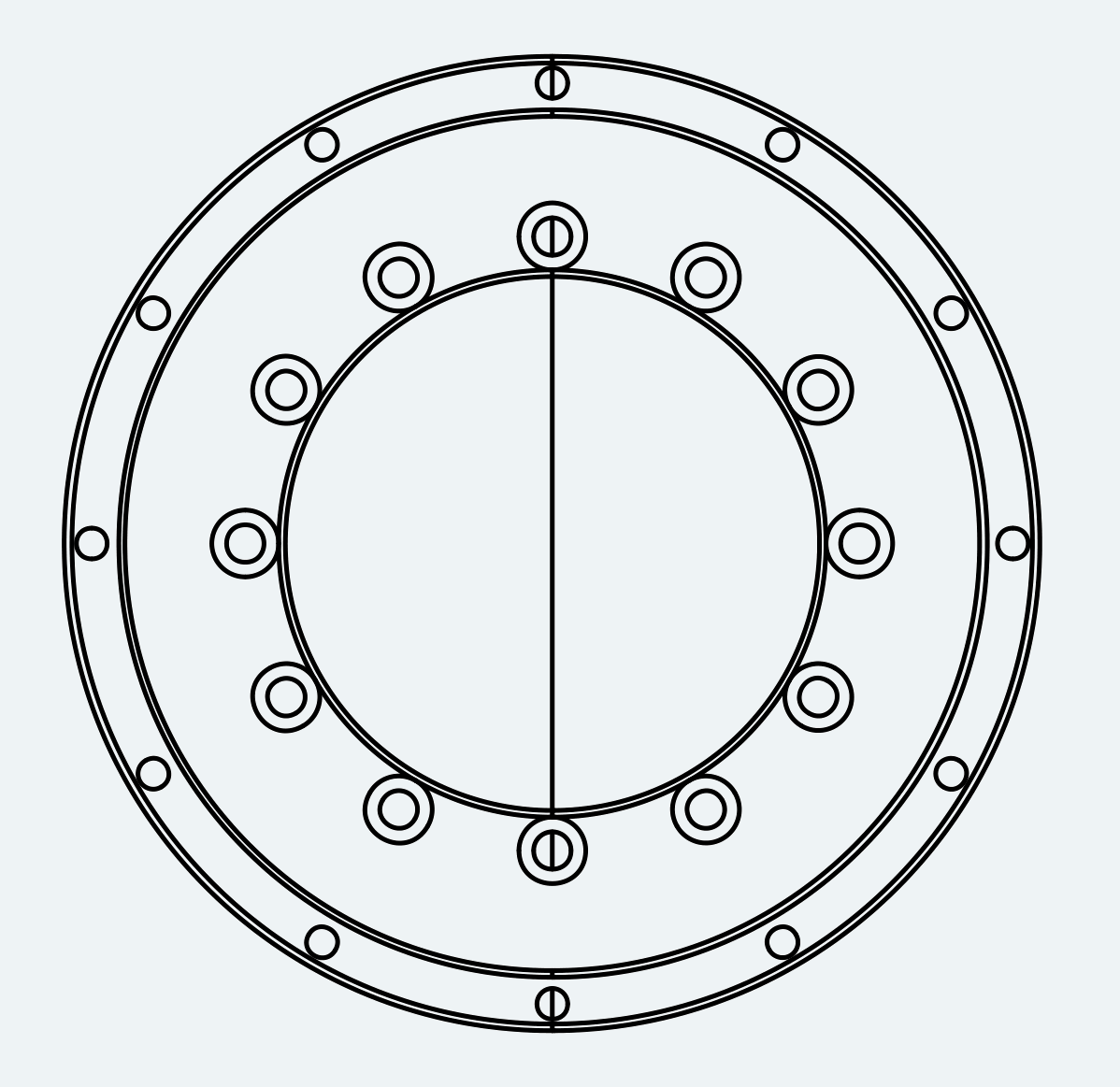

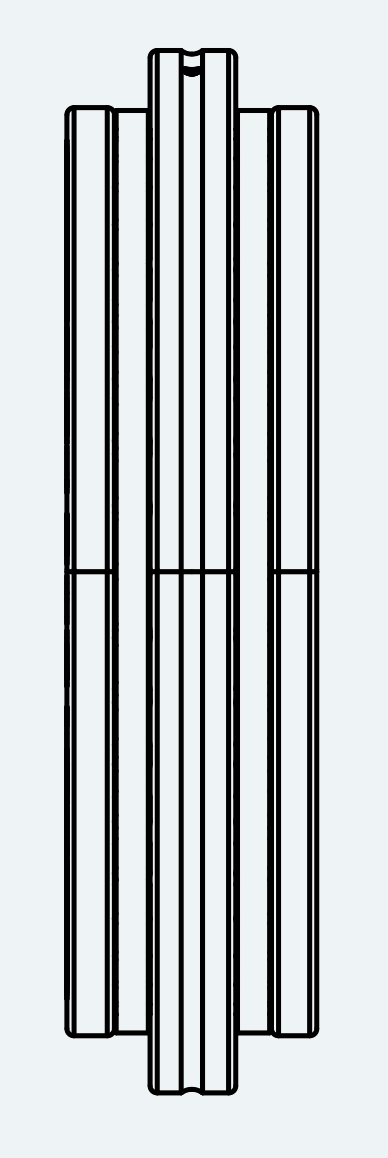

Mechanical View 1 for ES-BR-C29-S003-V015
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

Reviewed GLB preview for preliminary fit review.

More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Reviewed browser preview for preliminary fit review.

Full Specifications

Grouped engineering parameters

All 26 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Inner Ring Diameter
80 mm
Stator outer diameter
146 mm
Bearing Height H
35 mm
Inner Ring Height H1
23.35 mm
Dimension C
12 mm
Dimension d1
130 mm
Dimension J
92 mm
Dimension J1
138 mm
Inner Ring Mounting Hole Diameter
5.6 mm
Inner Ring Counterbore Diameter
10 mm
Inner Ring Hole Pitch
5.2 mm
Inner Ring Mounting Hole Count
10
Inner Ring Lifting Hole Count
2
Outer Ring Mounting Hole Diameter
4.6 mm
Outer Ring Mounting Hole Count
12
Mounting Screw Specification
12x30°
Tightening Torque
8.5 N·m

Performance Parameters

Axial Dynamic Load Rating
56 kN
Axial Static Load Rating
255 kN
Radial Dynamic Load Rating
42.5 kN
Radial Static Load Rating
100 kN
Limiting Speed
530 r/min
Friction Torque
3 N·m
Rotation Accuracy P4
3 μm
Rotation Accuracy P2
1.5 μm

Mechanical Parameters

Mass
2.4 kg
