Slotted Brushless DC Motor

36 mm DC Brushless Motor — 0.125 N·m · 10000 rpm · 130.9 W · 48 V

Exact SKU: ES-DC-SL04-M001

Confirm the continuous torque-speed point, DC-link architecture, peak current, commutation, low-speed behavior, feedback, bearings and thermal path.

Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-DC-SL04-M001 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

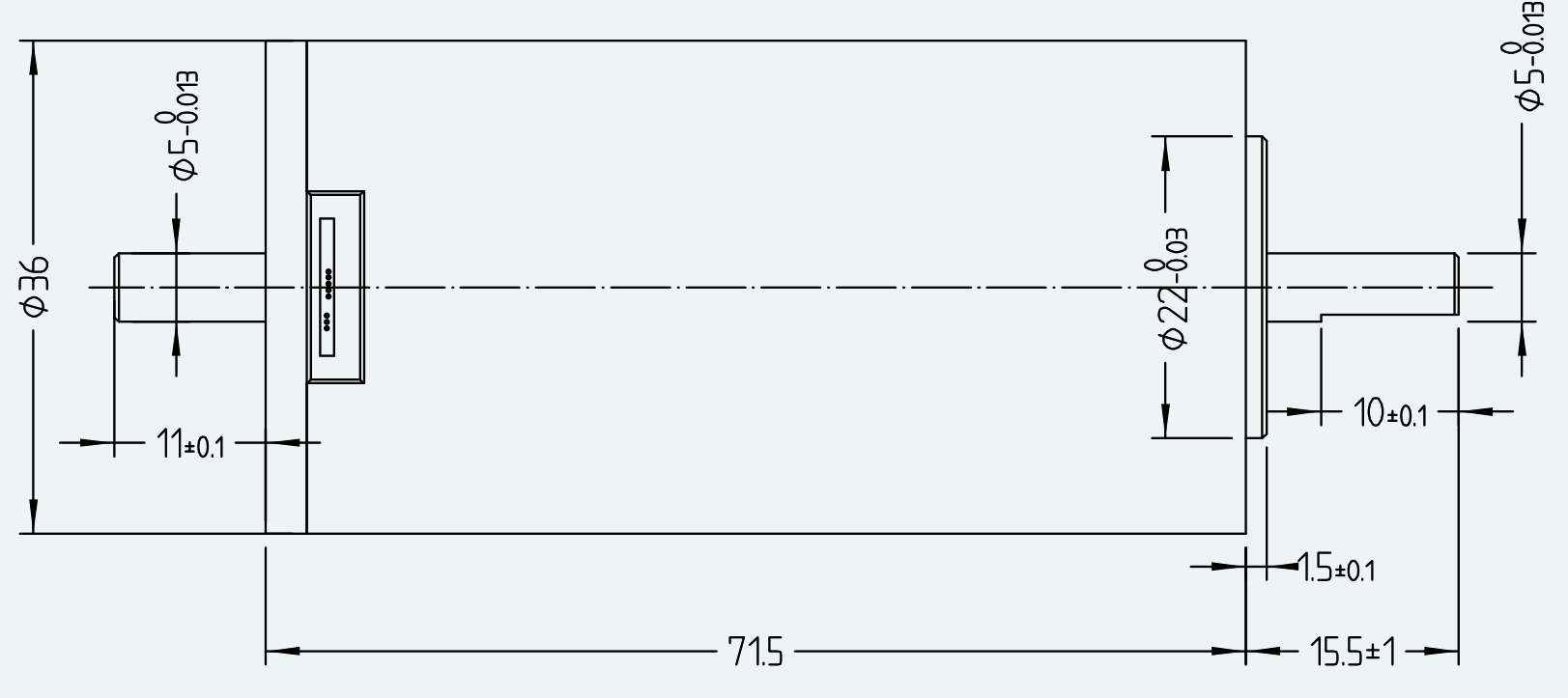

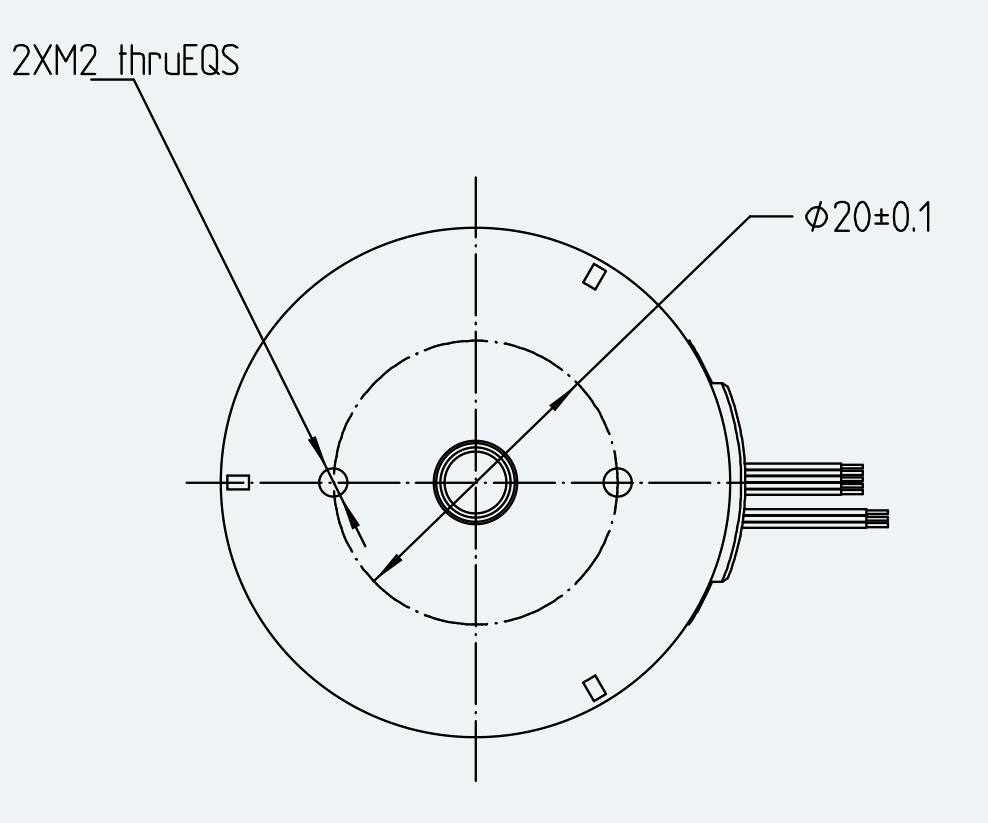

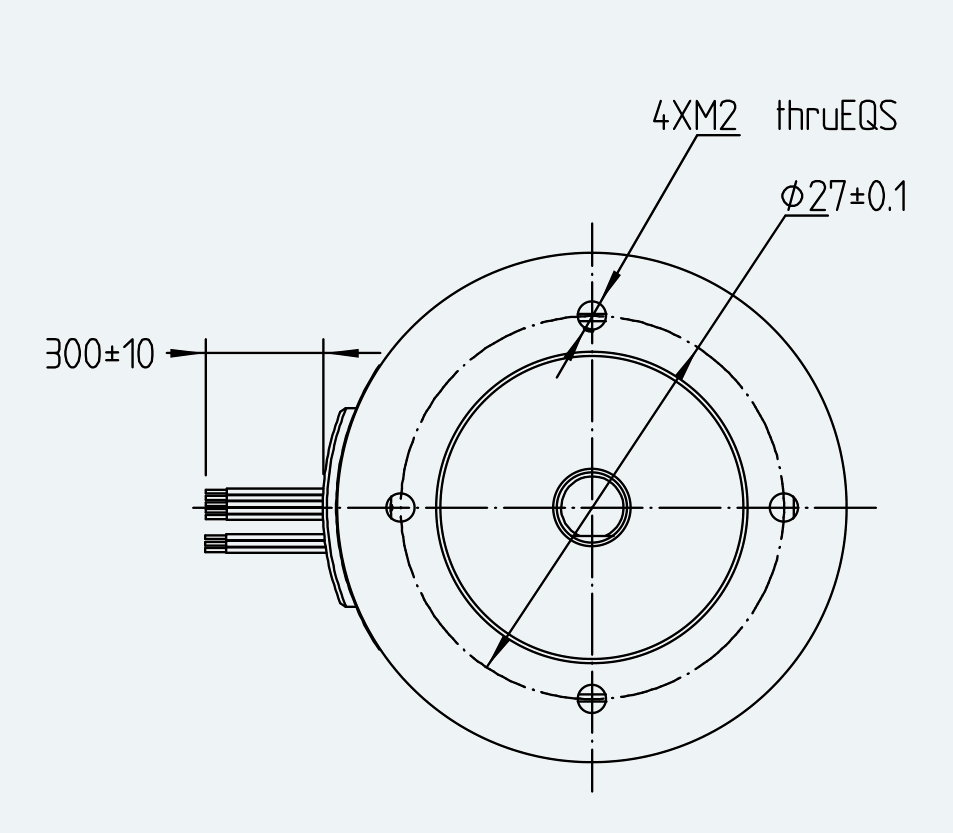

Mechanical View 1 for ES-DC-SL04-M001
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 8 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

Rated voltage
48 VDC
Rated current
3.6 A

Performance Parameters

Rated power
130.9 W
Rated torque
0.125 N·m
Rated speed
10,000 rpm

Mechanical Parameters

Rotor inertia
0.037 kg·cm²

Environmental & Insulation

Insulation class
B 绝缘等级

Feedback & Sensors

Pole pairs
2 极对数

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

STEP / STP CAD

Controlled Review

A validated browser preview may be available; native CAD remains controlled.

Request controlled CAD
