Electric Gripper Platform 06 — Engineering Configuration V001

Exact SKU: ES-EG-C00-S006-V001

Confirm payload, gripping geometry, force, stroke, cycle time, control interface and safety requirements before integration.

Mass
1.5 kg
Rated power
12 W
Gripping force (per side)
20~80 N
Maximum recommended payload
1.5 kg
Finger stroke
10 mm
Full-stroke open / close time
0.5 s/0.5 s
Position repeatability
± 0.03 mm
Dimensions
141 mm x 103 mm x 75 mm
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-EG-C00-S006-V001 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

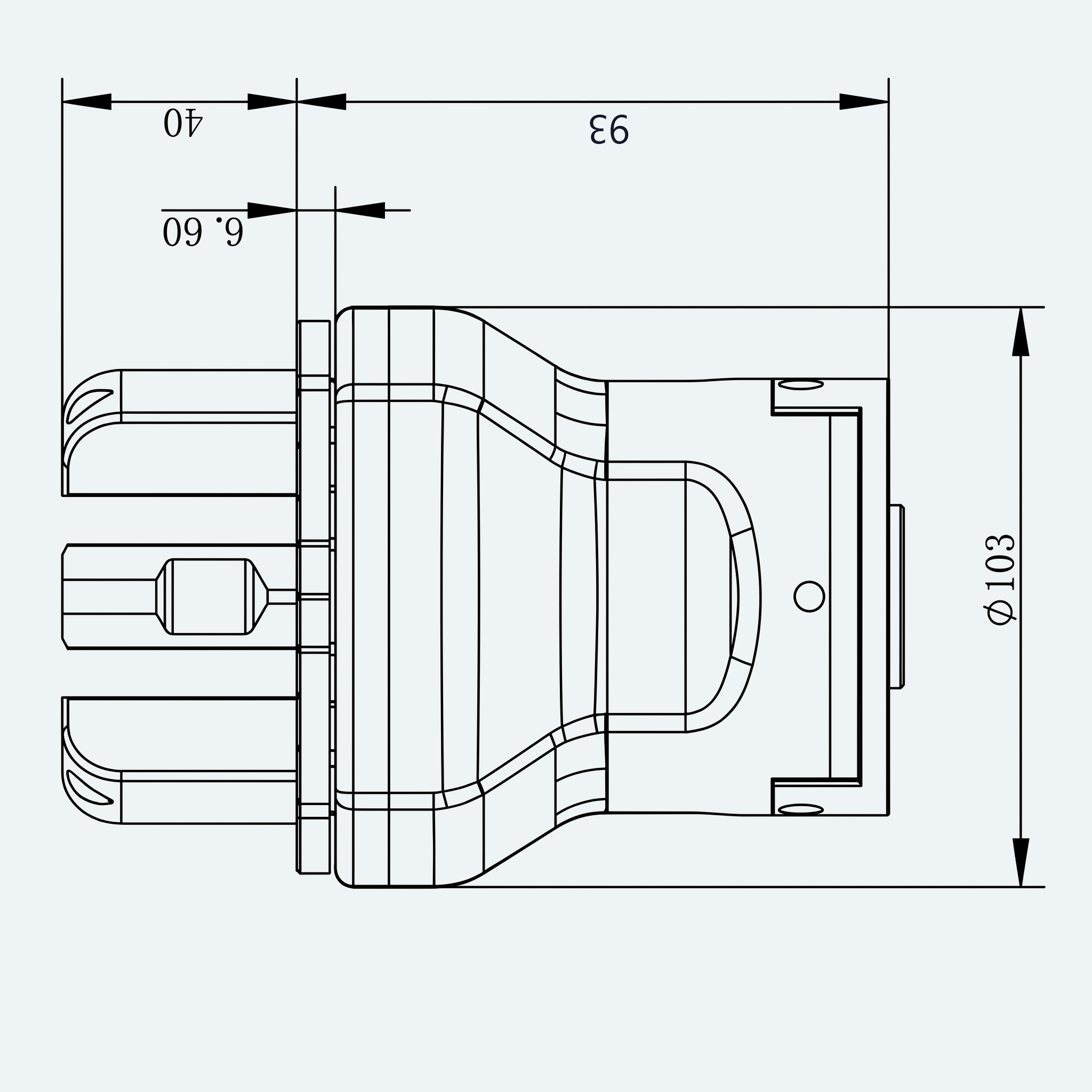

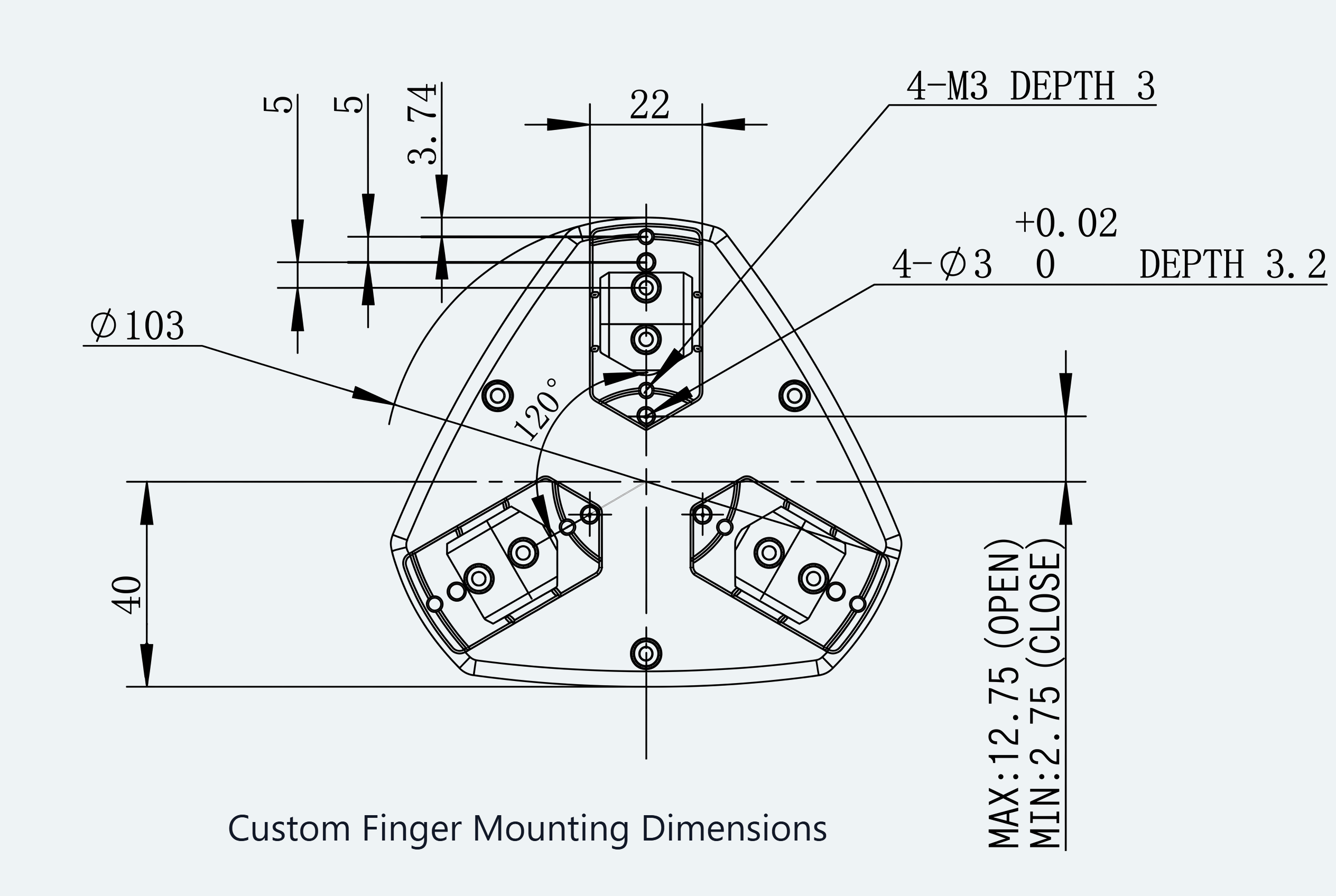

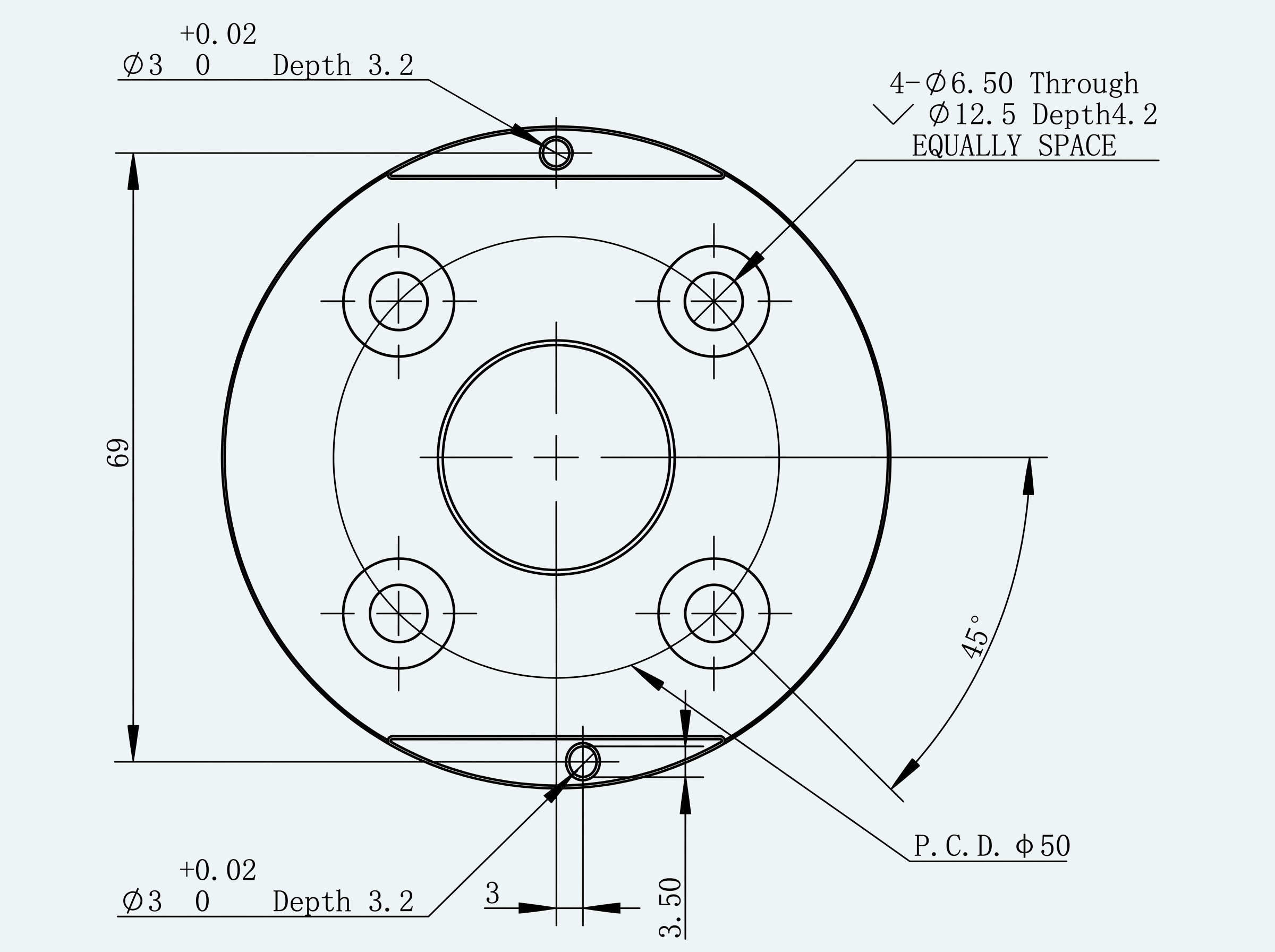

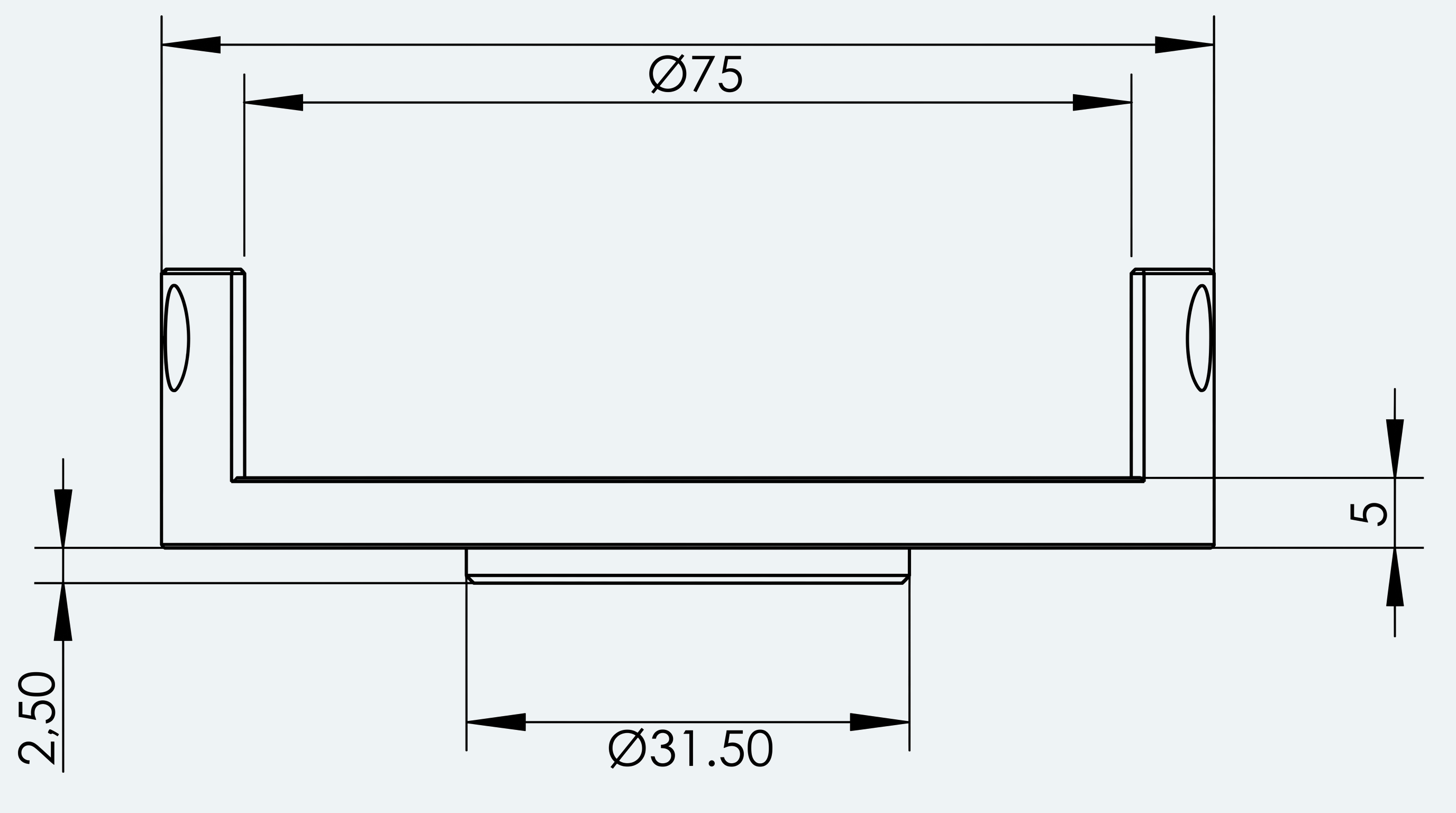

Mechanical View 1 for ES-EG-C00-S006-V001
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 17 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

Operating voltage
24 V DC ± 10% V DC
Rated power
12 W

Performance Parameters

Gripping force (per side)
20~80 N
Maximum recommended payload
1.5 kg
Finger stroke
10 mm
Full-stroke open / close time
0.5 s/0.5 s
Position repeatability
± 0.03 mm
Operating noise
< 50 dB
Allowable static vertical load Fz
200 N
Allowable moment Mx
2.5 N·m
Allowable moment My
2 N·m
Allowable moment Mz
3 N·m

Mechanical Parameters

Mass
1.5 kg
Dimensions
141 mm x 103 mm x 75 mm

Environmental & Insulation

Protection rating
IP 67
Recommended operating environment
0~40°C, 85% RH max
Compliance standards
CE, FCC, RoHS
