Ultra Precision Planetary Gearbox Platform 12 — Engineering Configuration V028

Confirm ratio, torque, speed, backlash, motor interface, mounting and duty-cycle requirements before final selection.

Exact SKU ES-RD-C36-S001-V028

Frame Size: 125 mm
Reduction Ratio: 3 5 9
Backlash: 3 arcmin
Motor Power: 2,500 W
Number of Stages: 1
Output Shaft Speed: 333 rpm

Request engineering quote Review engineering files

2D drawing

Review the drawing with its engineering data

Primary drawing views stay beside the annotated data table so a focused row highlights the matching callout.

Reviewed annotated drawing

Primary Drawing Viewer

Mechanical View 1 1 / 4

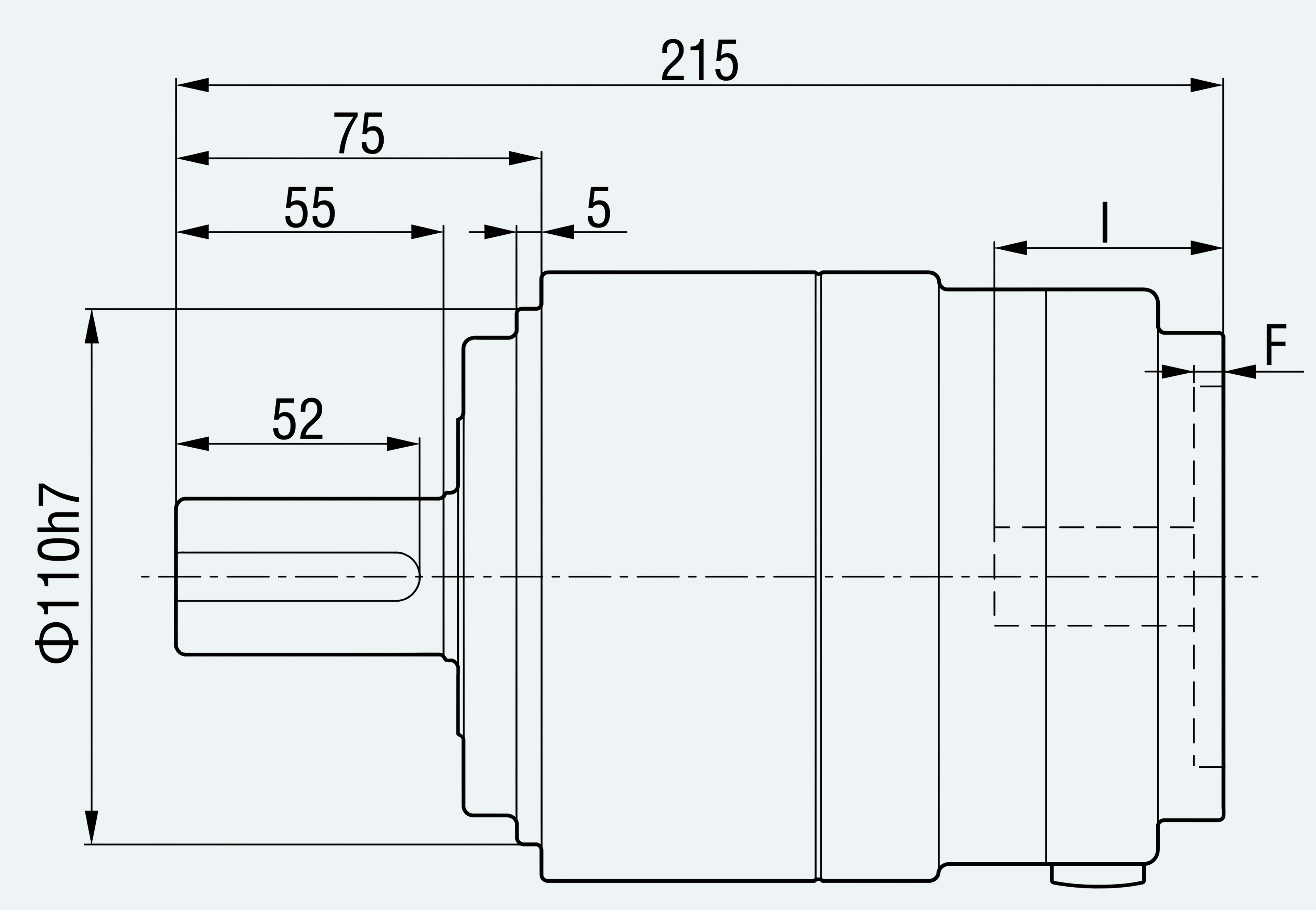

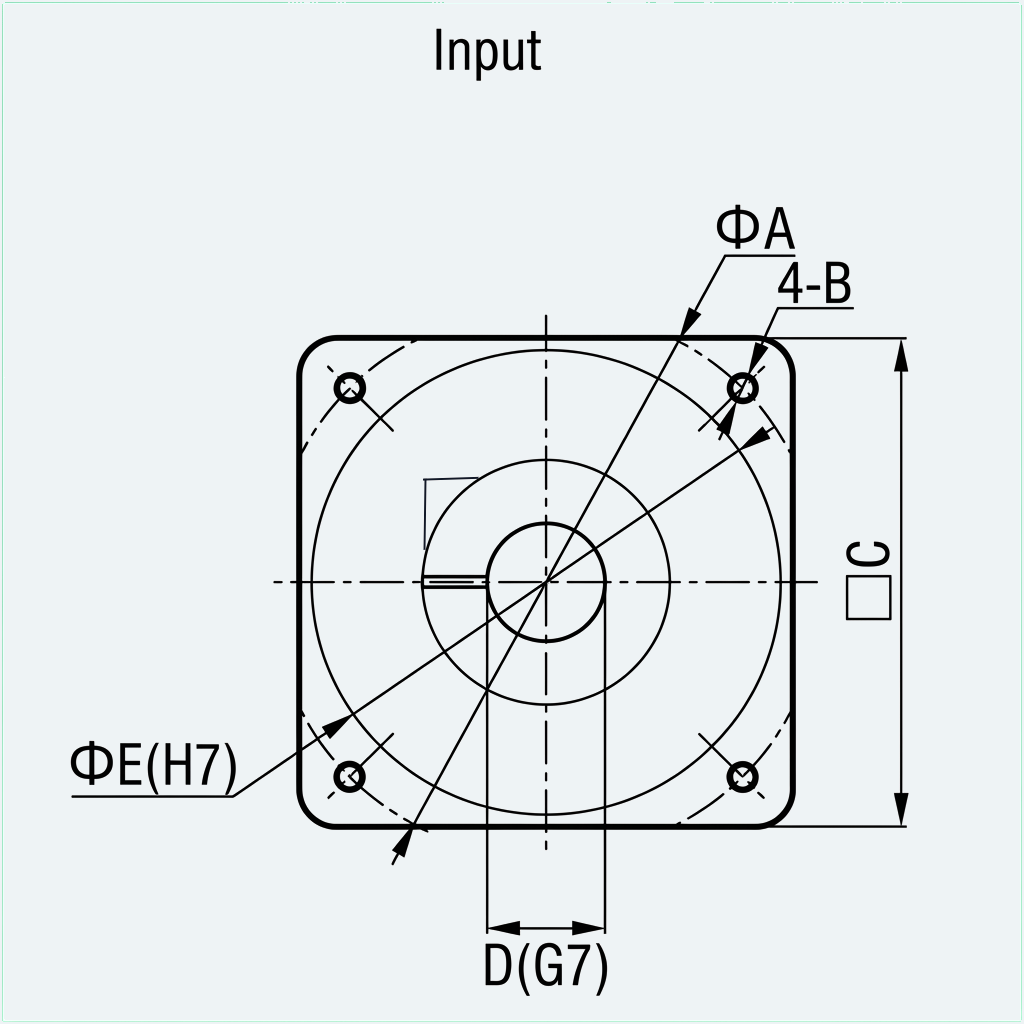

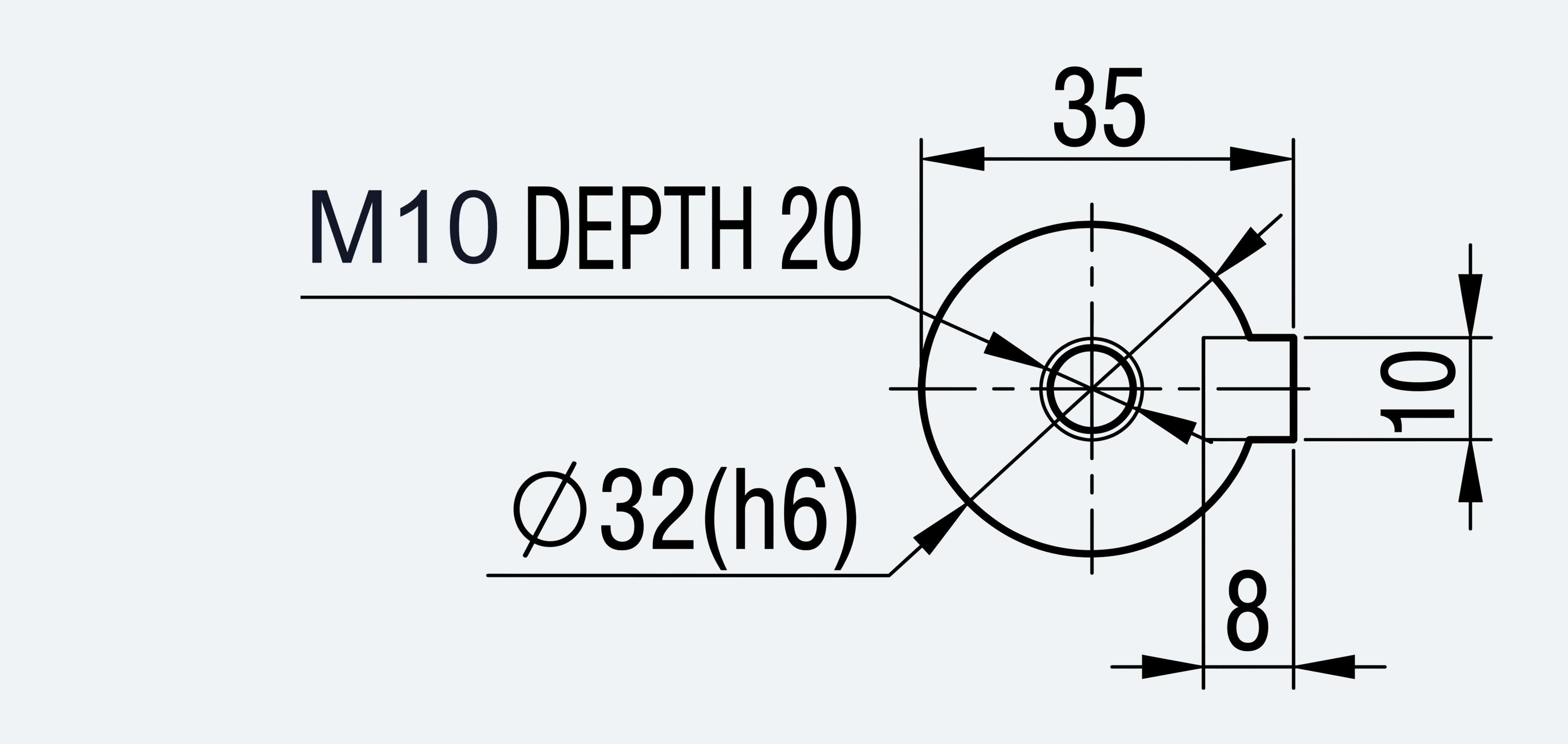

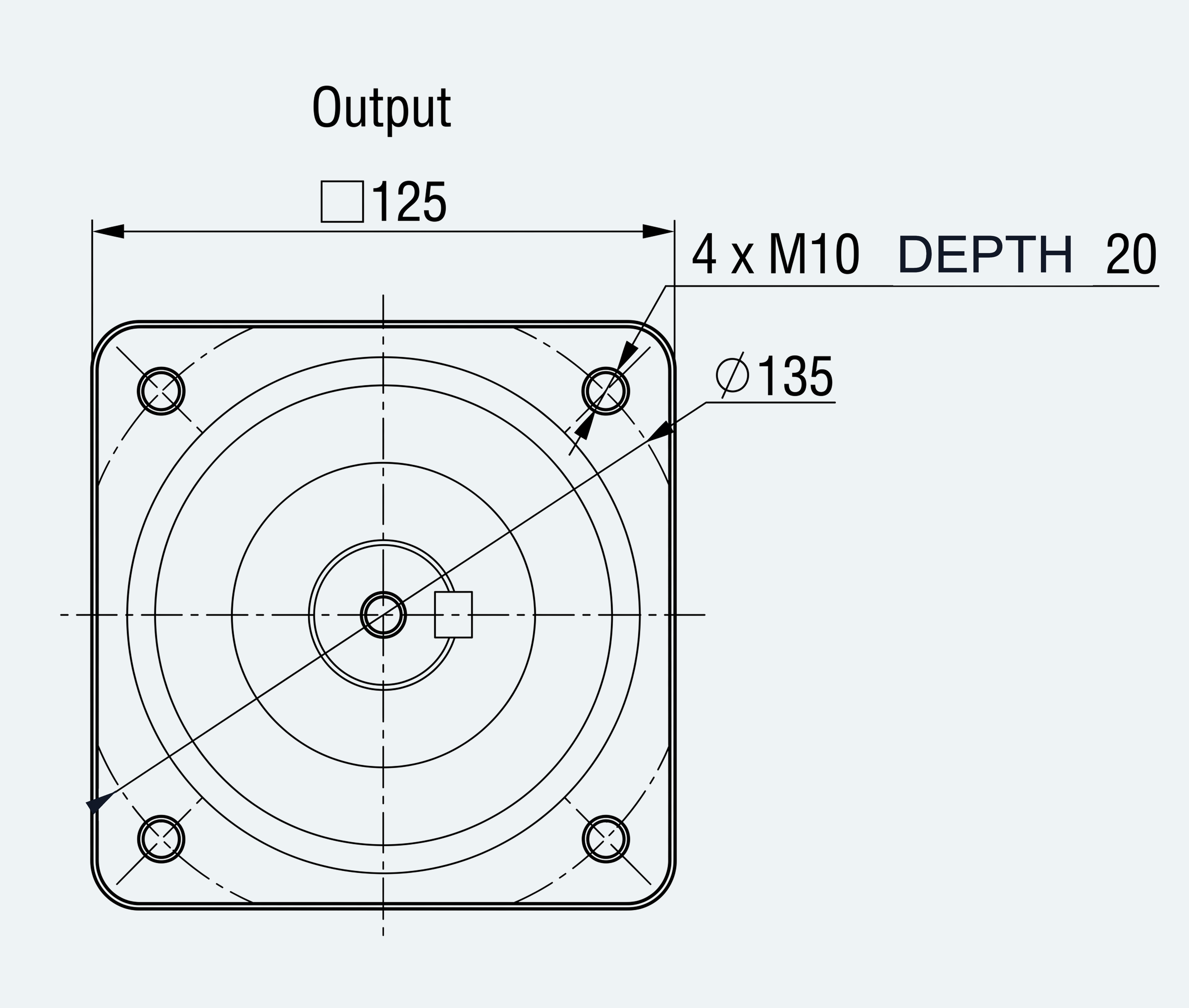

Mechanical View 1 for ES-RD-C36-S001-V028 — Mechanical View 1

Visual drawing reference. Structured annotations are not available for this image, so the full-width canvas preserves the original drawing for engineering review.

3D fit review

Inspect envelope and mounting relationships

The interactive toolbar stays with the model. Controlled CAD access remains a separate engineering-file request.

Pending Attachment

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

Full specifications

Grouped engineering parameters

All 14 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

14 published fields

Dimensions & Integration

1 fields

Dimension TOTALLENGTHL_PANASONIC_MADEMSMA: 215 mm

Performance Parameters

8 fields

Output Shaft Speed: 333 rpm
Rated Output Torque: 60.8 N·m
Instantaneous Maximum Output Torque: 182 N·m
Permissible Radial Load: 1,960 N
Permissible Axial Load: 980 N
Permissible Output Torque: 73.5 N·m
Instantaneous Maximum Permissible Output Torque: 221 N·m
Backlash: 3 arcmin

Mechanical Parameters

5 fields

Frame Size: 125 mm
Motor Power: 2,500 W
Number of Stages: 1
Reduction Ratio: 3 5 9
Input-shaft Equivalent Inertia: 2.81 x10⁻⁴ kg.m²

Product documentation

Review published PDFs for specifications, then request controlled 2D and 3D engineering files for integration.

Published PDFsDirect access · current public editions

SKU Datasheet

ES-RD-C36-S001-V028 Product Datasheet

SKU-specific · Specifications and performance data

Review performance specifications, operating limits and selection data for this SKU.

R03 3 pages · 75 KB

View datasheet (PDF)

Category Selection Guide

Ultra-Precision Planetary Gearboxes Category Selection Guide

Category-wide · Product platform comparison

Compare product platforms, key selection parameters and application requirements to narrow your options.

R02 5 pages · 233 KB

View selection guide (PDF)

2D Engineering Drawing

2D drawing

1 file available · Product-specific resource

Review the 2D preview above; request the controlled source drawing when needed.

Preview available · drawing access by request
