Ultra Precision Planetary Gearbox Platform 12 — Engineering Configuration V031

Exact SKU: ES-RD-C36-S001-V031

Confirm ratio, torque, speed, backlash, motor interface, mounting and duty-cycle requirements before final selection.

Frame Size
125 mm
Reduction Ratio
35
Backlash
5 arcmin
Motor Power
750 W
Number of Stages
2
Output Shaft Speed
85 rpm
Rated Output Torque
71 N·m
Instantaneous Maximum Output Torque
213 N·m
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-RD-C36-S001-V031 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

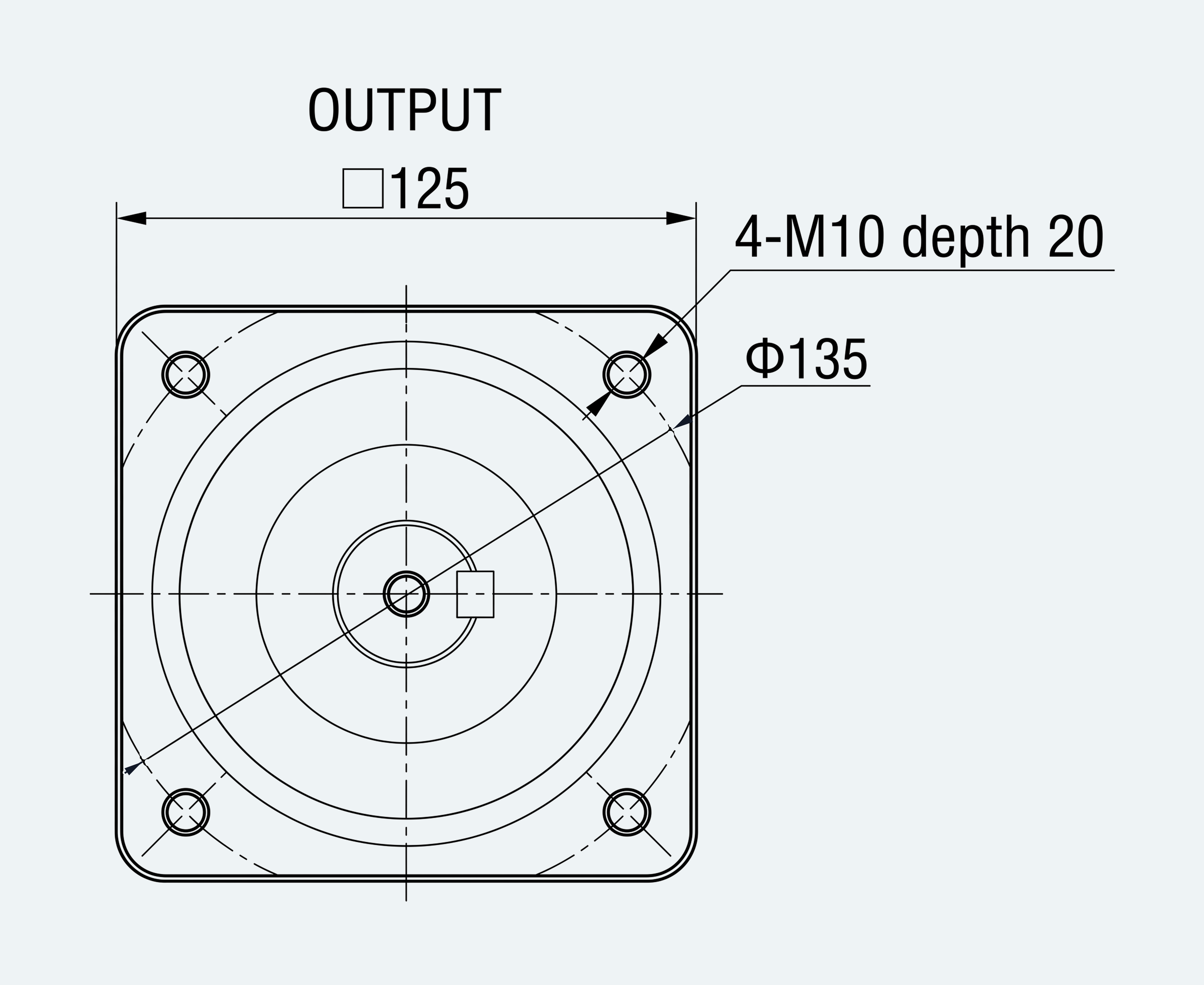

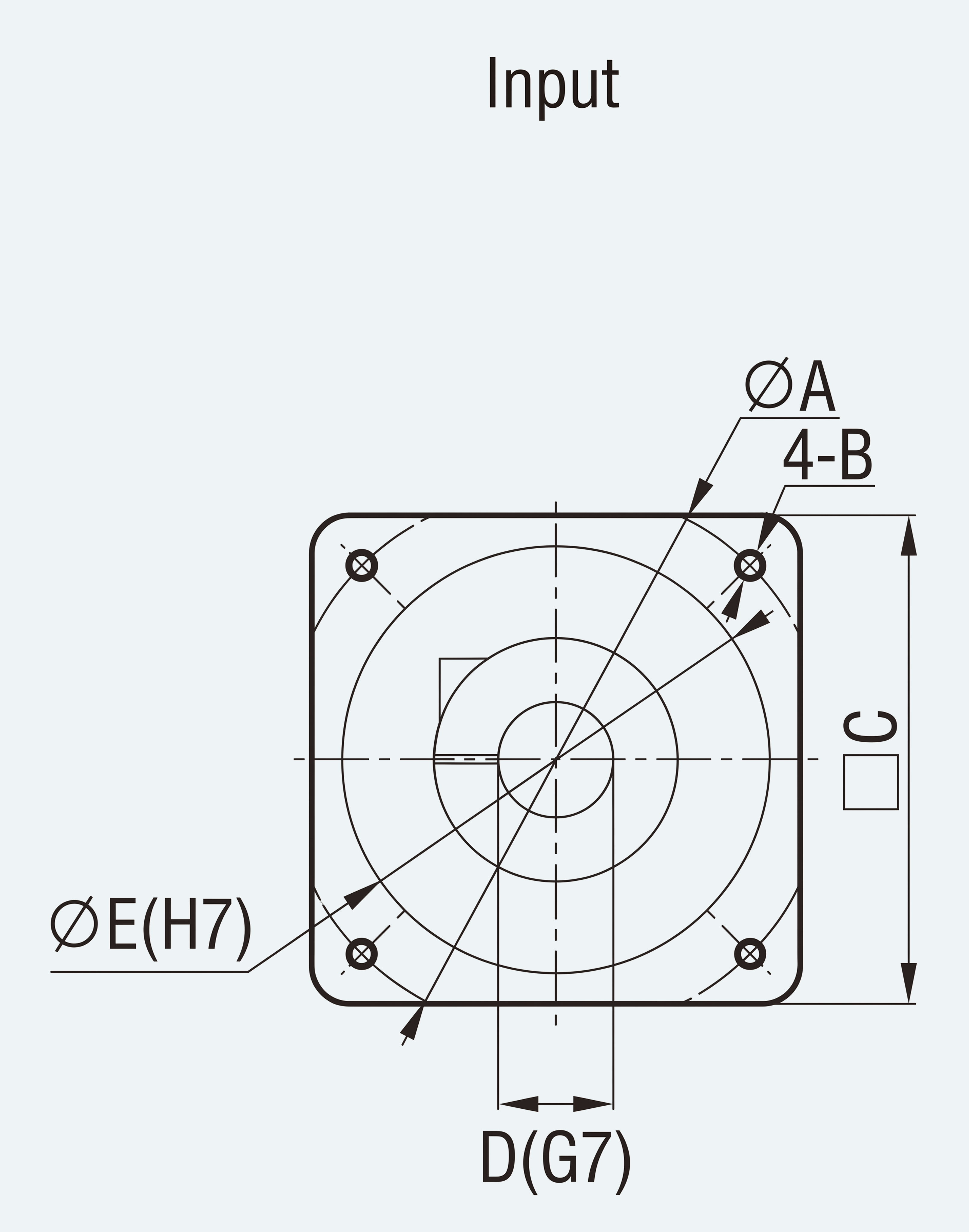

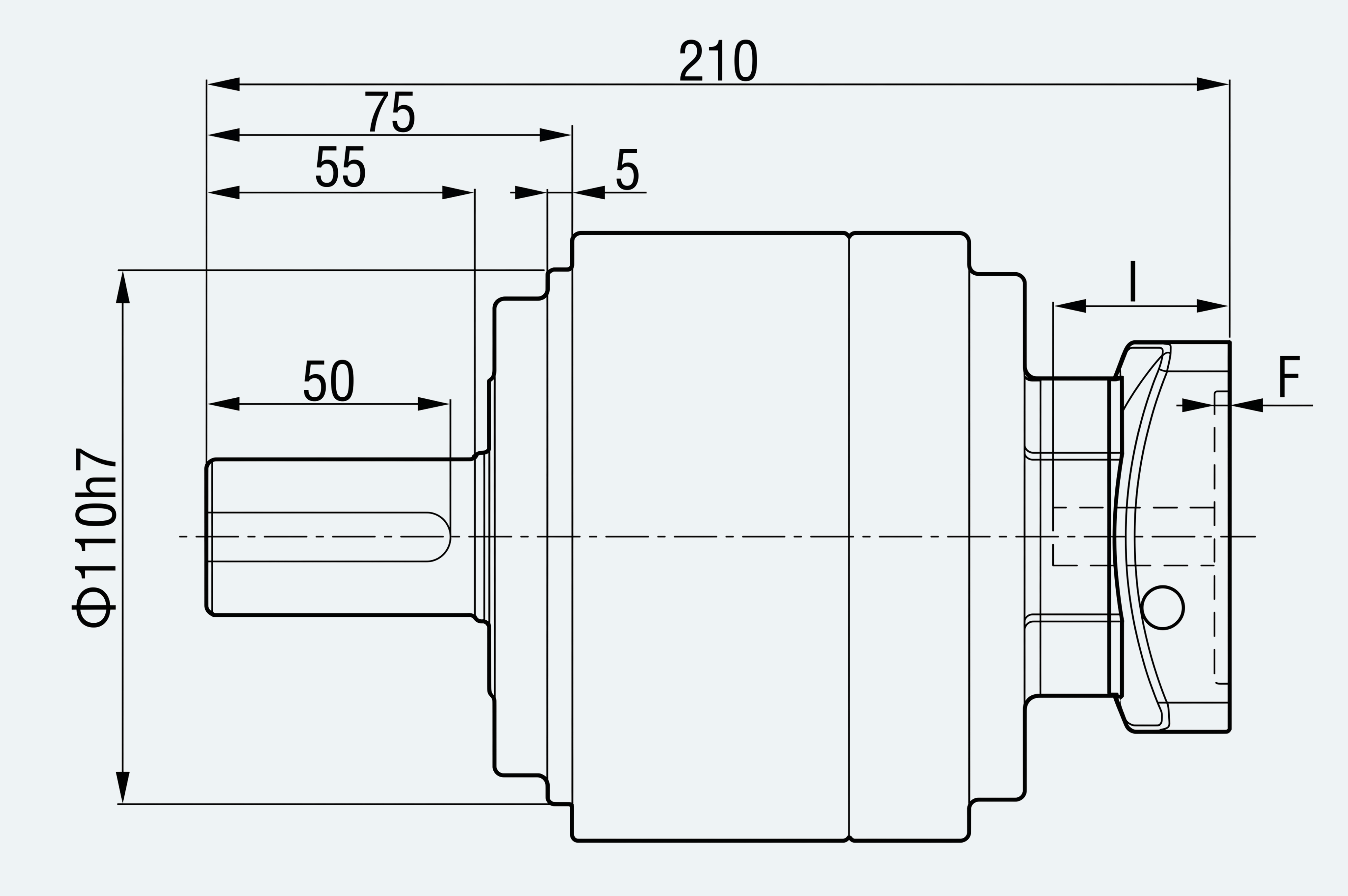

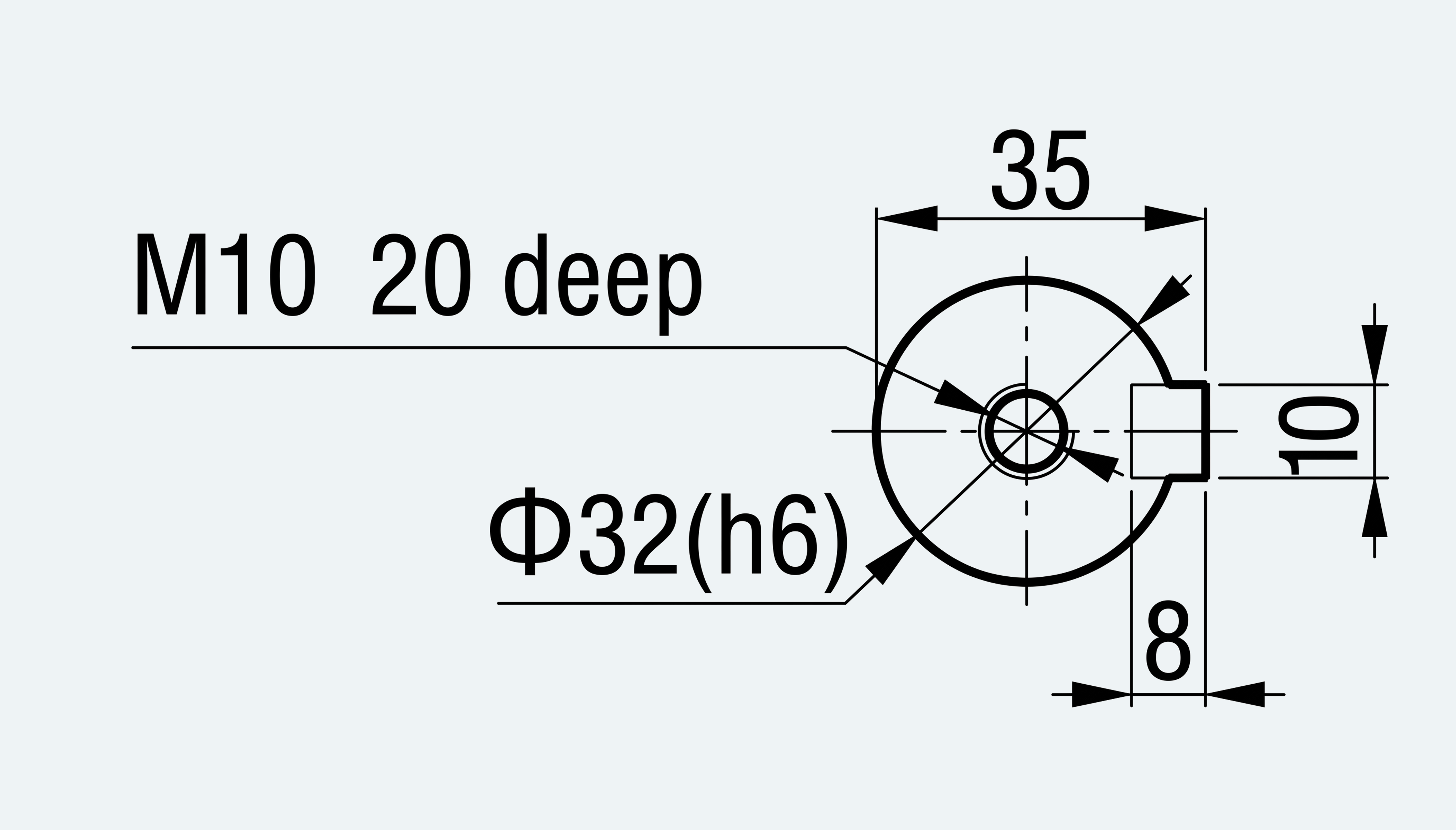

Mechanical View 1 for ES-RD-C36-S001-V031
Mechanical View 1
Visual drawing reference. Structured annotations are not available for this image, so the full-width canvas preserves the original drawing for engineering review.

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 13 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Performance Parameters

Output Shaft Speed
85 rpm
Rated Output Torque
71 N·m
Instantaneous Maximum Output Torque
213 N·m
Permissible Radial Load
3,430 N
Permissible Axial Load
1,715 N
Permissible Output Torque
71 N·m
Instantaneous Maximum Permissible Output Torque
213 N·m
Backlash
5 arcmin

Mechanical Parameters

Frame Size
125 mm
Motor Power
750 W
Number of Stages
2
Reduction Ratio
35
Input-shaft Equivalent Inertia
0.473 x10⁻⁴ kg.m²

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

Compliance

Product Integration & Compliance

OEM INTEGRATION RESPONSIBILITY

This product is a component or configurable module intended for integration into an OEM, commercial, industrial or research system.

The customer is responsible for final product selection, system-level risk assessment, safety functions, mechanical and electrical integration, validation, certification and regulatory compliance.

Published ratings apply only under the stated conditions. Confirm the operating point, interfaces, control compatibility, thermal conditions, duty cycle and required documentation before final selection.

This product is not approved for a safety-critical or restricted application unless expressly authorized in writing.

TRANSMISSION INTEGRATION

Confirm rated and peak torque, backlash, stiffness, radial and axial loads, mounting accuracy, lubrication, temperature, duty cycle, shock loading and expected service life.

Published service-life information depends on the stated load and operating assumptions and does not constitute a complete system-life guarantee.
