Ultra Precision Planetary Gearbox Platform 12 — Engineering Configuration V042

Exact SKU: ES-RD-C36-S001-V042

Confirm ratio, torque, speed, backlash, motor interface, mounting and duty-cycle requirements before final selection.

Frame Size
52 mm
Reduction Ratio
3, 5, 9
Backlash
3 arcmin
Motor Power
100 W
Number of Stages
1
Output Shaft Speed
333 rpm
Rated Output Torque
2.25 N·m
Instantaneous Maximum Output Torque
6.86 N·m
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-RD-C36-S001-V042 envelope view

Scale: 100%

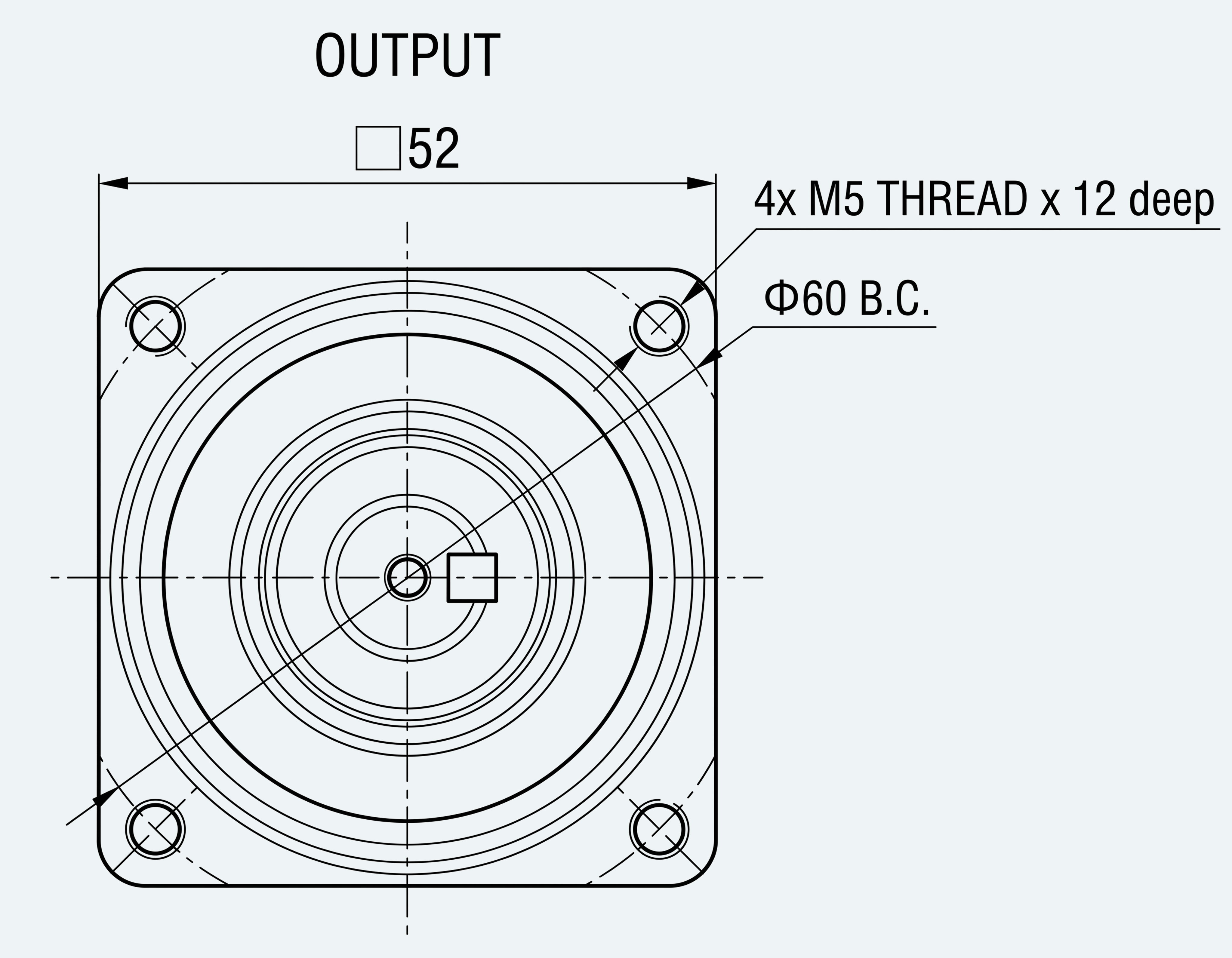

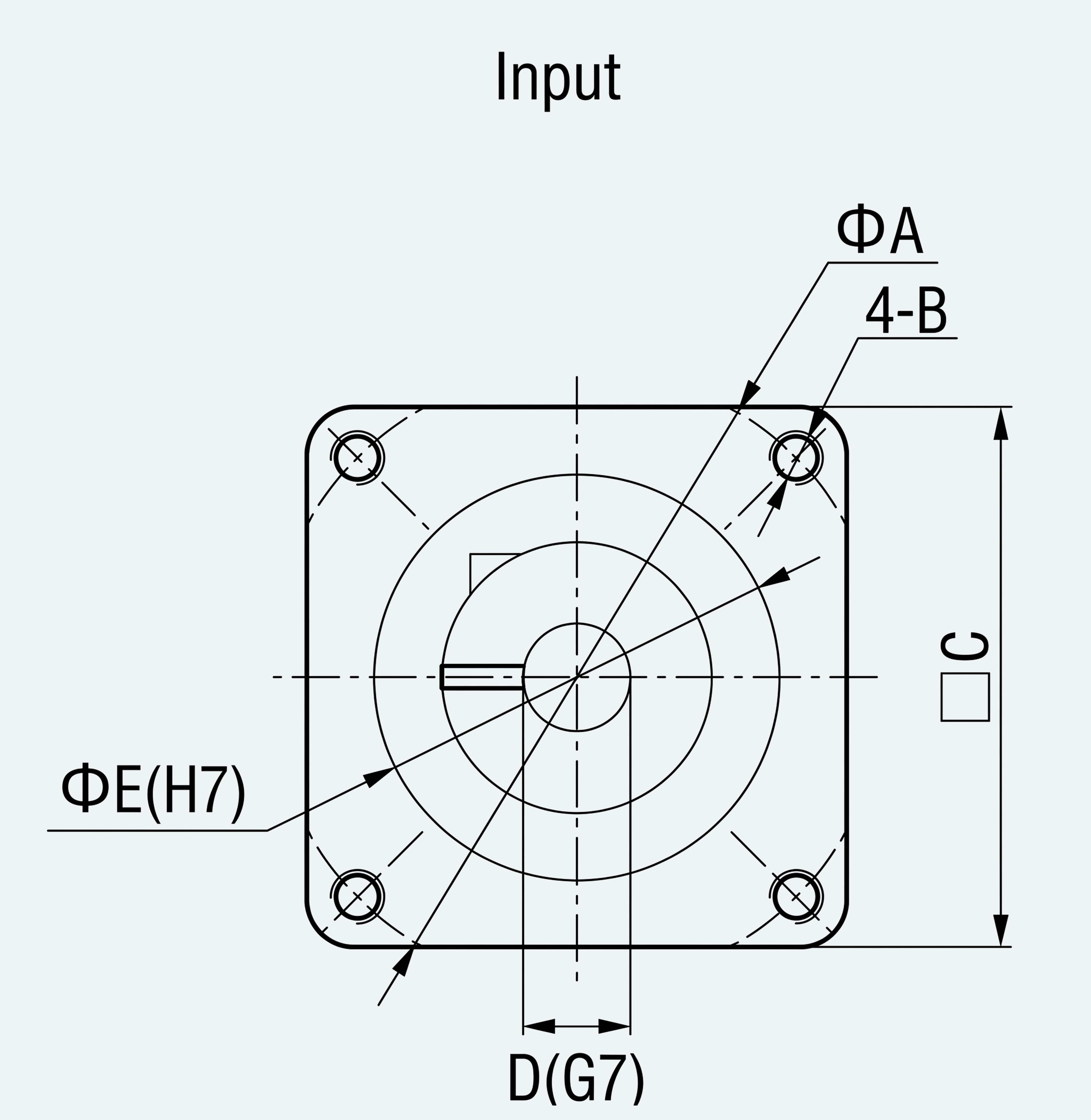

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

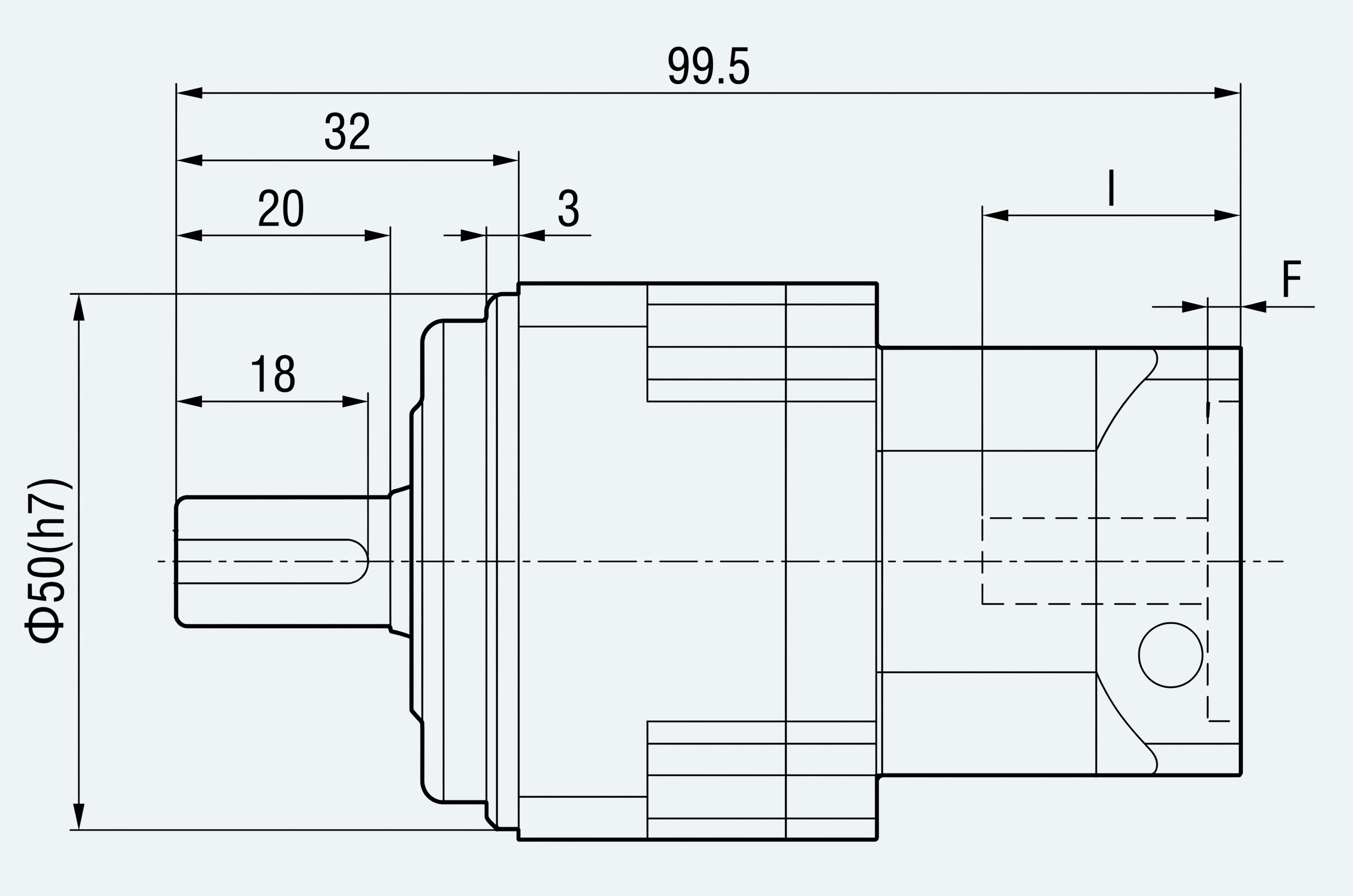

Mechanical View 1 for ES-RD-C36-S001-V042
Mechanical View 1
Visual drawing reference. Structured annotations are not available for this image, so the full-width canvas preserves the original drawing for engineering review.

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 27 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Dimension TOTALLENGTHL_YASKAWA_MADESGMASHSGMSH
99.5 mm

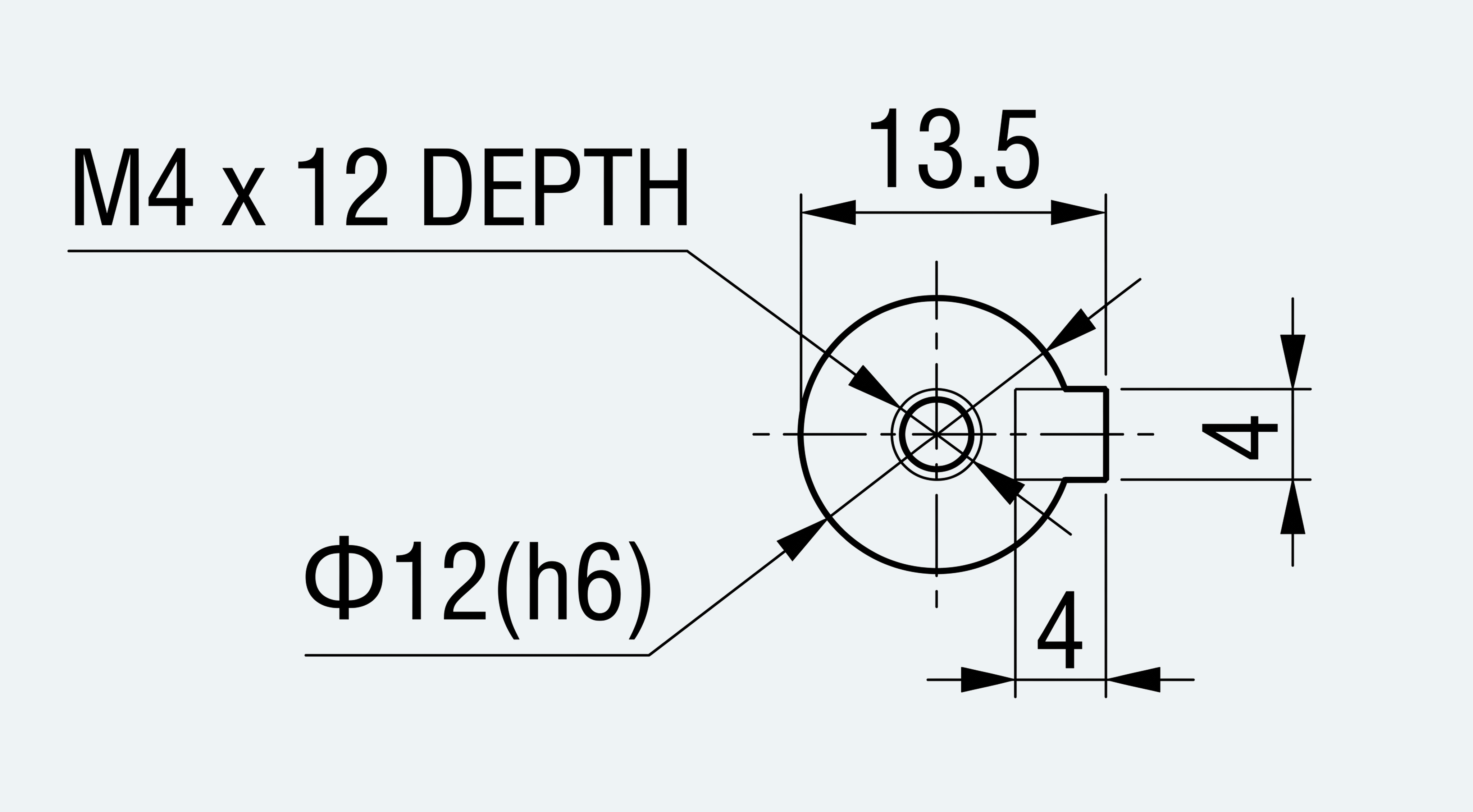

Dimension OUTPUTSHAFTLR
32 mm
Dimension OUTPUTSHAFTS
12 mm
Dimension OUTPUTSHAFTQ
20 mm
Dimension OUTPUTSHAFTQM
18 mm
Dimension OUTPUTSHAFTG
M4(depth)12 mm
Dimension OUTPUTSHAFTW_U
4×13.5 mm
Dimension OUTPUTSHAFTT
4 mm
Dimension D
52 mm
Dimension FLANGELB
50 mm
Dimension FLANGELE
3 mm
Dimension FLANGELA
60 mm
Dimension FLANGELZ
M5 mm
Dimension FLANGEX
12 mm

Performance Parameters

Output Shaft Speed
333 rpm
Rated Output Torque
2.25 N·m
Instantaneous Maximum Output Torque
6.86 N·m
Permissible Radial Load
588 N
Permissible Axial Load
294 N
Permissible Output Torque
2.35 N·m
Instantaneous Maximum Permissible Output Torque
7.25 N·m
Backlash
3 arcmin

Mechanical Parameters

Frame Size
52 mm
Motor Power
100 W
Number of Stages
1
Reduction Ratio
3, 5, 9
Input-shaft Equivalent Inertia
0.035 x10⁻⁴ kg.m²

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

Compliance

Product Integration & Compliance

OEM INTEGRATION RESPONSIBILITY

This product is a component or configurable module intended for integration into an OEM, commercial, industrial or research system.

The customer is responsible for final product selection, system-level risk assessment, safety functions, mechanical and electrical integration, validation, certification and regulatory compliance.

Published ratings apply only under the stated conditions. Confirm the operating point, interfaces, control compatibility, thermal conditions, duty cycle and required documentation before final selection.

This product is not approved for a safety-critical or restricted application unless expressly authorized in writing.

TRANSMISSION INTEGRATION

Confirm rated and peak torque, backlash, stiffness, radial and axial loads, mounting accuracy, lubrication, temperature, duty cycle, shock loading and expected service life.

Published service-life information depends on the stated load and operating assumptions and does not constitute a complete system-life guarantee.
