Ultra Precision Planetary Gearbox Platform 12 — Engineering Configuration V051

Exact SKU: ES-RD-C36-S001-V051

Confirm ratio, torque, speed, backlash, motor interface, mounting and duty-cycle requirements before final selection.

Frame Size
78 mm
Reduction Ratio
9
Backlash
3 arcmin
Motor Power
200 W
Number of Stages
1
Output Shaft Speed
333 rpm
Rated Output Torque
3.72 N·m
Instantaneous Maximum Output Torque
11.3 N·m
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-RD-C36-S001-V051 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

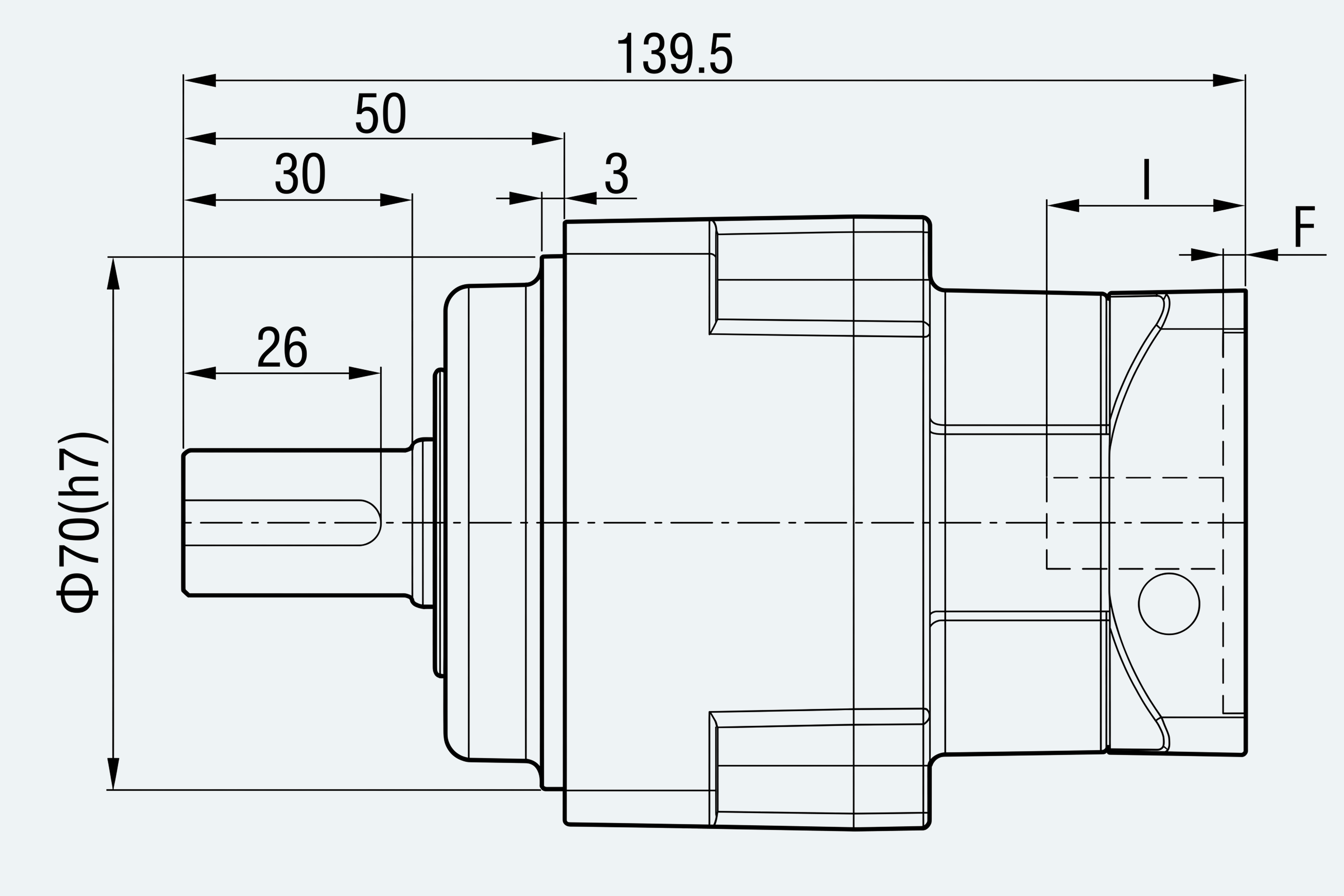

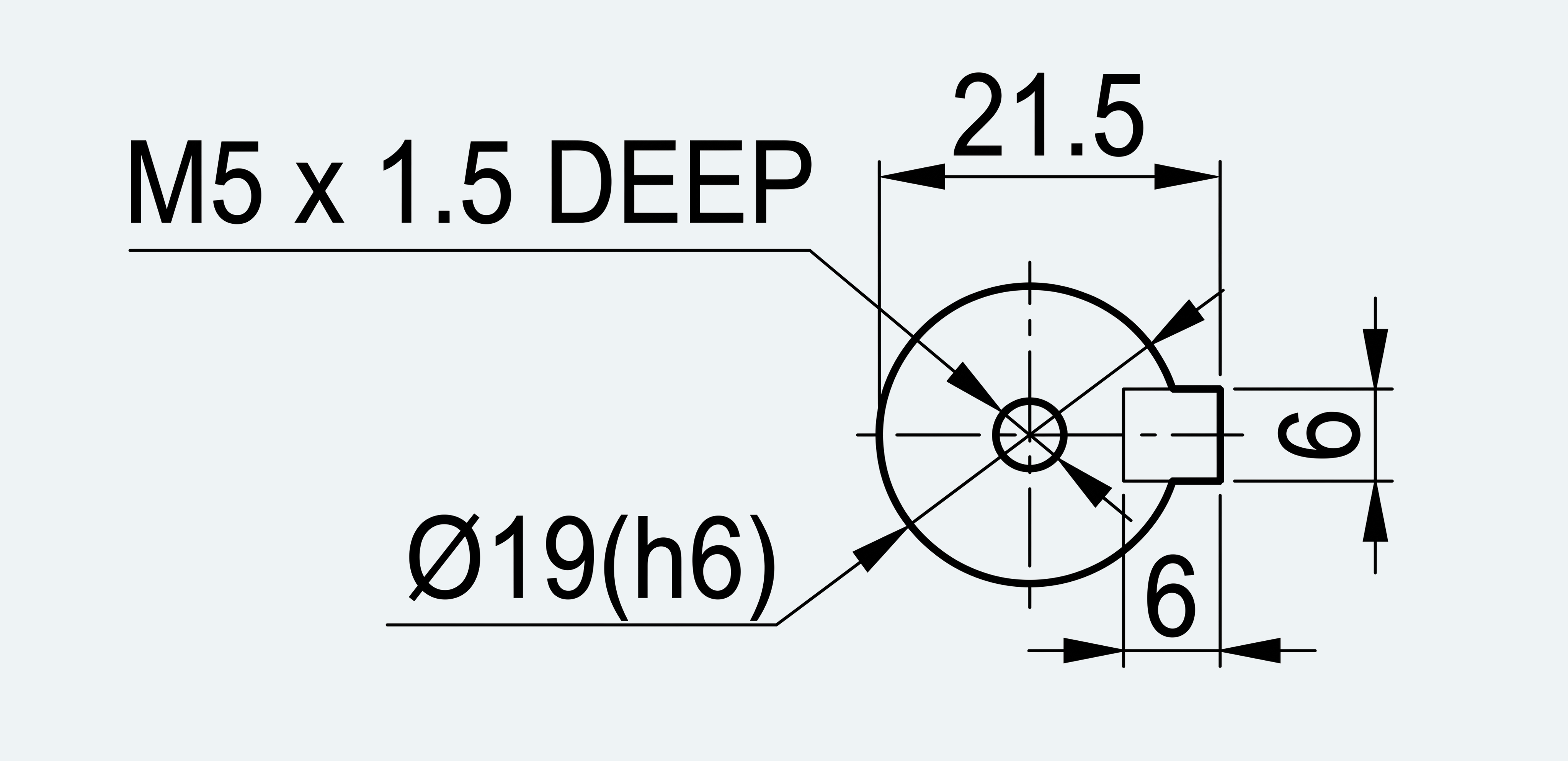

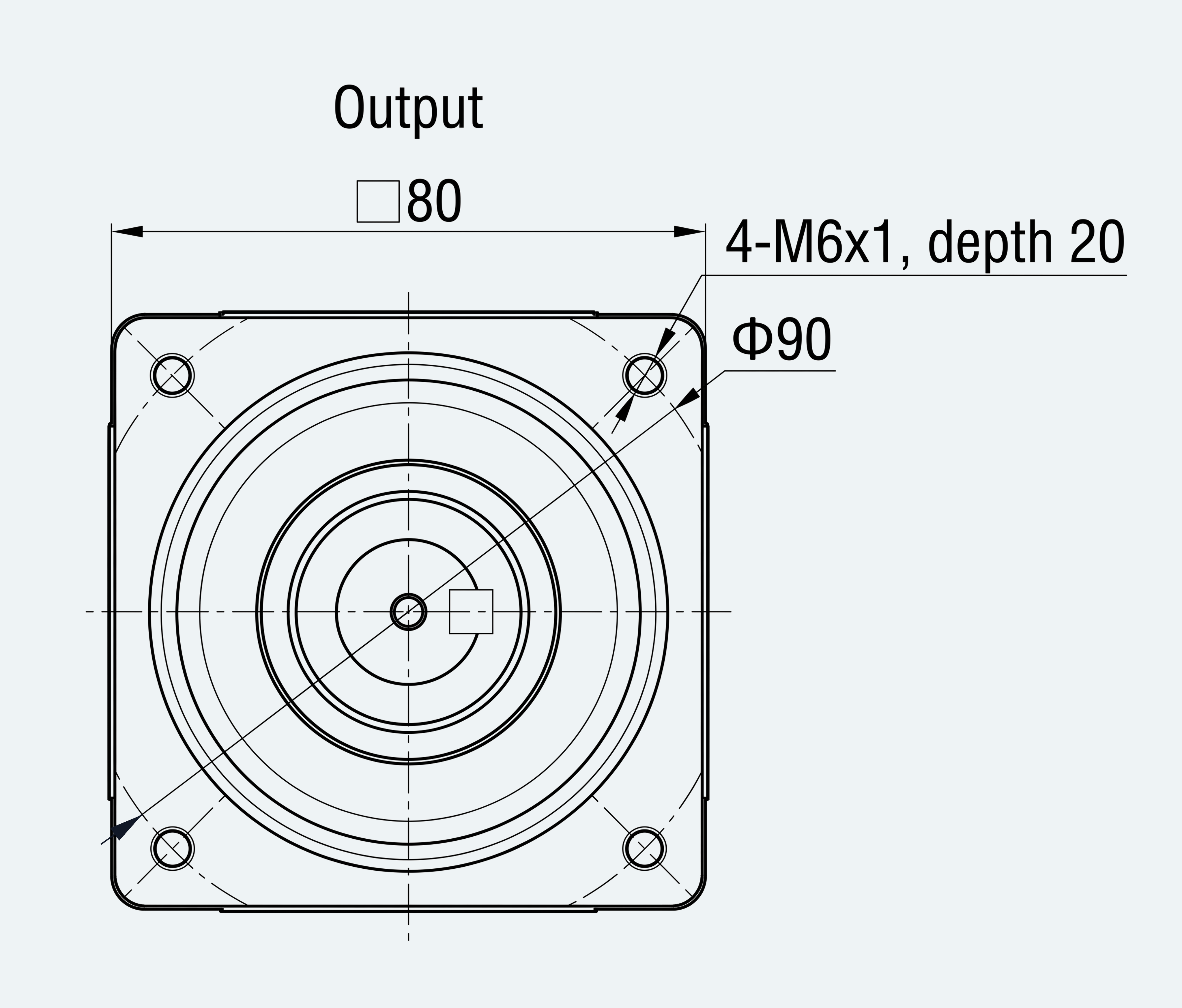

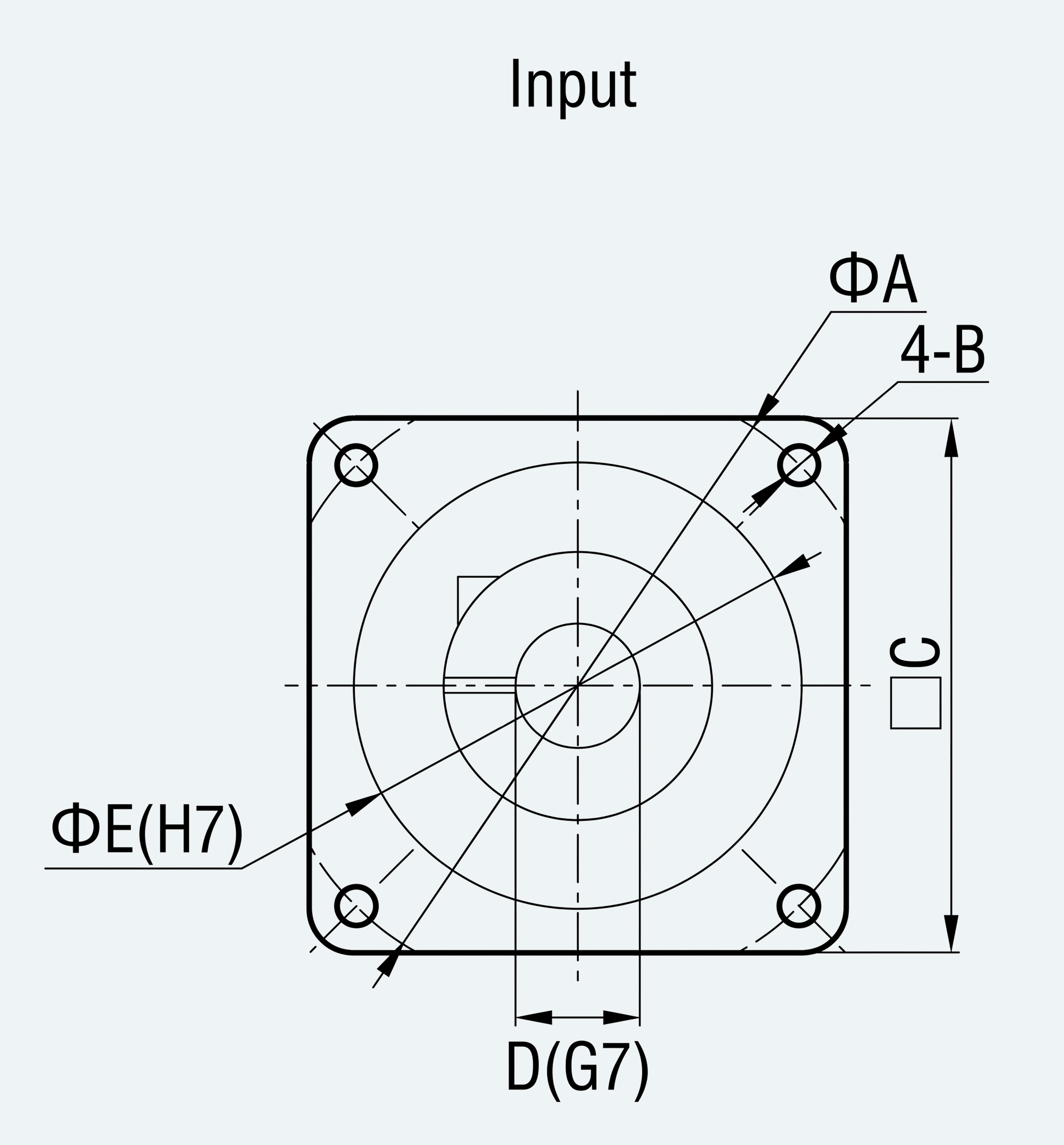

Mechanical View 1 for ES-RD-C36-S001-V051
Mechanical View 1
Visual drawing reference. Structured annotations are not available for this image, so the full-width canvas preserves the original drawing for engineering review.

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 27 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Dimension TOTALLENGTHL_YASKAWA_MADESGMASHSGMSH
139.5 mm
Dimension OUTPUTSHAFTLR
50 mm
Dimension OUTPUTSHAFTS
19 mm
Dimension OUTPUTSHAFTQ
30 mm
Dimension OUTPUTSHAFTQM
26 mm
Dimension OUTPUTSHAFTG
M5(depth)15 mm
Dimension OUTPUTSHAFTW_U
6×21.5 mm
Dimension OUTPUTSHAFTT
6 mm
Dimension D
80 mm
Dimension FLANGELB
70 mm
Dimension FLANGELE
3 mm
Dimension FLANGELA
90 mm
Dimension FLANGELZ
M6 mm
Dimension FLANGEX
20 mm

Performance Parameters

Output Shaft Speed
333 rpm
Rated Output Torque
3.72 N·m
Instantaneous Maximum Output Torque
11.3 N·m
Permissible Radial Load
1,180 N
Permissible Axial Load
588 N
Permissible Output Torque
9.7 N·m
Instantaneous Maximum Permissible Output Torque
29.2 N·m
Backlash
3 arcmin

Mechanical Parameters

Frame Size
78 mm
Motor Power
200 W
Number of Stages
1
Reduction Ratio
9
Input-shaft Equivalent Inertia
0.275 x10⁻⁴ kg.m²

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

Compliance

Product Integration & Compliance

OEM INTEGRATION RESPONSIBILITY

This product is a component or configurable module intended for integration into an OEM, commercial, industrial or research system.

The customer is responsible for final product selection, system-level risk assessment, safety functions, mechanical and electrical integration, validation, certification and regulatory compliance.

Published ratings apply only under the stated conditions. Confirm the operating point, interfaces, control compatibility, thermal conditions, duty cycle and required documentation before final selection.
