Ultra-Thin Frameless Torque Motor
Review the recorded engineering values, controlled media and documentation status for this exact SKU before integration.

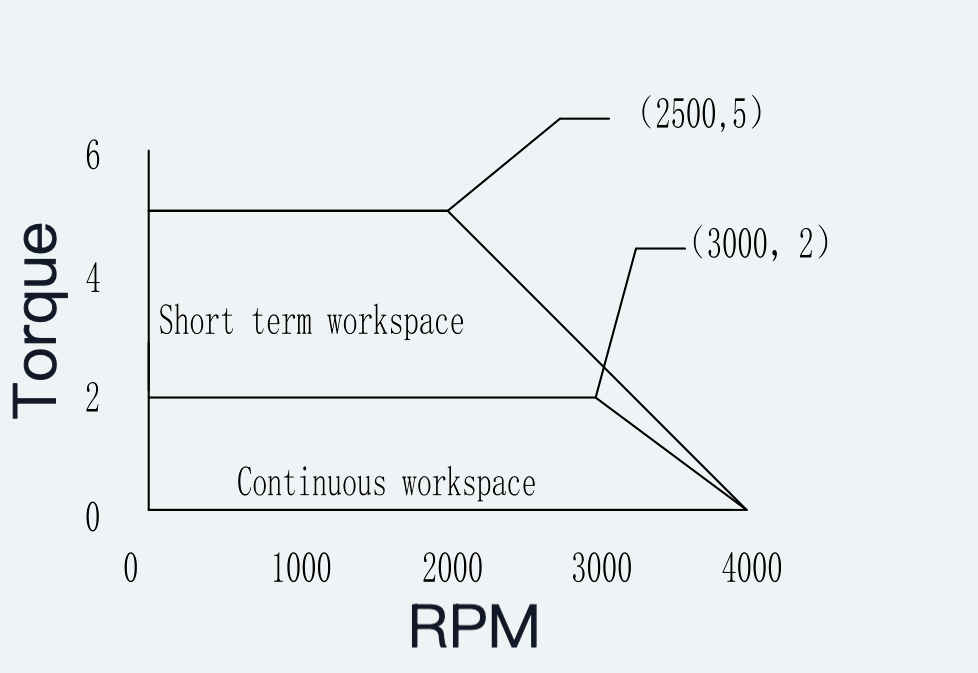

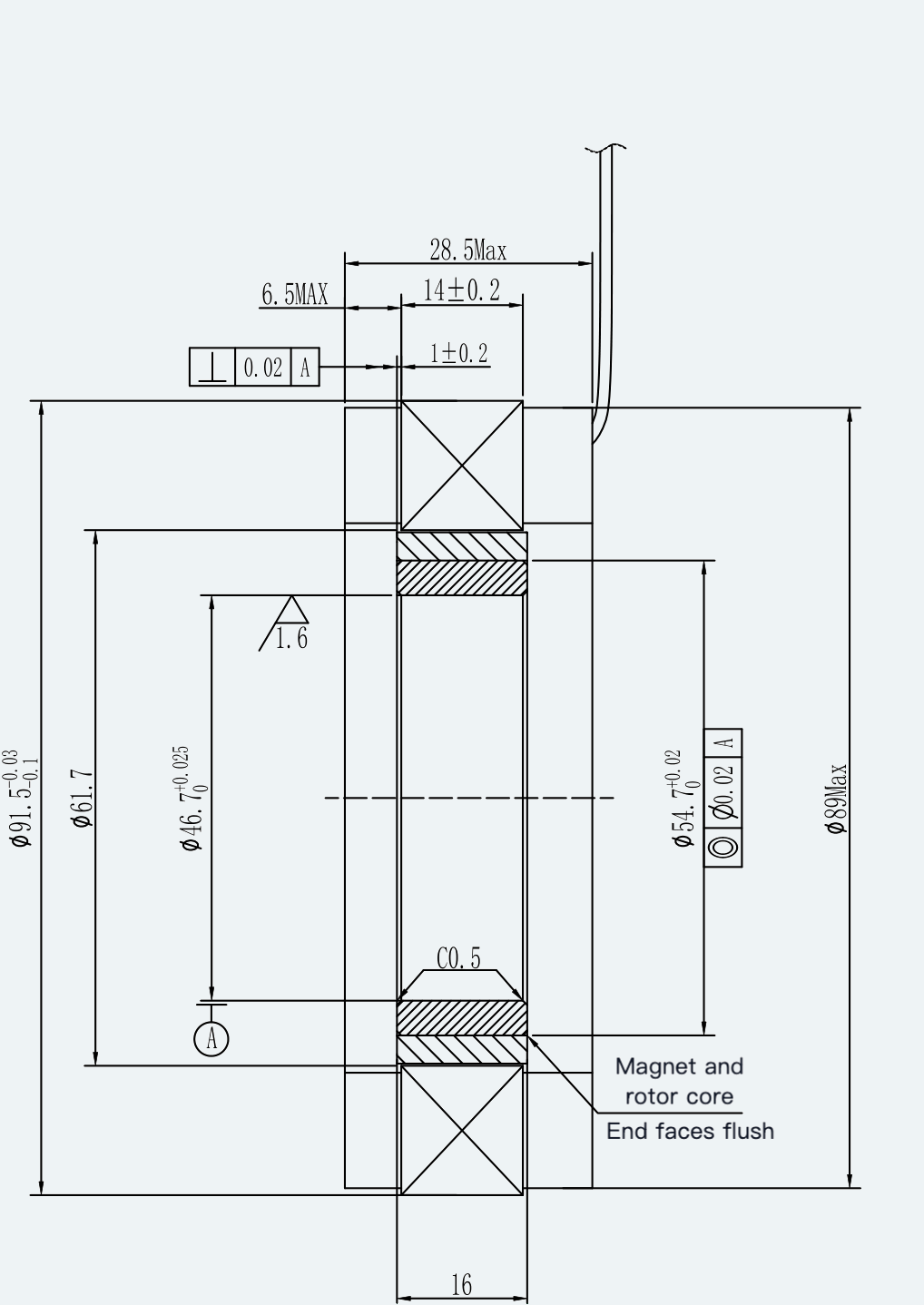

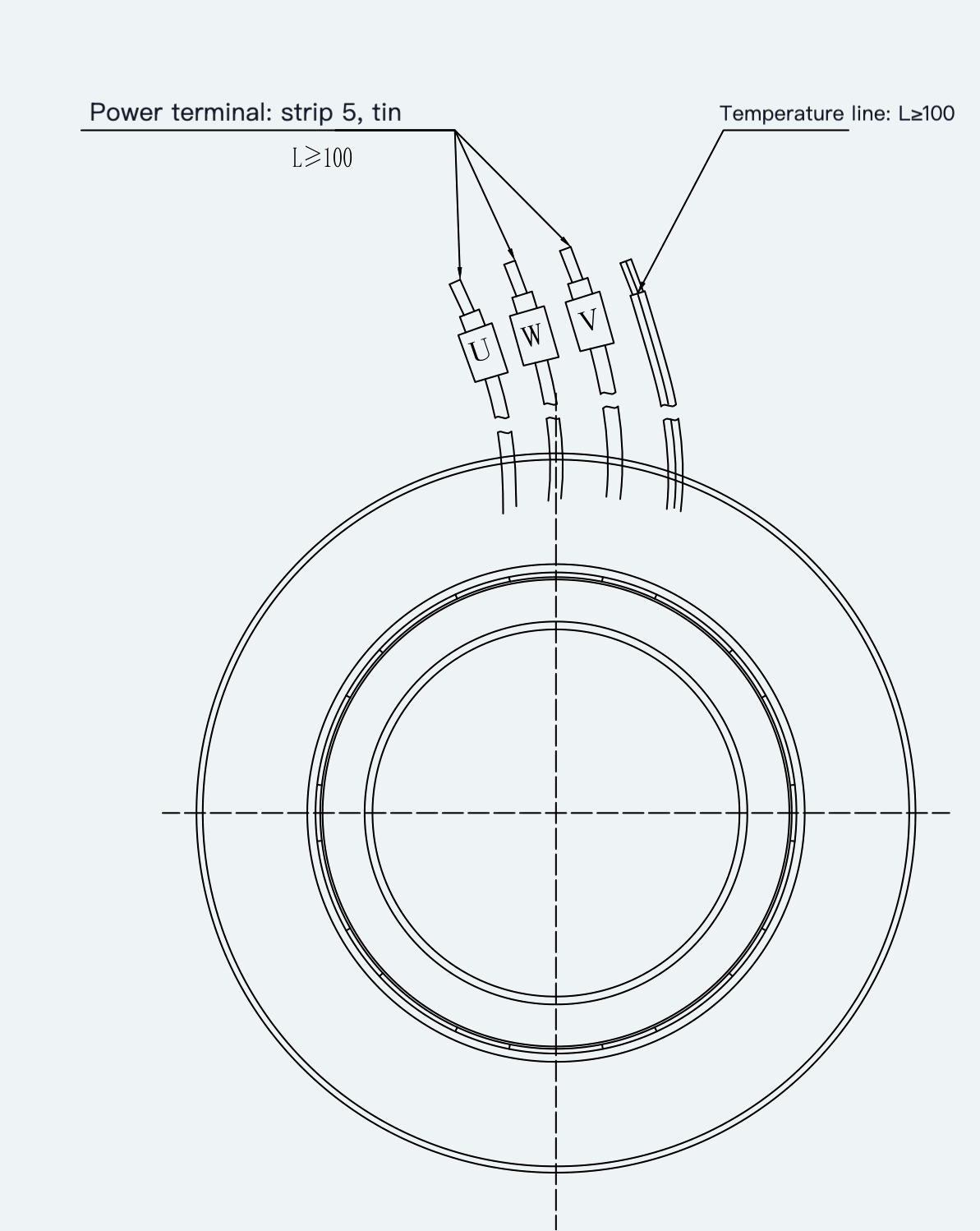

2D drawing
Primary drawing views stay beside the annotated data table so a focused row highlights the matching callout.
2D structured drawing pending annotation review
No verified model- or series-level drawing is currently bound to this SKU. The controlled documentation request remains available without showing a generic or unrelated geometry preview.
3D fit review
The interactive toolbar stays with the model. Controlled CAD access remains a separate engineering-file request.
3D CAD review required
A verified browser preview is not currently available for this exact SKU.
