24–60 V Compact Servo Drive Series — ES-SD-C01-S010
Low-voltage servo drive records organized for DC supply, current, command and motor-feedback engineering review.
Start with the DC supply and current envelope, then retain command, feedback, safety and connector requirements for engineering review.
Save a recorded candidate and its engineering context to the RFQ basket. CAD / STEP files remain subject to controlled review.
Common Specs
Shared platform specifications
Platform invariants
Drive Architecture & Motor Pairing
Define the low-voltage drive and motor interface
Start with the DC supply and current envelope, then retain command, feedback, safety and connector requirements for engineering review.
No catalog values selected.
0 published record(s) do not contain one or more selected fields and have moved to manual engineering review.
Optional Requirements for Engineering Review
Add what you know
Optional · About 1 minute
These details do not change the selected catalog record. Add what you know to help engineering review electrical, environmental, application and documentation requirements. You can skip any field or complete it later in the RFQ.
These details travel with the RFQ or controlled-file request. They are requirements for review, not confirmed product options.
Requirements saved for engineering review
Technical Verification
Technical SKU matrix
The table shows approved model-level engineering evidence independently of automatic selection. Missing values remain explicit and prevent unsupported compatibility claims.
9 candidate records
| Model | Continuous output current | Peak output current | Command / communication interface | Weight | Action |
|---|---|---|---|---|---|
| ES-SD-C01-S010-V001 | 2.5 A | 12 A | CANopen | 0.266 kg | |
| ES-SD-C01-S010-V002 | 2.5 A | 12 A | EtherCAT | 0.266 kg | |
| ES-SD-C01-S010-V003 | 2.5 A | 12 A | RS485 | 0.266 kg | |
| ES-SD-C01-S010-V004 | 10 A maximum; 9 A without auxiliary cooling | 36 A | CANopen | 0.266 kg | |
| ES-SD-C01-S010-V005 | 10 A maximum; 9 A without auxiliary cooling | 36 A | EtherCAT | 0.266 kg | |
| ES-SD-C01-S010-V006 | 10 A maximum; 9 A without auxiliary cooling | 36 A | RS485 | 0.266 kg | |
| ES-SD-C01-S010-V007 | 20 A maximum; 13 A without auxiliary cooling | 80 A | CANopen | 0.393 kg | |
| ES-SD-C01-S010-V008 | 20 A maximum; 13 A without auxiliary cooling | 80 A | EtherCAT | 0.393 kg | |
| ES-SD-C01-S010-V009 | 20 A maximum; 13 A without auxiliary cooling | 80 A | RS485 | 0.393 kg |
Product Visualization

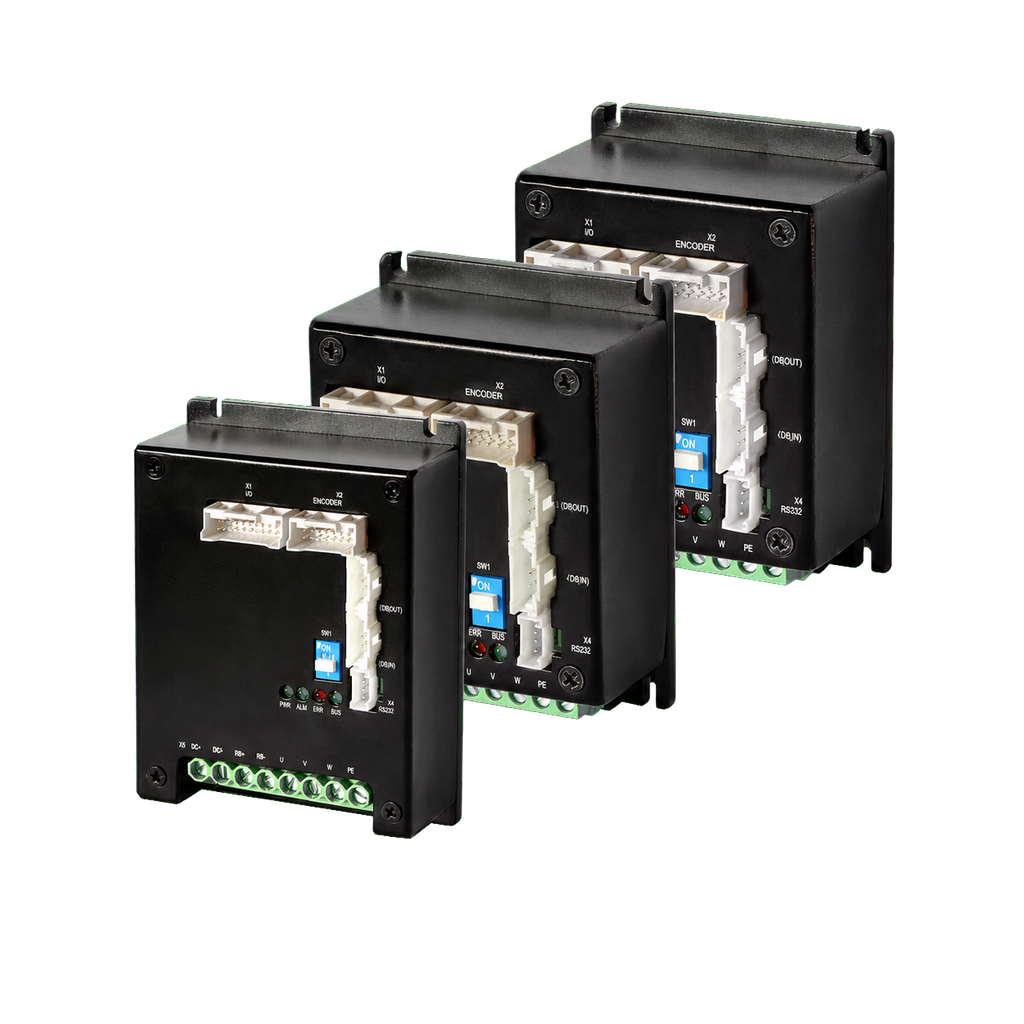

Product imagery and CAD-style placeholders are organized for engineering review without exposing private source files.
Product image
2D Dimension Data
Representative structured preview

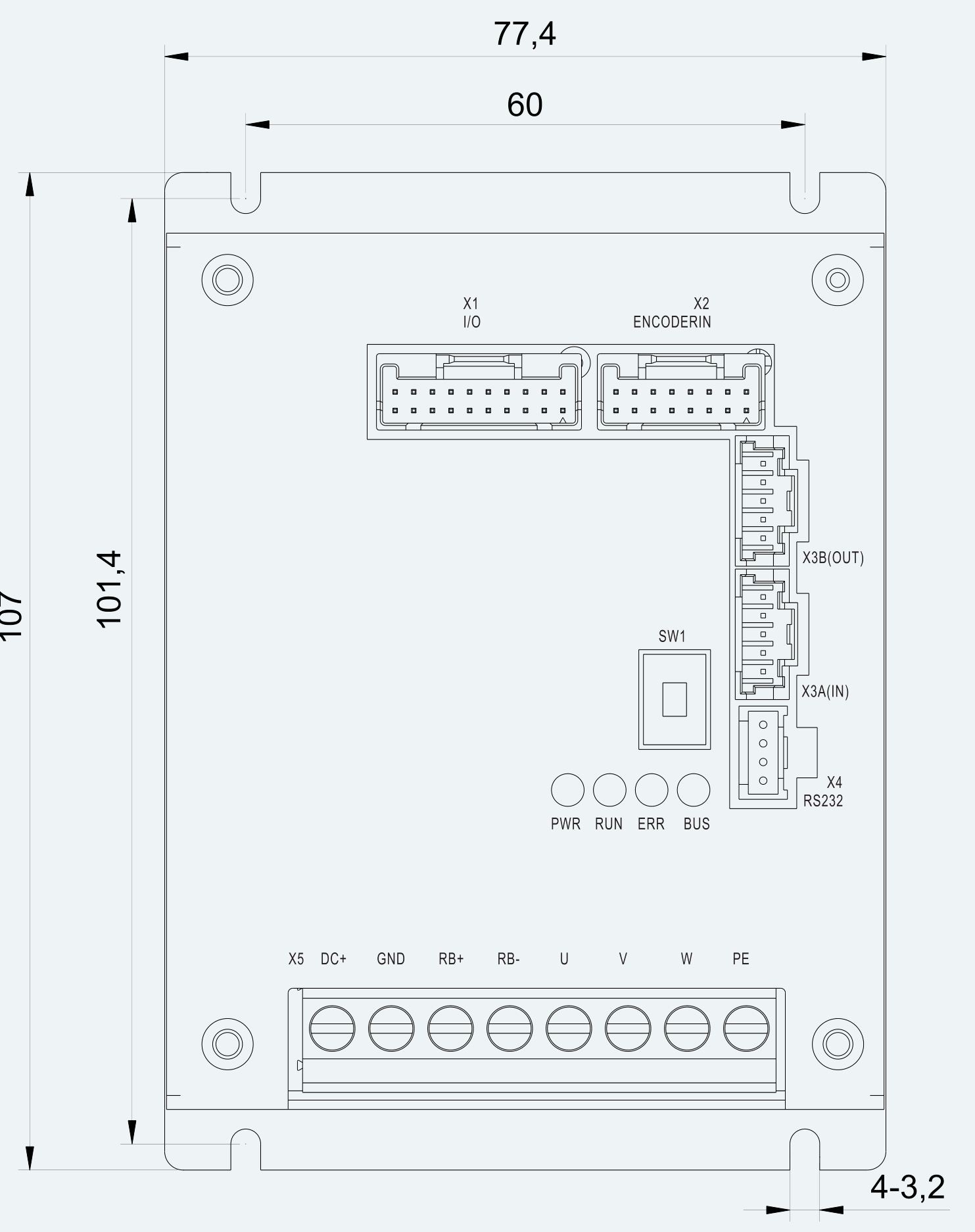

2D dimension drawing recorded · controlled access. This series view shows a representative extracted drawing. Open an exact SKU page for full 2D structure, dimension tables and notes.
