Robot Component

Electric Gripper Platform 09 — Engineering Configuration V002

Exact SKU: ES-EG-C00-S009-V002

Confirm payload, gripping geometry, force, stroke, cycle time, control interface and safety requirements before integration.

Rated power
19.2 W
Rated current
0.8 A
Gripping Force (Per Side)
45–160 N
Maximum Recommended Payload
3 kg
Total Stroke
95 mm
Position Repeatability
± 0.03 mm
Product Mass
1 kg
Overall Dimensions
184.6 mm x 162.3 mm x 67 mm
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-EG-C00-S009-V002 envelope view

Scale: 100%

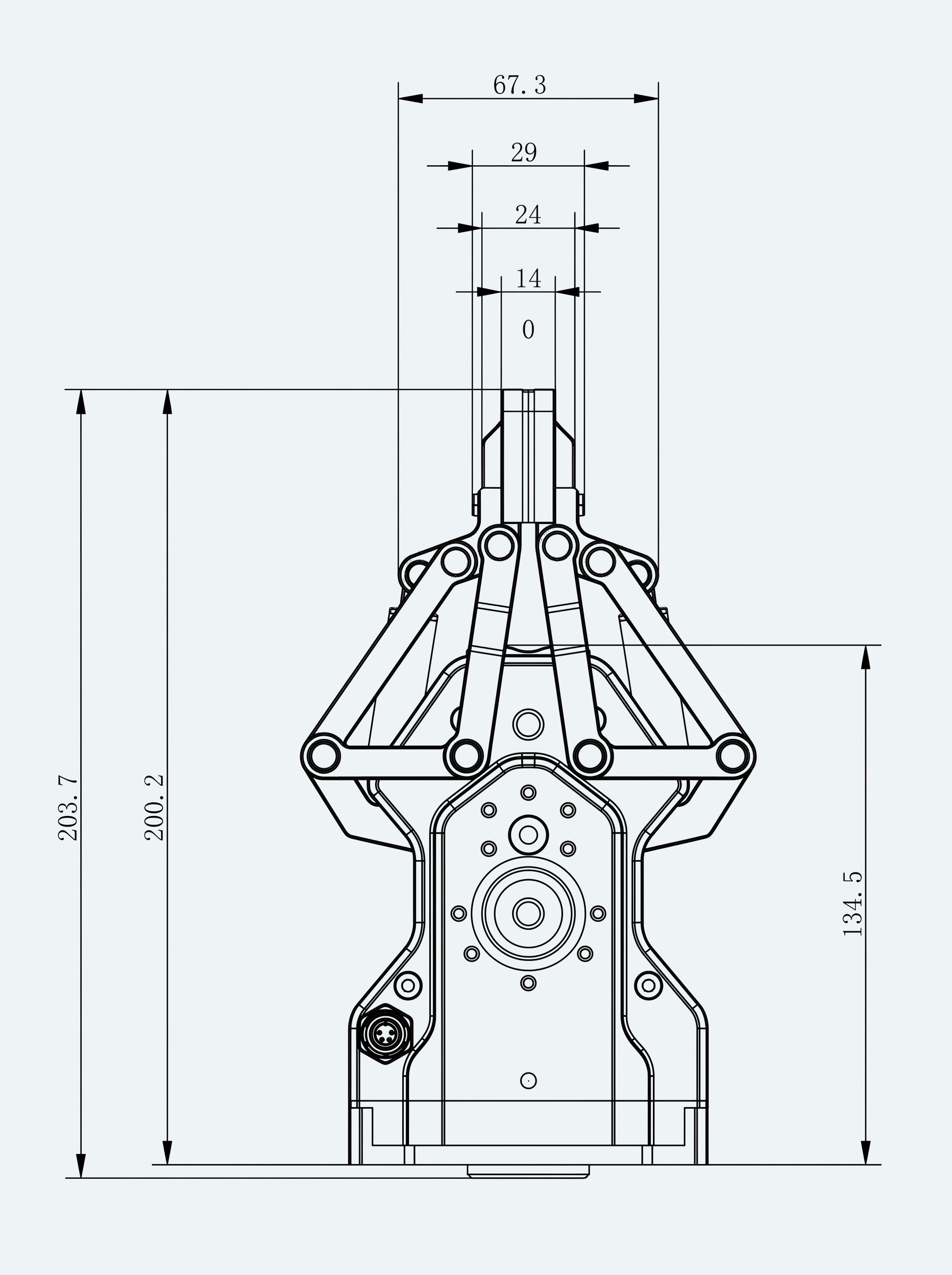

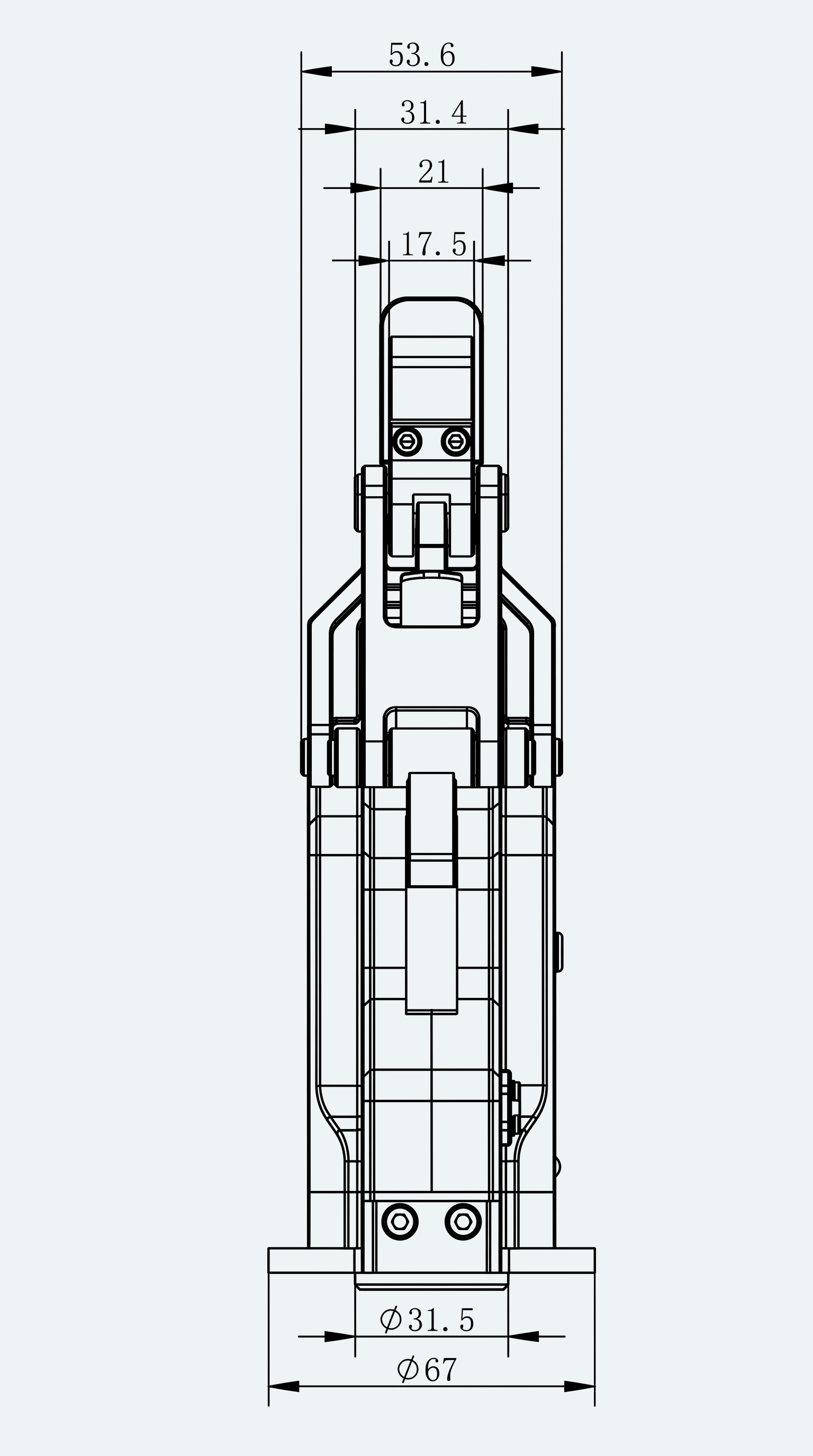

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

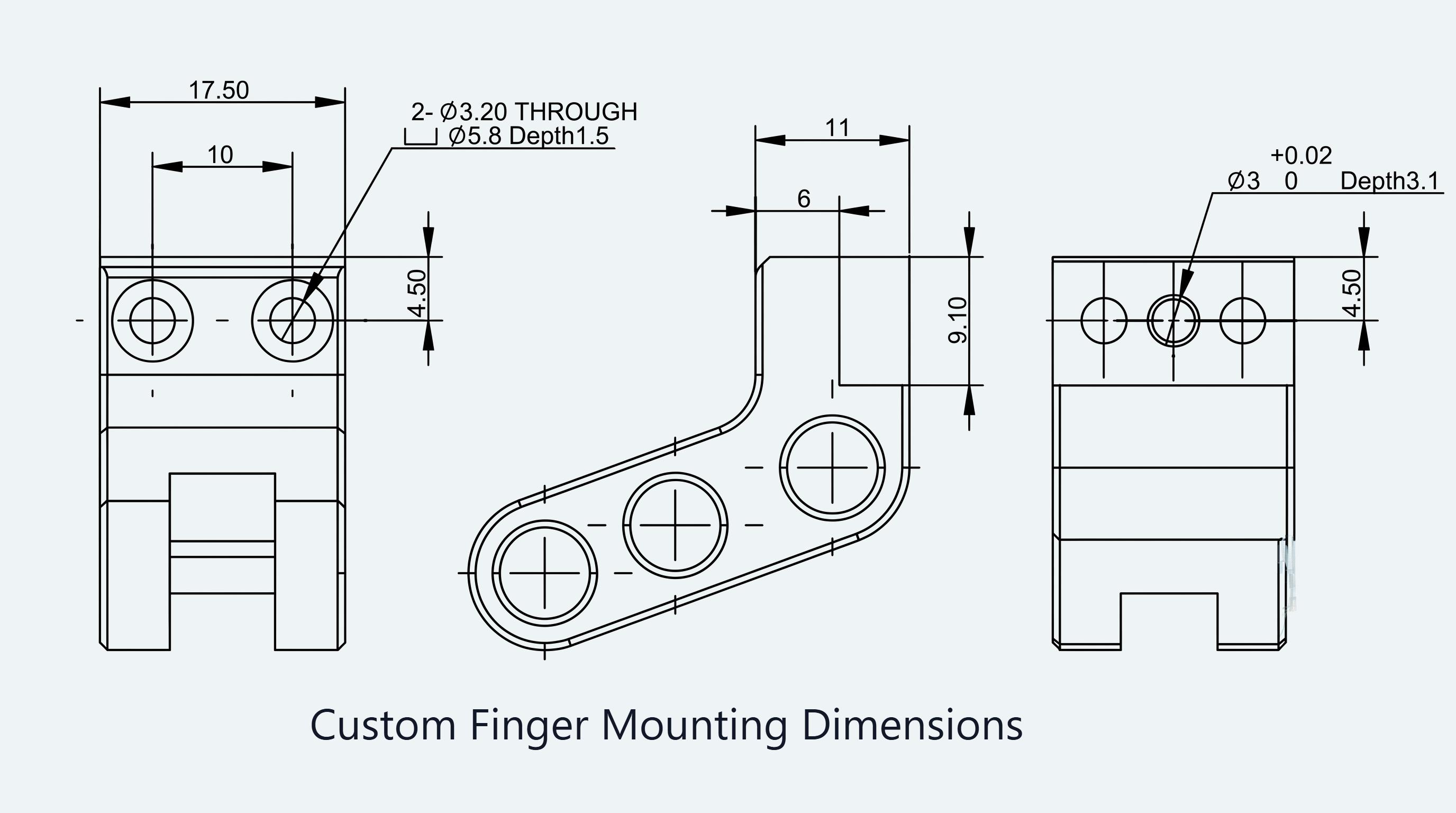

Drawing View for ES-EG-C00-S009-V002
Drawing View

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 20 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Mechanical Parameters

Gripping Force (Per Side)
45–160 N
Maximum Recommended Payload
3 kg
Total Stroke
95 mm
Position Repeatability
± 0.03 mm
Product Mass
1 kg
Overall Dimensions
184.6 mm x 162.3 mm x 67 mm
Operating Noise
< 60 dB
Operating Voltage
24 V DC ± 10% V DC
Rated power
19.2 W
Ingress Protection Rating
IP 54
Recommended Operating Environment
0~40°C, 85% RH max
Standards Compliance
CE, FCC, RoHS
Allowable Vertical Static Load (Fz)
300 N
Allowable Load Moment (Mx)
4.75 N·m
Allowable Load Moment (My)
4.75 N·m
Allowable Load Moment (Mz)
4.75 N·m
Full-Stroke Opening Time
0.9 s
Full-Stroke Closing Time
0.9 s
Rated current
0.8 A
Peak current
1.5 A

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

STEP / STP CAD

Controlled Review

A validated browser preview may be available; native CAD remains controlled.

Request controlled CAD

Compliance

Product Integration & Compliance

OEM INTEGRATION RESPONSIBILITY

This product is a component or configurable module intended for integration into an OEM, commercial, industrial or research system.

The customer is responsible for final product selection, system-level risk assessment, safety functions, mechanical and electrical integration, validation, certification and regulatory compliance.

Published ratings apply only under the stated conditions. Confirm the operating point, interfaces, control compatibility, thermal conditions, duty cycle and required documentation before final selection.

This product is not approved for a safety-critical or restricted application unless expressly authorized in writing.

MOTOR AND ACTUATOR INTEGRATION

Confirm continuous and peak operating points, load inertia, acceleration, shock, radial and axial loading, mounting accuracy, cooling, drive compatibility, encoder interface, braking behavior and fault response.

A standard holding brake is not represented as a safety brake unless the Exact SKU is expressly identified and documented as safety-rated.

Mechanical stops, guards, interlocks, emergency functions and system-level functional safety remain the responsibility of the machine manufacturer and system integrator.
