Coreless Brushed DC Motor

8 mm Coreless Brushed DC Motor - 0.0006 N·m · 395 mW · 12 V · 4.3 kg·cm² E-5

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Exact SKU ES-CM-BR01-M001
Motor diameter
8 mm
Motor length
24 mm
Rated voltage
12 VDC
No-load Speed
12,800 rpm
Continuous Torque
0.0006 N·m
Peak Current
0.13 A
Physical product image
Product image for ES-CM-BR01-M001
Request engineering quote Review engineering files

2D drawing

Review the drawing with its engineering data

Primary drawing views stay beside the annotated data table so a focused row highlights the matching callout.

Reviewed annotated drawing
Drawing controls
Scale: 100%

Primary Drawing Viewer

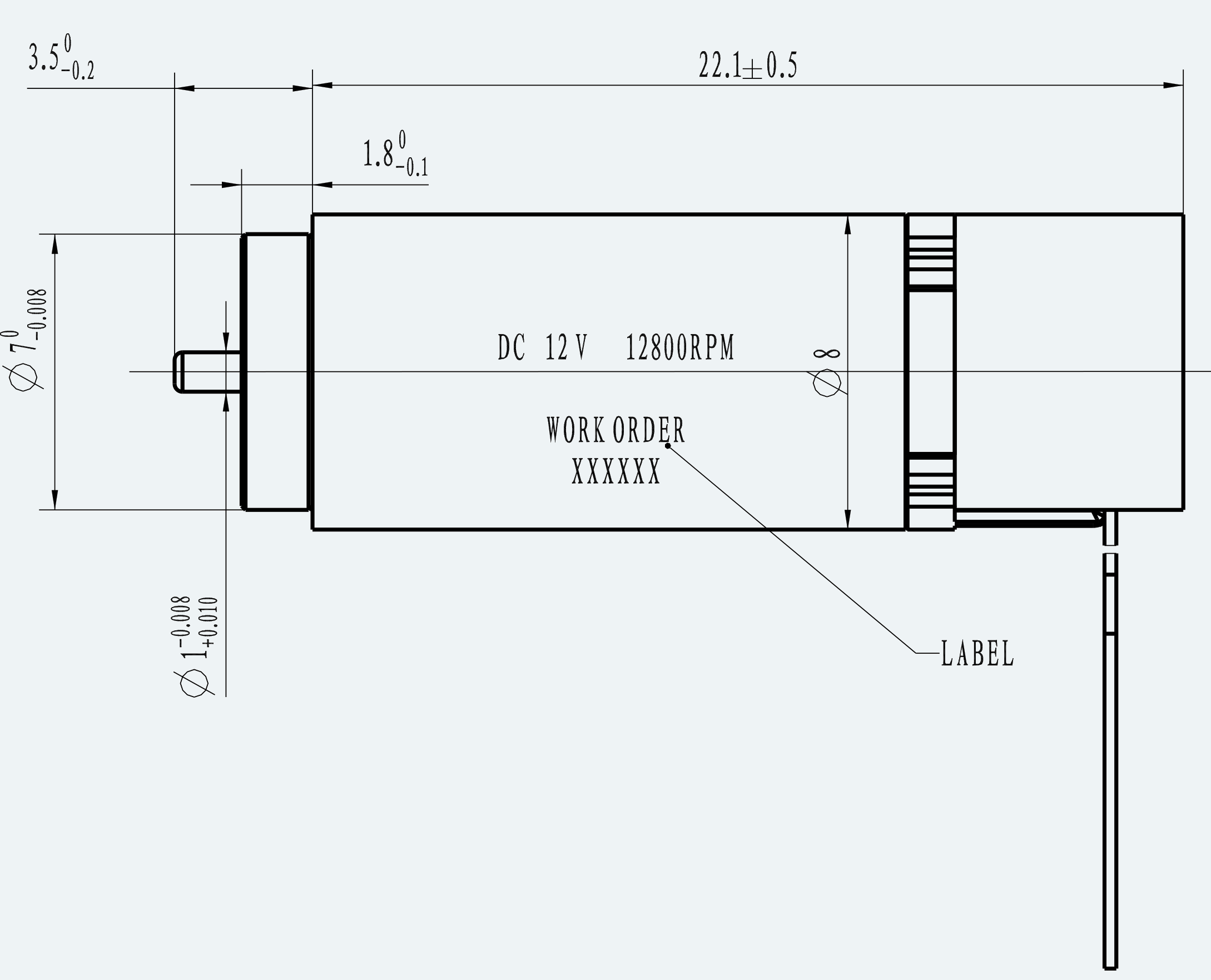

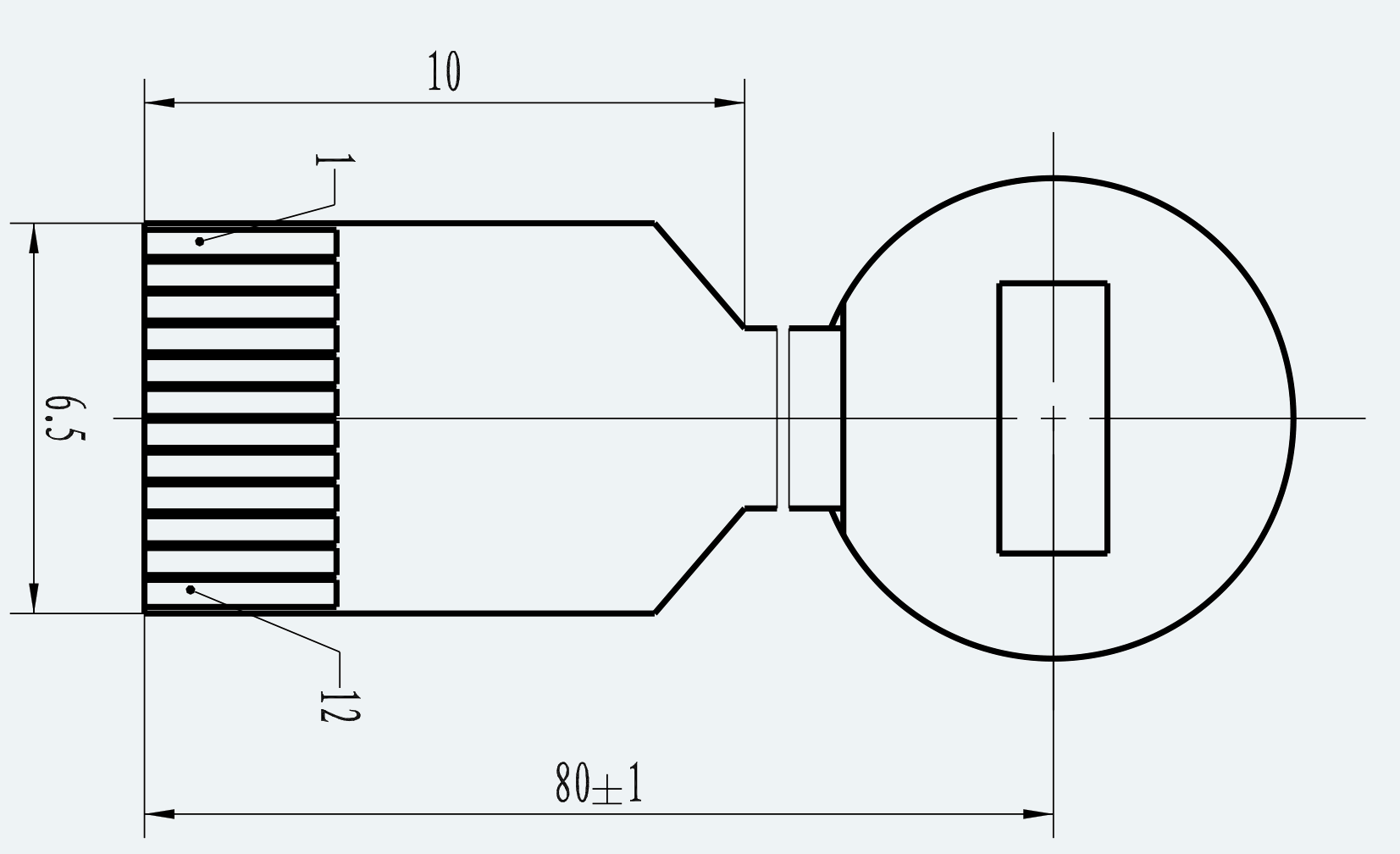

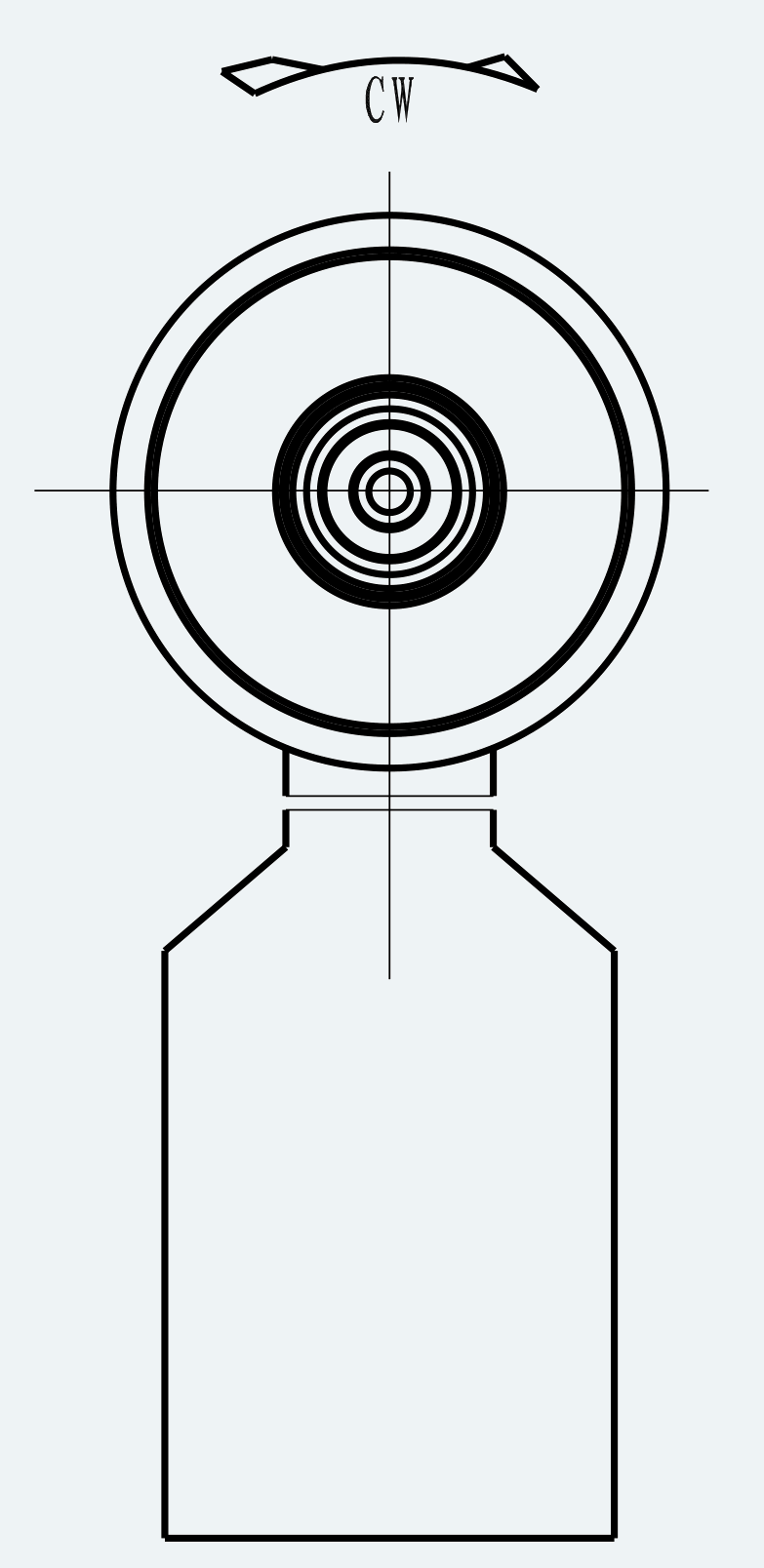

Mechanical View 1 1 / 3
Mechanical View 1 for ES-CM-BR01-M001
Mechanical View 1

3D fit review

Inspect envelope and mounting relationships

The interactive toolbar stays with the model. Controlled CAD access remains a separate engineering-file request.

Interactive reviewed preview
More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Full specifications

Grouped engineering parameters

All 24 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

24 published fields

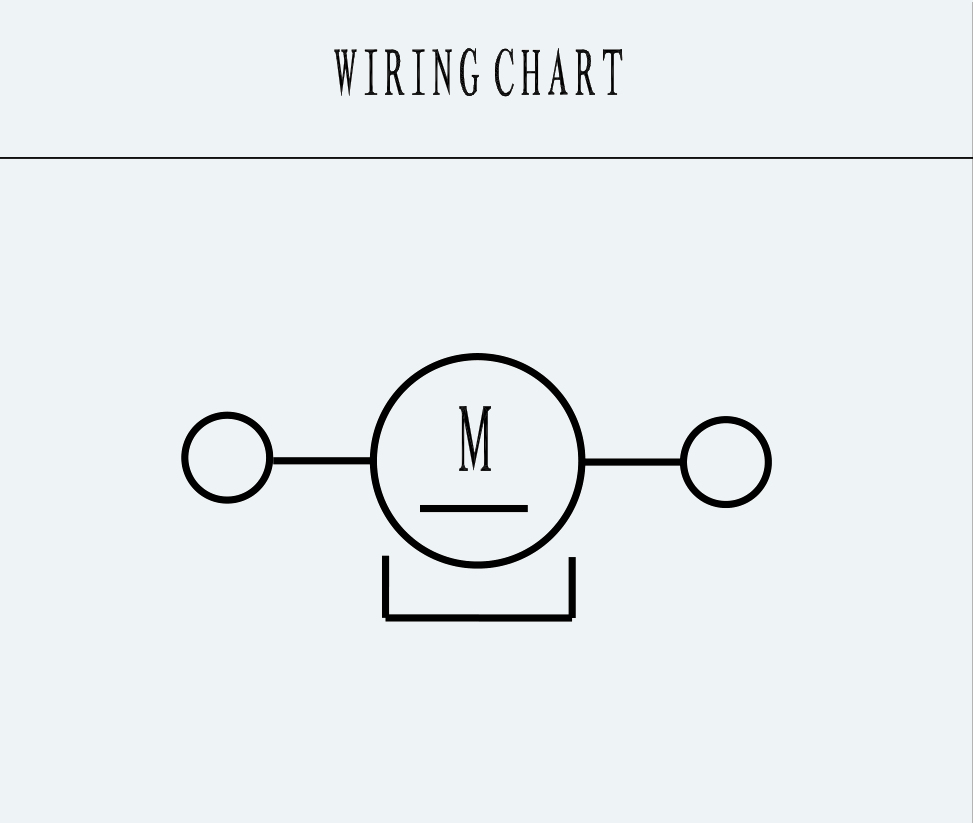

Electrical Parameters

12 fields
Back-EMF Constant
1,120 rpm/V
Peak Current
0.13 A
No-load Current
0.006 A
Maximum Continuous Current
0.08 A
Rated voltage
12 VDC
Terminal Inductance
0.28 mH
Terminal Resistance
78.4 Ω
Torque Constant
0.00883 N·m/A
Loaded Current
<80 mA
Power
395 mW
Withstand Voltage
100 V AC/50HZ/5mA/1S
Insulation Resistance
100 MΩ /100V

Performance Parameters

5 fields
Maximum Continuous Speed
6,300 rpm
Peak Torque
0.00117 N·m
No-load Speed
12,800 rpm
Continuous Torque
0.0006 N·m
Speed Constant
11,400 rpm/mN·m

Mechanical Parameters

5 fields
Mechanical Time Constant
4.32 ms
Motor diameter
8 mm
Motor length
24 mm
Rotor Inertia
4.3 kg·cm² E-5

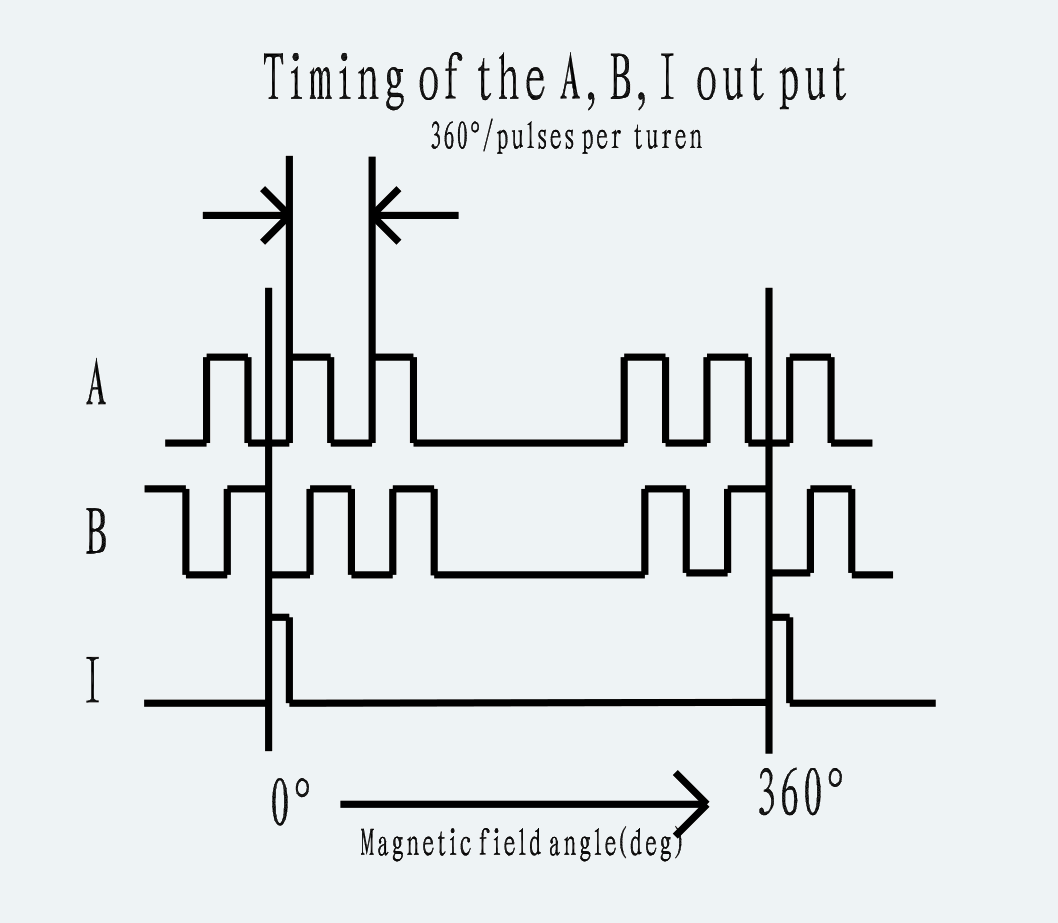

Rotation Direction
A BEFORE B CW

Thermal Parameters

2 fields
Maximum Winding Temperature
155 °C
Housing-to-Ambient Thermal Resistance
115 K/W

Product documentation

Product documentation

Review published PDFs for specifications, then request controlled 2D and 3D engineering files for integration.

Published PDFsDirect access · current public editions

SKU Integration Guide

ES-CM-BR01-M001 Dimensional & Integration Guide

SKU-specific · Dimensions and mounting interfaces

Review dimensions, mounting interfaces and integration notes for this SKU.

R01 7 pages · 670 KB

View integration guide (PDF)

Category Selection Guide

Coreless Brushed Miniature And Standard Series Category Selection Guide

Category-wide · Product platform comparison

Compare product platforms, key selection parameters and application requirements to narrow your options.

R01 4 pages · 124 KB

View selection guide (PDF)
2D Engineering Drawing

2D drawing

1 file available · Product-specific resource

Review the 2D preview above; request the controlled source drawing when needed.

Preview available · drawing access by request
3D CAD Model

STEP / STP CAD

1 file available · Product-specific resource

Use the interactive 3D preview above; request STEP/STP or native CAD when needed.

Interactive preview · CAD access by request

Related products

Continue with published products from this context

Only real neighboring products from the same engineering context are shown.

1 published products
Same published series ES-CM-BR01-M002 ES-CM-BR01-M002
  • Motor diameter 8 mm
  • Motor length 24 mm
  • Rated Voltage 12 VDC
  • No-load Speed 730±10% RPM
