Coreless Brushed DC Motor

8 mm Coreless Brushed DC Motor - 0.0067 N·m · 302 mW · 12 V

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Exact SKU ES-CM-BR01-M002
Motor diameter
8 mm
Motor length
24 mm
Rated voltage
12 VDC
No-load speed
780 rpm
Continuous torque
0.0067 N·m
Rated Speed
430 rpm
Physical product image
Product image for ES-CM-BR01-M002
Request engineering quote Review engineering files

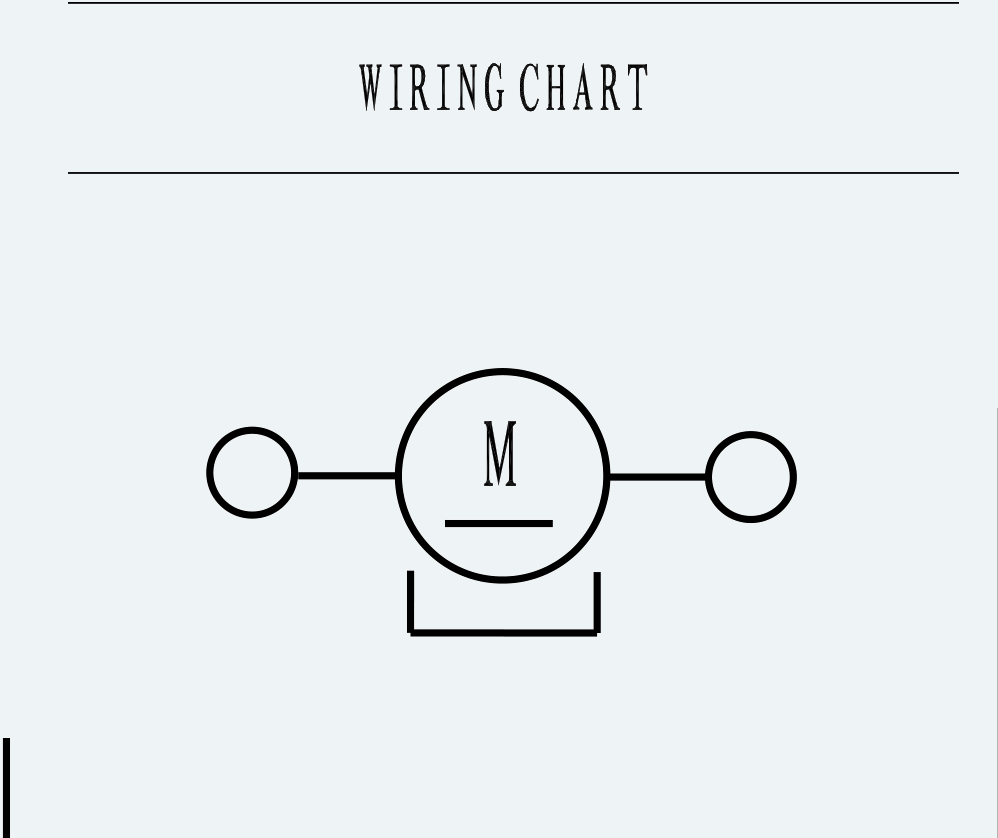

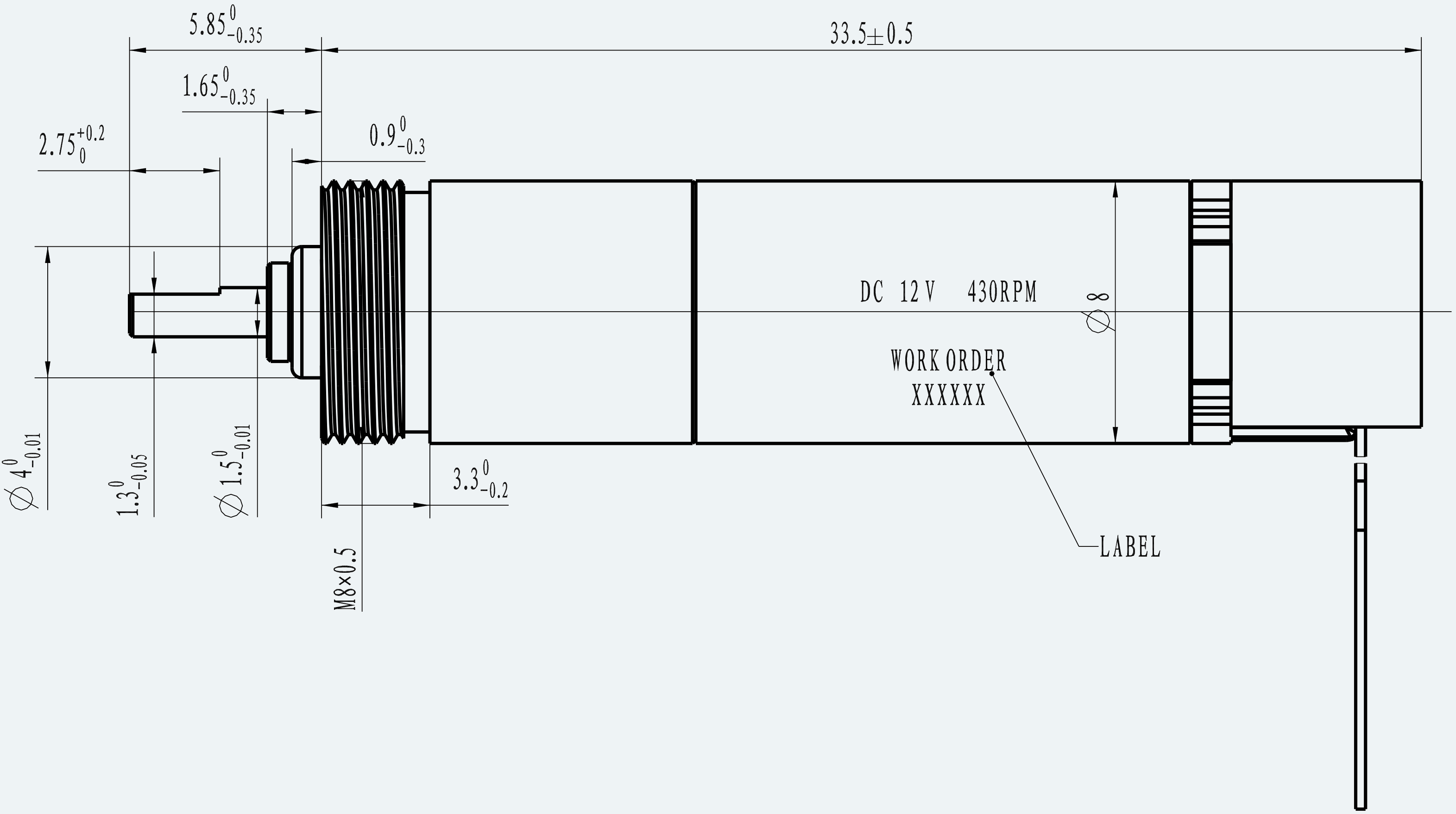

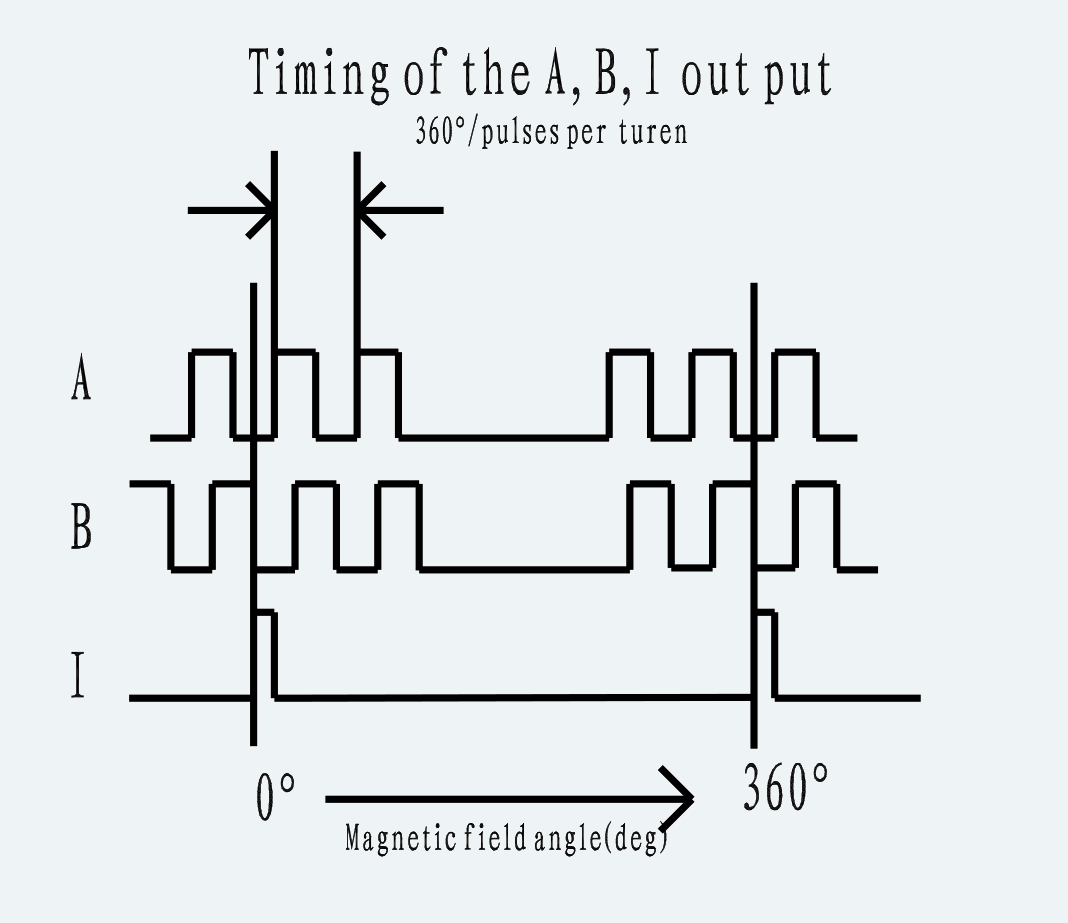

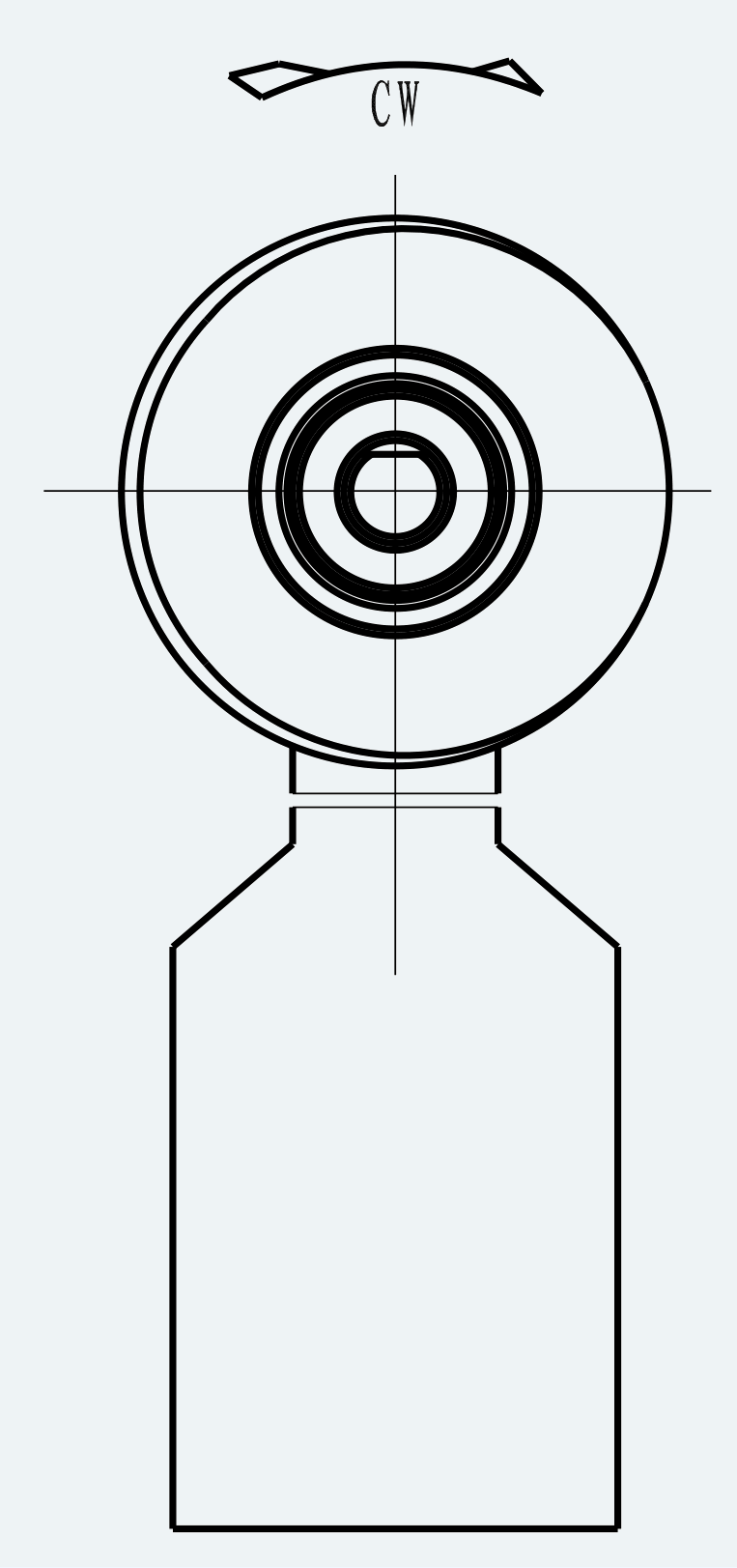

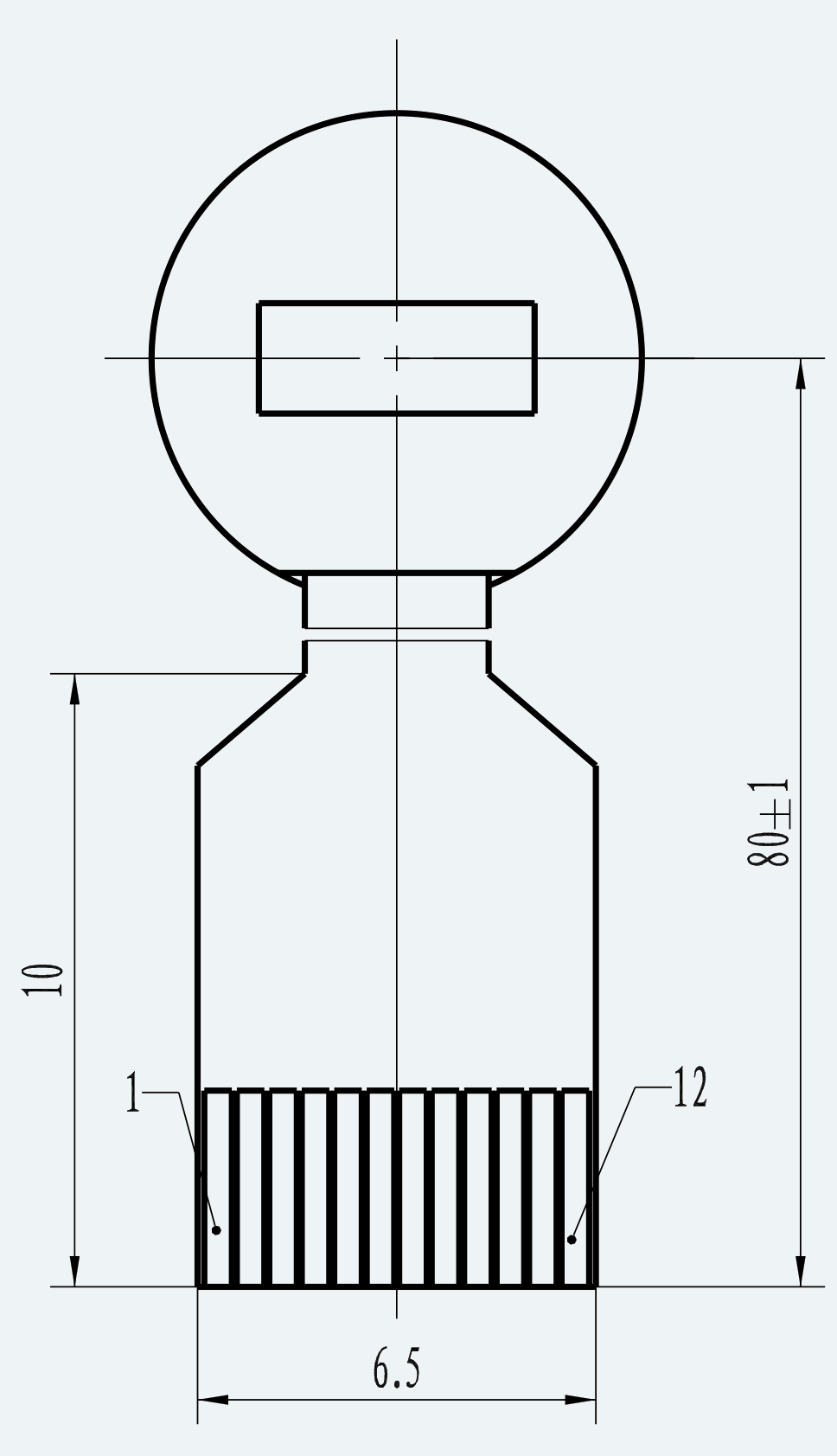

2D drawing

Review the drawing with its engineering data

Primary drawing views stay beside the annotated data table so a focused row highlights the matching callout.

Reviewed annotated drawing
Drawing controls
Scale: 100%

Primary Drawing Viewer

Drawing View
Drawing View for ES-CM-BR01-M002
Drawing View

3D fit review

Inspect envelope and mounting relationships

The interactive toolbar stays with the model. Controlled CAD access remains a separate engineering-file request.

Interactive reviewed preview
More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Full specifications

Grouped engineering parameters

All 20 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

20 published fields

Dimensions & Integration

3 fields
Encoder type
Magnetic encoder
Encoder pulses per revolution
256 ppr
Encoder channel count
3

Electrical Parameters

7 fields
Rated voltage
12 VDC
No-load current
0.03 A
Maximum continuous current
0.08 A
Loaded Current
≤80 mA
Power
302 mW
Withstand Voltage
300 V AC/50HZ/5mA/1S
Insulation Resistance
100 MΩ /250V

Performance Parameters

4 fields
No-load speed
780 rpm
Continuous torque
0.0067 N·m
Maximum continuous speed
430 rpm
Rated Speed
430 rpm

Mechanical Parameters

6 fields
Motor diameter
8 mm
Motor length
24 mm
Gear ratio
16
Weight
0.008 kg
Gearbox Ratio
1 :16
Rotation Direction
A BEFORE B CW

Product documentation

Product documentation

Review published PDFs for specifications, then request controlled 2D and 3D engineering files for integration.

Published PDFsDirect access · current public editions

SKU Datasheet

ES-CM-BR01-M002 Product Datasheet

SKU-specific · Specifications and performance data

Review performance specifications, operating limits and selection data for this SKU.

R03 4 pages · 481 KB

View datasheet (PDF)

SKU Integration Guide

ES-CM-BR01-M002 Dimensional & Integration Guide

SKU-specific · Dimensions and mounting interfaces

Review dimensions, mounting interfaces and integration notes for this SKU.

R01 7 pages · 755 KB

View integration guide (PDF)

Category Selection Guide

Coreless Brushed Miniature And Standard Series Category Selection Guide

Category-wide · Product platform comparison

Compare product platforms, key selection parameters and application requirements to narrow your options.

R01 4 pages · 124 KB

View selection guide (PDF)
2D Engineering Drawing

2D drawing

1 file available · Product-specific resource

Review the 2D preview above; request the controlled source drawing when needed.

Preview available · drawing access by request
3D CAD Model

STEP / STP CAD

1 file available · Product-specific resource

Use the interactive 3D preview above; request STEP/STP or native CAD when needed.

Interactive preview · CAD access by request
