DC Brushed Motor

16 mm DC Brushed Motor — 10.7 mN·m · 5 W · 24 V · 0.37 A

Exact SKU: ES-CM-BR02-M001

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Rated torque: 10.7 mN·m
Rated power: 5 W
Rated voltage: 24 VDC
Rated current: 0.37 A
Rotor inertia: 2.8 g·cm²
Mass: 45 g
Maximum efficiency: 78 %
Peak torque: 40 mN·m

Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-CM-BR02-M001 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

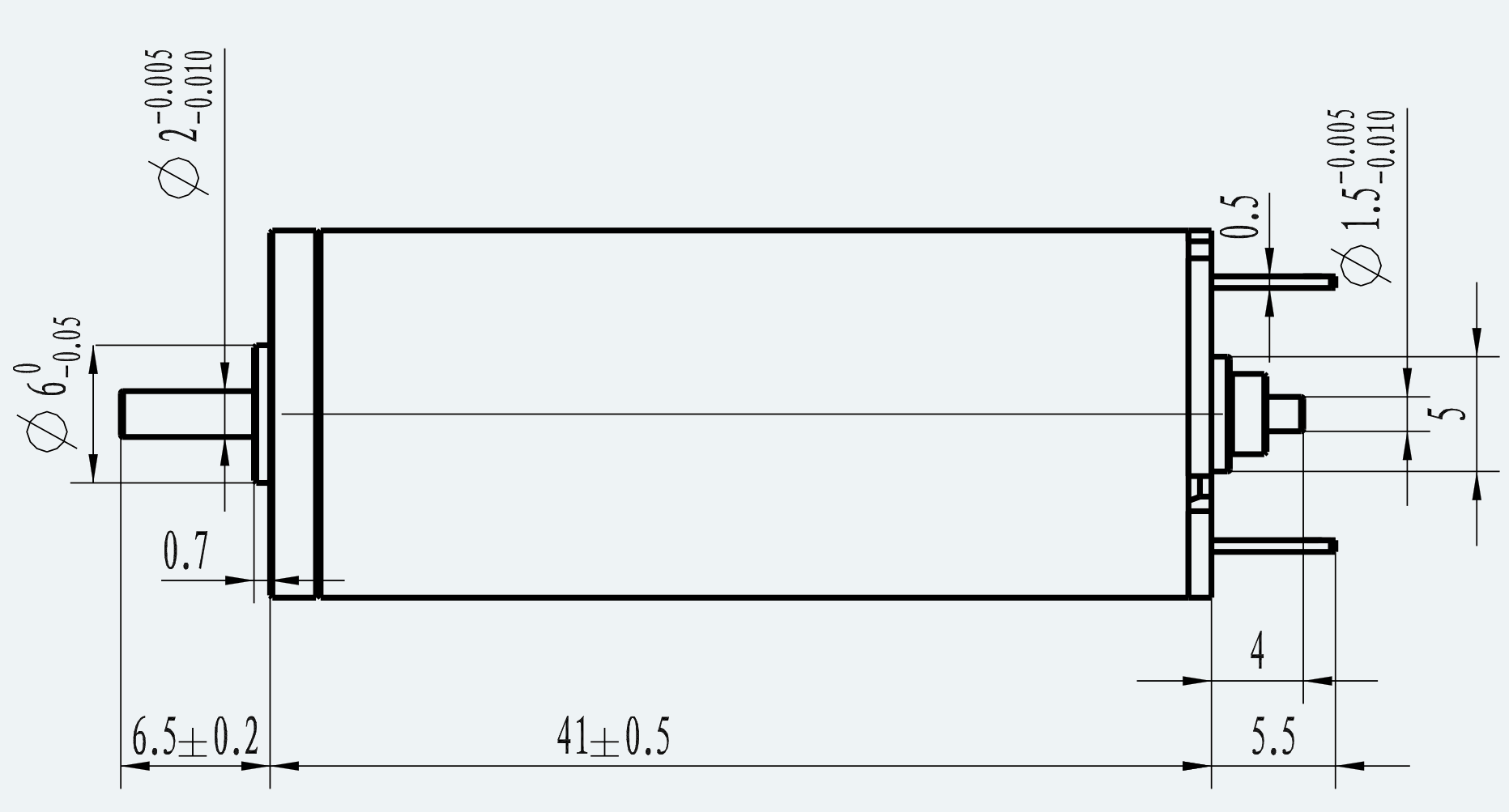

Mechanical View 1 for ES-CM-BR02-M001 — Mechanical View 1

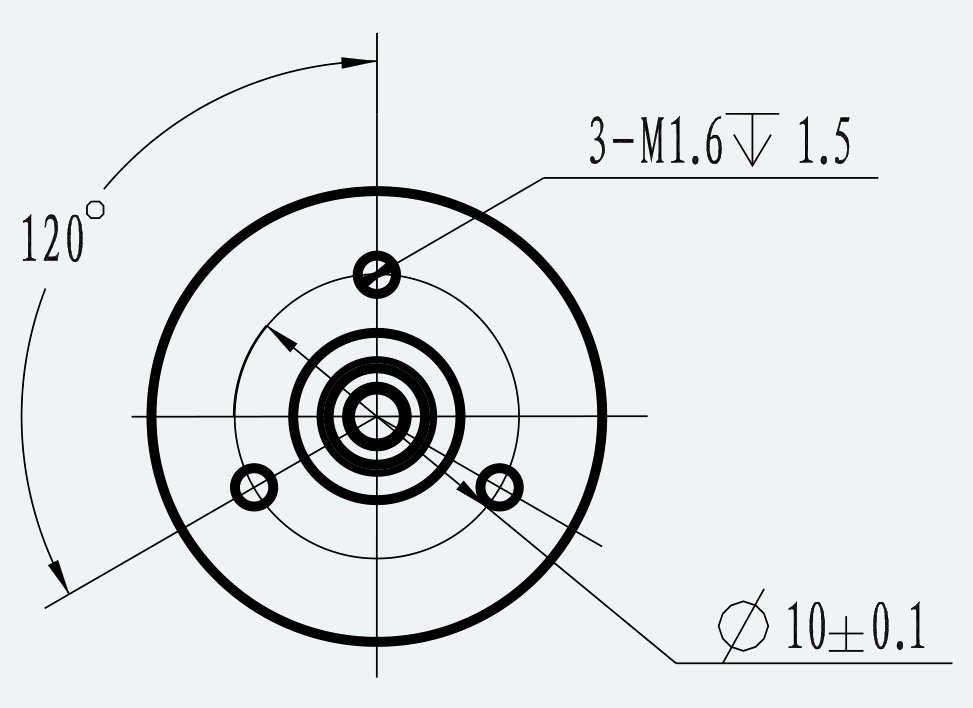

Mechanical View 2 for ES-CM-BR02-M001 — Mechanical View 2

Annotated Drawing Data

Hover, focus or select a row to locate the matching field on the drawing.

Field	Value
Left shaft diameter with tolerance	Φ2 -0.005/-0.010
Left shaft collar diameter with tolerance	Φ6 -0.05
Left shaft extension length	0.7
Left end total length	6.5±0.2
Motor body length	41±0.5
Right side step depth	0.5
Right shaft diameter with tolerance	Φ1.5 -0.005/-0.010
Right shaft segment length	5
Right side boss width	4
Right end total length	5.5

Field	Value
Mounting hole thread specification and depth	3 holes, M1.6 thread, 1.5mm depth
Mounting hole angular distribution	120°
Mounting hole pattern circle diameter	Ø10±0.1

Field	Value

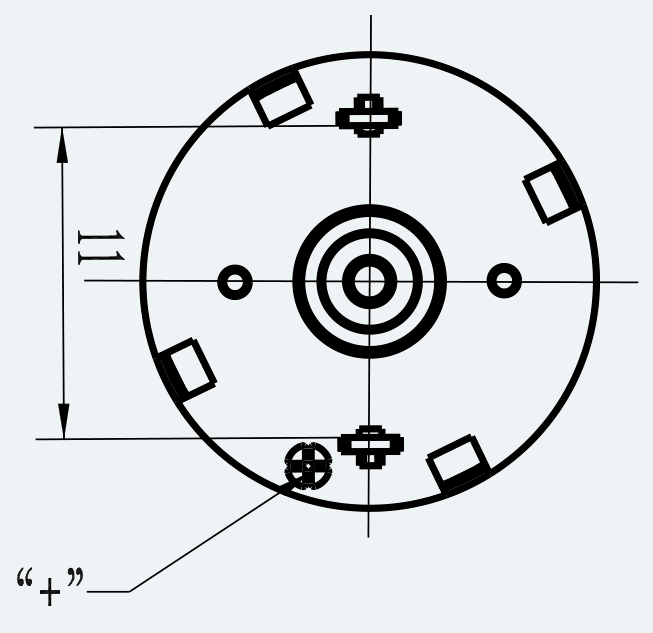

Hole position number	Position marker 1

2D Engineering Drawing Center

Power Connector Reference

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

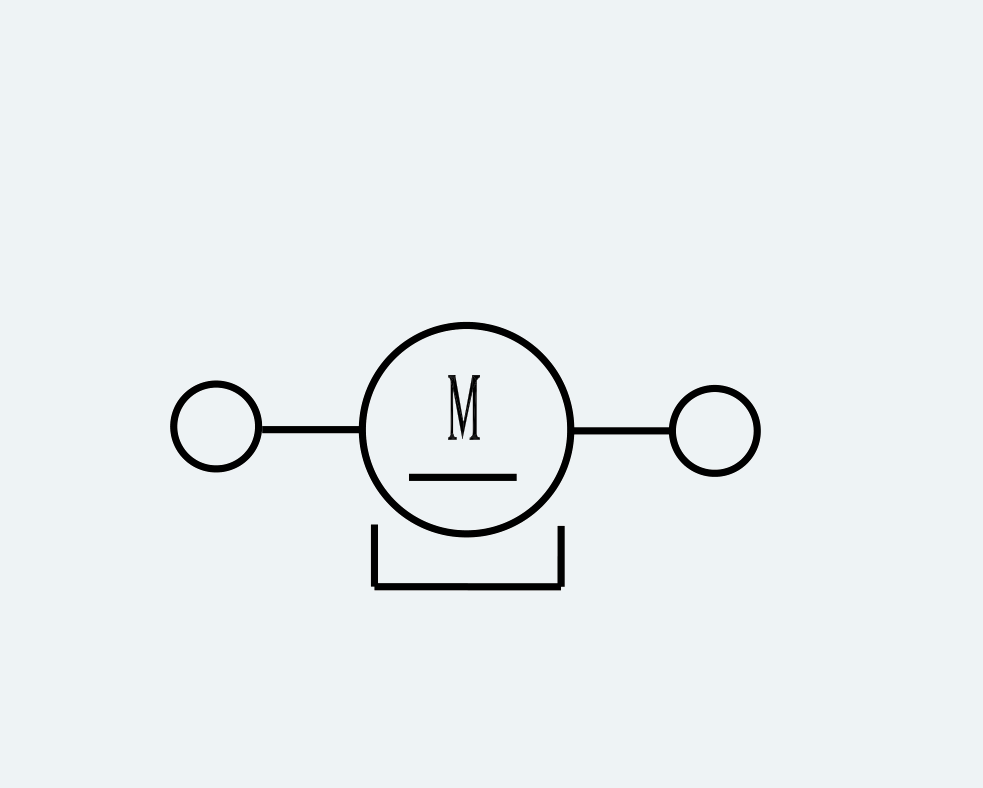

Power Connector Reference for ES-CM-BR02-M001 — Power Connector Reference

Annotated Drawing Data

Hover, focus or select a row to locate the matching field on the drawing.

Field	Value
Motor symbol	M (Motor electrical symbol)

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 29 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

Rated voltage: 24 VDC
No-load current: 0.012 A
Rated current: 0.37 A
Peak current: 1.1 A
Terminal resistance: 22.6 Ω
Terminal inductance: 1.46 mH
Torque constant: 35.5 mN·m/A
Back-EMF constant: 274 rpm/V
Rated power: 5 W
Insulation Resistance: 50/250V MΩ
Withstand Voltage: 600V AC/50HZ/5mA/1S

Performance Parameters

No-load speed: 6,600 rpm
Rated torque: 10.7 mN·m
Loaded speed: 4,600 rpm
Maximum efficiency: 78 %
Peak torque: 40 mN·m
Speed constant: 163 rpm/mN·m

Mechanical Parameters

Rotor inertia: 2.8 g·cm²
Mechanical time constant: 5.02 ms
Brush type: Graphite brush
Commutator segment count: 7
Mass: 45 g
Motor diameter: 16 mm
Motor length: 40 mm
Rotation Direction: CW

Thermal Parameters

Housing-to-ambient thermal resistance (no load): 21 K/W
Maximum winding temperature (no load): 155 °C

Environmental & Insulation

Insulation class: F/155 °C
Operating temperature: -20 to 65 °C
