Cylindrical Voice Coil Motor

4 mm Cylindrical Voice Coil Motor - 6 N · 55 N · 30 mm · 1 A

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Exact SKU ES-MT-C09-S044-V001
Stroke
30 mm
Continuous Force
6 N
Peak Force
55 N
Continuous Current
1 A
Peak Current
9.2 A
Force Constant
6 N/A
Physical product image
Product image for ES-MT-C09-S044-V001
Request engineering quote Review engineering files

2D drawing

Review the drawing with its engineering data

Primary drawing views stay beside the annotated data table so a focused row highlights the matching callout.

Reviewed annotated drawing
Drawing controls
Scale: 100%

Primary Drawing Viewer

Mechanical View 1 1 / 4

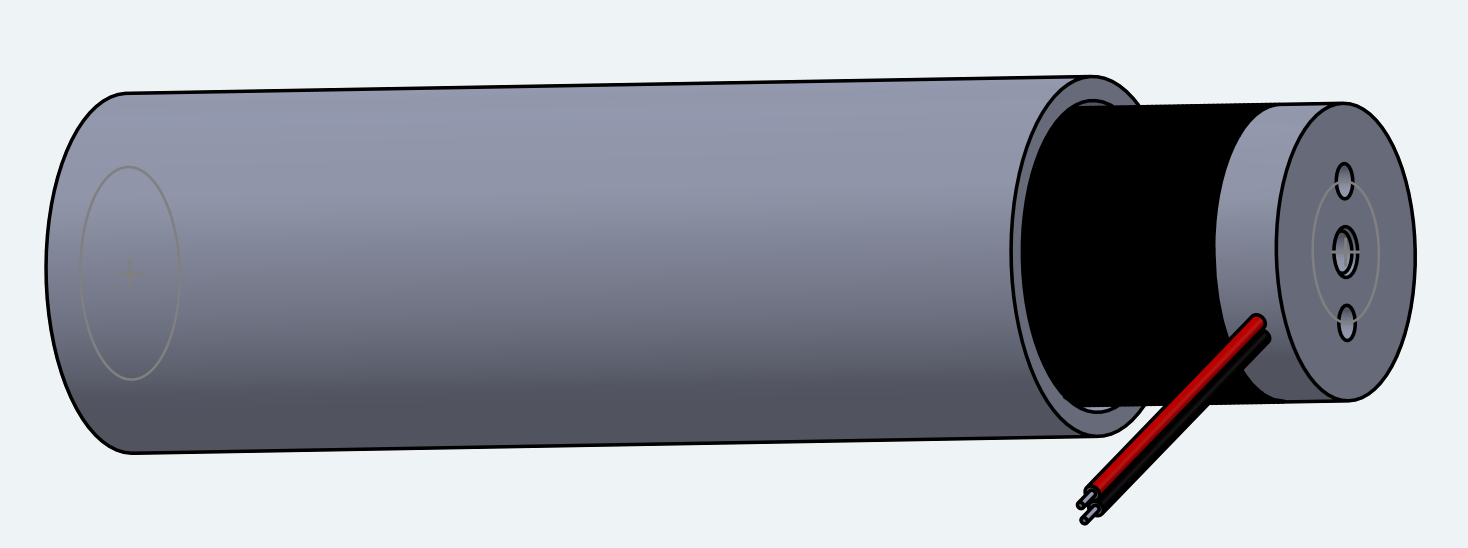

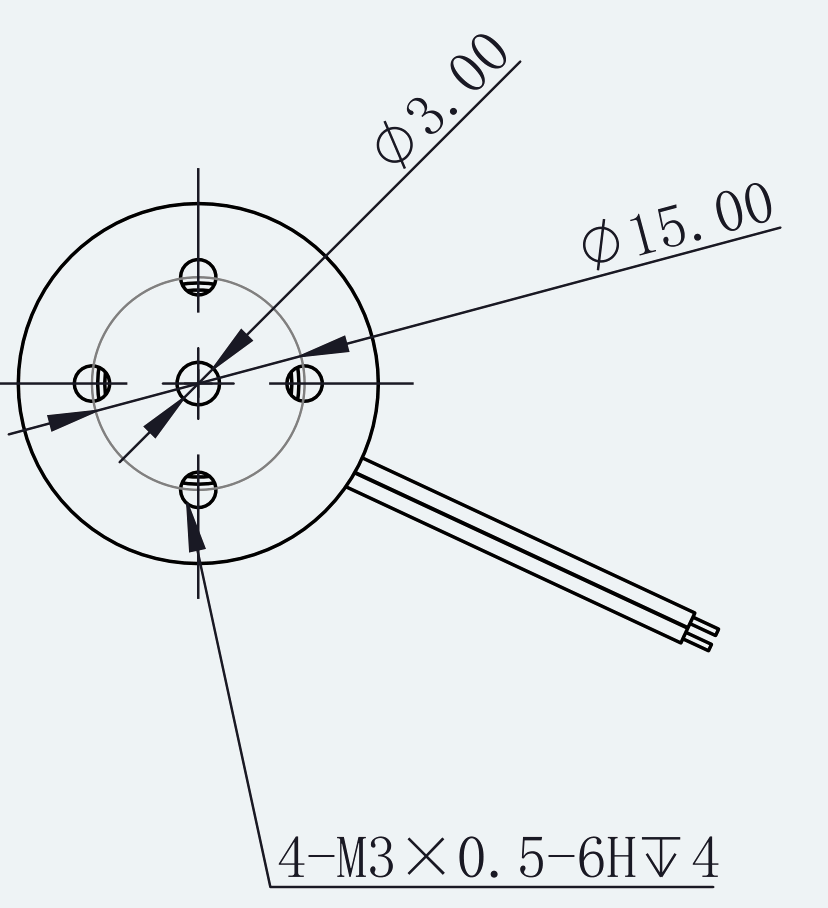

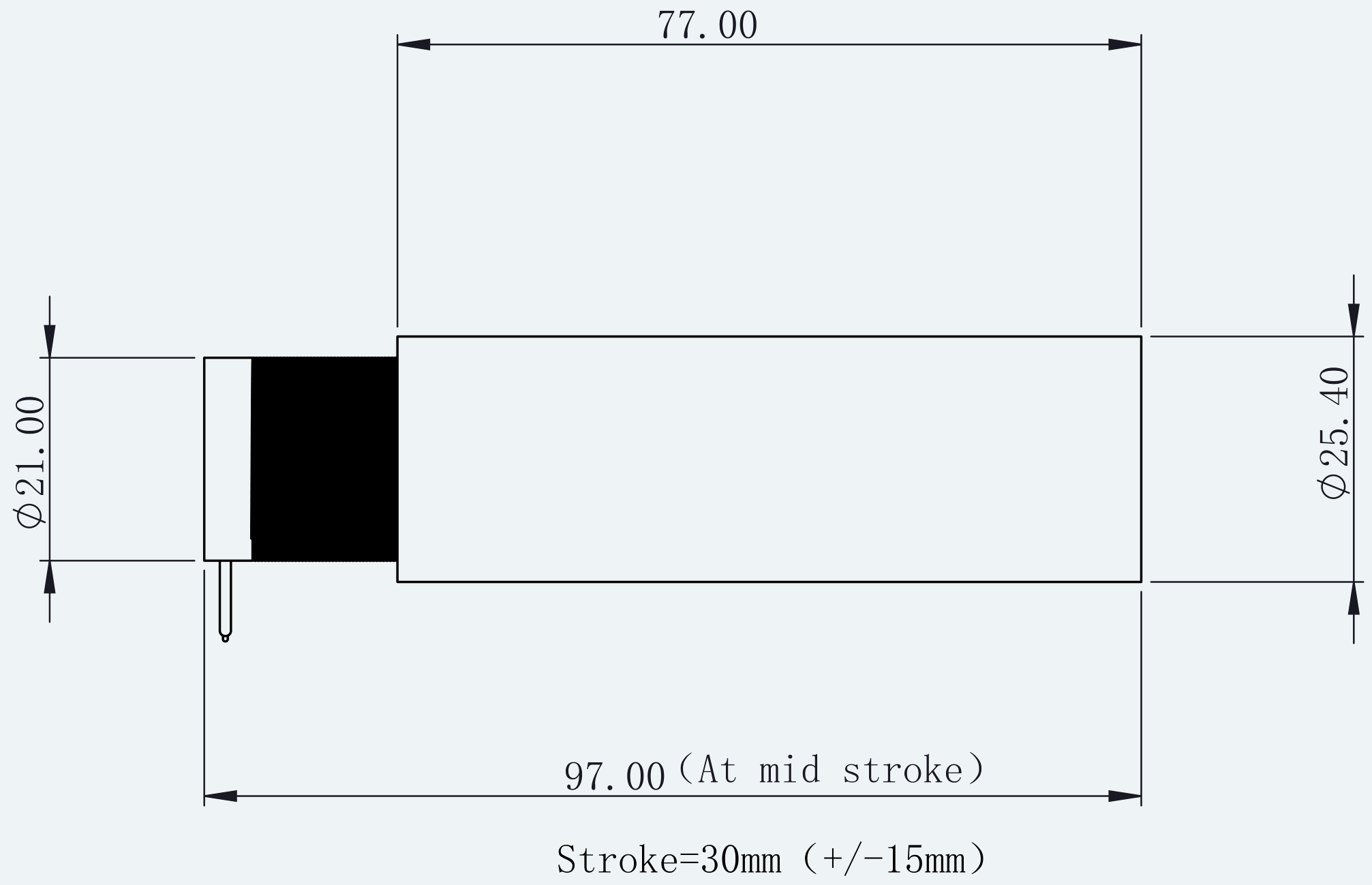

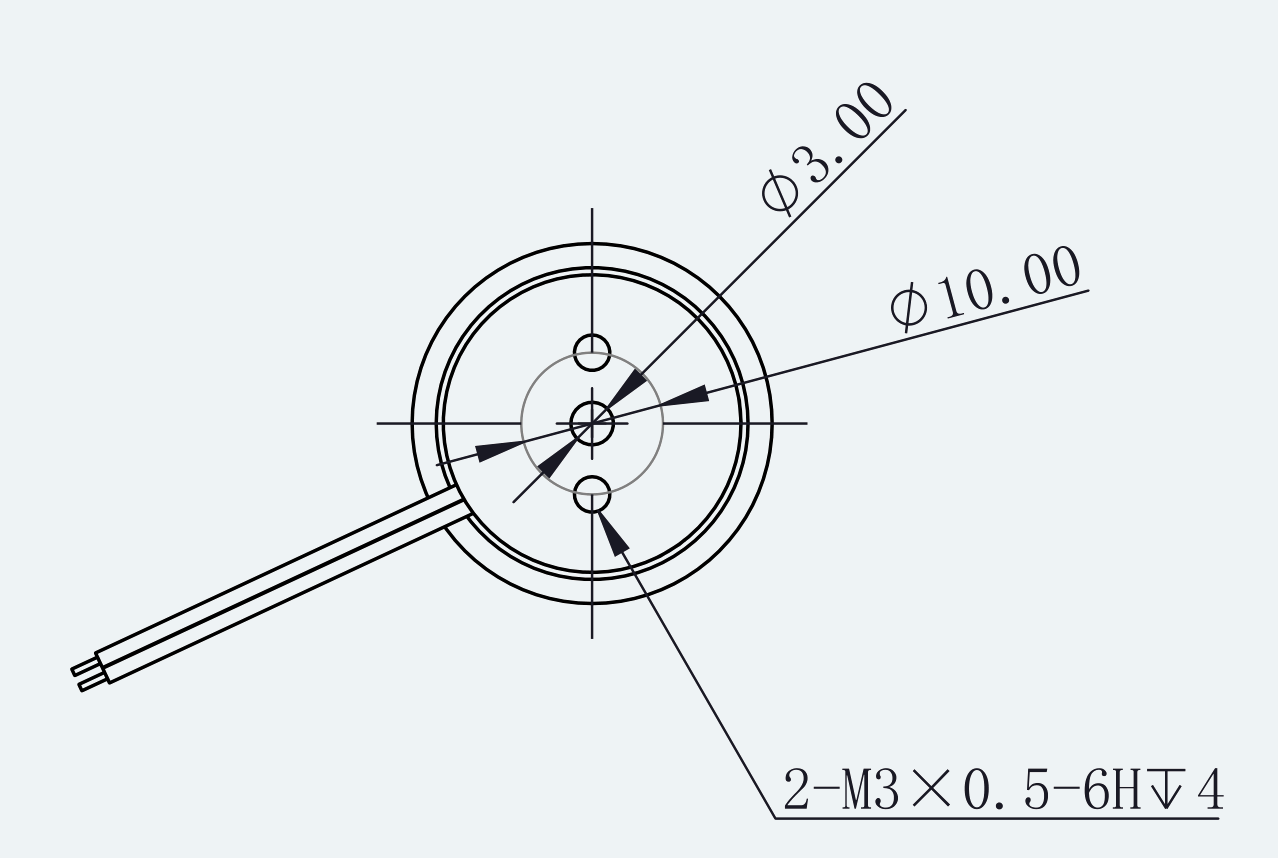

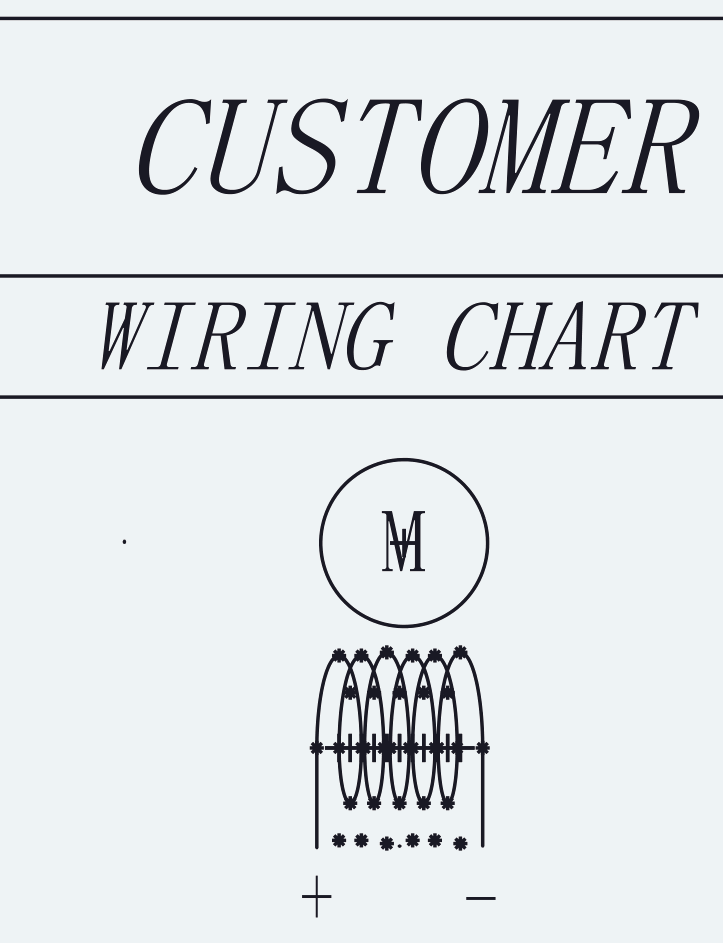

Mechanical View 1 for ES-MT-C09-S044-V001
Mechanical View 1

3D fit review

Inspect envelope and mounting relationships

The interactive toolbar stays with the model. Controlled CAD access remains a separate engineering-file request.

Interactive reviewed preview
More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Full specifications

Grouped engineering parameters

All 17 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

17 published fields

Electrical Parameters

7 fields
Back EMF Constant
6 V/m/s
Resistance
17.4 Ω
Inductance
5.04 mH
Continuous Current
1 A
Peak Current
9.2 A
Coil Resistance
17.4 Ω ±10%
Coil Inductance
5.04 mH ±20%

Performance Parameters

3 fields
Continuous Force
6 N
Peak Force
55 N
Force Constant
6 N/A

Mechanical Parameters

5 fields
Stroke
30 mm
Coil Assembly Mass
59 g
Magnet Mass
225 g
Coil Clearance
0.5 mm
Body Length
97 mm at mid stroke

Thermal Parameters

1 fields
Maximum Coil Temperature
100 °C

Environmental & Insulation

1 fields
Insulation Class
Class B

Product documentation

Product documentation

Review published PDFs for specifications, then request controlled 2D and 3D engineering files for integration.

Published PDFsDirect access · current public editions

SKU Datasheet

ES-MT-C09-S044-V001 Product Datasheet

SKU-specific · Specifications and performance data

Review performance specifications, operating limits and selection data for this SKU.

R03 3 pages · 428 KB

View datasheet (PDF)

SKU Integration Guide

ES-MT-C09-S044-V001 Dimensional & Integration Guide

SKU-specific · Dimensions and mounting interfaces

Review dimensions, mounting interfaces and integration notes for this SKU.

R01 6 pages · 664 KB

View integration guide (PDF)

Category Selection Guide

Cylindrical Series Category Selection Guide

Category-wide · Product platform comparison

Compare product platforms, key selection parameters and application requirements to narrow your options.

R01 4 pages · 136 KB

View selection guide (PDF)
2D Engineering Drawing

2D drawing

1 file available · Product-specific resource

Review the 2D preview above; request the controlled source drawing when needed.

Preview available · drawing access by request
3D CAD Model

STEP / STP CAD

1 file available · Product-specific resource

A product-specific CAD file is available through the controlled engineering file process.

File access by request · preview pending
