Cylindrical Voice Coil Motor

4 mm Cylindrical Voice Coil Motor - 11 N · 31 N · 9.5 mm · 1.25 A

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Exact SKU ES-MT-C09-S044-V002
Stroke
9.5 mm
Continuous Force
11 N
Peak Force
31 N
Continuous Current
1.25 A
Force Constant
9 N/A
Back EMF Constant
9 V/m/s
Physical product image
Product image for ES-MT-C09-S044-V002
Request engineering quote Review engineering files

2D drawing

Review the drawing with its engineering data

Primary drawing views stay beside the annotated data table so a focused row highlights the matching callout.

Reviewed annotated drawing
Drawing controls
Scale: 100%

Primary Drawing Viewer

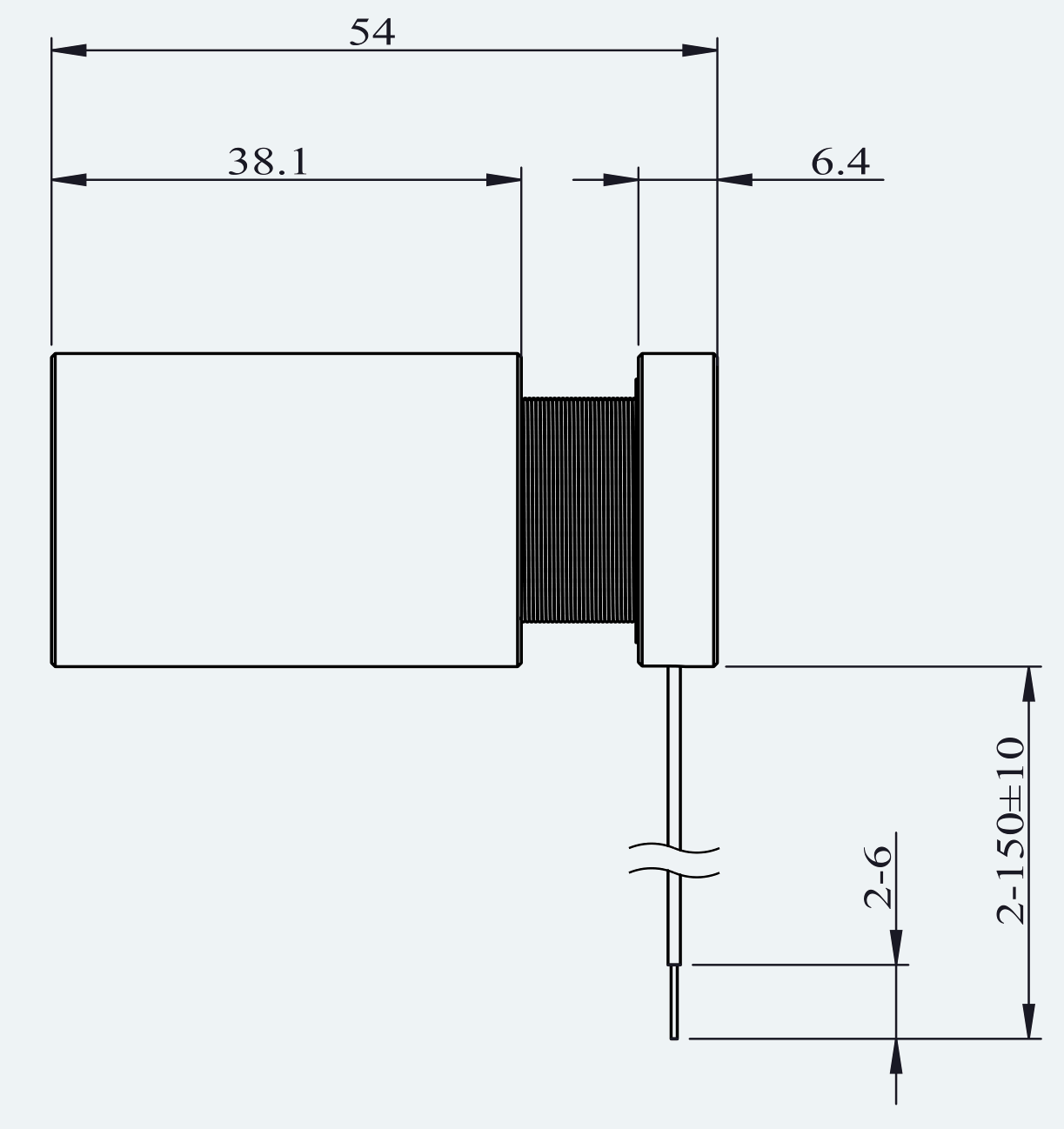

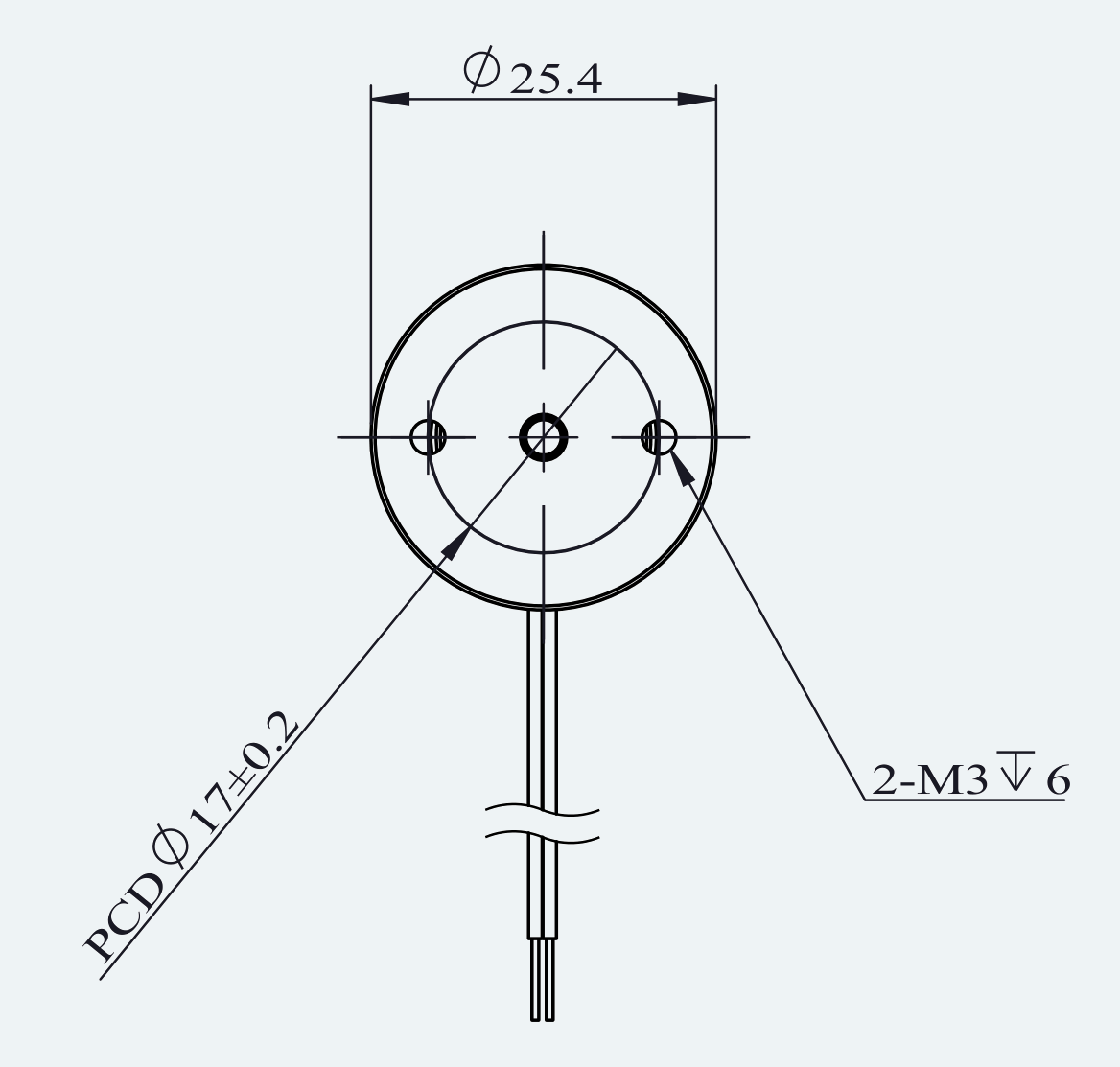

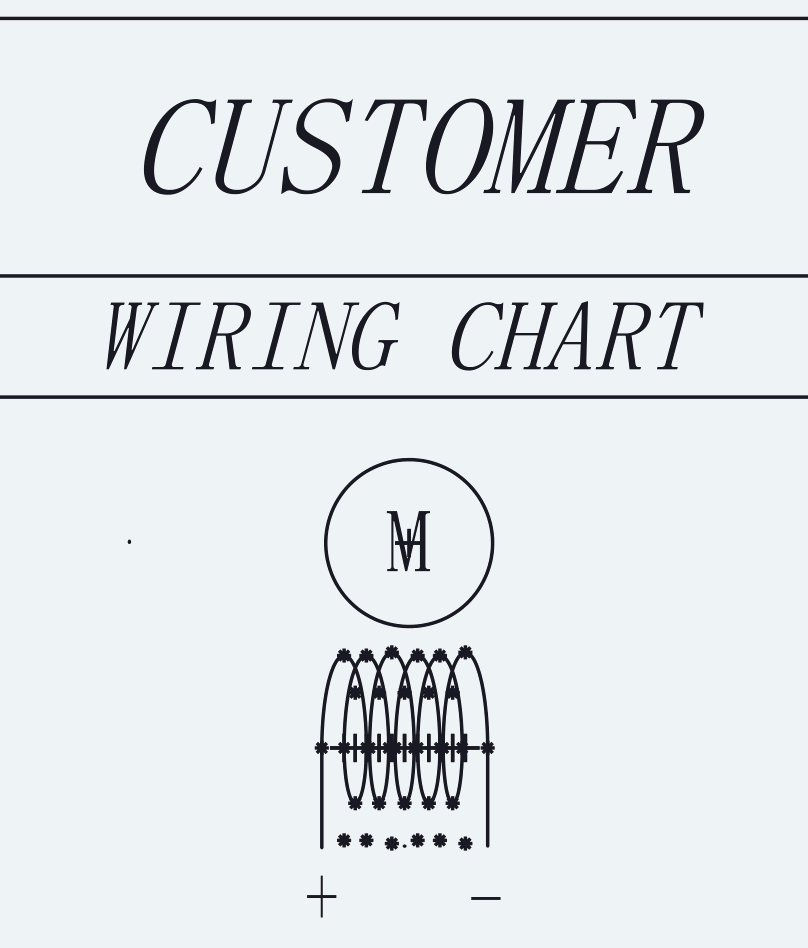

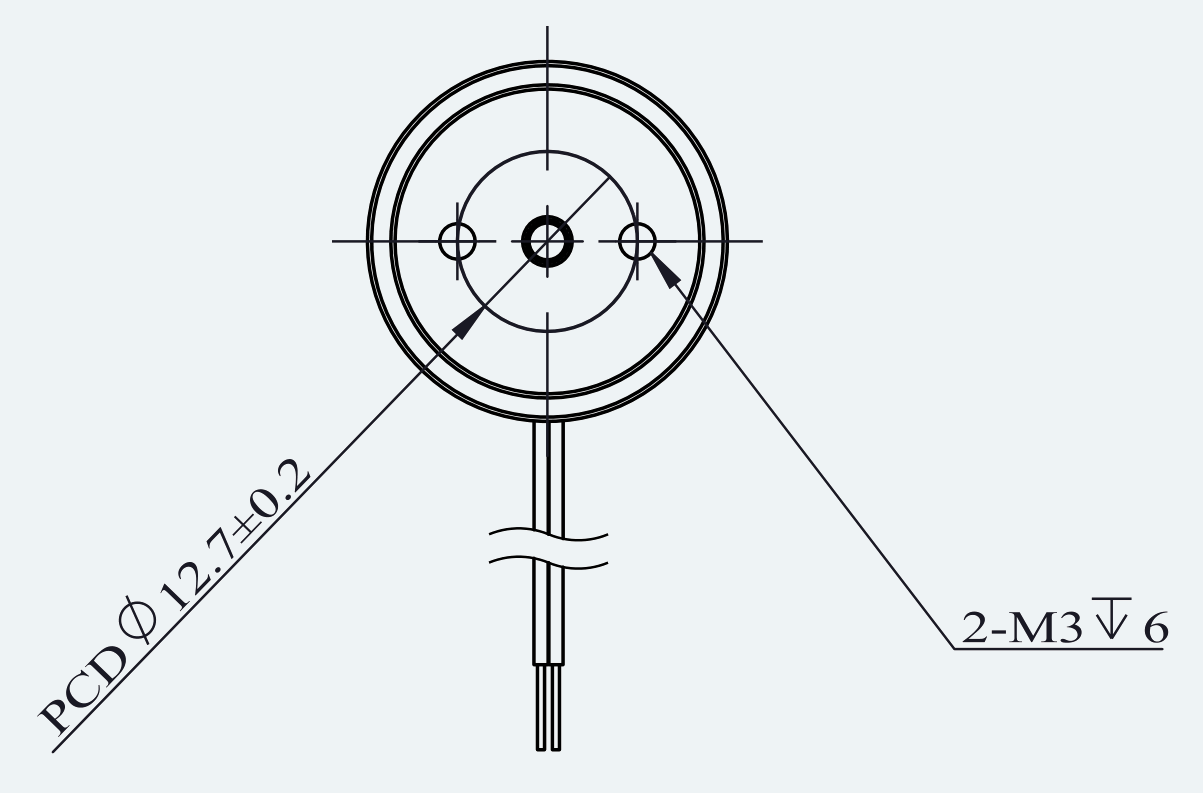

Mechanical View 1 1 / 5
Mechanical View 1 for ES-MT-C09-S044-V002
Mechanical View 1

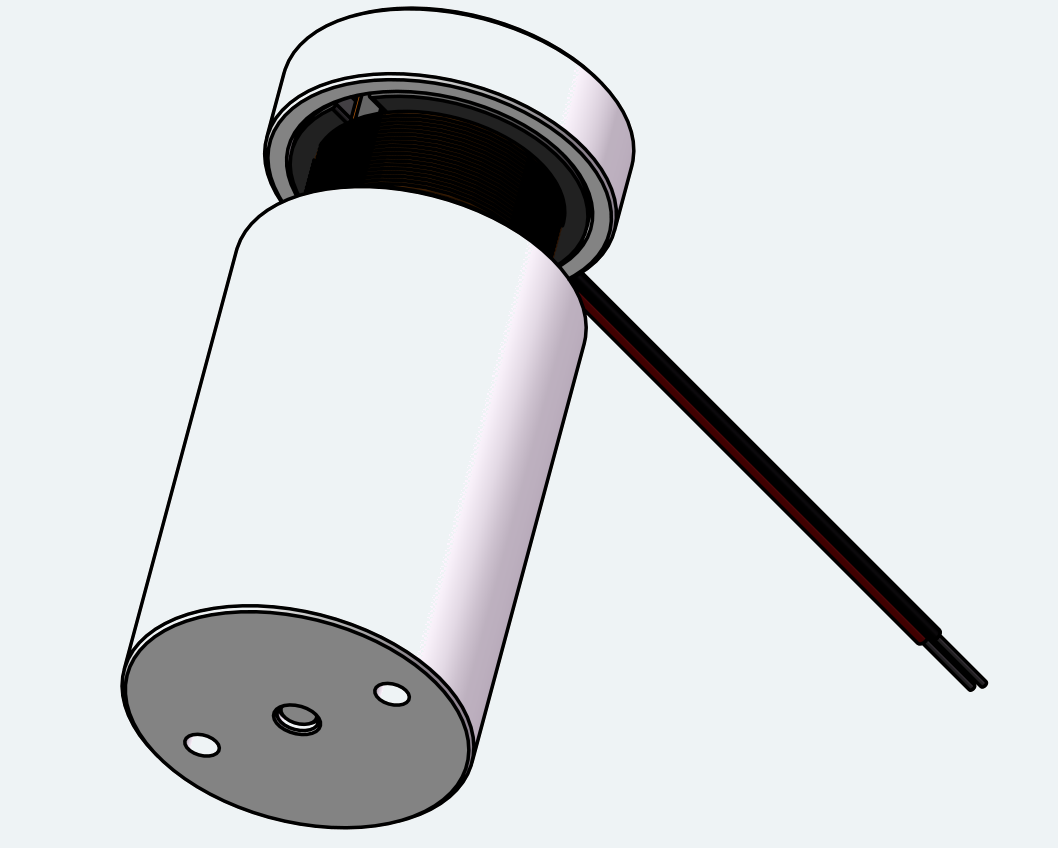

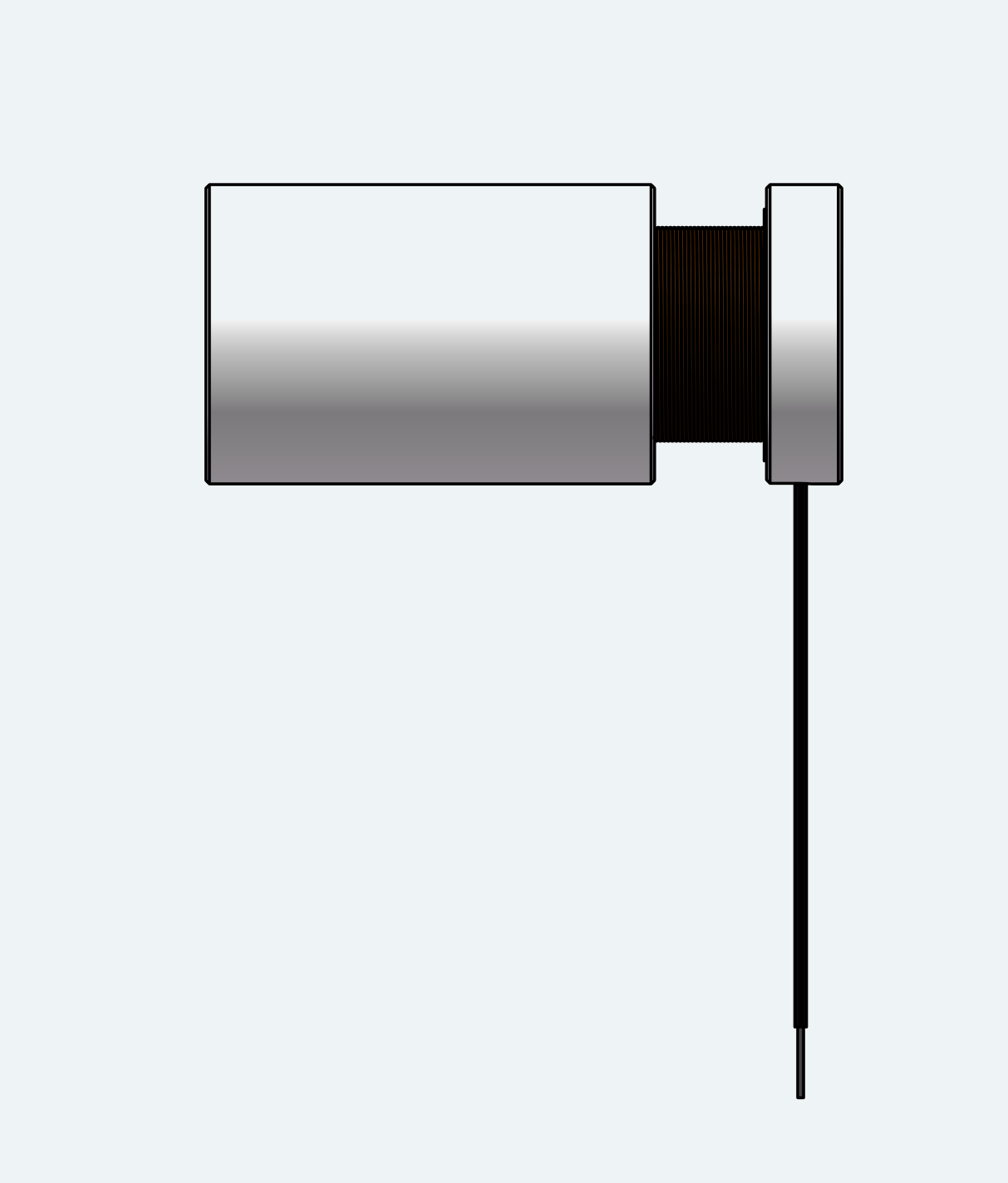

3D fit review

Inspect envelope and mounting relationships

The interactive toolbar stays with the model. Controlled CAD access remains a separate engineering-file request.

Interactive reviewed preview
More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Full specifications

Grouped engineering parameters

All 25 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

25 published fields

Electrical Parameters

5 fields
Impedance
7.87 Ω
Inductance
1.7 mH
Back EMF Constant
9 V/m/s
Resistance
7.75 Ω
Continuous Current
1.25 A

Performance Parameters

3 fields
Force Constant
9 N/A
Continuous Force
11 N
Peak Force
31 N

Mechanical Parameters

5 fields
Stroke
9.5 mm
Coil Assembly Mass
33 g
Body Mass
102 g
Coil Clearance
0.38 mm
Body Length
Overall length 54 mm

Thermal Parameters

2 fields
Maximum Magnet Temperature
100 °C
Maximum Continuous Power
10 W

Environmental & Insulation

10 fields
Insulation Resistance
100 MΩ
Insulation Class
Class B
Standards Compliance
RoHS Directive 2002/95/EC and amendment 2011/65/E
Operating Temperature
5–40 °C
Storage Temperature
-20–60 °C
Operating Relative Humidity
10–95 % RH
Storage Relative Humidity
10–95 % RH
Operating Atmospheric Pressure
62–106 kPa
Storage Atmospheric Pressure
50–106 kPa
Operating Relative Humidity
10–95 % RH

Product documentation

Product documentation

Review published PDFs for specifications, then request controlled 2D and 3D engineering files for integration.

Published PDFsDirect access · current public editions

SKU Datasheet

ES-MT-C09-S044-V002 Product Datasheet

SKU-specific · Specifications and performance data

Review performance specifications, operating limits and selection data for this SKU.

R03 4 pages · 477 KB

View datasheet (PDF)

SKU Integration Guide

ES-MT-C09-S044-V002 Dimensional & Integration Guide

SKU-specific · Dimensions and mounting interfaces

Review dimensions, mounting interfaces and integration notes for this SKU.

R01 8 pages · 750 KB

View integration guide (PDF)

Category Selection Guide

Cylindrical Series Category Selection Guide

Category-wide · Product platform comparison

Compare product platforms, key selection parameters and application requirements to narrow your options.

R01 4 pages · 136 KB

View selection guide (PDF)
2D Engineering Drawing

2D drawing

1 file available · Product-specific resource

Review the 2D preview above; request the controlled source drawing when needed.

Preview available · drawing access by request
3D CAD Model

STEP / STP CAD

1 file available · Product-specific resource

A product-specific CAD file is available through the controlled engineering file process.

File access by request · preview pending

Related products

Continue with published products from this context

Only real neighboring products from the same engineering context are shown.

1 published products
Same published series Coil Motor 4 mm — Engineering Configuration V001 ES-MT-C09-S044-V001 Coil Motor 4 mm — Engineering Configuration V001
  • Stroke 30 mm
  • Continuous Force 6 N
  • Peak Force 55 N
  • Continuous Current 1 A
