EtherCAT Remote I/O Module

EtherCAT Remote I/O Module — 24 VDC · 16 digital inputs; PNP/NPN · Natural convection cooling · Approx. 70 g

Exact SKU: ES-IO-01-M004

Confirm the power architecture, control mode, communications, I/O, enclosure and thermal conditions before final integration.

Supply voltage
24 VDC
Digital inputs
16 digital inputs; PNP/NPN
Cooling method
Natural convection cooling
Mass
Approx. 70 g
Protection rating
IP20
Module type
Digital input module
Status indicators
PR: flashes after power-up and stays on when communication is connected; ERR: operating fault; green channel LED: input active
Mounting method
DIN 35 mm rail mounting
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-IO-01-M004 envelope view

Scale: 100%

2D Engineering Drawing Center

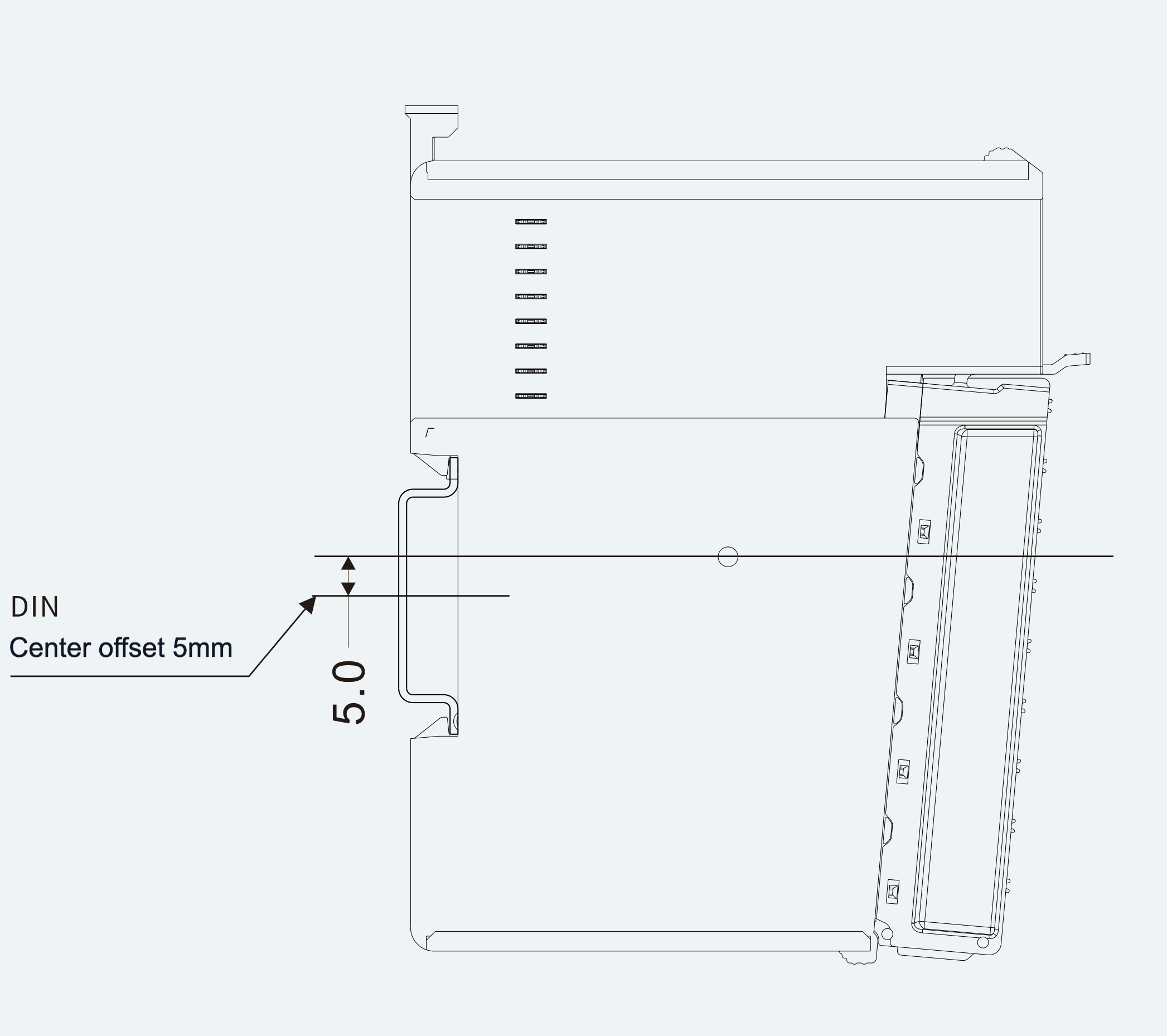

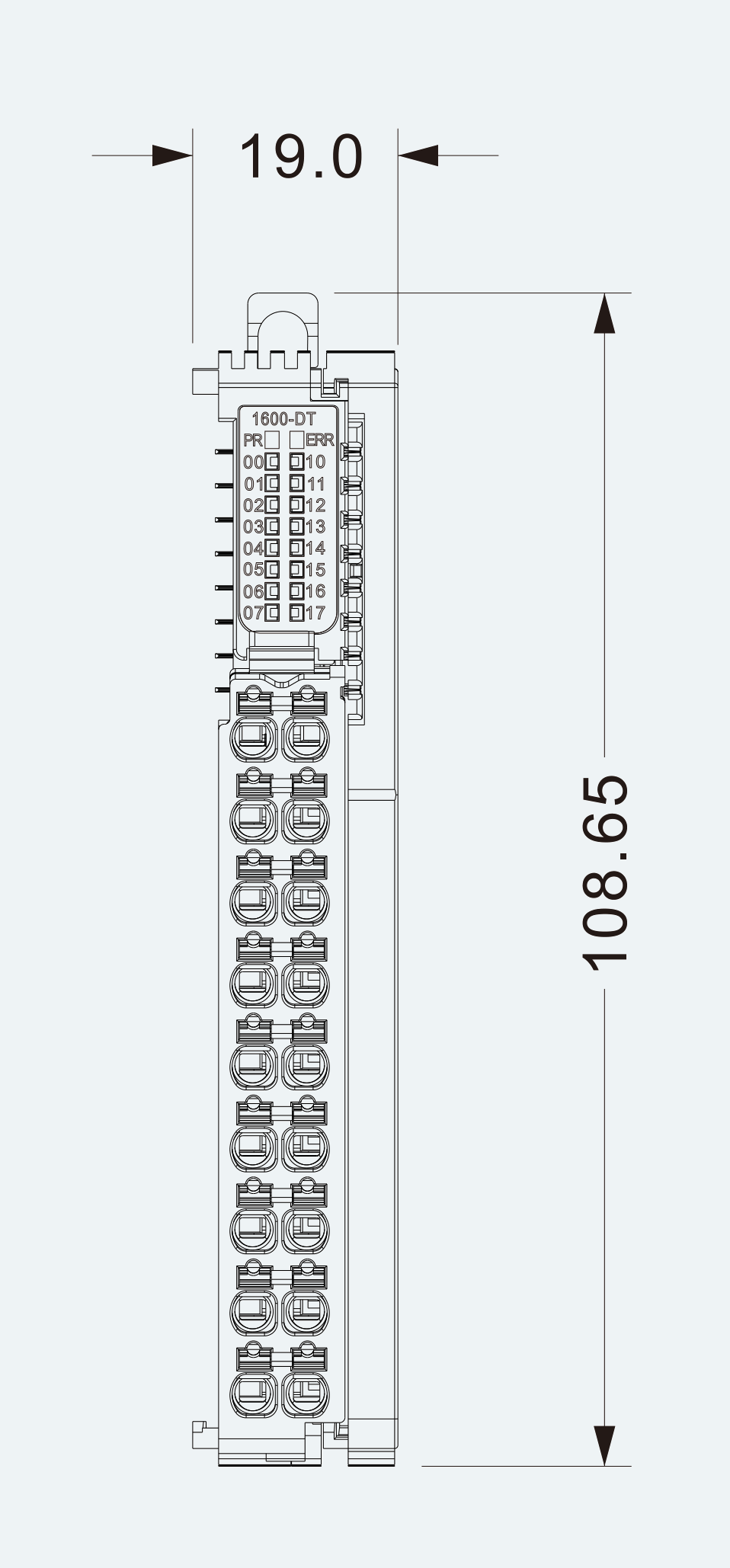

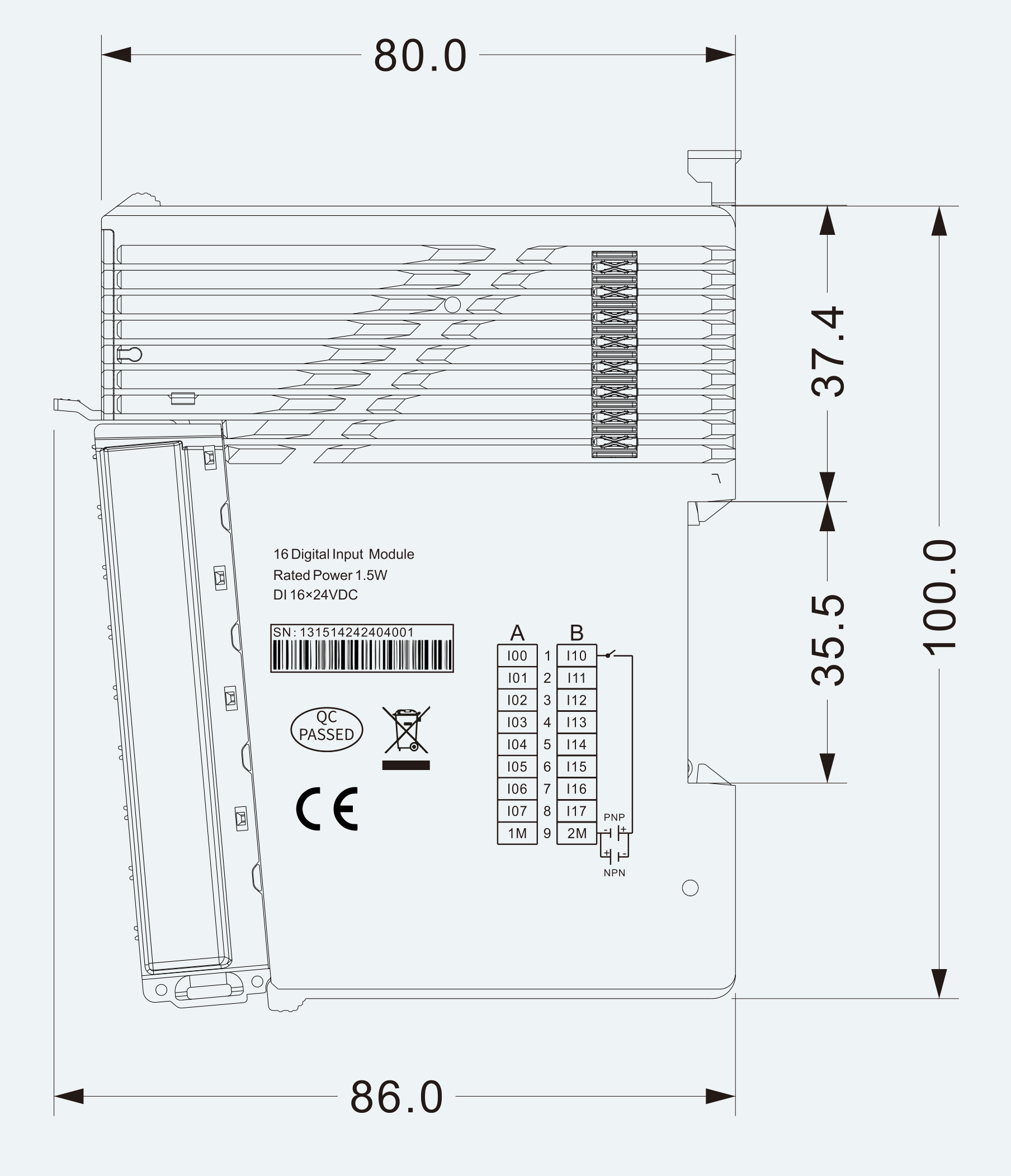

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

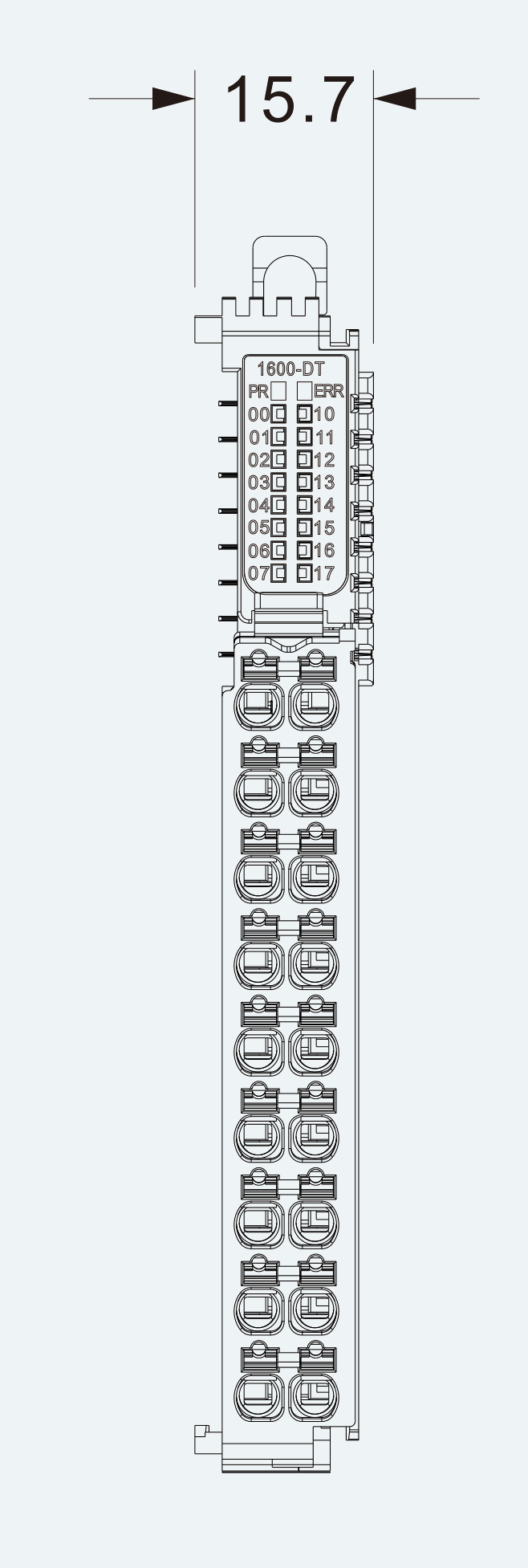

Mechanical View 1 for ES-IO-01-M004
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 26 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

Status indicators
PR: flashes after power-up and stays on when communication is connected; ERR: operating fault; green channel LED: input active
Supply voltage
24 VDC
Input current
3.5 mA at 24 VDC
Software filter time
Configurable
Input impedance
6.8 kΩ
Hot-swap support
Not supported
Expansion-bus current consumption
135 mA at 5 VDC, room temperature
Isolation
Yes
Programming software
IEC 61131-3 CODESYS programming software
Digital inputs
16 digital inputs; PNP/NPN
Switch-on delay
< 50 µs
Switch-off delay
< 50 µs
Logic-low input threshold
5 V, 0.8 mA
Logic-high input threshold
15 V, 2 mA

Mechanical Parameters

Module type
Digital input module
Mounting method
DIN 35 mm rail mounting
Dimensions
12 × 100 × 80mm
Mass
Approx. 70 g

Environmental & Insulation

Storage climate conditions
Ambient temperature: −40 to +70 °C; relative humidity: 10–95%, non-condensing; altitude: 0–3,000 m
Packaged drop test
Packaged free-fall: 5 drops from 1 m onto a concrete floor
Operating climate conditions
Ambient temperature: −20 to +55 °C in an open, naturally ventilated installation; relative humidity: 10–95%, non-condensing; altitude: ≤2,000 m; pollution degree 2
Mechanical vibration and shock
Sinusoidal vibration: 5 < f < 8.4 Hz, random 3.5 mm displacement and continuous 1.75 mm displacement; 8.4 < f < 150 Hz, random 1.0 g and continuous 0.5 g acceleration; shock: half-sine, 15 g, 11 ms, 6 times per axis
Electromagnetic compatibility
EMC immunity: Zone B, IEC 63313-2; ESD: 8 kV air and 4 kV contact discharge, performance criterion A; surge: DC supply 0.5 kV CM and 0.5 kV DM, I/O and communication ports 1 kV CM, criterion A; EFT/burst: supply coupling 2 kV at 5 kHz and I/O/communication coupling 1 kV at 5 kHz, criterion A
Cooling method
Natural convection cooling
Protection rating
IP20
CE compliance
CE conformity recorded; tested to EN IEC 61000-6-2:2019 and EN IEC 61000-6-4:2019
