EtherCAT Remote I/O Module

EtherCAT Remote I/O Module — Natural convection cooling · Approx. 120 g · IP20

Exact SKU: ES-IO-01-M005

Confirm the power architecture, control mode, communications, I/O, enclosure and thermal conditions before final integration.

Cooling method
Natural convection cooling
Mass
Approx. 120 g
Protection rating
IP20
Rated power
6 W standalone / 20 W at full load
Module type
Bus coupler
Fieldbus protocol
EtherCAT
Fieldbus interfaces
2 × RJ45
Fieldbus speed
100 Mbps
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-IO-01-M005 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

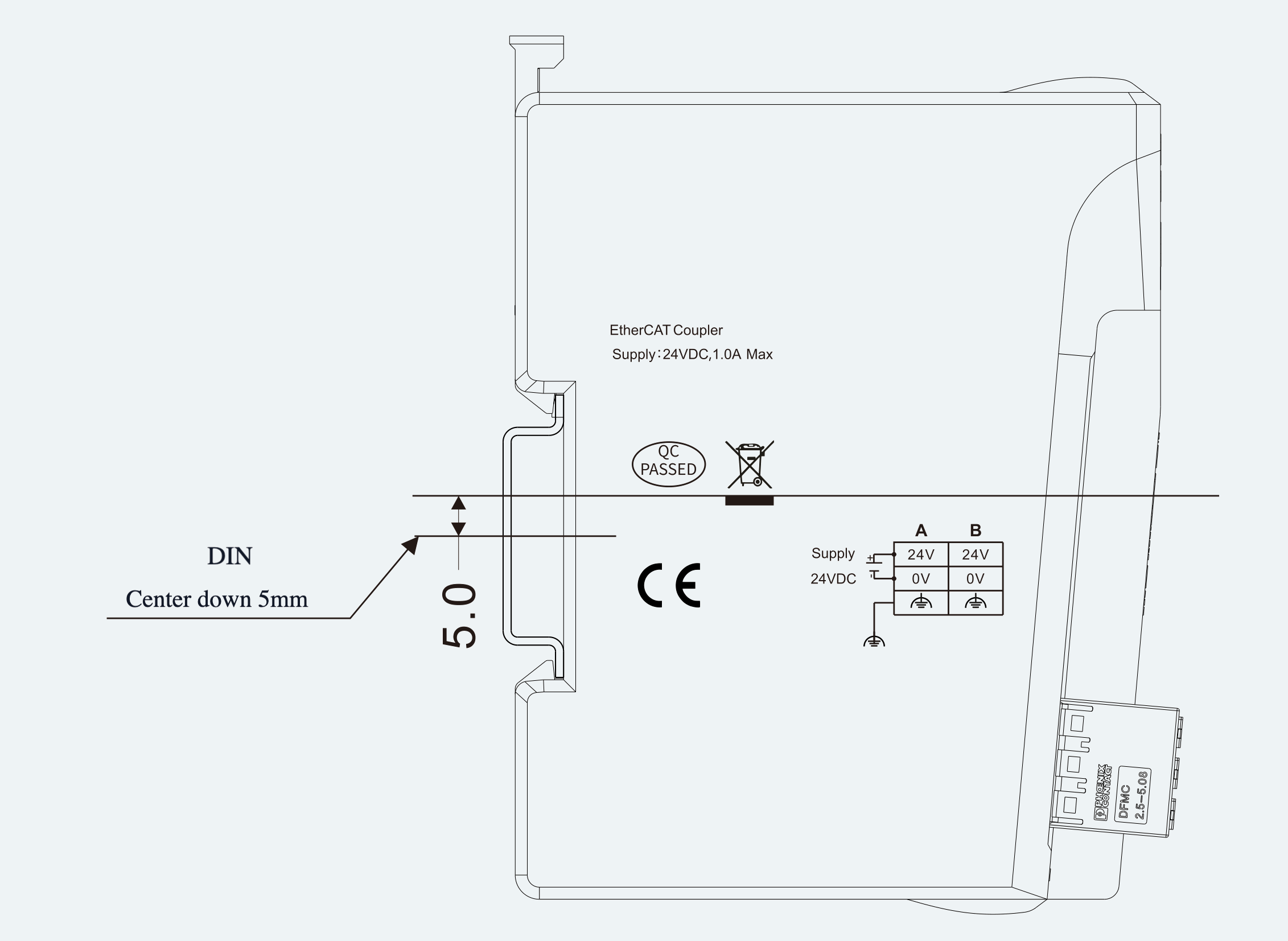

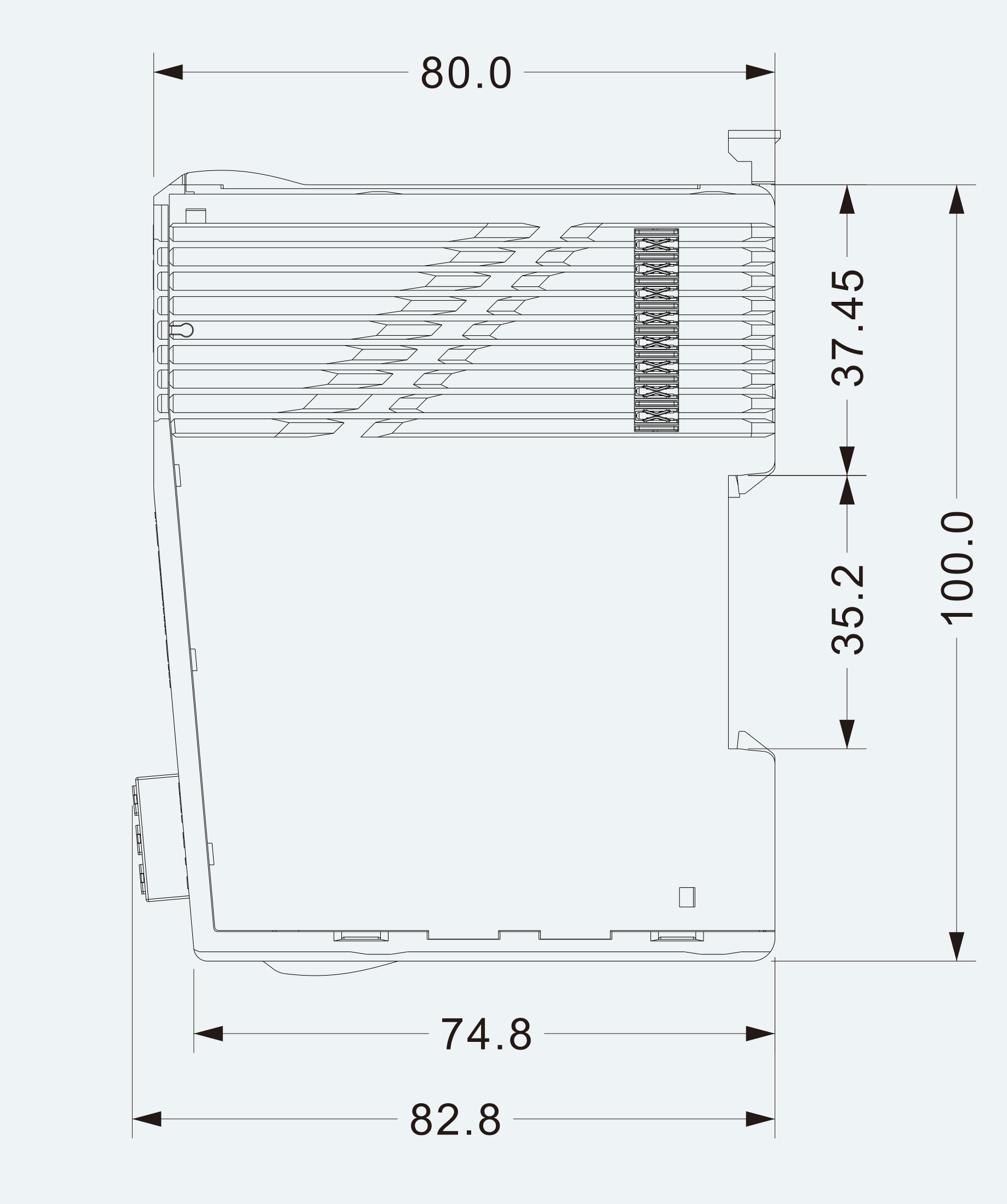

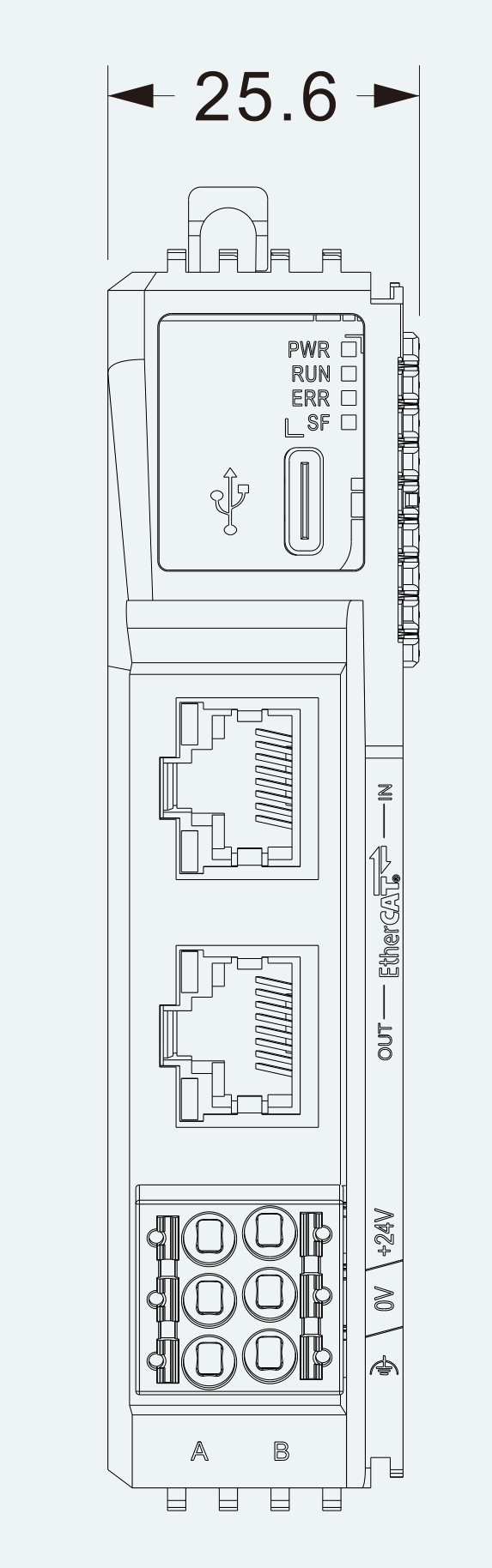

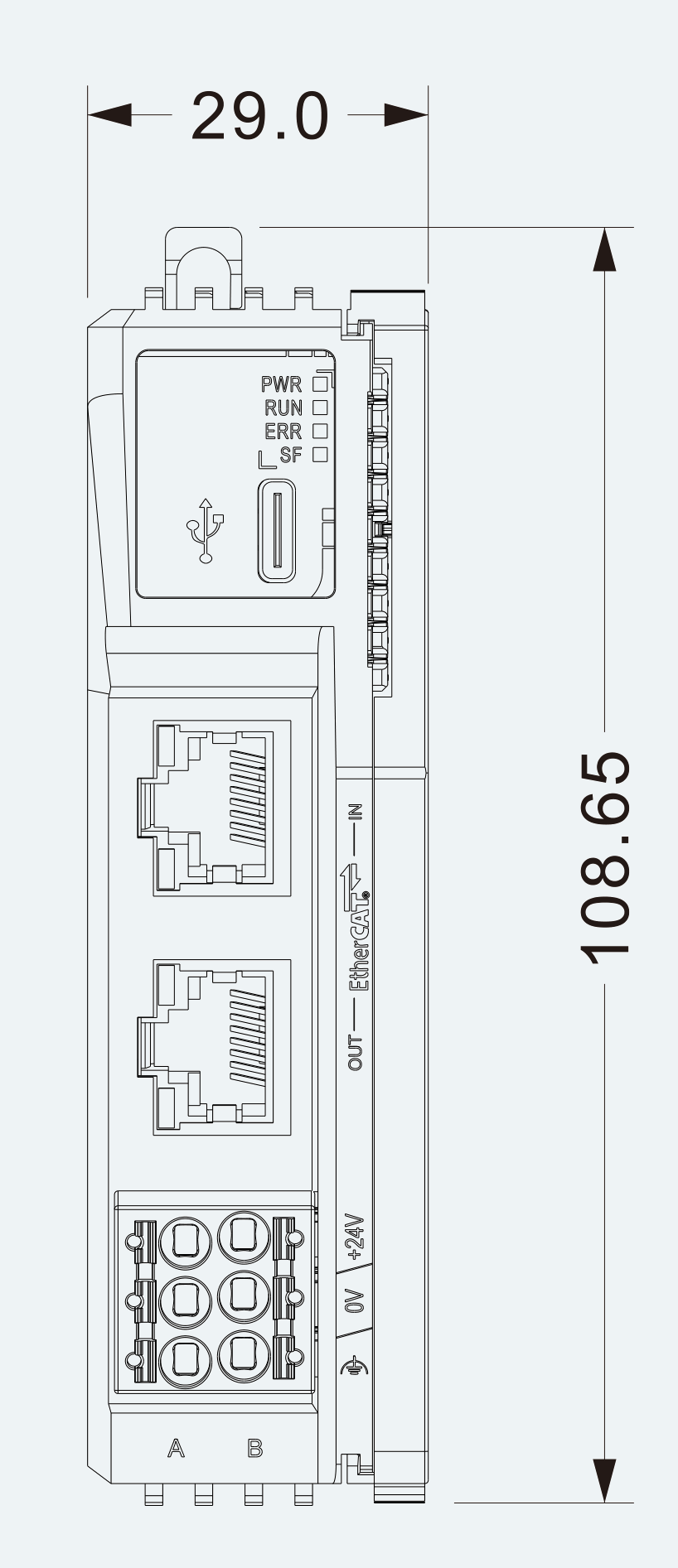

Mechanical View 1 for ES-IO-01-M005
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 27 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

Fieldbus protocol
EtherCAT
Fieldbus interfaces
2 × RJ45
Fieldbus speed
100 Mbps
Maximum station distance
100 m
Expansion bus speed
100 Mbps
Synchronization mode
DC-Sync: minimum 1 ms; SM-Sync supported
Expansion capacity
Up to 16 RP20 expansion modules
Status indicators
PWR: power status; RUN: expansion-bus status; ERR: EtherCAT bus error; SF: expansion-bus error
Rated input supply voltage
24 VDC ±20% (19.2–28.8 VDC)
Rated power
6 W standalone / 20 W at full load
Rated bus output voltage
5 VDC (4.75–5.25 VDC)
Rated bus output current
2.0 A typical at 5 V
Power output derating
Derate to 80% at 55 °C (output current ≤1.6 A)
Protection functions
Overcurrent, reverse-polarity and surge protection
Programming software
IEC 61131-3 CODESYS programming software

Mechanical Parameters

Module type
Bus coupler
Mounting method
DIN 35 mm rail mounting
Dimensions
24.3 × 100 × 80mm
Mass
Approx. 120 g

Environmental & Insulation

Storage climate conditions
Ambient temperature: −40 to +70 °C; relative humidity: 10–95%, non-condensing; altitude: 0–3,000 m
Packaged drop test
Packaged free-fall: 5 drops from 1 m onto a concrete floor
Operating climate conditions
Ambient temperature: −20 to +55 °C in an open, naturally ventilated installation; relative humidity: 10–95%, non-condensing; altitude: ≤2,000 m; pollution degree 2
Mechanical vibration and shock
Sinusoidal vibration: 5 < f < 8.4 Hz, random 3.5 mm displacement and continuous 1.75 mm displacement; 8.4 < f < 150 Hz, random 1.0 g and continuous 0.5 g acceleration; shock: half-sine, 15 g, 11 ms, 6 times per axis
Electromagnetic compatibility
EMC immunity: Zone B, IEC 63313-2; ESD: 8 kV air and 4 kV contact discharge, performance criterion A; surge: DC supply 0.5 kV CM and 0.5 kV DM, I/O and communication ports 1 kV CM, criterion A; EFT/burst: supply coupling 2 kV at 5 kHz and I/O/communication coupling 1 kV at 5 kHz, criterion A
Cooling method
Natural convection cooling
Protection rating
IP20
CE compliance
CE conformity recorded; tested to EN IEC 61000-6-2:2019 and EN IEC 61000-6-4:2019
