ES-FM-H01-OD115-T3P5NM-001
No artificial selection step is created. Preserve the record and engineering requirements for compatibility review.
Series engineering workspace
Engineering review required
ES-FM-H01-OD115 Hollow-Shaft 115 mm Frameless Torque Motor Series
Hollow-shaft frameless torque motor records grouped by verified outside diameter and reviewed performance data.
Use reviewed performance values to narrow the candidate record. Bore, air gap, winding and thermal integration remain engineering-review context.
1 model records
115 mm OD
25 mm stack
3.5N·m
Controlled STEP/STP access
Save the requirement context or a referenced record for manual engineering review; no model is automatically recommended.
Common Specs
Shared platform specifications
Platform invariants
- Outer diameter
- 115 mm
- Documentation
- SKU-specific PDF + CAD
- Model records
- 1
Hollow-Shaft Frameless Motor Selection
Select a reviewed hollow-shaft frameless motor record
Use reviewed performance values to narrow the candidate record. Bore, air gap, winding and thermal integration remain engineering-review context.
Engineering review configurator
Configure the known engineering requirements
The available model evidence remains visible in Technical Verification. Because selector coverage or uniqueness is insufficient, the guided requirements below prepare an engineering review without generating an unsupported automatic recommendation.
Optional Requirements for Engineering Review
Add what you know
Optional · About 1 minute
These details do not change the selected catalog record. Add what you know to help engineering review electrical, environmental, application and documentation requirements. You can skip any field or complete it later in the RFQ.
These details travel with the RFQ or controlled-file request. They are requirements for review, not confirmed product options.
Step 1 of 12
Unknown values may be left open.
Requirements saved for engineering review
Technical Verification
Technical SKU matrix
The table shows approved model-level engineering evidence independently of automatic selection. Missing values remain explicit and prevent unsupported compatibility claims.
1 candidate records
| Model | Rated Torque | Rated Speed | Rated Power | Rated Current | Maximum Torque | Torque Constant | Weight | Action |
|---|---|---|---|---|---|---|---|---|
| ES-FM-H01-OD115-T3P5NM-001 | 3.5 | 3200 | 1173 | 30 | 11.5 | 0.127 N·m/A | 1.38 |
Product Visualization
Product imagery and CAD-style placeholders are organized for engineering review without exposing private source files.
Product image
Product image
2D Dimension Data
Representative structured preview

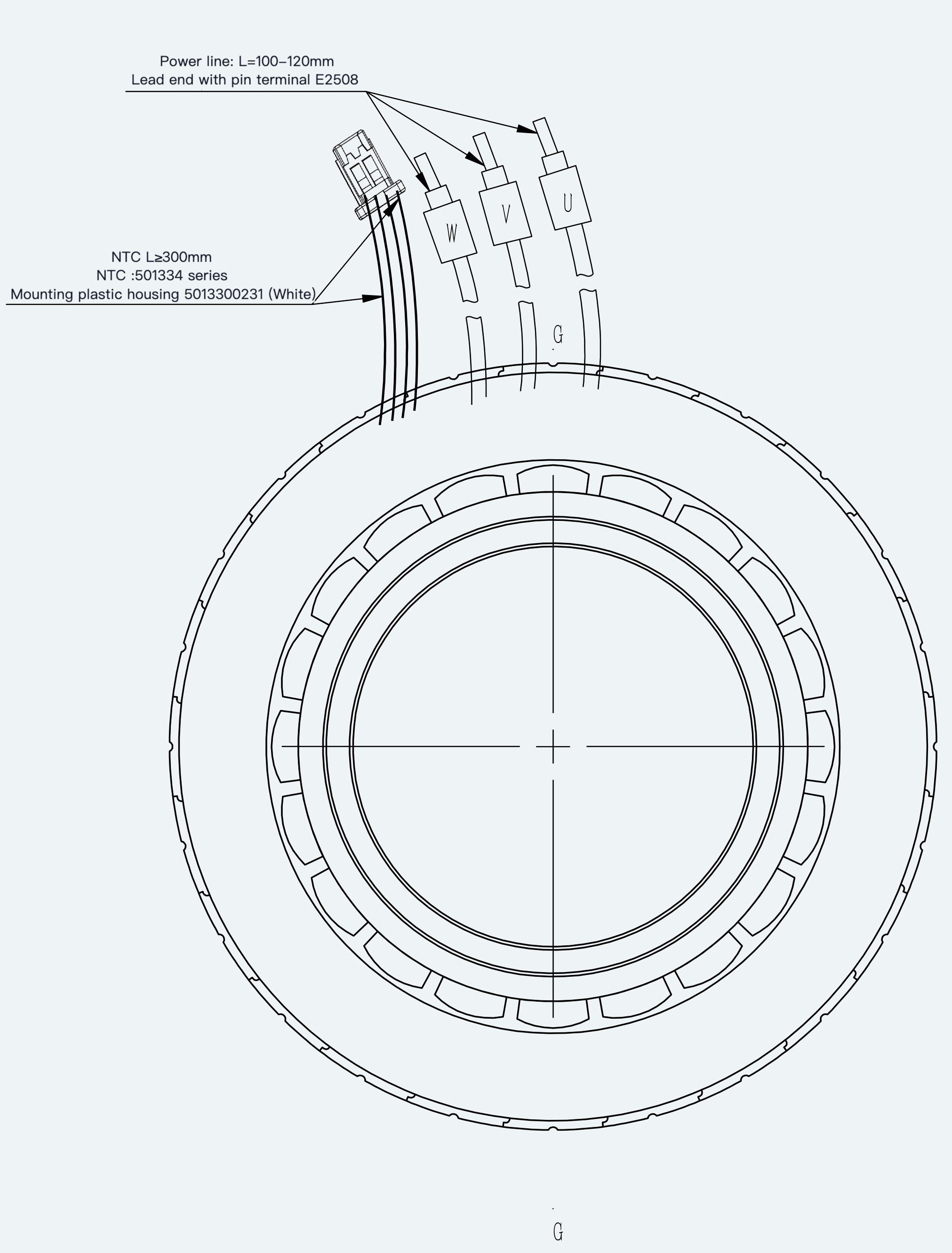

2D dimension drawing recorded · controlled access. This series view shows a representative extracted drawing. Open an exact SKU page for full 2D structure, dimension tables and notes.
Structure previews
3 recorded
Dimension tables
0 recorded
Notes / text blocks
0 recorded
Engineering Files
Controlled documentation review
Model-level document relationships remain under evidence review. Preserve the required document types with the RFQ; engineering must confirm each record-to-file relationship before controlled access.
Documentation scope pending record mapping
Engineering confirms the model and file relationship before any controlled record is released.
Controlled 3D CAD requests
Mechanical envelopes can differ by rotor/stator geometry, mounting interface and winding option.
Submit the structured requirements before controlled CAD / STEP review. All files remain pending engineering review until the record-to-file relationship is confirmed.
