20 mm Hybrid Stepper Motor Series — ES-ST-HY02
Hybrid stepper motor records organized by frame family and reviewed torque and winding evidence.
Start with the reviewed holding-torque and driver-current values. Dynamic performance, resonance, mounting and accessory requirements remain engineering-review context.
4 model records
20 mm frame
2D pending review / STEP approved controlled
0 differential fields
Save a recorded candidate and its engineering context to the RFQ basket. CAD / STEP files remain subject to controlled review.
Common Specs
Shared platform specifications
Platform invariants
- Motor construction
- Hybrid stepper motor
- Frame family
- Compact
- Frame size
- 20 mm frame
- Documentation
- 2D pending review / STEP approved controlled
- Grouping confidence
- Engineering Review
Guided Hybrid Stepper Selection
Select a reviewed hybrid stepper motor record
Start with the reviewed holding-torque and driver-current values. Dynamic performance, resonance, mounting and accessory requirements remain engineering-review context.
No catalog values selected.
0 published record(s) do not contain one or more selected fields and have moved to manual engineering review.
Optional Requirements for Engineering Review
Add what you know
Optional · About 1 minute
These details do not change the selected catalog record. Add what you know to help engineering review electrical, environmental, application and documentation requirements. You can skip any field or complete it later in the RFQ.
These details travel with the RFQ or controlled-file request. They are requirements for review, not confirmed product options.
Requirements saved for engineering review
Technical Verification
Technical SKU matrix
The table shows approved model-level engineering evidence independently of automatic selection. Missing values remain explicit and prevent unsupported compatibility claims.
4 candidate records
| Model | Holding Torque | Body Length | Rated Current | Step Angle | Number Of Phases | Phase Resistance | Phase Inductance | Rotor Inertia | Insulation Class | Insulation Resistance | Temperature Rise | Weight | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ES-ST-08H2028-050-4AL | 0.012 | 28 mm | 0.5 | 1.8° | 2 | 6 Ω ±10% | 1.5 mH ±20% | 2.7 | B | 100 MΩ (500 VDC) | 80 °C | 0.06 kg | |
| ES-ST-08H2028-050-4BL | 0.012 | 28 mm | 0.5 | 1.8° | 2 | 6 Ω ±10% | 1.5 mH ±20% | 2.7 | B | 100 MΩ (500 VDC) | 80 °C | 0.06 kg | |
| ES-ST-08H2038-050-4AL | 0.02 | 38 mm | 0.5 | 1.8° | 2 | 8.8 Ω ±10% | 2.7 mH ±20% | 3.3 | B | 100 MΩ (500 VDC) | 80 °C | 0.08 kg | |
| ES-ST-08H2038-050-4BL | 0.02 | 38 mm | 0.5 | 1.8° | 2 | 8.8 Ω ±10% | 2.7 mH ±20% | 3.3 | B | 100 MΩ (500 VDC) | 80 °C | 0.08 kg |
Product Visualization
Product imagery and CAD-style placeholders are organized for engineering review without exposing private source files.
Product image
2D Dimension Data
Representative structured preview

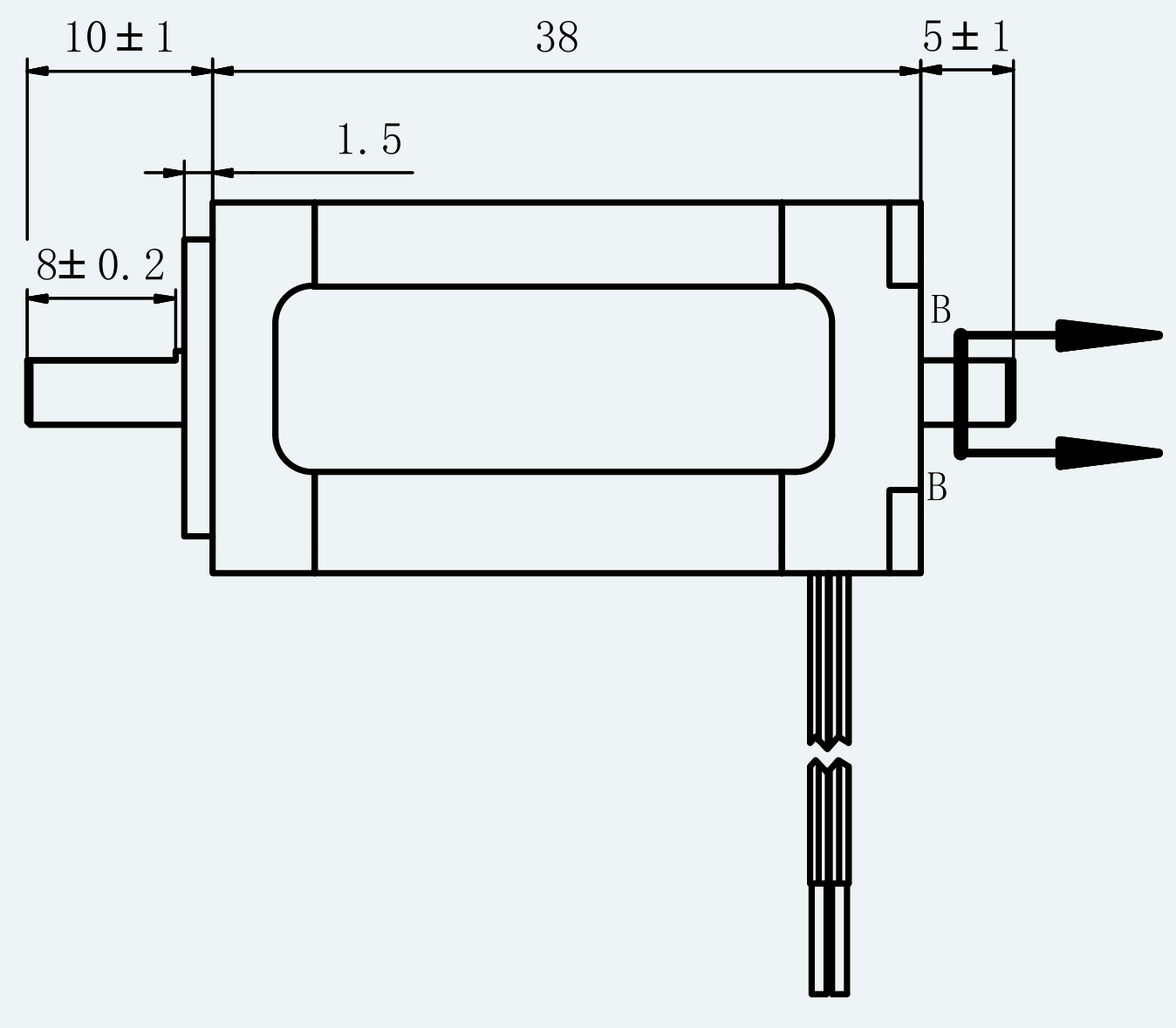

2D dimension drawing recorded · controlled access. This series view shows a representative extracted drawing. Open an exact SKU page for full 2D structure, dimension tables and notes.
