Hybrid Stepper Motor

86 mm Hybrid Stepper Motor - 6 A · 7 N·m · 0.5 Ω · 3.5 mH

Review the operating point, drive compatibility, mounting, feedback, wiring and thermal conditions for this exact SKU before integration.

Exact SKU ES-ST-34H2098-600-4BL
Body Length
96.5 mm
Rated Current
6 A
Holding Torque
7 N·m
Phase Resistance
0.5 Ω
Phase Inductance
3.5 mH
Step Angle
1.8 °
Physical product image
Product image for ES-ST-34H2098-600-4BL
Request engineering quote Review engineering files

2D drawing

Review the drawing with its engineering data

Primary drawing views stay beside the annotated data table so a focused row highlights the matching callout.

Reviewed annotated drawing
Drawing controls
Scale: 100%

Primary Drawing Viewer

Mechanical View 1 1 / 2

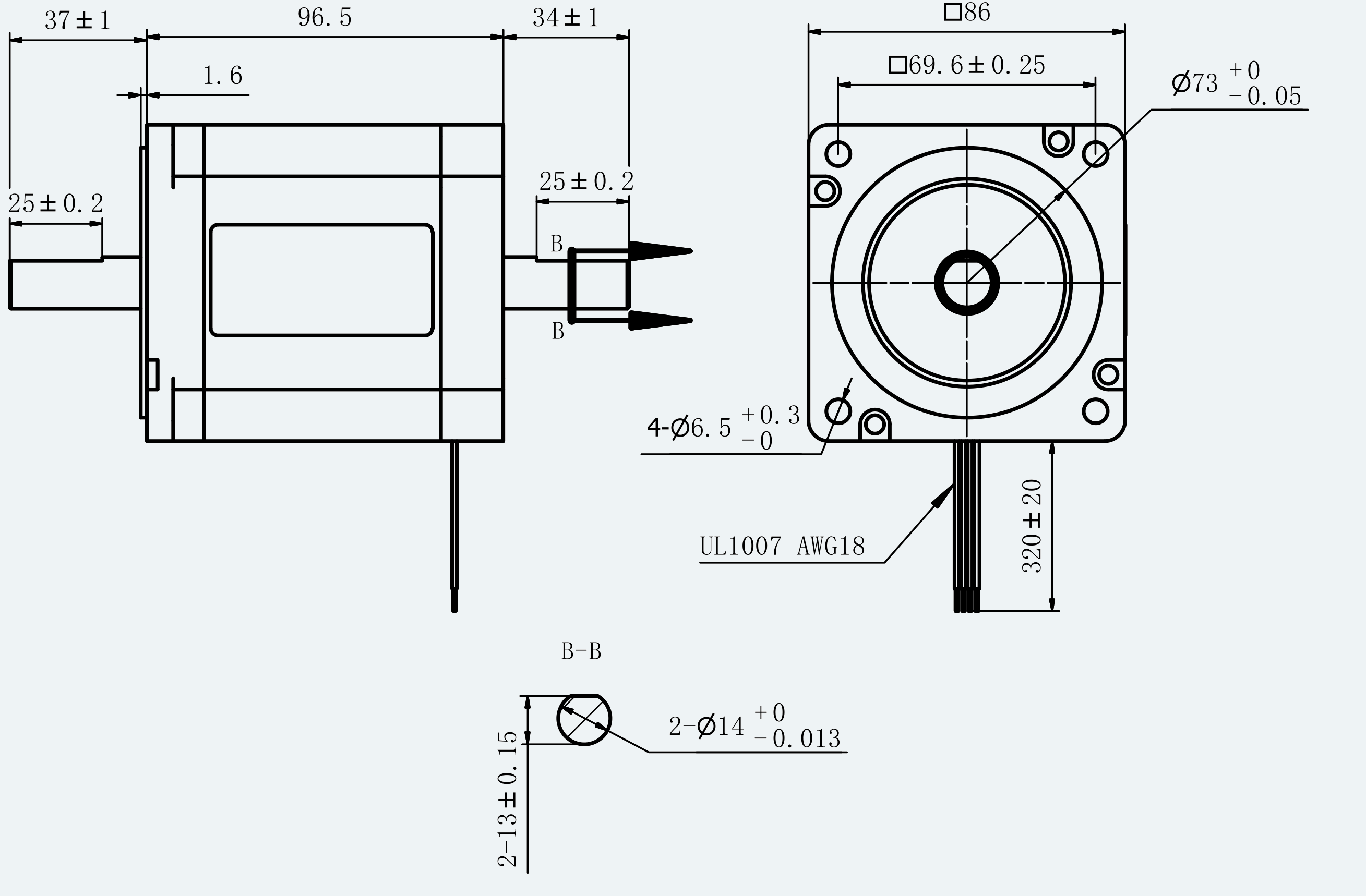

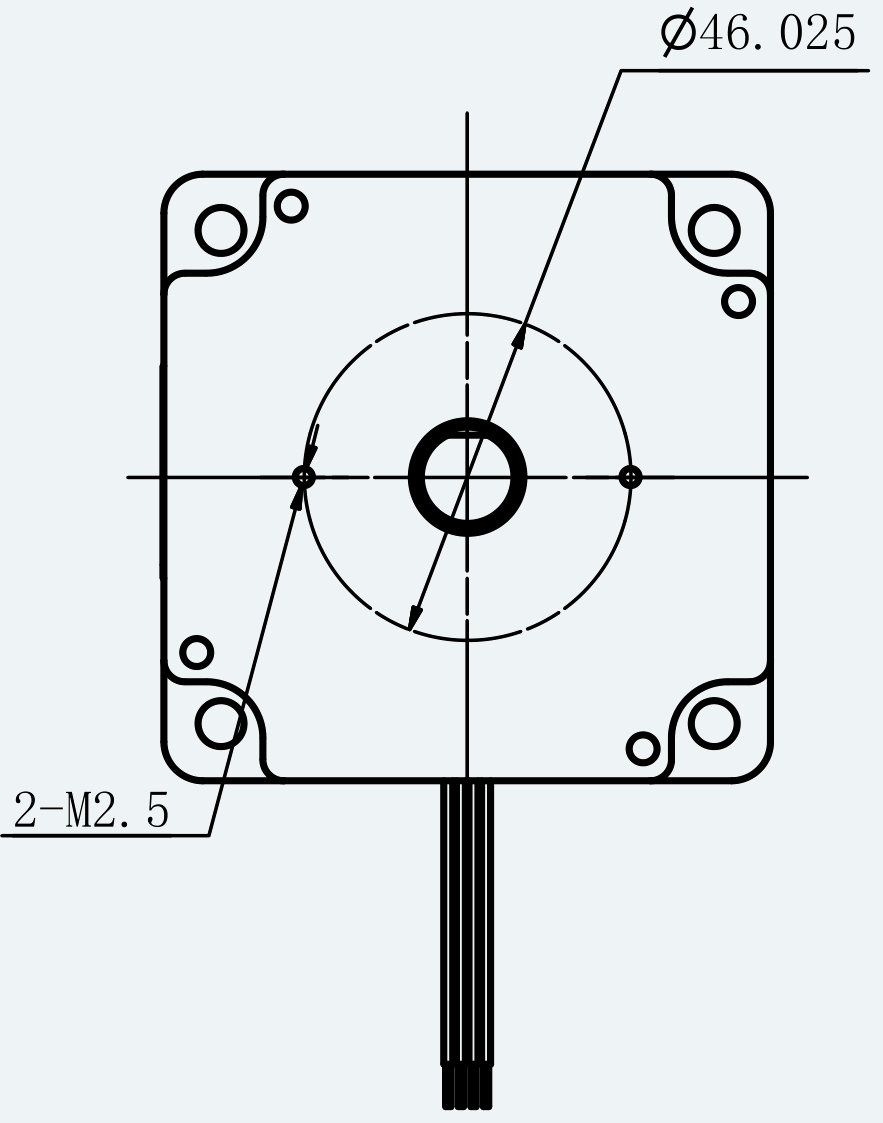

Mechanical View 1 for ES-ST-34H2098-600-4BL
Mechanical View 1

3D fit review

Inspect envelope and mounting relationships

The interactive toolbar stays with the model. Controlled CAD access remains a separate engineering-file request.

Interactive reviewed preview
More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Full specifications

Grouped engineering parameters

All 12 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

12 published fields

Electrical Parameters

8 fields
Step Angle
1.8 °
Rated Current
6 A
Phase Resistance
0.5 Ω
Phase Inductance
3.5 mH
Insulation Class
B
Insulation Resistance
100 MΩ
Temperature Rise
80 °C

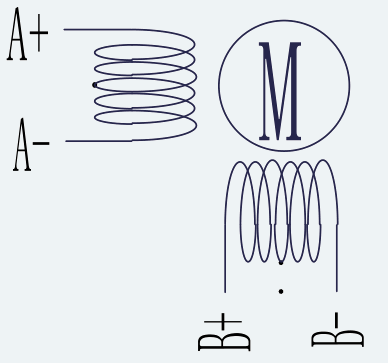

Number of Phases
2

Performance Parameters

2 fields
Holding Torque
7 N·m
Rotor Inertia
2.8 kg·cm²

Mechanical Parameters

2 fields
Weight
2.9 kg
Body Length
96.5 mm

Product documentation

Product documentation

Review published PDFs for specifications, then request controlled 2D and 3D engineering files for integration.

Published PDFsDirect access · current public editions

SKU Datasheet

ES-ST-34H2098-600-4BL Product Datasheet

SKU-specific · Specifications and performance data

Review performance specifications, operating limits and selection data for this SKU.

R03 4 pages · 366 KB

View datasheet (PDF)

SKU Integration Guide

ES-ST-34H2098-600-4BL Dimensional & Integration Guide

SKU-specific · Dimensions and mounting interfaces

Review dimensions, mounting interfaces and integration notes for this SKU.

R01 7 pages · 652 KB

View integration guide (PDF)

Category Selection Guide

Hybrid Stepper Motors Category Selection Guide

Category-wide · Product platform comparison

Compare product platforms, key selection parameters and application requirements to narrow your options.

R01 5 pages · 169 KB

View selection guide (PDF)
2D Engineering Drawing

2D drawing

1 file available · Product-specific resource

Review the 2D preview above; request the controlled source drawing when needed.

Preview available · drawing access by request
3D CAD Model

STEP / STP CAD

1 file available · Product-specific resource

Use the interactive 3D preview above; request STEP/STP or native CAD when needed.

Interactive preview · CAD access by request
