ES-LM-PI01 Inverted Planetary Roller Screw Series

Source-verified inverted planetary roller screw series with normalized diameter, lead, load and efficiency data for controlled OEM integration review.

This page is organized as a true industrial series: shared platform specifications first, then SKU-level configuration differences, controlled files and engineering confirmation.

Inverted Planetary Roller Screw 12 public SKU records RFQ specification review
Request a Quote

Save the requirement context or a referenced record for manual engineering review; no model is automatically recommended.

Common Specs

Shared platform specifications

Platform invariants

Product form
Inverted Planetary Roller Screw
Active drive member
Nut
Axial preload
None
Thread count N
3
Document access
Controlled review; no automatic CAD release

SKU Selection Workspace

Prepare a structured engineering review

The available public data is not sufficient to determine one SKU reliably. Capture known requirements and leave unknown fields open for engineering review.

12 published records; automatic matching unavailable

Selection guide

How to choose the exact SKU

These steps map directly to the Configuration Filters below.

  1. Step 1: Target linear-motion integration

    Provide axial load, stroke, speed, mounting and environment context for engineering review.

Configuration Filters

Choose your ES-PS-C16-S003 configuration

Select configuration values to filter the SKU Matrix below. A complete configuration should narrow the list to the exact SKU for RFQ and documentation review.

Use this one configurator to combine a known interface, dimensional limits and recorded load-rating requirements. Leave a condition empty when it is not yet known; the result remains a recorded candidate list and still requires engineering review for life, stiffness, precision, preload, lubrication and mounting fit.

Optional Requirements for Engineering Review

Add what you know

Optional · About 1 minute

Not added

These details do not change the selected catalog record. Add what you know to help engineering review electrical, environmental, application and documentation requirements. You can skip any field or complete it later in the RFQ.

These details travel with the RFQ or controlled-file request. They are requirements for review, not confirmed product options.

Technical Verification

Verify the current candidate records

This always-visible table is an engineering cross-check. It follows the selector state, marks missing public fields and does not replace final compatibility review.

Model Nominal diameter Lead Body diameter D Rated dynamic load Cₐ Rated static load Cₒₐ Forward theoretical efficiency η Reverse theoretical efficiency η′ Action
ES-LM-PI01-M001 12 mm 2 mm 26 mm 14.7 kN 23.9 kN 0.81 0.77
Request Quote
ES-LM-PI01-M002 12 mm 3 mm 26 mm 16.5 kN 27 kN 0.84 0.81
Request Quote
ES-LM-PI01-M003 12 mm 4.5 mm 26 mm 17.5 kN 26.8 kN 0.87 0.85
Request Quote
ES-LM-PI01-M004 12 mm 6 mm 26 mm 18.5 kN 26.3 kN 0.85 0.82
Request Quote
ES-LM-PI01-M005 12 mm 6.5 mm 26 mm 19.2 kN 26.5 kN 0.85 0.82
Request Quote
ES-LM-PI01-M006 15 mm 3 mm 32 mm 29 kN 51.5 kN 0.83 0.8
Request Quote
ES-LM-PI01-M007 15 mm 5 mm 32 mm 29.8 kN 47 kN 0.86 0.84
Request Quote
ES-LM-PI01-M008 15 mm 8 mm 32 mm 32.2 kN 45.8 kN 0.85 0.82
Request Quote
ES-LM-PI01-M009 18 mm 10 mm 38 mm 38.5 kN 66 kN 0.85 0.82
Request Quote
ES-LM-PI01-M010 18 mm 3 mm 38 mm 37 kN 71 kN 0.82 0.78
Request Quote
ES-LM-PI01-M011 24 mm 3 mm 50 mm 76.5 kN 120 kN 0.78 0.72
Request Quote
ES-LM-PI01-M012 24 mm 6 mm 50 mm 74 kN 112 kN 0.84 0.81
Request Quote

Product Visualization

Product imagery and CAD-style placeholders are organized for engineering review without exposing private source files.

Product image

Product image

2D Dimension Data

Representative structured preview

2D dimension drawing recorded · controlled access. This series view shows a representative extracted drawing. Open an exact SKU page for full 2D structure, dimension tables and notes.

Request Full Drawing Package

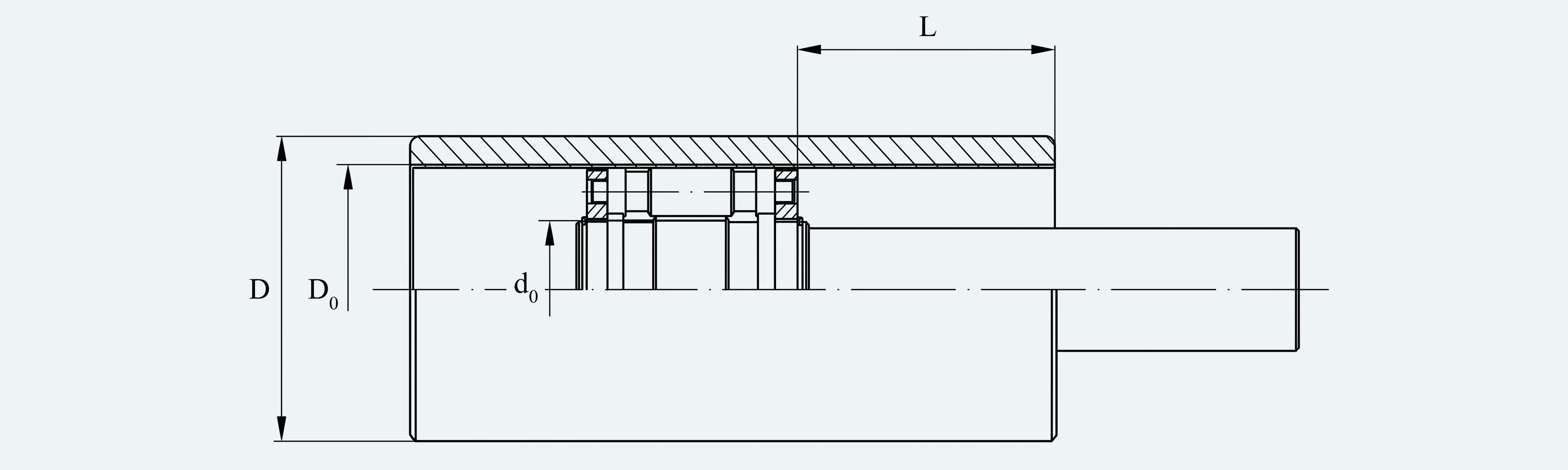

Mechanical Dimensions extracted from dimension drawing for ES-LM-PI01 Inverted Planetary Roller Screw Series
Controlled structure diagram preview for envelope review

Structure previews

1 recorded

Dimension tables

0 recorded

Notes / text blocks

0 recorded

Engineering Files

SKU-specific documentation

This ES-PS-C16-S003 set contains 12 model records with controlled documentation workflow. Please select the exact model before requesting controlled CAD / STEP review.

12 PDF drawing / datasheet workflows

Each documentation record maps to one exact public SKU and engineering record.

Controlled 3D CAD requests

Mechanical envelopes can differ by power, stack, brake or winding configuration.

Please select the exact model before requesting controlled CAD / STEP review. Series-level CAD is intentionally not exposed because platform variants can have different envelopes.

Application Fit / RFQ

Where this platform fits

  • Robot linear actuation
  • Automation axes
  • Controlled OEM validation

Use the SKU matrix to narrow the recorded public model before requesting controlled documentation or adding the item to the RFQ list.

Submit series RFQ Request controlled CAD / STEP review
