Medium-Power Servo Drive

7,500 W Medium-Power Servo Drive — 3 -phase 380 VAC -20%/+15% 47–63 Hz · 18 A

Confirm motor pairing, control mode, feedback interface, I/O wiring, enclosure, EMC and thermal conditions before final integration.

Exact SKU ES-SD-C21-S005-V005

Supply voltage: 3 -phase 380 VAC -20%/+15% 47–63 Hz
Supported Rated Motor Power: 7,500 W
Continuous output current: 18 A
Peak output current: 65 A
Feedback architecture: 2,500 PPR incremental differential 5 V encoder; resolver; Hiperface / SinCos encoder option; 16-bit multiturn serial absolute encoder option; 20-bit single-turn serial absolute encoder option
Cooling method: Forced-air cooling

Request engineering quote Review engineering files

2D drawing

Review the drawing with its engineering data

Primary drawing views stay beside the annotated data table so a focused row highlights the matching callout.

Reviewed annotated drawing

Primary Drawing Viewer

Mechanical View 1 1 / 2

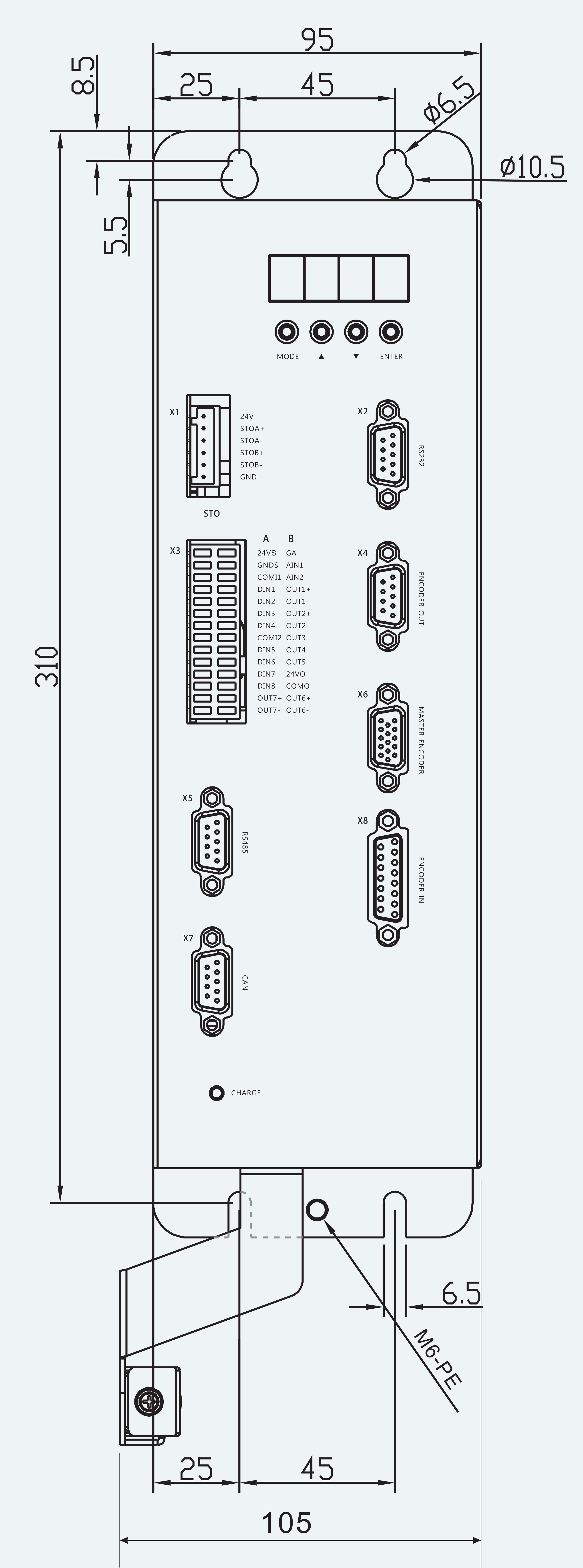

Mechanical View 1 for ES-SD-C21-S005-V005 — Mechanical View 1

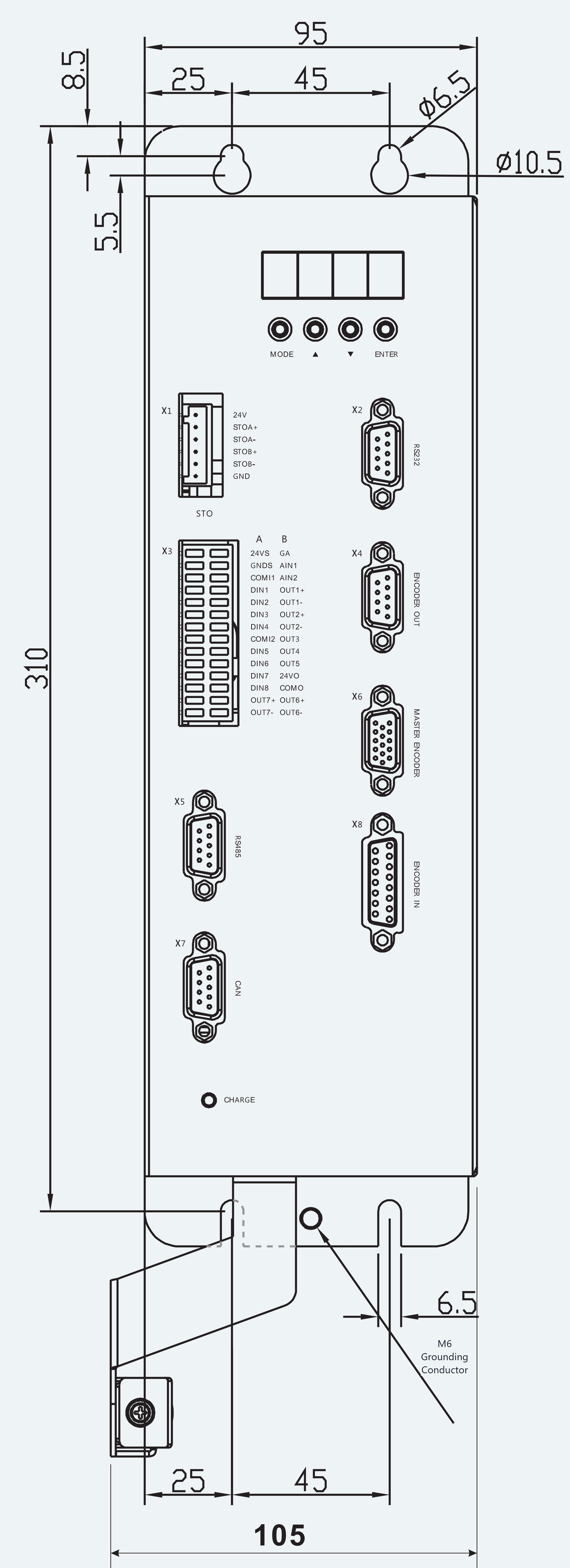

Mechanical View 2 for ES-SD-C21-S005-V005 — Mechanical View 2

Annotated Drawing Data

13 drawing fields

Hover, focus or select a row to locate the matching field on the drawing.

Field	Value
Total Width	95 mm
Upper distance from edge	8.5 mm
Left mounting hole position	25 mm
Right mounting hole position	45 mm
Mounting hole diameter	ø6.5 mm
Mounting hole diameter	ø10.5 mm
Left side dimension	5.5 mm
Total Height	310 mm
Ground PE mounting hole	M6 thread for PE grounding
Bottom distance	6.5 mm
Bottom left hole position	25 mm
Bottom right hole position	45 mm
Total Width (Bottom)	105 mm

Field	Value
Panel total width	95 mm
Left mounting hole offset	8.5 mm
Upper horizontal spacing (left segment)	25 mm
Upper horizontal spacing (center segment)	45 mm
Mounting hole diameter (upper right)	Φ6.5 mm
Mounting hole diameter (main)	Φ10.5 mm
Right mounting hole offset	5.5 mm
Panel height	310 mm
Bottom mounting hole diameter	6.5 mm
Bottom horizontal spacing (left segment)	25 mm
Bottom horizontal spacing (center segment)	45 mm
Bottom total width	105 mm

Primary Drawing Viewer

Power Connector View 1 1 / 2

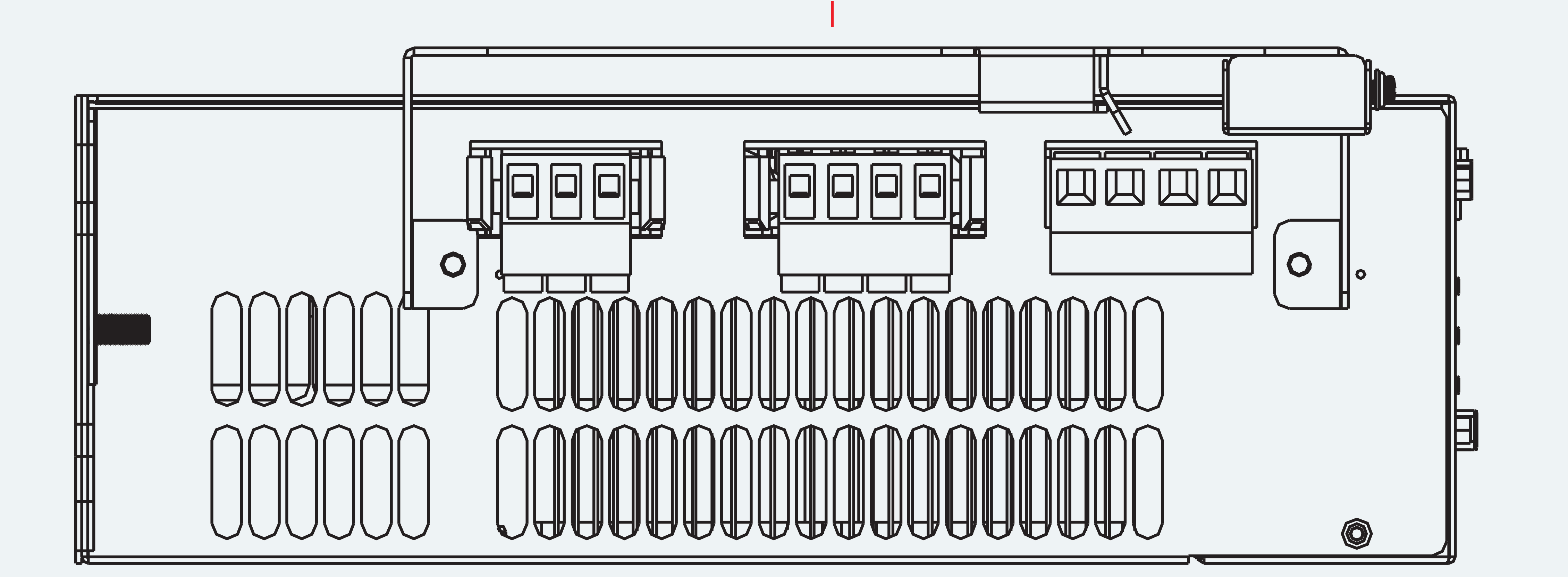

Power Connector View 1 for ES-SD-C21-S005-V005 — Power Connector View 1

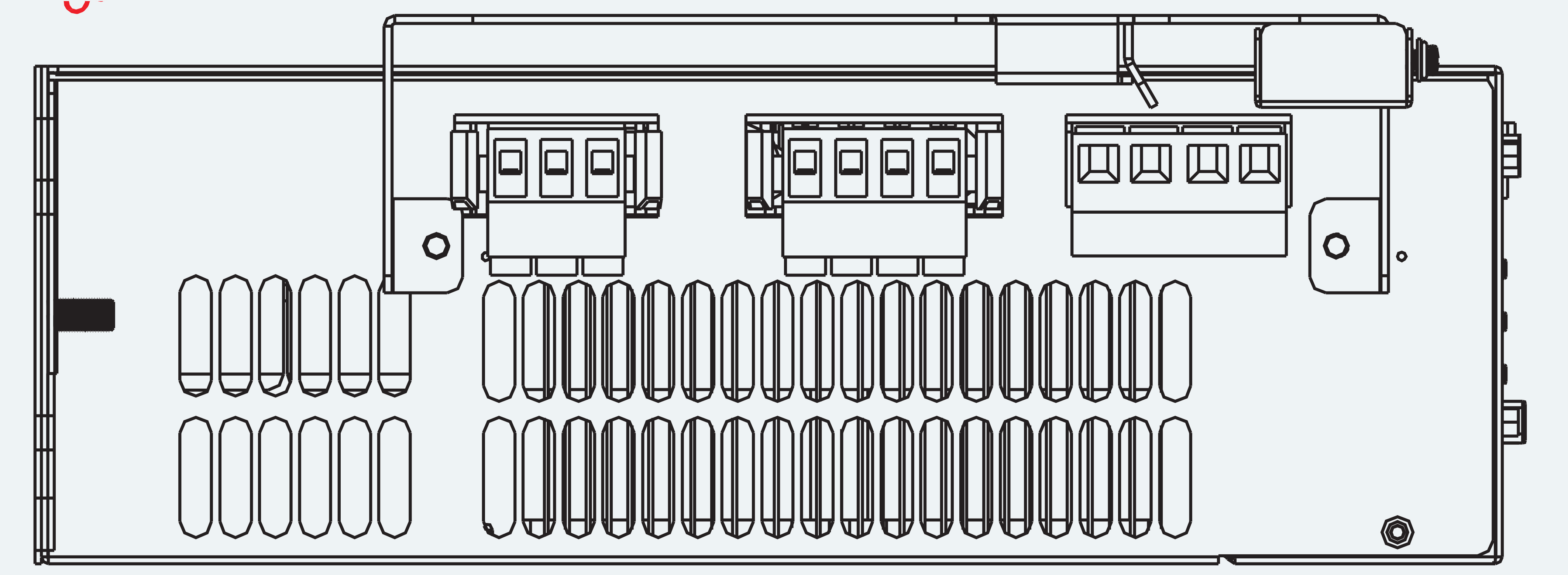

Visual drawing reference. Structured annotations are not available for this image, so the full-width canvas preserves the original drawing for engineering review.

3D fit review

Inspect envelope and mounting relationships

The interactive toolbar stays with the model. Controlled CAD access remains a separate engineering-file request.

Interactive reviewed preview

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Full specifications

Grouped engineering parameters

All 31 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

31 published fields

Electrical Parameters

4 fields

Supply voltage: 3 -phase 380 VAC -20%/+15% 47–63 Hz
Logic Supply Voltage: 18 VDC, 1 A to 30
RS485 interface: Modbus RTU controller communication, up to 115.2 kbaud
Communication Protocol: RS232; RS485; Modbus RTU; CANopen

Performance Parameters

8 fields

Supported Rated Motor Power: 7,500 W
Continuous output current: 18 A
Peak output current: 65 A
Braking Resistor: External braking-resistor connection provided; select resistance and power for the motor and duty cycle
Braking absorption voltage: DC680V±5V
Overvoltage alarm threshold: DC700V±5V
Undervoltage alarm threshold: DC400V±5V
Encoder signal output: Encoder A/B/Z output for multi-axis synchronization; availability and maximum frequency follow the source model conditions

Mechanical Parameters

8 fields

Mass: 6.7 kg
Analog input: Two analog inputs for speed and torque control; input range -10 to +10 V
CANopen interface: CANopen controller communication, up to 1 Mbaud
Digital operator panel: Four keys and a four-digit display
External I/O: Seven configurable digital outputs and eight configurable 12.5–30 V digital inputs; output current limits are retained in the source evidence
Feedback architecture: 2,500 PPR incremental differential 5 V encoder; resolver; Hiperface / SinCos encoder option; 16-bit multiturn serial absolute encoder option; 20-bit single-turn serial absolute encoder option
Main encoder input: Accepts 3.3–24 V pulse/direction or CW/CCW signals and RS422 differential input; maximum 4 MHz
RS232 interface: PC commissioning or custom controller protocol, up to 115.2 kbaud

Thermal Parameters

2 fields

Cooling method: Forced-air cooling
Dimensions (W × H × D): 320 mm × 280.5 × 95

Environmental & Insulation

9 fields

Operating temperature: 0–40 °C
Storage temperature: -10–70 °C
Relative humidity: 90 %RH maximum
Protection rating: IP20
Installation environment: Dust-free, dry and secure location, such as an electrical cabinet
Installation orientation: Vertical installation
Installation altitude: No power derating up to 1000 m
Atmospheric pressure: 86–106 kPa
Safe Torque Off (STO): Yes
