Medium-Power Servo Drive

50; 100 W Medium-Power Servo Drive — 1-phase 220 VAC -20%/+15%, 47–63 Hz · 2 A

Exact SKU: ES-SD-C21-S001-V001

Confirm motor pairing, control mode, feedback interface, I/O wiring, enclosure, EMC and thermal conditions before final integration.

Supply voltage
1-phase 220 VAC -20%/+15%, 47–63 Hz
Supported Rated Motor Power
50; 100 W
Continuous output current
2 A
Peak output current
7 A
Feedback architecture
2500 PPR incremental differential 5 V encoder
Cooling method
Natural convection cooling
Mass
1.2 kg
Protection rating
IP20
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-SD-C21-S001-V001 envelope view

Scale: 100%

2D Engineering Drawing Center

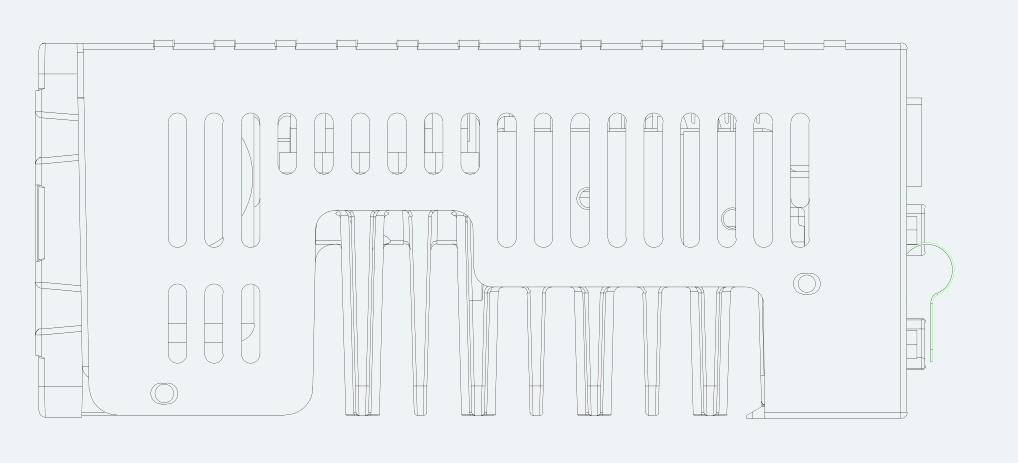

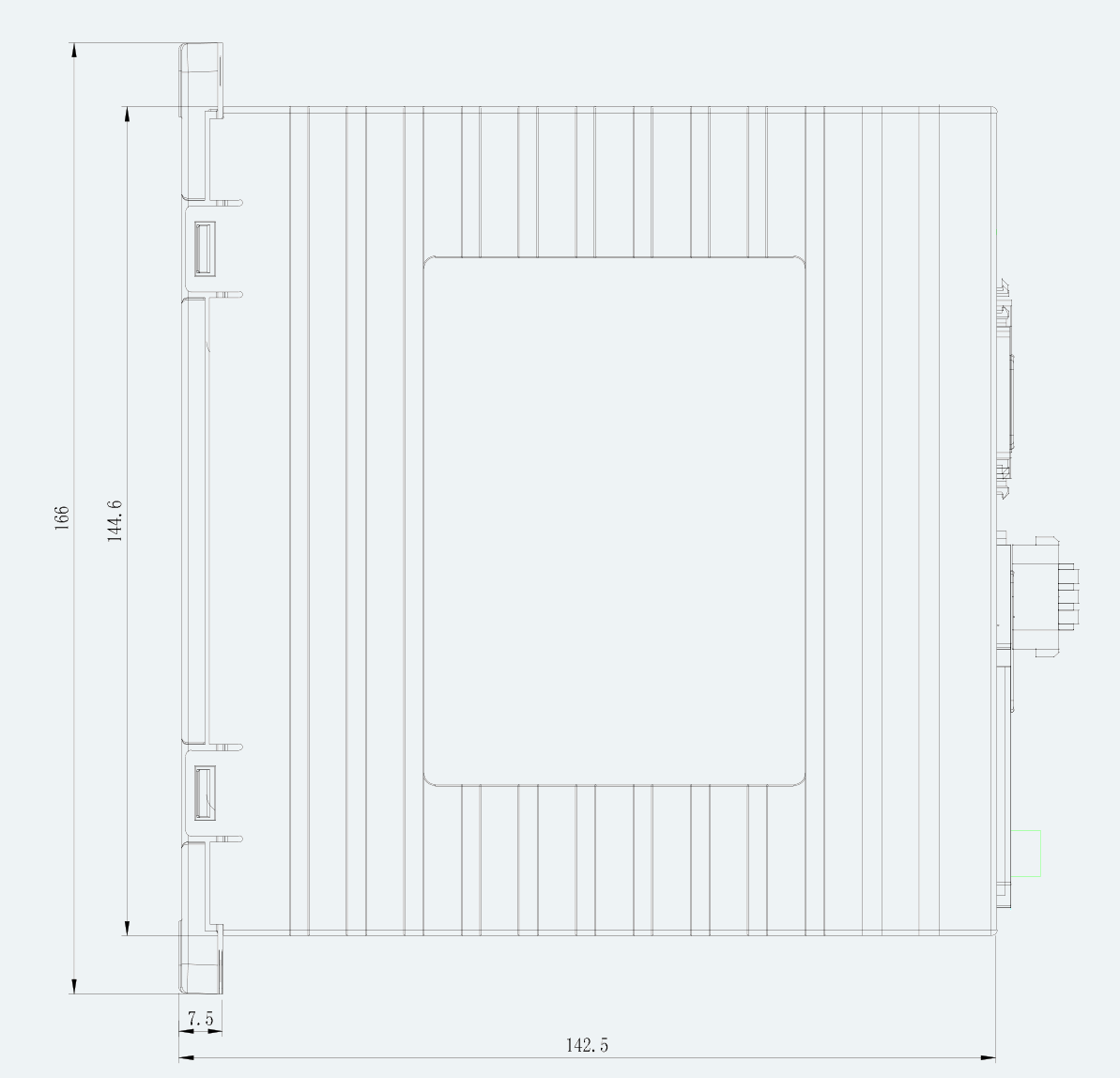

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

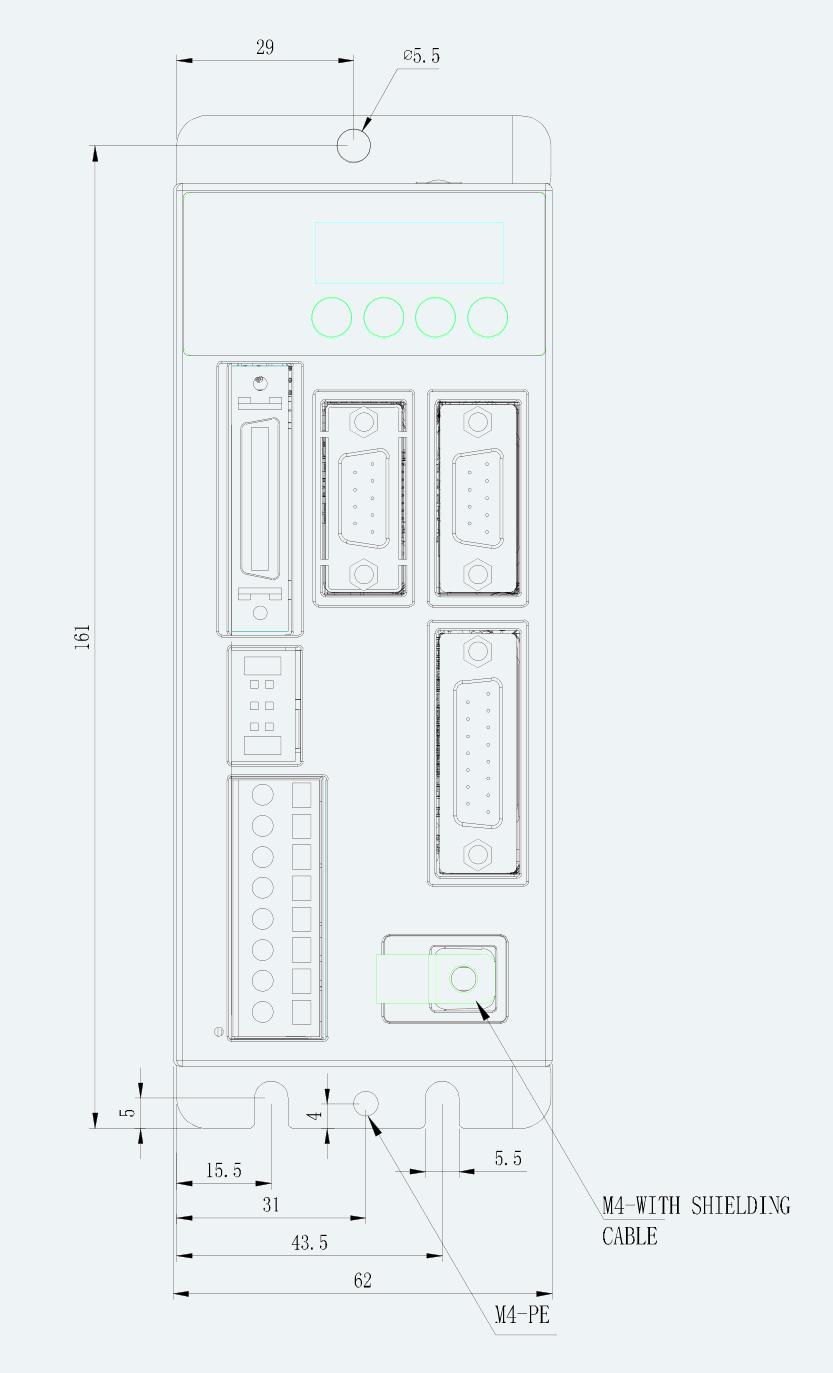

Mechanical View 1 for ES-SD-C21-S001-V001
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 37 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

Supply voltage
1-phase 220 VAC -20%/+15%, 47–63 Hz
Logic Supply Voltage
18 to 30 VDC, 1 A
Communication Protocol
RS232; RS485; Pulse train

Performance Parameters

Supported Rated Motor Power
50; 100 W
Continuous output current
2 A
Peak output current
7 A
Braking architecture
External braking resistor required according to duty cycle, particularly for rapid start/stop operation
Braking absorption voltage
DC380V±5V
Overvoltage alarm threshold
DC400V±5V
Undervoltage alarm threshold
DC200V±5V
Command smoothing
Low-pass filter set by internal parameter
Pulse command mode
Pulse + direction, CW/CCW, or A/B phase
Maximum pulse input frequency
Differential: 500 kpps; open collector: 200 kpps
Electronic gear ratio
Numerator -32768–32767; denominator 1–32767; 1/50 ≤ |numerator/denominator| ≤ 50
Feedforward gain
Set by internal parameter
Position-loop sampling frequency
1kHz
Command source
External analog command or internal command
Command smoothing
Low-pass filter set by internal parameter
Speed limit
Set by internal parameter
Torque limit
Internal parameter setting or external analog command
Speed-loop sampling frequency
4kHz
Command source
External analog command or internal command
Command smoothing
Low-pass filter set by internal parameter
Speed limit
Internal parameter setting or external analog command
Current-loop sampling frequency
16kHz
Protection functions
Overvoltage, undervoltage, motor I²T overtemperature, short-circuit and drive overtemperature protection

Mechanical Parameters

Mass
1.2 kg

Thermal Parameters

Cooling method
Natural convection cooling

Environmental & Insulation

Operating temperature
0–40 °C
Storage temperature
-10 °C–70 °C
Relative humidity
5–95% RH
Protection rating
IP20
Installation environment
Dust-free, dry and lockable location, such as an electrical cabinet
Installation orientation
Vertical installation
Installation altitude
No power derating below 1000 m
Atmospheric pressure
86–106 kPa

Feedback & Sensors

Feedback architecture
2500 PPR incremental differential 5 V encoder

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

STEP / STP CAD

Controlled Review

A validated browser preview may be available; native CAD remains controlled.

Request controlled CAD

Datasheet

Controlled Review

This requestable documentation package is prepared during the first engineering response.

Request documentation review

Installation notes

Controlled Review

This requestable documentation package is prepared during the first engineering response.

Request engineering notes
