Precision Bearing

145.79 mm Precision Bearing

Exact SKU: ES-BR-C27-S008-V003

Confirm dimensions, fit, load, speed, lubrication, precision and installation conditions before final selection.

Stator outer diameter
145.79 mm
Inner Ring Diameter
76.2 mm
Bearing Width
15.87 mm
Mass
1.2 kg
Axial Dynamic Load Rating
36 kN
Axial Static Load Rating
44.5 kN
Radial Dynamic Load Rating
22.8 kN
Radial Static Load Rating
21.5 kN
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-BR-C27-S008-V003 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

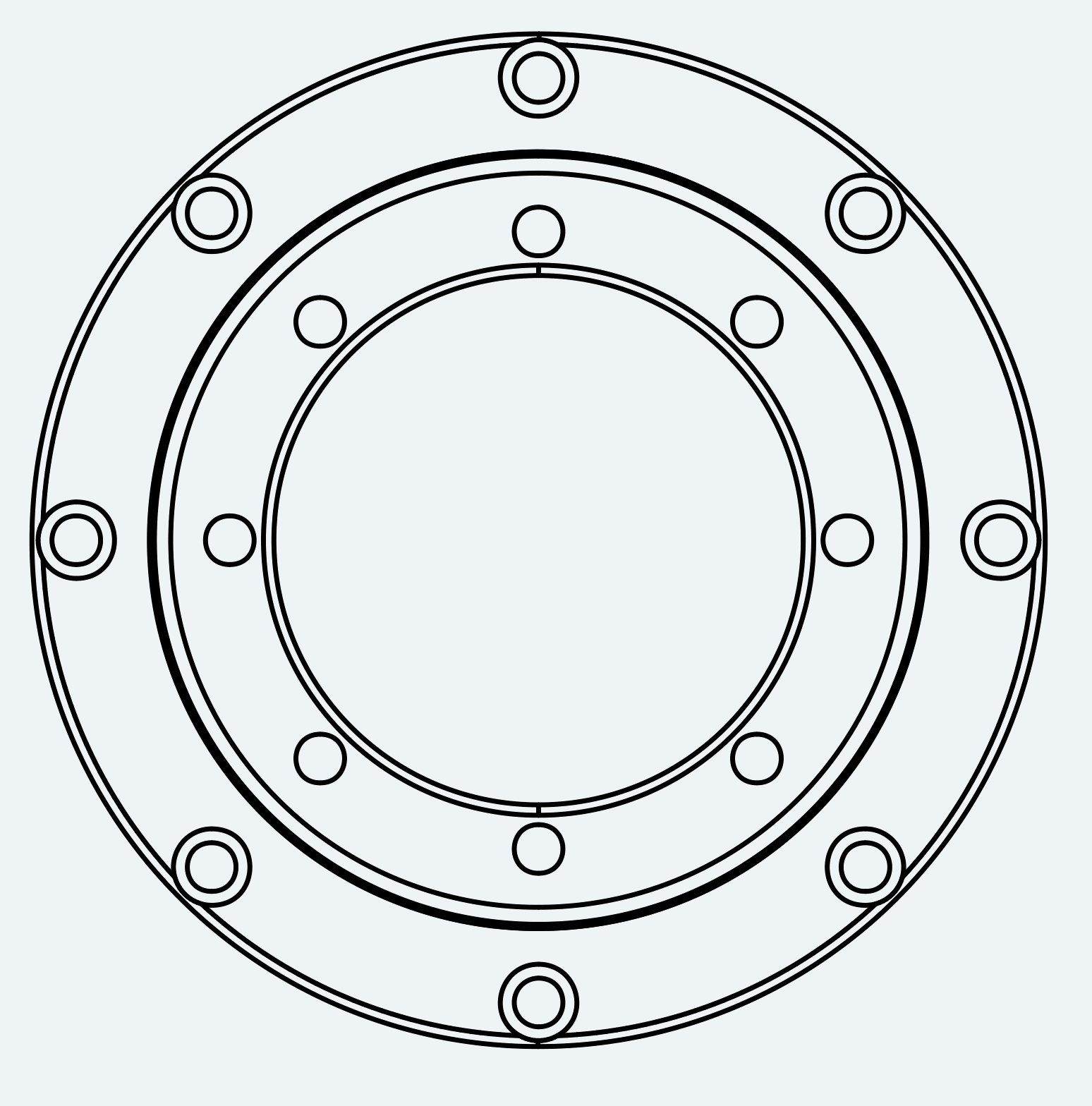

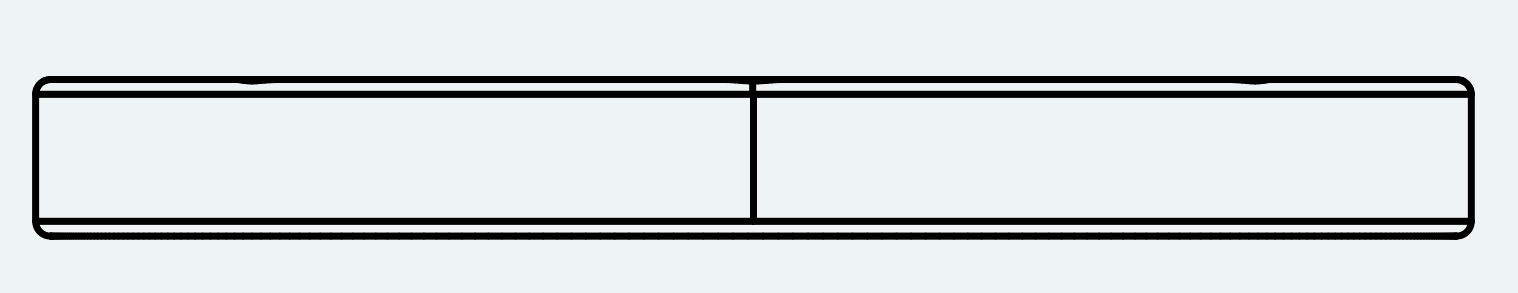

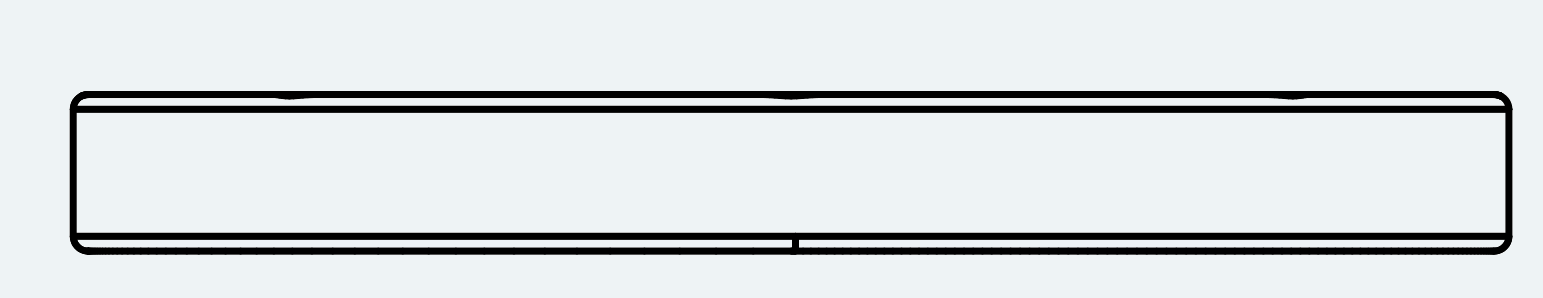

Mechanical View 1 for ES-BR-C27-S008-V003
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

Reviewed GLB preview for preliminary fit review.

More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Reviewed browser preview for preliminary fit review.

Full Specifications

Grouped engineering parameters

All 13 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Inner Ring Diameter
76.2 mm
Stator outer diameter
145.79 mm
Pitch Circle Diameter
111 mm
Bearing Width
15.87 mm
Outer Ring Mounting PCD
133.1 mm
Outer Ring Mounting Holes
8-Φ6.9
Inner Ring Mounting PCD
88.9 mm
Inner Ring Mounting Holes
8-Φ6.9

Performance Parameters

Axial Dynamic Load Rating
36 kN
Axial Static Load Rating
44.5 kN
Radial Dynamic Load Rating
22.8 kN
Radial Static Load Rating
21.5 kN

Mechanical Parameters

Mass
1.2 kg
