Precision Bearing

311 mm Precision Bearing

Exact SKU: ES-BR-C27-S008-V006

Confirm dimensions, fit, load, speed, lubrication, precision and installation conditions before final selection.

Stator outer diameter
311 mm
Inner Ring Diameter
215.9 mm
Bearing Width
25.4 mm
Mass
6.9 kg
Axial Dynamic Load Rating
85 kN
Axial Static Load Rating
117 kN
Radial Dynamic Load Rating
54 kN
Radial Static Load Rating
57 kN
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-BR-C27-S008-V006 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

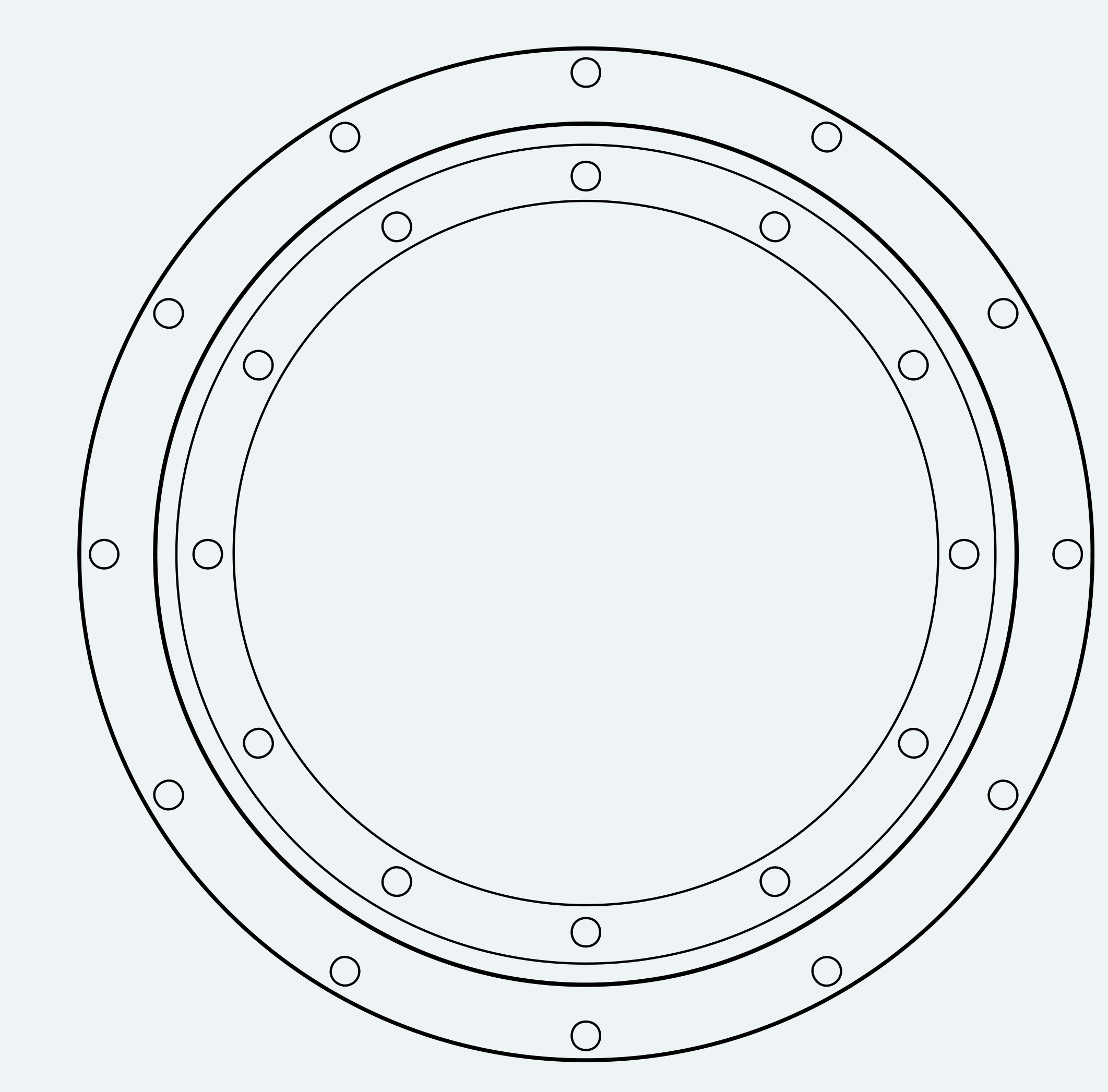

Mechanical View 1 for ES-BR-C27-S008-V006
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

Reviewed GLB preview for preliminary fit review.

More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Reviewed browser preview for preliminary fit review.

Full Specifications

Grouped engineering parameters

All 13 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Inner Ring Diameter
215.9 mm
Stator outer diameter
311 mm
Pitch Circle Diameter
264 mm
Bearing Width
25.4 mm
Outer Ring Mounting PCD
295.3 mm
Outer Ring Mounting Holes
12-Φ8.7
Inner Ring Mounting PCD
231.8 mm
Inner Ring Mounting Holes
12-Φ8.7

Performance Parameters

Axial Dynamic Load Rating
85 kN
Axial Static Load Rating
117 kN
Radial Dynamic Load Rating
54 kN
Radial Static Load Rating
57 kN

Mechanical Parameters

Mass
6.9 kg

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

STEP / STP CAD

Controlled Review

A validated browser preview may be available; native CAD remains controlled.

Request controlled CAD

Compliance

Product Integration & Compliance

OEM INTEGRATION RESPONSIBILITY

This product is a component or configurable module intended for integration into an OEM, commercial, industrial or research system.

The customer is responsible for final product selection, system-level risk assessment, safety functions, mechanical and electrical integration, validation, certification and regulatory compliance.

Published ratings apply only under the stated conditions. Confirm the operating point, interfaces, control compatibility, thermal conditions, duty cycle and required documentation before final selection.

This product is not approved for a safety-critical or restricted application unless expressly authorized in writing.

TRANSMISSION INTEGRATION

Confirm rated and peak torque, backlash, stiffness, radial and axial loads, mounting accuracy, lubrication, temperature, duty cycle, shock loading and expected service life.

Published service-life information depends on the stated load and operating assumptions and does not constitute a complete system-life guarantee.
