Precision Bearing

234 mm Precision Bearing

Exact SKU: ES-BR-C27-S008-V008

Confirm dimensions, fit, load, speed, lubrication, precision and installation conditions before final selection.

Stator outer diameter
234 mm
Inner Ring Diameter
124.5 mm
Bearing Width
35 mm
Mass
7 kg
Axial Dynamic Load Rating
105 kN
Axial Static Load Rating
194 kN
Radial Dynamic Load Rating
75 kN
Radial Static Load Rating
95 kN
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

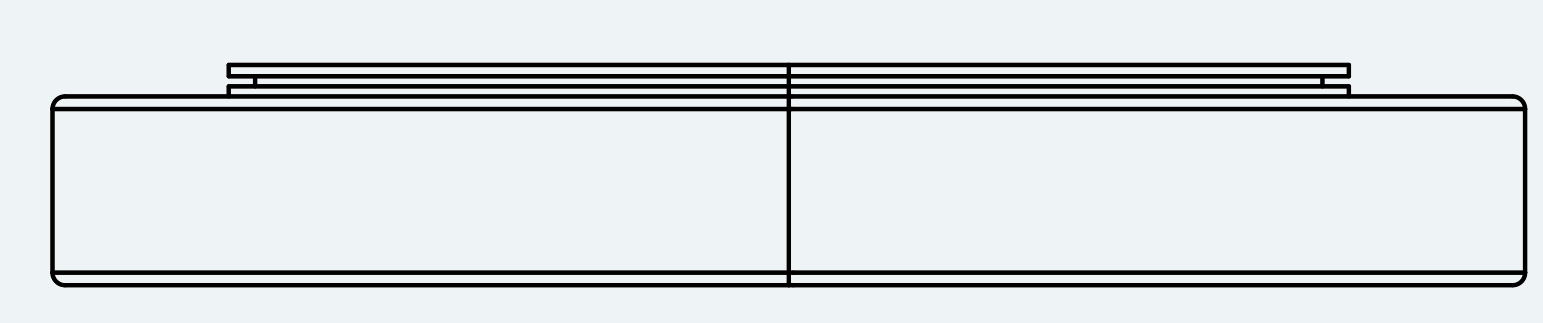

2D Structure Diagram

ES-BR-C27-S008-V008 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

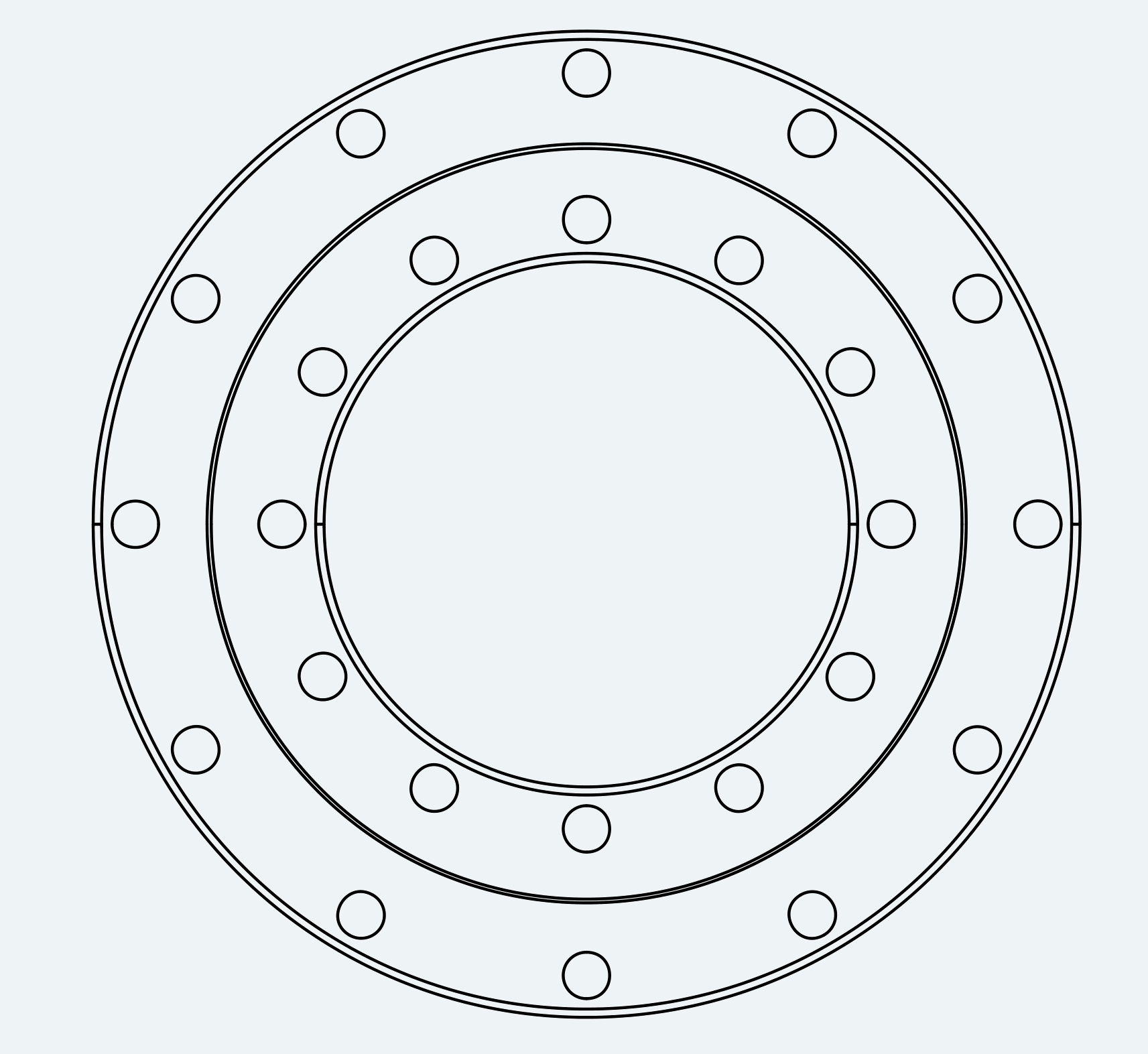

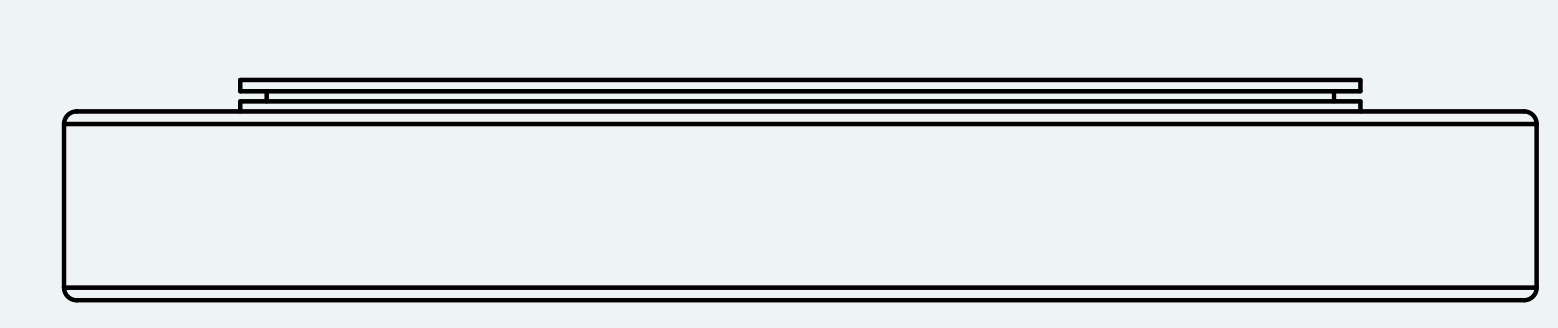

Mechanical View 1 for ES-BR-C27-S008-V008
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

Reviewed GLB preview for preliminary fit review.

More

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Reviewed browser preview for preliminary fit review.

Full Specifications

Grouped engineering parameters

All 13 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Inner Ring Diameter
124.5 mm
Stator outer diameter
234 mm
Pitch Circle Diameter
179 mm
Bearing Width
35 mm
Outer Ring Mounting PCD
214 mm
Outer Ring Mounting Holes
12-Φ11
Inner Ring Mounting PCD
144.5 mm
Inner Ring Mounting Holes
12-Φ11

Performance Parameters

Axial Dynamic Load Rating
105 kN
Axial Static Load Rating
194 kN
Radial Dynamic Load Rating
75 kN
Radial Static Load Rating
95 kN

Mechanical Parameters

Mass
7 kg
