Six Axis Force Sensor — Engineering Configuration V006

Exact SKU: ES-SN-C30-S001-V006

Confirm measurement range, accuracy, interface, mounting, calibration and environmental conditions before integration.

Supply Voltage
12–24 VDC
Operating temperature
−10 to +55 °C
System Architecture
Digital output with adapter
Communication Interface
Ethernet; EtherCAT; RS-485; analog output
External Connector Type
Cold-pressed terminal
Maximum Output Data Rate
2,700 Hz
Maximum RS-485 Output Data Rate
2,200 Hz
Power Consumption
1.5 W
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

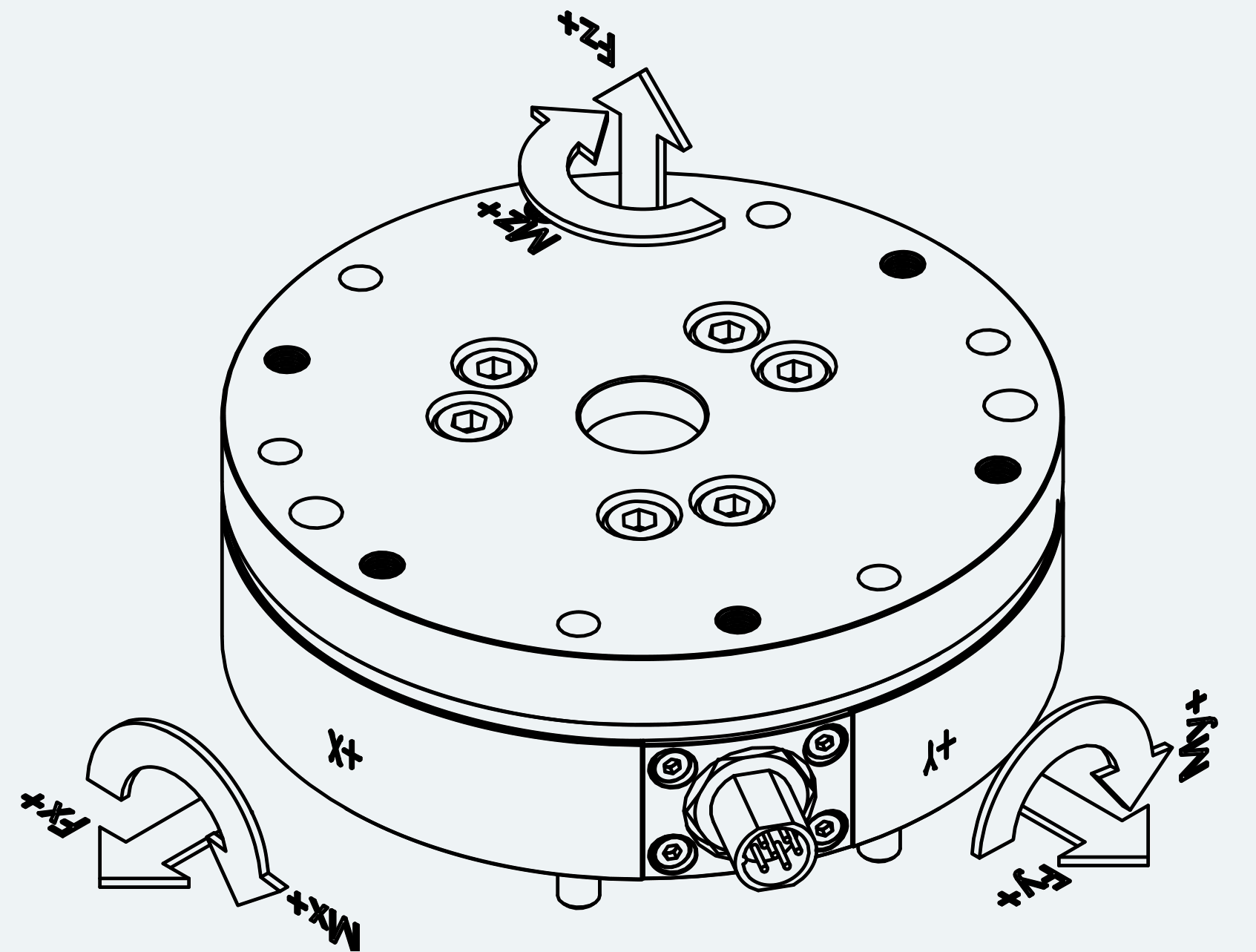

2D Structure Diagram

ES-SN-C30-S001-V006 envelope view

Scale: 100%

2D Engineering Drawing Center

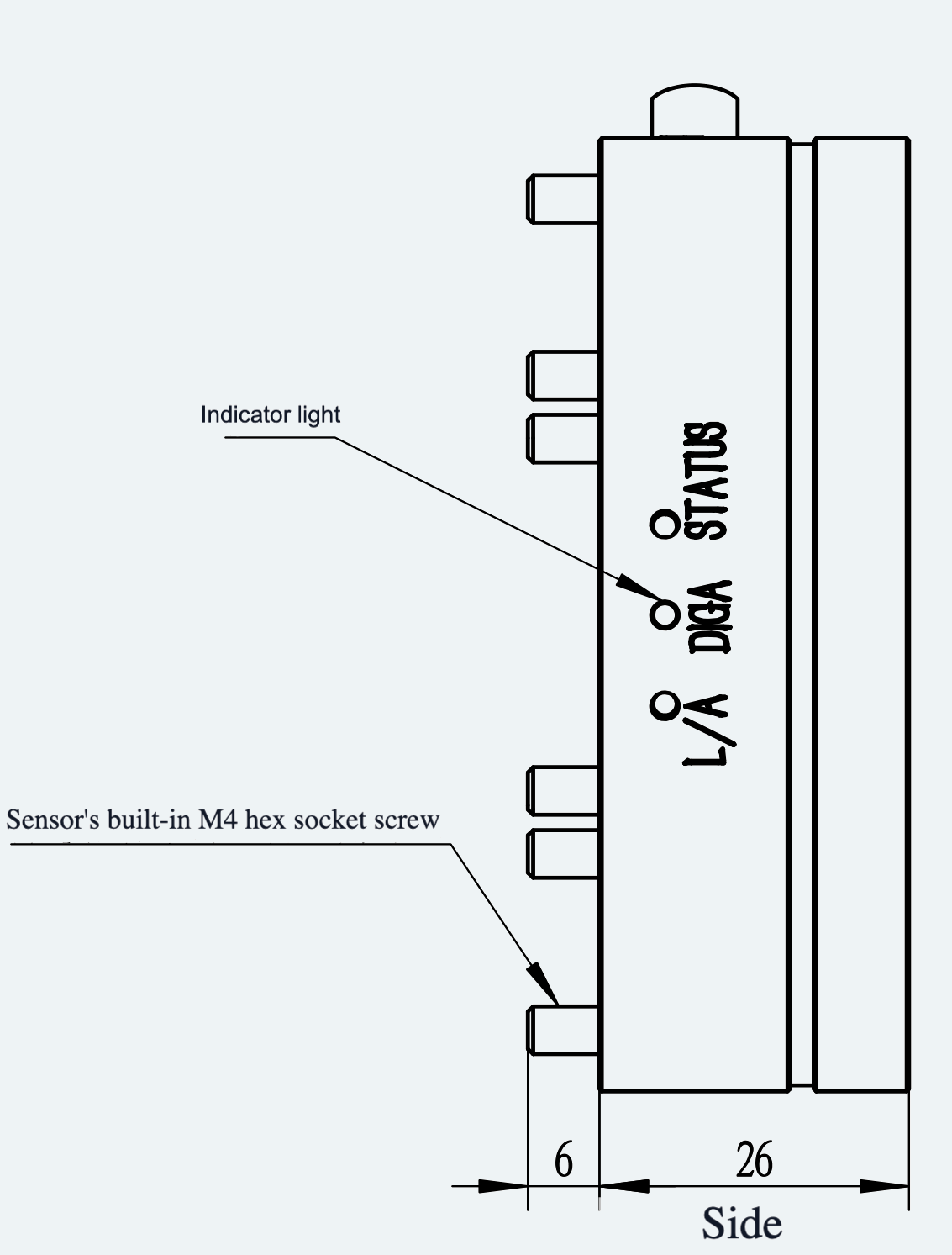

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

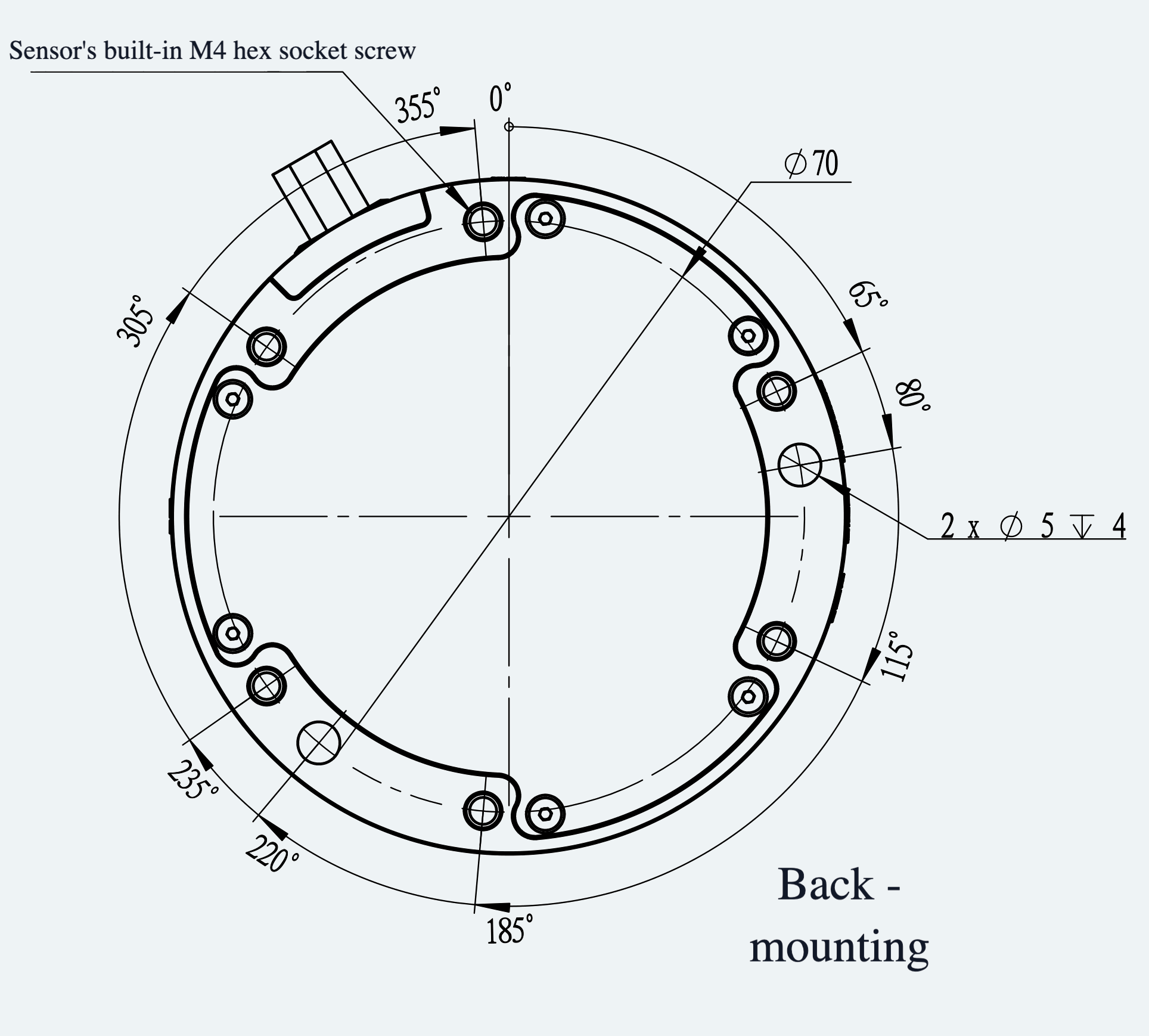

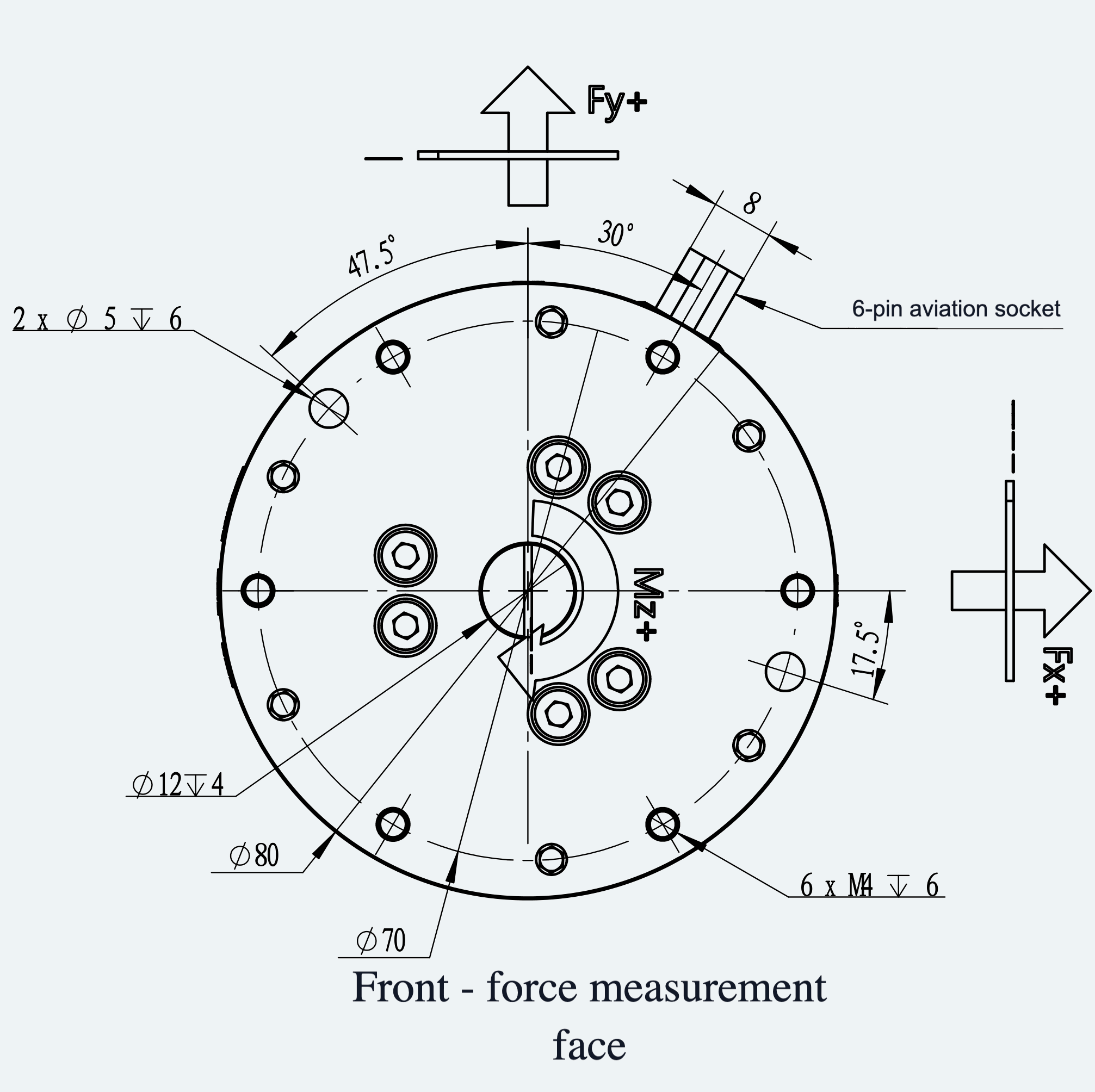

Mechanical View 1 for ES-SN-C30-S001-V006
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 24 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Electrical Parameters

Communication Interface
Ethernet; EtherCAT; RS-485; analog output
External Connector Type
Cold-pressed terminal
Maximum Output Data Rate
2,700 Hz
Maximum RS-485 Output Data Rate
2,200 Hz
Power Consumption
1.5 W
Supply Voltage
12–24 VDC

Performance Parameters

Axis Crosstalk
2 %FS
Nonlinearity
0.5 %FS
Overload Capacity
350 %
Resolution (Fxy)
0.01 %FS
Resolution (Fz)
0.01 %FS
Resolution (Mxy)
0.01 %FS
Resolution (Mz)
0.01 %FS

Mechanical Parameters

System Architecture
Digital output with adapter
Force Range (Fxy)
150 N
Force Range (Fz)
200 N
Measurement Axes
6 axes
Torque Range (Mxy)
5 N·m
Torque Range (Mz)
5 N·m
Dimensions
26 × 80 mm (diameter) mm
Housing Material
Aluminum Alloy
Mass
259 g

Environmental & Insulation

Ingress Protection
IP64; IP67 customization available
Operating temperature
−10 to +55 °C

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.
